Bently Nevada 330104-00-06-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330104-00-06-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

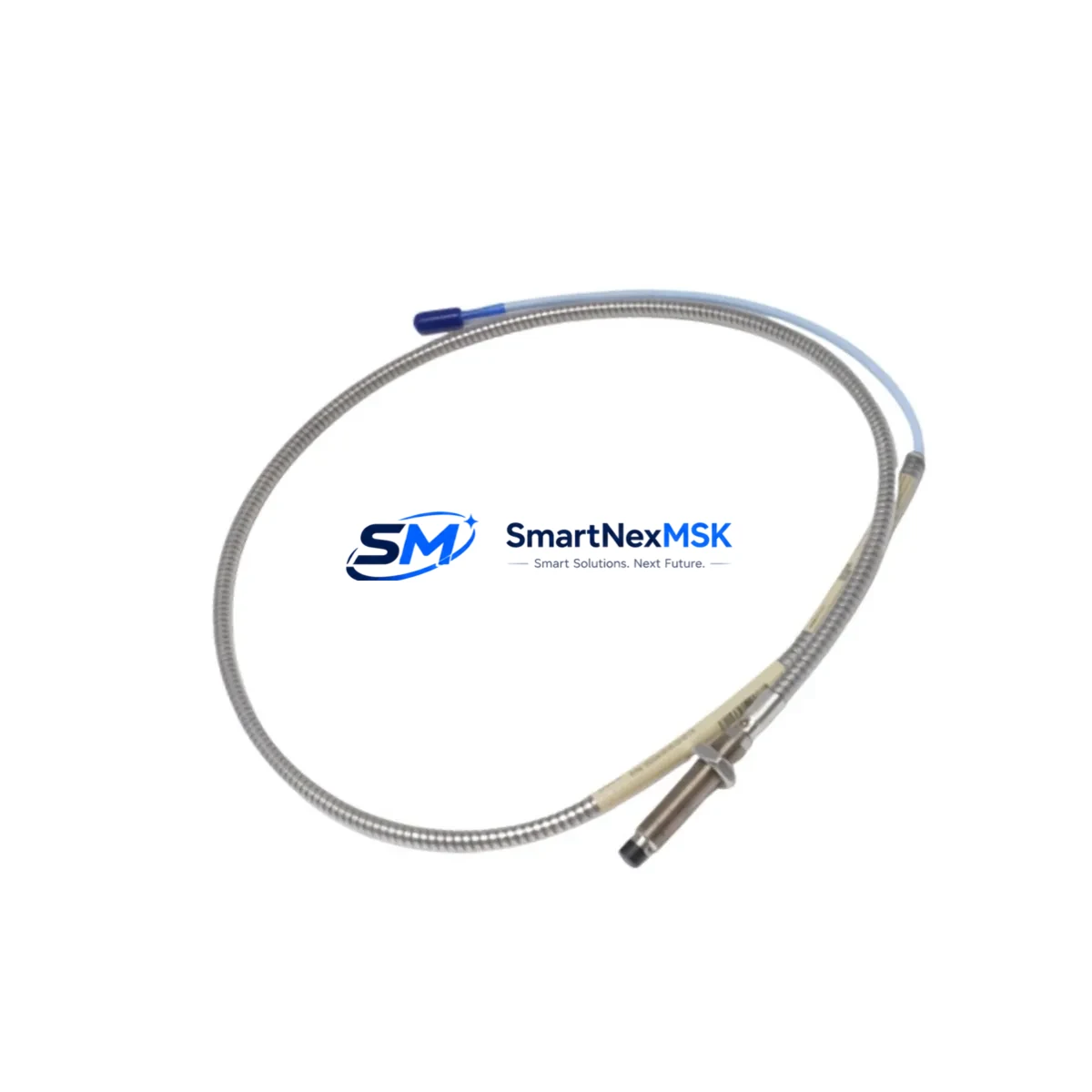

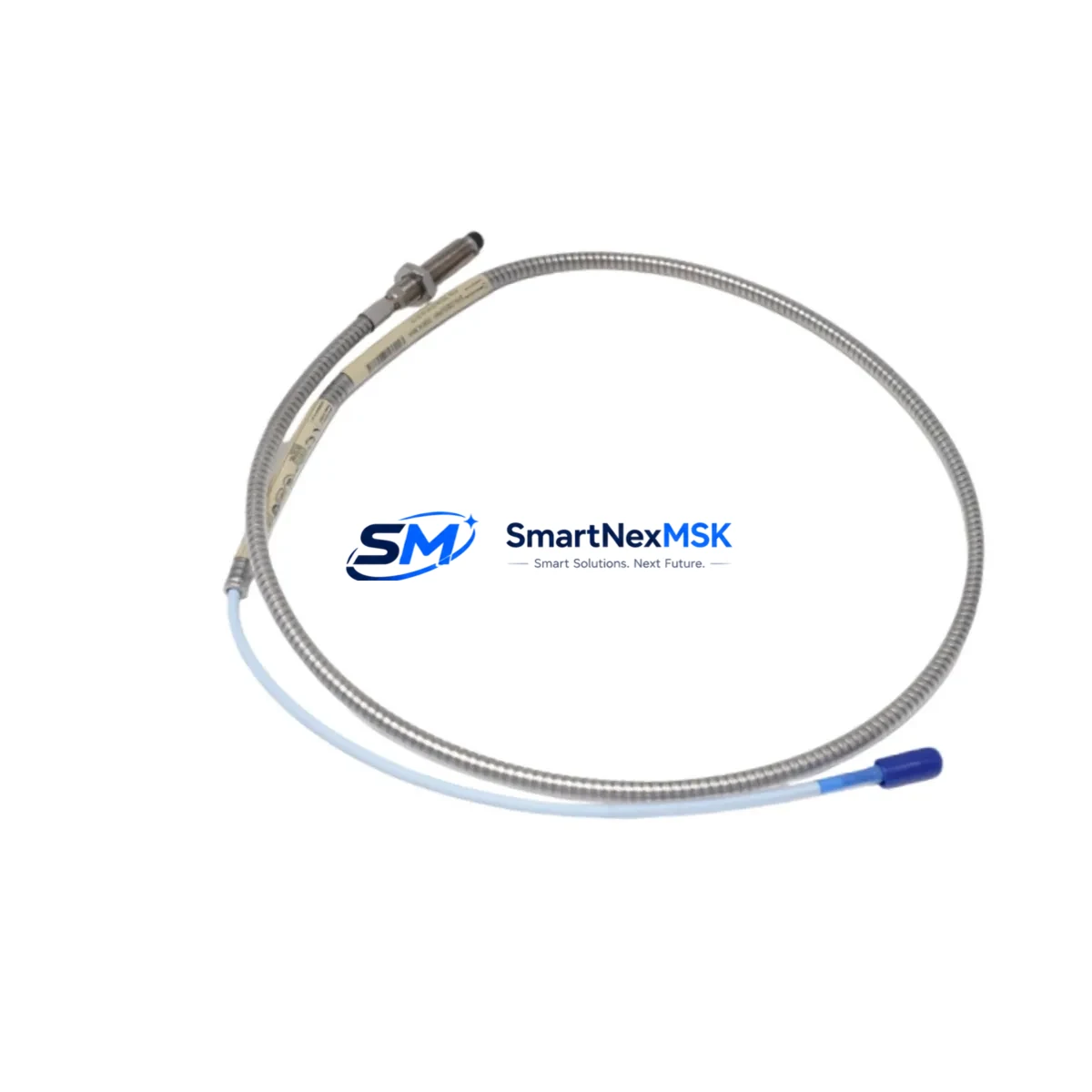

The Bently Nevada 330104-00-06-10-01-00 is an 8mm proximity probe engineered for the 3300 XL series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As original Bently Nevada 3300 XL components approach end-of-life or become increasingly difficult to source through OEM channels, this retrofit-ready replacement offers a verified drop-in solution for facilities managing turbines, compressors, pumps, and gearboxes that depend on continuous vibration and position monitoring.

Whether you are replacing a failed probe in an emergency shutdown scenario, upgrading a legacy 3300 series installation to extend service life, or consolidating spare parts inventory for a multi-train plant, the 330104-00-06-10-01-00 delivers the electrical and mechanical compatibility required for seamless integration without reprogramming the host monitor or reconfiguring the 3300 XL rack.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-06-10-01-00 into an existing 3300 XL installation begins with a thorough review of the current rack configuration. The 3300 XL platform uses a modular backplane architecture, and probe replacement must account for the specific monitor card slot assignment — whether the channel is configured for radial vibration, axial position, or speed measurement. Before removing the failed probe, document the existing gap voltage reading from the 3300 XL monitor front panel or the System 1 condition monitoring software to establish a baseline for post-installation verification.

The 3300 XL 8mm Proximitor Sensor (driver), typically a 330180-series module, must be confirmed as functional before attributing a fault to the probe itself. In many retrofit scenarios, both the probe and the extension cable — commonly a 330130-series armored extension cable — are replaced simultaneously to eliminate intermittent signal faults caused by connector corrosion or cable jacket degradation in high-temperature or high-vibration environments.

For installations where the 3300 XL rack is being migrated toward a newer platform such as the Bently Nevada 3500 series, the probe itself remains mechanically compatible, but the monitor card, I/O module, and rack backplane will require replacement. In such cases, the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor/Seismic Monitor may be specified as the receiving module, and the field wiring from the junction box to the rack must be re-terminated to match the 3500 series terminal block pinout. The System 1 Evolution software configuration will also require a new device template to recognize the updated rack topology.

Control cabinet upgrades involving the 3300 XL often coincide with broader DCS or safety system modernization projects. In these scenarios, the 4–20 mA or relay output signals from the 3300 XL monitor are re-routed to updated I/O cards in the plant DCS — such as Emerson DeltaV SIS or Honeywell Safety Manager — requiring careful signal loop verification and updated cause-and-effect matrix documentation. HMI screens displaying vibration trends from the 3300 XL must be updated to reflect any new tag names or scaling changes introduced during the migration.

For facilities maintaining a mixed fleet of 3300 and 3500 series monitors, spare parts rationalization is a key planning consideration. Stocking the 330104-00-06-10-01-00 alongside compatible 330130-series extension cables, 330180-series Proximitor Sensors, and 3300 XL power supply modules (such as the 3300/05 Power Supply) ensures that emergency replacements can be completed within a single maintenance window without waiting for expedited procurement.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL probe replacement or system migration requires a structured pre-outage preparation protocol. Before the maintenance window opens, verify that the replacement 330104-00-06-10-01-00 probe has been bench-tested for continuity and insulation resistance, and that the target gap has been pre-set using a calibrated gap-setting tool to the nominal specification. This eliminates the most common cause of extended commissioning time — iterative gap adjustment under live machine conditions.

Where the plant schedule permits only a brief outage, a hot-swap approach can be used for probe replacement on non-critical channels: the 3300 XL monitor is placed in bypass mode for the affected channel, the probe is replaced and gap-set, and the channel is returned to normal monitoring mode — all without shutting down the monitored machine. This approach requires strict adherence to the Bently Nevada 3300 XL installation and operations manual and must be reviewed with the site machinery protection engineer before execution.

For full rack migrations from 3300 XL to 3500 series, a parallel monitoring strategy is recommended: the new 3500 rack is installed and wired in parallel with the existing 3300 XL rack, with both systems monitoring the same probes through a signal splitter or junction box. This allows the 3500 system to be commissioned and verified against the 3300 XL baseline before the old rack is decommissioned, preserving continuous protection throughout the transition. Original PLC ladder logic or DCS function blocks referencing 3300 XL alarm setpoints must be updated to reflect the 3500 series output signal format before the cutover.

All replacement units are shipped with full functional test documentation. Each 330104-00-06-10-01-00 probe is verified for output linearity, insulation resistance, and connector integrity prior to dispatch, supporting a streamlined incoming inspection process and reducing commissioning risk on site.

Retrofit Support FAQ

Q: Is the 330104-00-06-10-01-00 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is a verified drop-in replacement for the OEM Bently Nevada 330104-00-06-10-01-00 8mm proximity probe. It is dimensionally and electrically compatible with the 3300 XL series monitor and Proximitor Sensor. No modifications to the probe holder, extension cable connector, or monitor configuration are required for a standard replacement.

Q: What commissioning checks are required after installation?
A: After mechanical installation, the gap voltage must be verified using the 3300 XL monitor’s front-panel meter or a calibrated voltmeter at the Proximitor Sensor output terminals. The nominal gap voltage for the 330104-00-06-10-01-00 on a steel target is typically -10 VDC ±0.5 VDC. Confirm the reading against the original baseline recorded before removal. If the gap voltage is outside tolerance, adjust the probe axial position using the locknut until the correct reading is achieved, then re-torque and seal.

Q: Can this probe be used with the Bently Nevada 3500 series monitors?
A: The 330104-00-06-10-01-00 probe is mechanically compatible with 3500 series installations using 8mm probe holders. However, the 3500 series requires a compatible 3500/42M or 3500/40M monitor card and the appropriate 3500 series Proximitor Sensor. Signal scaling and alarm setpoints must be reconfigured in the 3500 rack to match the probe’s output characteristics. Consult the 3500 series installation manual for full compatibility requirements.

Q: What warranty and quality assurance does this unit carry?
A: Every 330104-00-06-10-01-00 unit is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes output linearity verification, insulation resistance measurement, and connector integrity inspection. Test records are available upon request. Units are packaged in anti-static, shock-resistant packaging to ensure safe transit to site.
