Bently Nevada 330104-00-06-10-02-CN Spare 3300 XL Automation: Precision Spare for Industrial Downtime Control

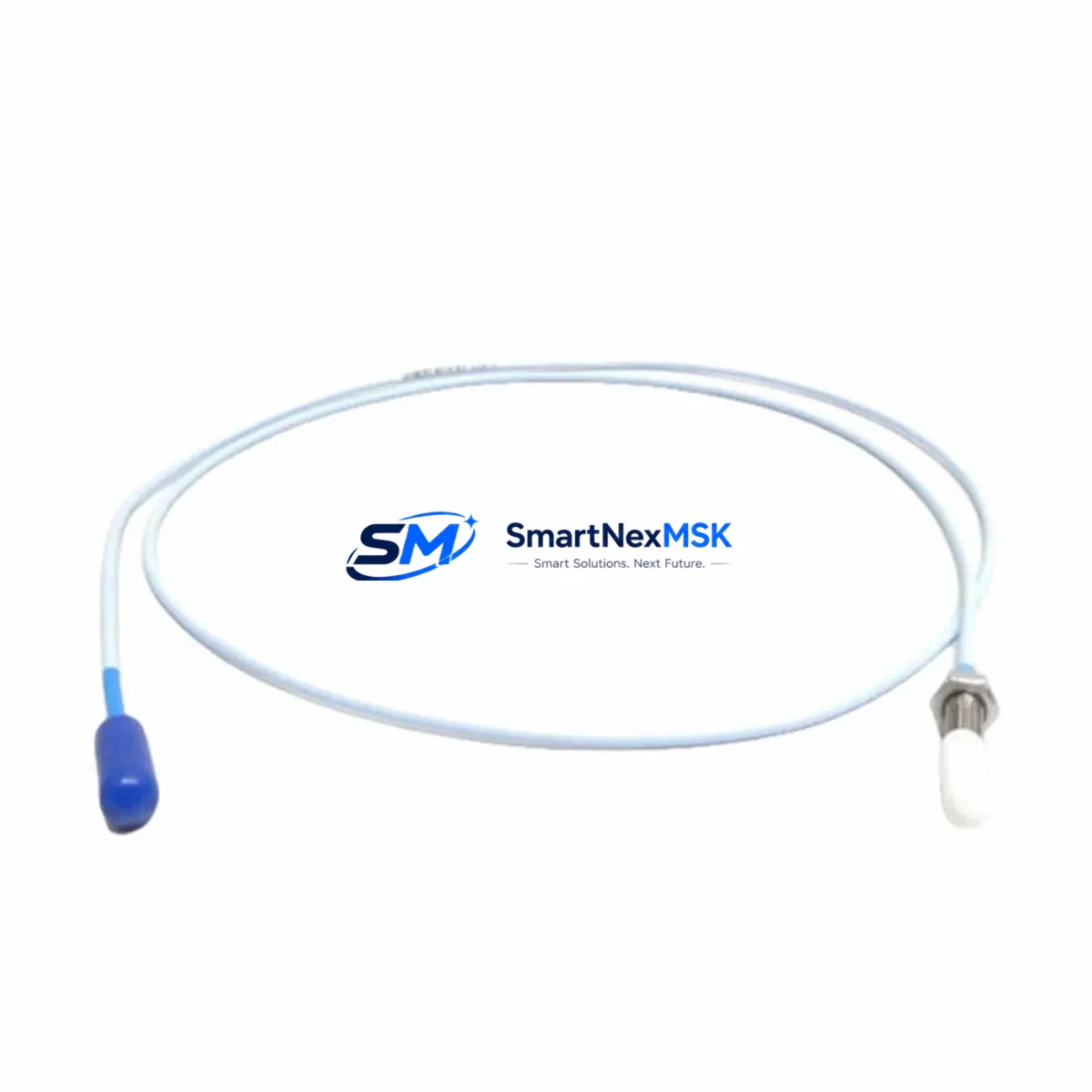

The Bently Nevada 330104-00-06-10-02-CN is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery protection system. As a maintenance-ready original spare, it is designed to deliver immediate drop-in replacement capability for rotating machinery monitoring applications including turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments.
For maintenance engineers managing critical rotating assets, unplanned downtime caused by a failed proximity probe can cascade into production losses measured in hours or days. Stocking a verified original 330104-00-06-10-02-CN ensures that when a fault is isolated to the sensing element, replacement can be executed within a single maintenance window — without waiting on lead times or risking compatibility issues from non-original substitutes.
This probe is supplied tested, serialized, and packaged for immediate field deployment. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance, backed by SMARTNEXMSK’s long-term spare parts supply commitment.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330104-00-06-10-02-CN |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Probe Diameter | 8 mm |
| Cable Length | 0.6 m (integral cable) |
| Extension Cable Compatibility | 3300 XL Extension Cable (e.g. 330130 series) |
| Driver / Proximitor Compatibility | 3300 XL Proximitor Sensor (e.g. 330180 series) |
| Linear Range | Approx. 0.25 mm – 2.25 mm (target material dependent) |
| Operating Temperature | -35°C to +177°C (probe body) |
| Target Material | AISI 4140 steel (standard); other alloys require calibration verification |
| Connector Type | CN (coaxial, standard Bently Nevada) |
| Application | Radial vibration, axial position, differential expansion monitoring |
| Installation Environment | Bearing housings, seal areas, turbine pedestals, compressor casings |
| Condition | Original, new, factory-tested |
| Warranty | 12 Months — functional and manufacturing defect coverage |
| Shipping | Tested and inspected prior to dispatch; global shipping available |
Maintenance Planning for Continuous Operation
When a 330104-00-06-10-02-CN probe is flagged during routine vibration trending or fault isolation, the replacement scope should extend beyond the probe itself. A thorough maintenance review of the complete measurement chain is essential to restore system integrity and prevent repeat failures.
Begin by inspecting the 330130 series extension cable for jacket abrasion, connector corrosion, or impedance drift — a degraded cable will introduce measurement error even with a new probe installed. Verify the 330180 series Proximitor Sensor output voltage and gap voltage calibration against the system baseline; a faulty Proximitor can mask or simulate probe faults. Check the 3300 XL I/O module channel assignment and confirm that the channel is correctly mapped in the machinery protection rack.
At the control cabinet level, inspect the 3300 XL rack power supply module for output voltage stability — undervoltage conditions degrade Proximitor performance and can cause nuisance trips. Review the terminal block connections on the field wiring side for loose terminations, moisture ingress, or corrosion, particularly in high-vibration or high-humidity environments. If the system includes a signal isolator or barrier in the intrinsically safe circuit, verify that the barrier’s working voltage and capacitance limits remain within specification for the 3300 XL system.
For plants running integrated condition monitoring, confirm that the System 1 Evolution software channel configuration reflects the new probe’s calibration data. If the machinery protection system interfaces with a DCS via 4–20 mA output or Modbus, validate the signal scaling after probe replacement. Where keyphasor probes (e.g. 330980 series) are installed on the same shaft, verify their gap and signal quality simultaneously — a degraded keyphasor will corrupt phase and 1X amplitude data across all channels on that machine train.
Procurement engineers should consider maintaining a minimum of two 330104-00-06-10-02-CN units in the site spare parts inventory for each critical machine train, alongside matched extension cables and at least one spare Proximitor Sensor. This three-component spare set enables a complete measurement chain swap during an emergency outage without waiting for individual component sourcing.
Site Replacement Workflow
Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machinery protection channel is bypassed or inhibited in the 3300 XL rack before disconnecting the probe to avoid spurious trips during replacement.
Step 2 — Probe Removal: Disconnect the extension cable at the field junction. Remove the probe from the mounting bracket, noting the installed gap distance (typically measured in mils or mm from the probe tip to the target surface). Record the as-found gap for comparison after installation.
Step 3 — New Probe Installation: Install the 330104-00-06-10-02-CN into the mounting bracket. Set the probe gap to the system-specified value (commonly 50 mils / 1.27 mm for standard 3300 XL configurations, but always verify against the machine-specific alarm setpoints). Torque the locknut to specification to prevent gap drift under vibration.
Step 4 — Cable Connection and Verification: Reconnect the extension cable. Measure the Proximitor output voltage at the rack terminal to confirm the gap is within the linear range. Compare against the pre-fault baseline recorded in System 1 or the site maintenance log.
Step 5 — System Restoration: Remove the bypass/inhibit in the 3300 XL rack. Confirm alarm and danger setpoints are active. Observe the vibration trend for a minimum of 15 minutes at operating speed before returning the machine to full load.
This workflow is applicable as a direct replacement for legacy 330104 series probes previously installed in 3300 XL systems, enabling seamless compatibility without rack reconfiguration or software changes.
Spare Parts Support FAQ
Q1: Is the 330104-00-06-10-02-CN a direct replacement for older 330104 series probes in existing 3300 XL racks?
Yes. The 330104-00-06-10-02-CN is fully compatible with 3300 XL Proximitor Sensors and extension cables. No rack reconfiguration is required for a like-for-like replacement. Always verify the gap setting and Proximitor output voltage after installation to confirm correct calibration.
Q2: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (turbines, compressors, large pumps), maintain a minimum of two probes per machine train. Pair each probe with a matched 330130 series extension cable and one 330180 Proximitor Sensor to enable a full measurement chain replacement during an unplanned outage. Review and rotate spare stock every 24 months to prevent storage-related degradation.
Q3: How is each unit tested before shipment?
Every 330104-00-06-10-02-CN supplied by SMARTNEXMSK undergoes functional verification including coil impedance measurement, insulation resistance check, and connector integrity inspection prior to dispatch. Units are individually packaged to prevent transit damage. A 12-month warranty covers manufacturing defects and functional performance from the date of shipment.
Q4: Can SMARTNEXMSK support long-term or repeat supply of this part?
Yes. SMARTNEXMSK maintains dedicated inventory of 3300 XL series spare components to support planned maintenance schedules, annual turnaround procurement, and emergency replacement requirements. Contact our team to discuss blanket order arrangements, lead time commitments, and multi-site supply agreements.
