Bently Nevada 330104-00-06-90-02-00 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330104-00-06-90-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

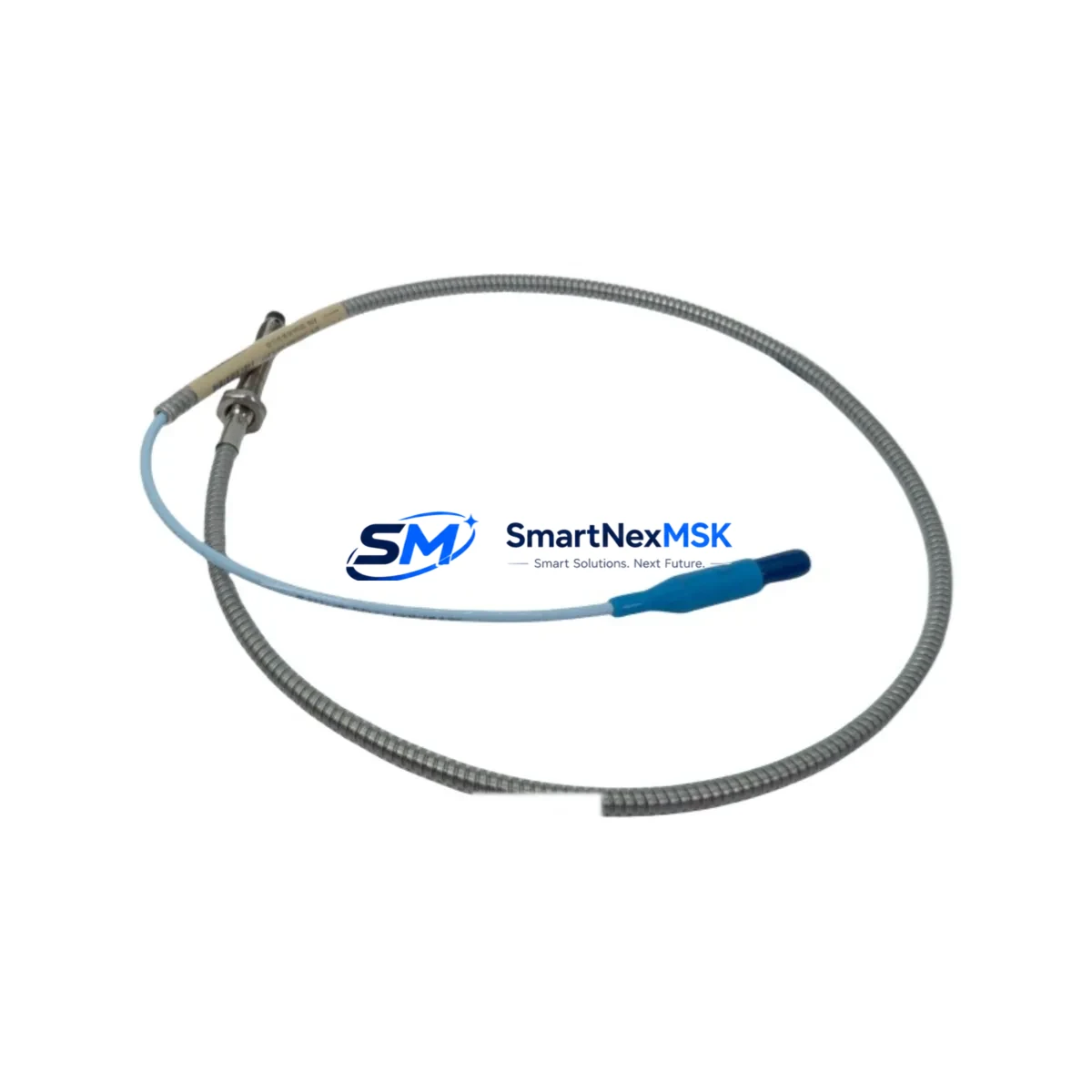

The Bently Nevada 330104-00-06-90-02-00 is an 8mm proximity transducer engineered for seamless integration into Bently Nevada 3300 XL continuous machinery monitoring systems. As legacy vibration monitoring infrastructure ages across refineries, power generation facilities, compressor stations, and rotating equipment platforms, the demand for verified retrofit-ready replacement components has never been higher. This unit is sourced from authorized supply channels, individually tested prior to shipment, and backed by a 12-month warranty — making it a reliable choice for both emergency replacement and planned system modernization projects.

Whether you are replacing a failed transducer on a critical turbine train, upgrading an aging 3300 Series rack to the 3300 XL platform, or restoring a dormant monitoring loop, the 330104-00-06-90-02-00 delivers the dimensional accuracy, output sensitivity, and cable termination compatibility required for drop-in installation without signal recalibration in most standard configurations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL proximity monitoring loop requires careful coordination across multiple system components. The 330104-00-06-90-02-00 transducer is only one element of a complete measurement chain. Before installation, engineers must confirm the matching Proximitor sensor — typically a 3300 XL 8mm Proximitor (part series 330180) — is present and functional. The Proximitor conditions the raw eddy-current signal from the transducer and delivers a calibrated DC voltage to the monitor module.

Extension cables must also be verified. The 330130 series extension cables are the standard interconnect between the transducer and Proximitor in most 3300 XL installations. Cable length directly affects system sensitivity, and mismatched cable lengths will shift the gap voltage calibration curve. When replacing only the transducer, retain the existing extension cable if it passes continuity and insulation resistance checks.

At the monitor rack level, confirm that the 3300 XL monitor module — such as the 3300/20 Dual Voting or 3300/16 Radial Vibration Monitor — is configured for the correct transducer type and sensitivity. Channel configuration is managed through the rack’s internal DIP switches or, on newer variants, through System 1 Condition Monitoring Software. If the plant is migrating from an older 3300 Series (non-XL) rack to the 3300 XL platform, the rack backplane and power supply module (3300/05 or 3300/10 series) must also be evaluated for compatibility with the new monitor cards.

For facilities running Bently Nevada System 1 software, the transducer replacement should be logged as a configuration change event. Verify that the channel’s full-scale range, alert setpoints, and danger setpoints remain valid after the swap. If the machine has a paired keyphasor transducer — often a 330180 or 330104 series probe mounted on the shaft reference mark — confirm that the keyphasor signal is stable before returning the loop to service.

In control cabinet environments where the 3300 XL rack shares a panel with other instrumentation — such as a Rockwell Automation ControlLogix or Allen-Bradley PLC rack receiving 4–20 mA retransmission signals from the Bently Nevada monitors — verify that the analog output wiring to the DCS or safety system remains undisturbed during the transducer swap. Any interruption to the 4–20 mA loop may trigger a spurious alarm or trip in the connected safety instrumented system.

All replacement components are shipped with individual test documentation. Stock is available for immediate dispatch, supporting both planned turnaround maintenance and emergency breakdown recovery scenarios.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement on a live rotating machine requires a structured pre-outage checklist. Before the maintenance window opens, confirm that a spare 330104-00-06-90-02-00 unit is on-site and has passed incoming inspection. Review the machine’s vibration trend data in System 1 to establish a baseline gap voltage and vibration amplitude for post-installation comparison.

During the outage, follow the OEM gap-setting procedure: with the machine at rest, set the transducer gap to achieve a –12 VDC output (nominal center of the linear range). Document the as-found and as-left gap voltages. If the monitor channel uses a 3300 XL Dual Voting configuration, the second channel’s setpoints must remain active and armed throughout the single-channel maintenance period to preserve trip protection.

After installation, perform a slow-roll check before bringing the machine to operating speed. Confirm that the 1X and 2X vibration amplitudes and phase angles are consistent with historical baseline data. If System 1 is connected, verify that the new transducer’s channel data is populating correctly in the trend database before closing the work order. This end-to-end verification process — from pre-outage spare confirmation through post-installation trend validation — typically adds less than 30 minutes to a standard transducer swap and significantly reduces the risk of a repeat outage caused by installation error.

Retrofit Support FAQ

Q1: Is the 330104-00-06-90-02-00 a direct drop-in replacement for older 330104 series probes with different cable length suffixes?
A: In most cases, yes — provided the Proximitor model and extension cable length are matched to the new transducer. The –06– designation in the part number indicates a 6-meter integral cable. If the existing installation uses a different cable length variant, the gap voltage calibration must be re-verified after installation. Consult the Bently Nevada 3300 XL Installation Manual for the full sensitivity vs. cable length table.

Q2: What wiring checks should be completed before installing this transducer?
A: Verify that the extension cable connector (TNC or integral) is clean and undamaged. Check the Proximitor power supply voltage (–24 VDC ±1 VDC) at the terminal block before connecting the new transducer. Confirm that the monitor channel is in bypass or inhibit mode during installation to prevent a spurious trip.

Q3: Has this unit been tested before shipment?
A: Yes. Every 330104-00-06-90-02-00 unit is bench-tested for output sensitivity, linearity, and insulation resistance prior to dispatch. A test report is included with each shipment. The unit is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions.

Q4: Can this transducer be used with a non-Bently Nevada monitor or DCS input card?
A: The 330104-00-06-90-02-00 outputs a standard DC voltage signal (–24 VDC supply, analog voltage output) that is compatible with any monitor or input card designed for eddy-current proximity transducer signals with 200 mV/mil sensitivity. However, full system performance and warranty coverage are only guaranteed when used within a complete Bently Nevada 3300 XL measurement chain including the matched Proximitor and extension cable.
