Bently Nevada 330104-00-07-10-02-00 Spare 3300 XL Automation: Spare Replacement & Industrial Downtime Risk Control

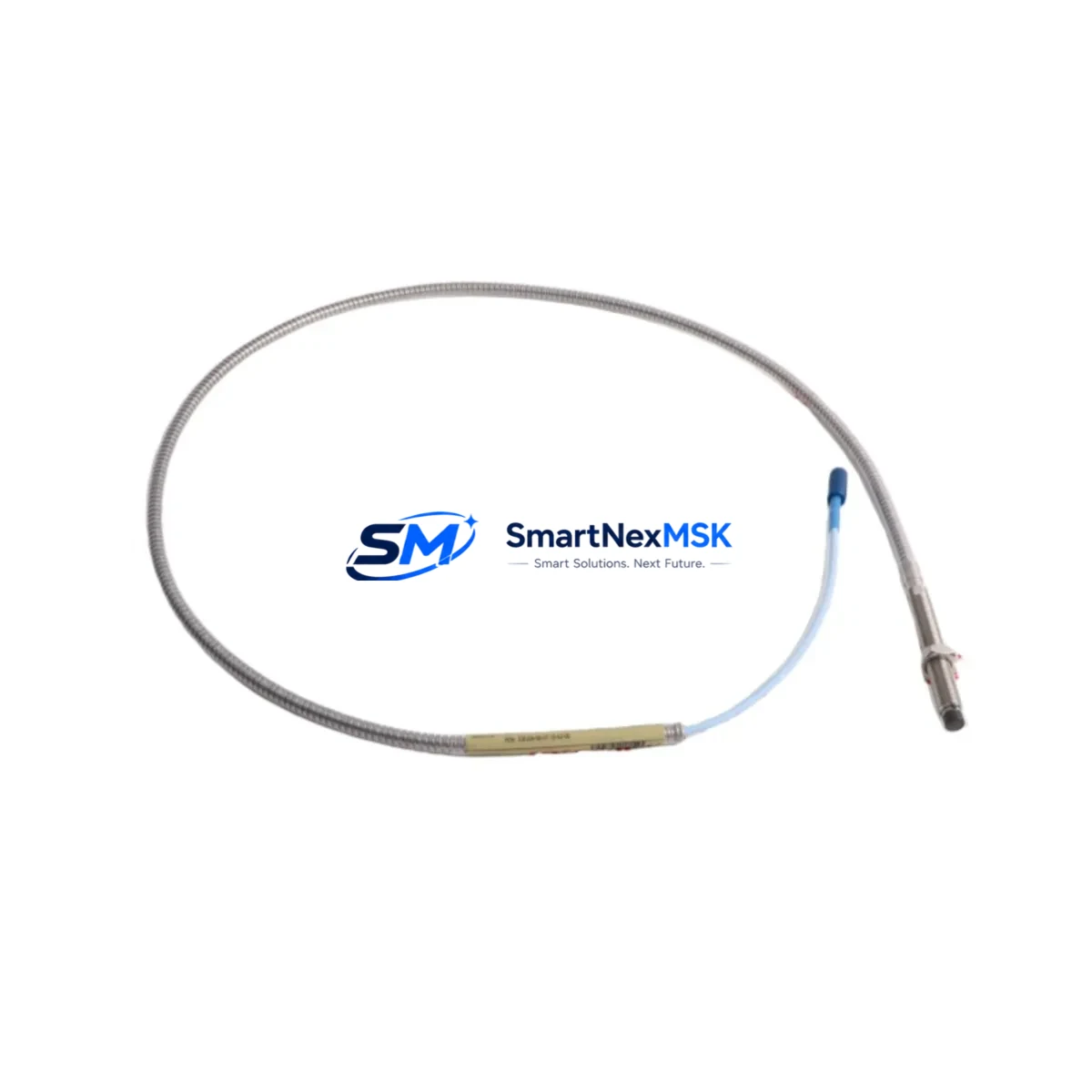

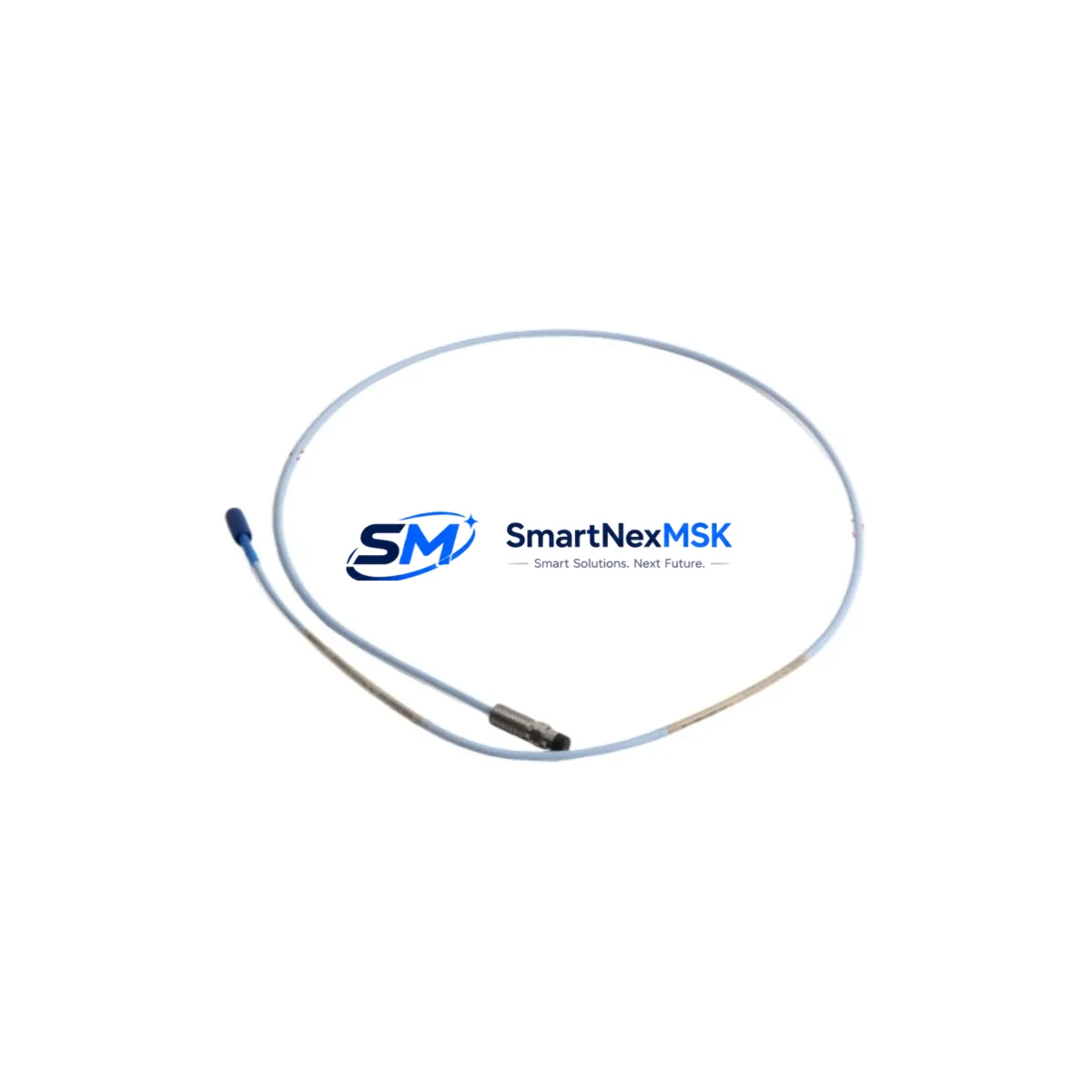

The Bently Nevada 330104-00-07-10-02-00 is an original 8mm eddy-current proximity transducer engineered for the 3300 XL continuous monitoring system. Designed for critical rotating machinery applications — including steam turbines, gas compressors, pumps, and gearboxes — this transducer delivers precise radial vibration and position measurements essential for predictive maintenance and machinery protection. Sourced directly from authorized supply channels, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring your facility can restore monitoring capability with confidence and minimal downtime.

For maintenance engineers managing aging 3300 XL installations, the 330104-00-07-10-02-00 represents a critical line-replaceable unit. Its 8mm tip diameter and standard 5-metre integral cable configuration make it a direct fit for existing probe mounts without mechanical modification. Whether you are responding to a sudden transducer failure, executing a planned turnaround, or building a strategic spare parts inventory, this unit ships ready for immediate installation and commissioning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-07-10-02-00 proximity transducer during a planned or emergency maintenance event, experienced maintenance engineers treat the transducer as one component within an interdependent measurement chain. A complete 3300 XL 8mm proximity system consists of the transducer, a matched extension cable (such as the 330130-045-00-00 or 330130-080-00-00 depending on cable run length), and a Proximitor sensor (typically the 330180-X1-05 or 330180-X1-00 series). All three components must be from the same system family and calibrated together to maintain measurement accuracy within API 670 tolerances.

During control cabinet inspection and turnaround planning, maintenance teams should simultaneously evaluate the condition of the 3300 XL monitor rack — including the 3300/16 or 3300/20 monitor cards — for signs of relay contact wear, input channel drift, or power supply degradation. The 3300 XL rack power supply module should be checked for output voltage stability, as supply fluctuations directly affect transducer bias voltage and gap measurement accuracy. I/O terminal blocks within the junction box should be inspected for corrosion, loose terminations, and insulation breakdown, particularly in high-vibration or high-humidity environments.

For facilities operating legacy 3300 XL systems alongside newer 3500 series monitors, it is advisable to maintain parallel spare inventories. The 3500/42M and 3500/45 monitor modules use different transducer system configurations and are not interchangeable with 3300 XL components. Keeping clearly labelled, segregated spare kits prevents field installation errors during high-pressure emergency shutdowns.

Signal conditioning integrity should also be verified when replacing the transducer. If the facility uses signal isolators or barriers between the Proximitor output and the DCS or safety system input, these devices — including galvanic isolators and Zener barriers — should be tested for correct output scaling and loop resistance. Communication modules connecting the 3300 XL rack to plant historians or condition monitoring platforms should be confirmed operational after any rack disturbance. HMI displays showing vibration trend data should be checked for correct engineering unit scaling following transducer replacement and gap re-setting.

Fuse holders and circuit protection within the transducer power distribution circuit should be inspected as part of every corrective maintenance event. A blown fuse or degraded fuse holder can cause intermittent power loss to the Proximitor, producing erratic vibration readings that may be misdiagnosed as a transducer fault. Replacing the transducer without addressing upstream power quality issues will result in repeat failures.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Prior to removal, record the existing gap voltage (typically -10.0 to -11.0 VDC for an 8mm system at nominal gap) from the monitor front panel or DCS historian. This baseline confirms the original installation gap and provides a reference for post-installation verification.

Step 2 — Component Removal: Disconnect the extension cable from the transducer at the junction box. Carefully unthread the transducer from the probe mount, noting the number of turns to achieve the original gap. Inspect the probe mount threads and the target surface for wear, scoring, or contamination.

Step 3 — New Transducer Installation: Install the 330104-00-07-10-02-00 replacement transducer into the probe mount. Set the initial gap to the manufacturer-recommended starting position (typically 1.0 mm / 40 mil for an 8mm probe). Reconnect the extension cable, ensuring connector seating and locking ring engagement.

Step 4 — Gap Verification and Fine Adjustment: With the system powered and the shaft stationary, measure the Proximitor output voltage. Adjust the transducer gap until the output reads within the linear range centre (approximately -10.5 VDC). Lock the transducer in position using the locknut and apply thread-locking compound if specified by site procedures.

Step 5 — System Functional Test: Confirm that the monitor channel displays a valid vibration reading with no alarm or danger trip. Verify that the DCS or safety system receives the correct 4–20 mA or voltage signal. Update the maintenance management system with the replacement record, new gap voltage, and component serial number.

This workflow minimises machinery downtime, preserves system compatibility, and ensures the replacement transducer performs to original specification from first startup.

Spare Parts Support FAQ

Q1: Is the 330104-00-07-10-02-00 compatible with both 3300 XL and older 3300 series monitors?
The 330104-00-07-10-02-00 is designed and calibrated for the 3300 XL 8mm proximity system. While the physical connector and cable configuration may appear similar to earlier 3300 series components, the sensitivity and linear range specifications are optimised for 3300 XL Proximitor sensors. Using this transducer with non-XL Proximitor models may result in measurement errors. Always verify system compatibility before installation.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Each 330104-00-07-10-02-00 unit undergoes functional output verification and sensitivity measurement prior to dispatch. The 12-month warranty covers manufacturing defects and confirmed performance deviations from published specifications under normal operating conditions. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q3: How should this transducer be stored if purchased as a strategic spare?
Store the unit in its original packaging in a clean, dry environment at temperatures between -20°C and +70°C, away from strong magnetic fields and corrosive atmospheres. Inspect the connector and cable jacket for damage before installation. For long-term storage exceeding 12 months, re-verify output sensitivity before placing the unit in service.

Q4: Can you supply matched sets of transducer, extension cable, and Proximitor sensor for a complete 3300 XL 8mm system?
Yes. We can supply complete matched 3300 XL 8mm proximity system sets, including the 330104-00-07-10-02-00 transducer, compatible extension cables, and 330180 series Proximitor sensors. Matched sets are recommended for new installations and full system replacements to ensure calibration traceability and measurement accuracy. Contact our technical sales team to confirm availability and lead times for your specific configuration.
