Bently Nevada 330104-00-07-50-02-05 Spare 3300 XL

Bently Nevada 330104-00-07-50-02-05 Spare 3300 XL: Precision Spare Parts Replacement for Industrial Downtime Control

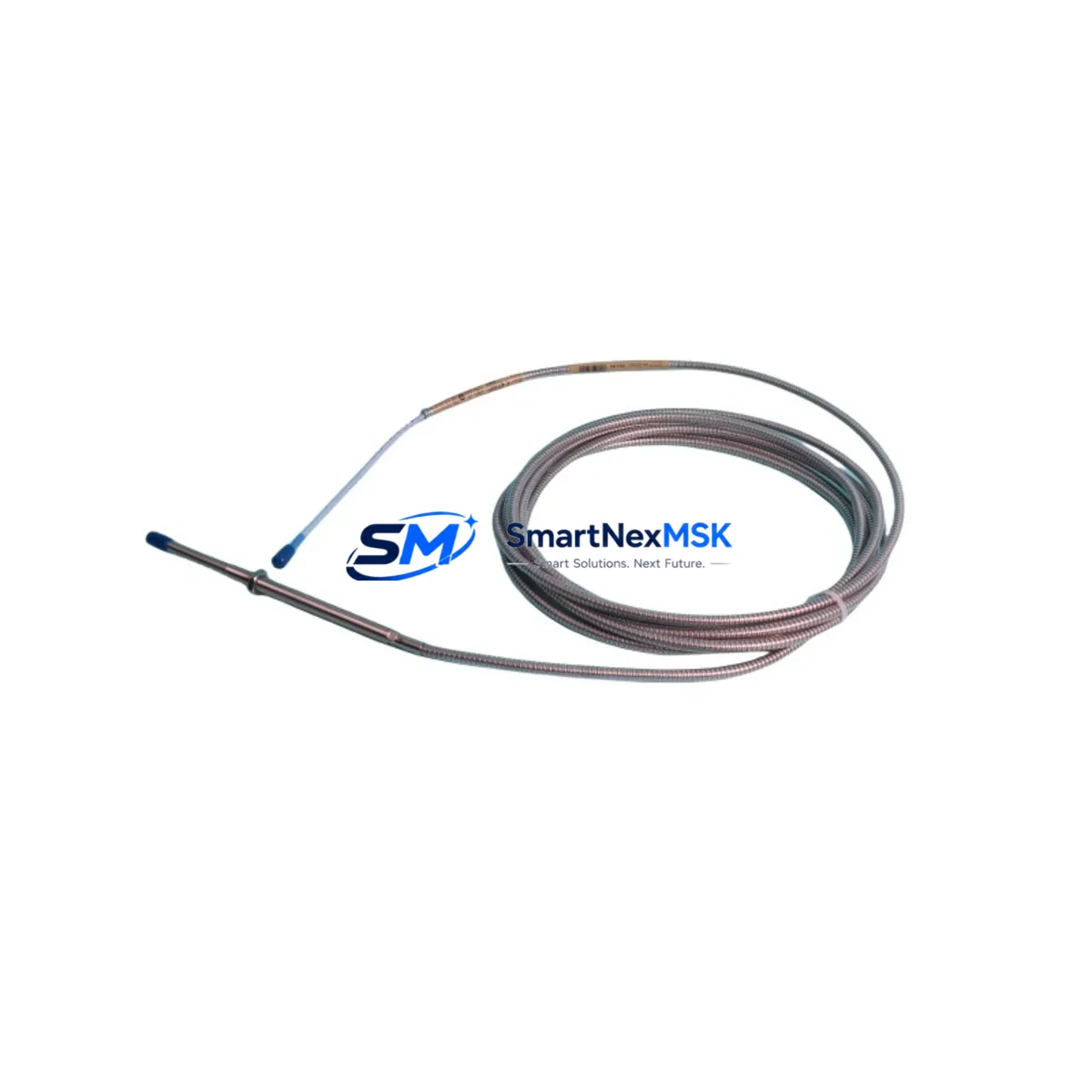

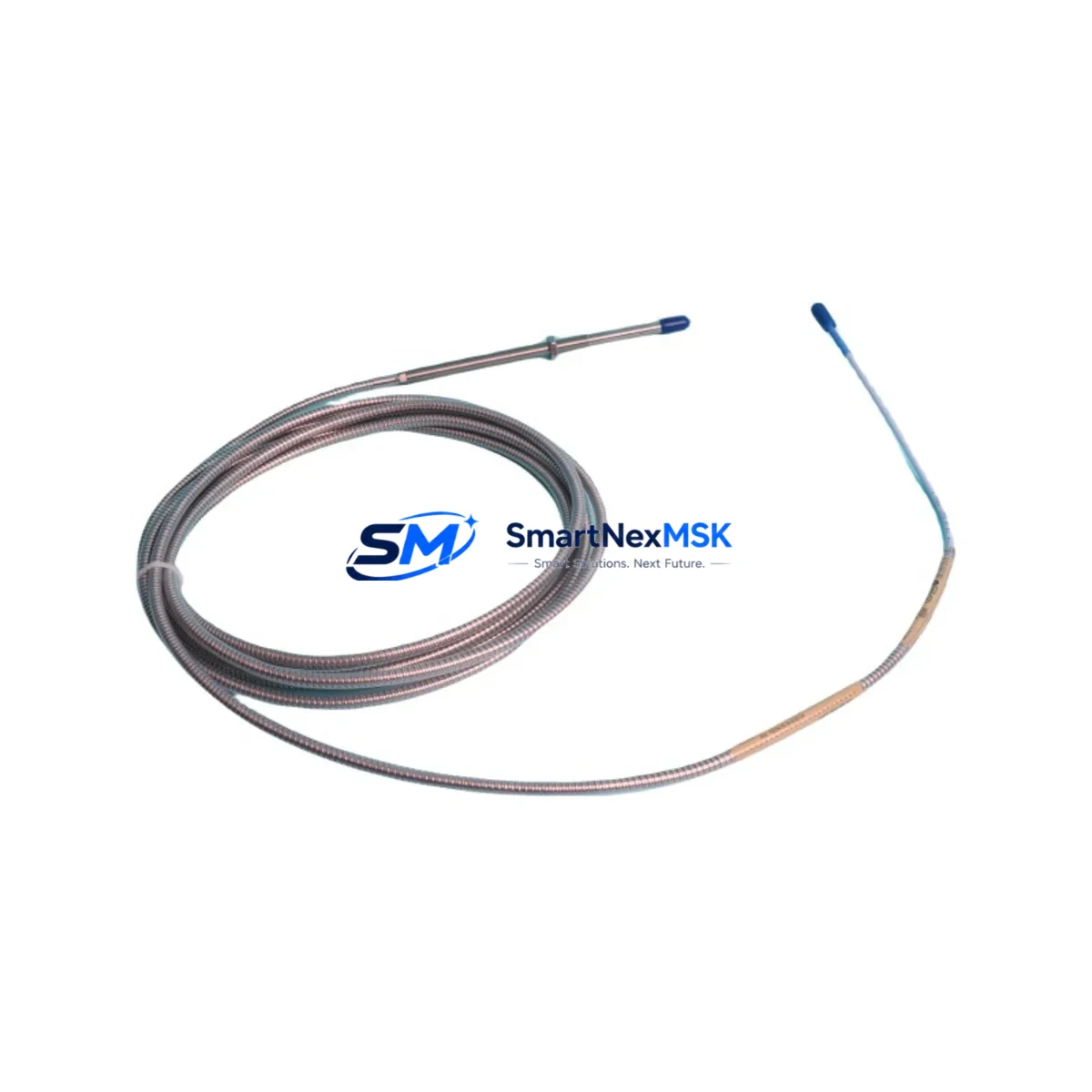

The Bently Nevada 330104-00-07-50-02-05 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for high-reliability rotating machinery protection — including turbines, compressors, pumps, and gearboxes — this probe delivers accurate radial vibration and position measurements critical to plant safety and uptime. Sourced as an original spare, each unit is inspection-tested prior to shipment and backed by a 12-month warranty, making it a dependable choice for both planned maintenance and emergency replacement scenarios.

For maintenance engineers managing aging turbomachinery or DCS-integrated monitoring systems, having a verified 330104-00-07-50-02-05 on the shelf eliminates the risk of extended downtime caused by probe failure. This model features a 7.62m (25 ft) armored extension cable and is fully compatible with the 3300 XL proximitor/seismic monitor, ensuring drop-in replacement without recalibration of the monitoring loop when matched with the correct proximitor.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-07-50-02-05 proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should simultaneously inspect the 3300 XL Proximitor (e.g., 330180-X1-05) for output voltage drift and connector corrosion, as a degraded proximitor will produce erroneous gap voltage readings even with a new probe installed.

The extension cable (330130-045-00-00) connecting the probe to the proximitor is a frequent failure point in high-vibration environments — check for jacket abrasion, connector pin damage, and continuity. In control cabinet inspections, verify the 3300/16 I/O module terminal connections for loose wiring and confirm that the 3300 XL rack power supply is delivering stable ±24 VDC to the monitoring cards. Unstable supply voltage is a common root cause of false vibration alarms.

For systems integrated with a System 1 Evolution or legacy TDXnet data acquisition network, confirm that the channel configuration in the software matches the new probe’s sensitivity (typically 7.87 V/mm or 200 mV/mil). If the plant uses 3500 Series monitors in adjacent machinery trains, cross-check spare probe compatibility — the 3500/42M proximity monitor uses a different probe family and is not interchangeable.

During planned shutdowns, it is good practice to also inspect Keyphasor probes (330980-XX-XX) mounted on the same shaft, as these reference probes share the same environmental exposure and often degrade in parallel. Relay output modules within the 3300 XL rack, such as the 3300/55 relay module, should be tested for contact integrity if any spurious trip events have been logged. For plants running older Bently Nevada 7200 Series monitors alongside 3300 XL systems, ensure that spare probe inventories are clearly segregated by series to avoid cross-installation errors during emergency maintenance.

Maintaining a minimum of two 330104-00-07-50-02-05 probes in the site spare parts store — alongside matched extension cables and at least one spare proximitor — is recommended for any facility operating critical rotating machinery on a continuous basis. This buffer supports both scheduled replacement during turnarounds and unplanned emergency swap-outs without waiting on international lead times.

Site Replacement Workflow

The 330104-00-07-50-02-05 is a direct replacement for earlier 3300 XL probe assemblies with equivalent cable length and thread specifications. Before installation, confirm the shaft gap target distance using a calibrated gap meter and set the probe tip-to-shaft gap to the manufacturer-specified range (typically 1.0–1.5mm for 8mm probes on steel targets). Record the static gap voltage at the proximitor output and compare against the 3300 XL system’s configured alert and danger setpoints.

After probe installation, perform a slow-roll check to verify that the dynamic signal is clean and free of electrical runout artifacts. Update the maintenance management system (CMMS) with the replacement date, probe serial number, and gap voltage reading. If the plant is transitioning from an older 3300 Series (non-XL) probe, verify that the proximitor is also upgraded to the XL-compatible model, as the two generations use different sensitivity curves and are not directly interchangeable without reconfiguration.

This workflow minimizes machinery downtime, preserves monitoring system integrity, and ensures that the replacement is fully documented for regulatory compliance and future maintenance planning.

Spare Parts Support FAQ

Q1: Is the 330104-00-07-50-02-05 compatible with both 3300 XL and legacy 3300 Series monitors?
The 330104-00-07-50-02-05 is designed and calibrated for the 3300 XL Series. While physical installation may be possible in some legacy 3300 Series racks, the sensitivity and output characteristics differ between generations. Always verify proximitor compatibility before installation to avoid measurement errors or false trips.

Q2: What is included in the 12-month warranty and how does it apply to field replacements?
Each 330104-00-07-50-02-05 supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified functional failures under normal operating conditions. Units are inspection-tested before dispatch; warranty claims require return of the defective unit with a failure description.

Q3: How quickly can this spare be shipped for emergency maintenance situations?
In-stock units are dispatched within 1–2 business days via international express courier. For critical plant emergencies, contact our sales team directly to confirm real-time stock availability and expedited shipping options to your site.

Q4: How should this probe be stored as a long-term spare in a site inventory?
Store the 330104-00-07-50-02-05 in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields and mechanical vibration. Inspect connector pins and cable jacket annually. Rotate stock on a first-in, first-out basis and verify functional status before deployment if stored for more than 24 months.
