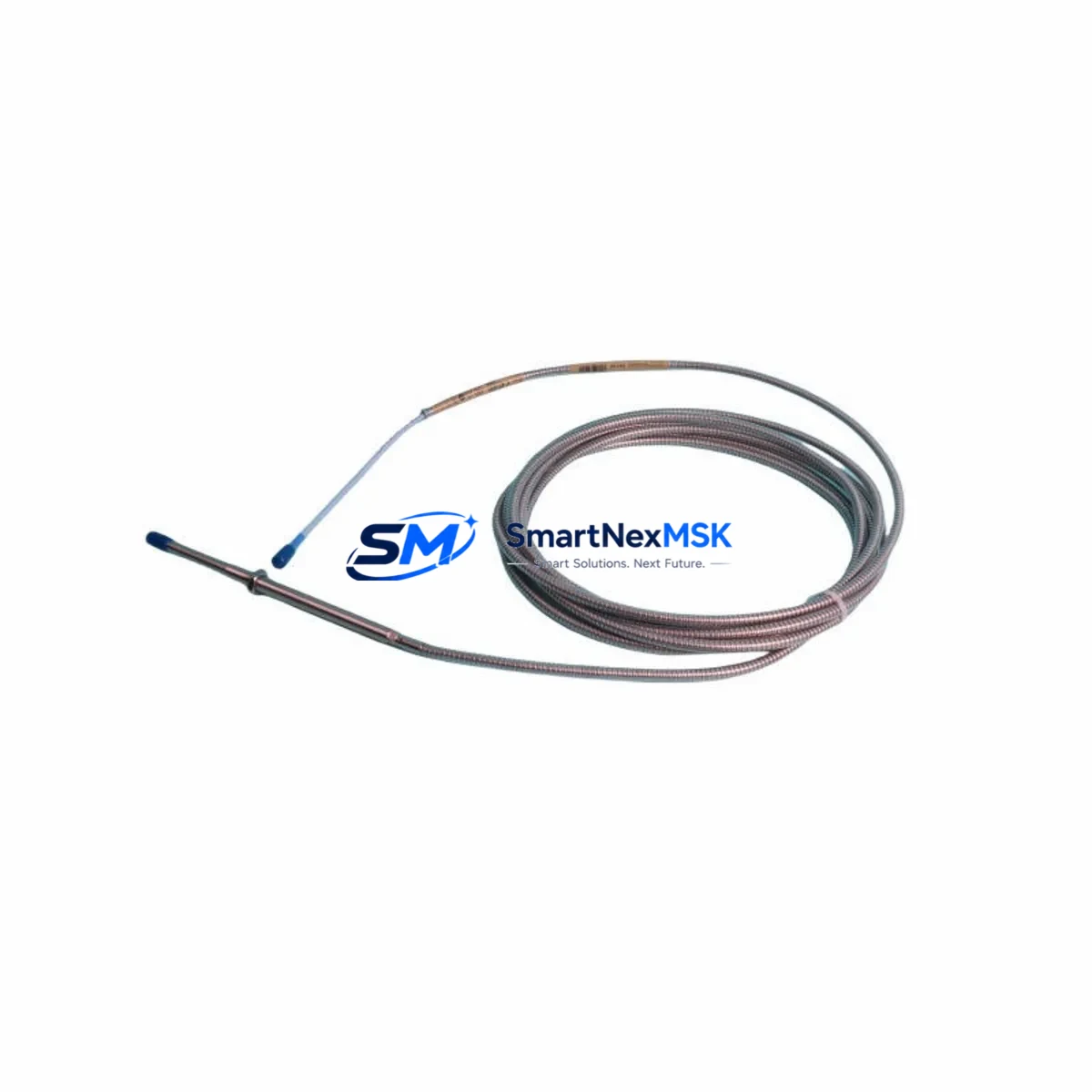

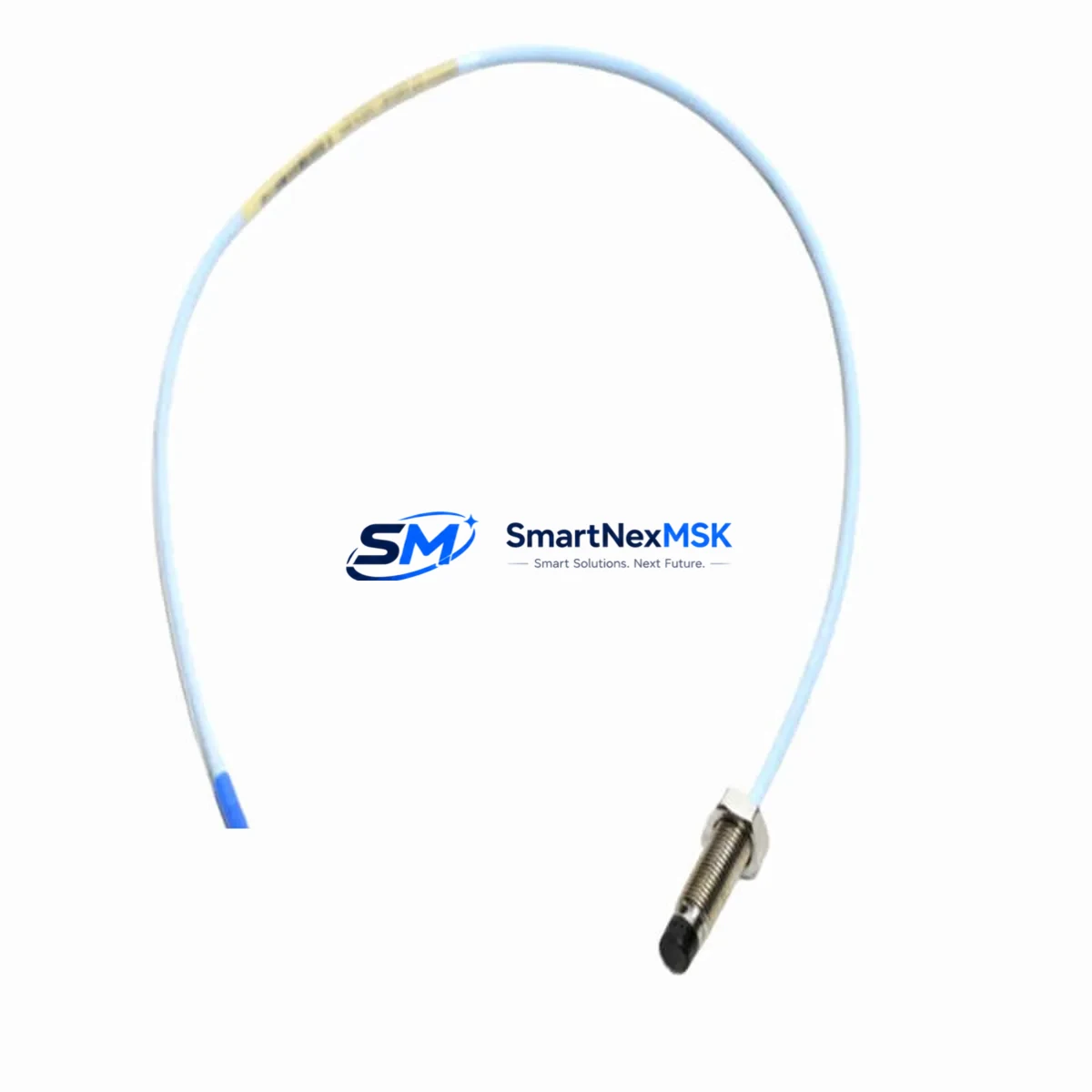

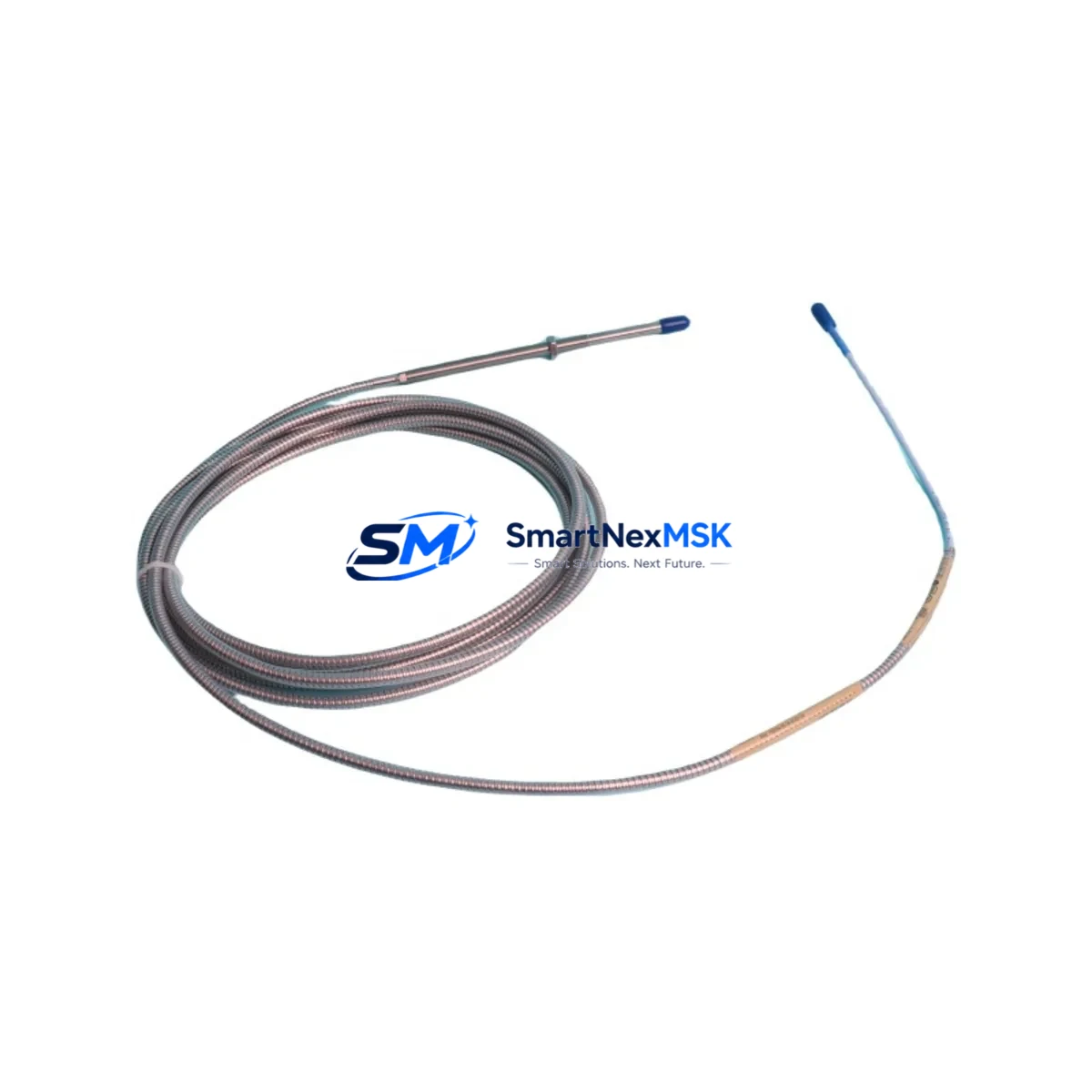

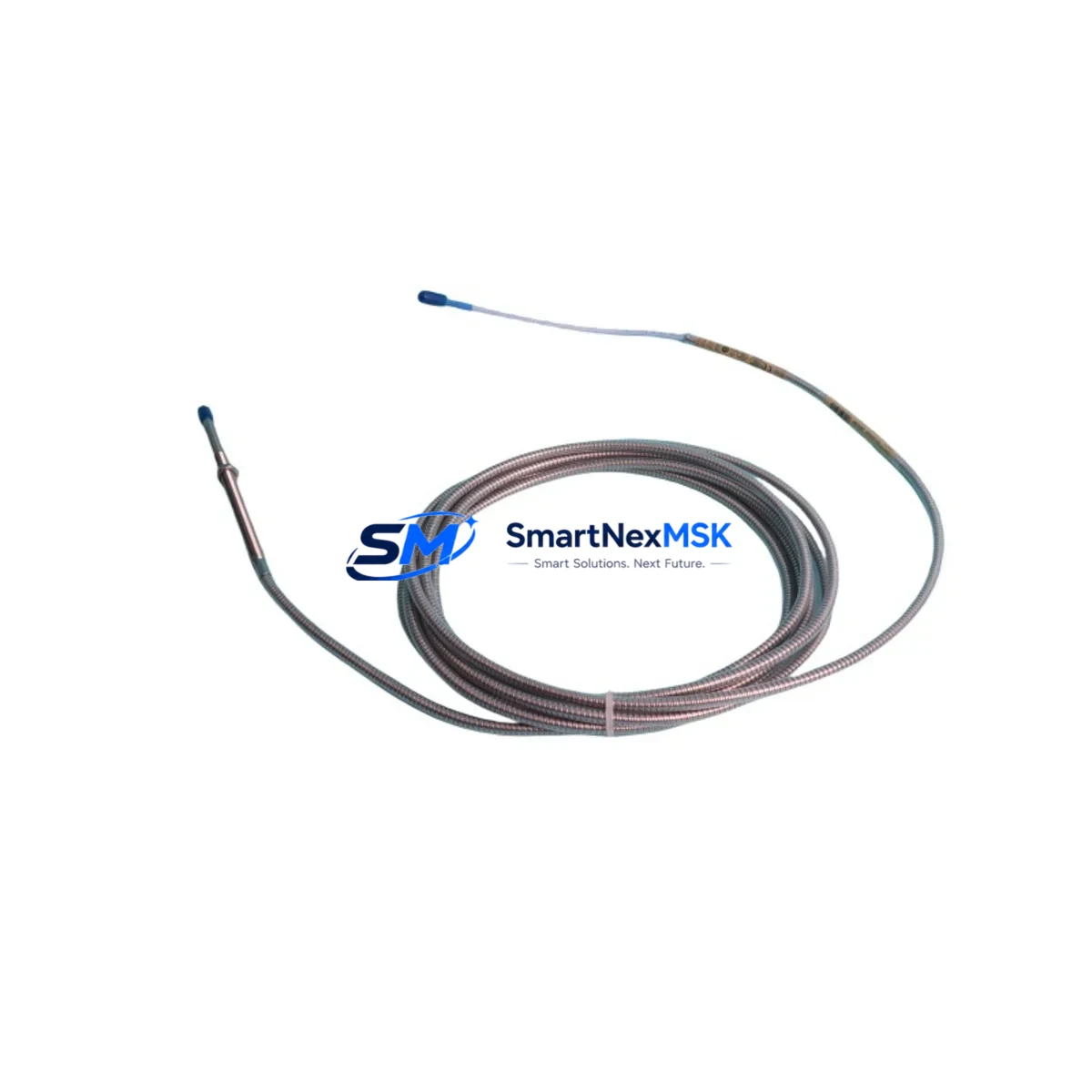

Bently Nevada 330104-00-07-90-02-00 Safety Proximity Probe

Bently Nevada 330104-00-07-90-02-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330104-00-07-90-02-00 is a high-performance eddy-current proximity probe from the renowned 3300 XL Series, engineered specifically for continuous, safety-critical vibration and position monitoring in demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, extreme temperatures, and corrosive atmospheres, this proximity probe is a cornerstone component in rotating machinery protection systems across heavy industry worldwide.

In high-stakes applications — including turbine shaft monitoring, compressor vibration detection, and critical interlock circuits — signal integrity is non-negotiable. The 330104-00-07-90-02-00 delivers consistent, drift-free output even when installed adjacent to high-power drives, variable frequency drives (VFDs), and large motor control centers. Its ruggedized stainless steel housing and armored cable construction resist physical damage, fluid ingress, and chemical exposure, making it suitable for permanent installation in petrochemical, power generation, and metallurgical control cabinets.

Every unit shipped by SMARTNEXMSK undergoes full pre-shipment functional testing, including gap voltage verification, sensitivity calibration check, and insulation resistance measurement, ensuring it meets OEM performance specifications before reaching your facility.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330104-00-07-90-02-00 proximity probe does not operate in isolation — it is one element of a layered machinery protection architecture. In a properly configured control cabinet, it works in conjunction with the Bently Nevada 3300 XL Proximitor® Sensor (driver module), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/42M Proximitor® Monitor or the 3500/40M Proximitor®/Seismic Monitor. These rack-mounted monitors process vibration, position, and speed data in real time, triggering protective shutdowns when thresholds are exceeded.

For installations requiring redundant power supply integrity, the Bently Nevada 3500/15 Power Supply Module provides isolated, regulated DC power to the monitoring rack, eliminating the risk of power-induced false trips or missed alarms. In facilities where the control network connects to a DCS or safety PLC, the Bently Nevada 3500/92 Communication Gateway enables Modbus or Ethernet/IP data transfer, ensuring vibration data reaches the plant historian and safety logic solver without communication latency.

Surge and transient protection is equally critical in heavy industrial environments. Pairing the proximity probe system with dedicated signal surge protectors on the field wiring terminals prevents voltage spikes — caused by nearby lightning strikes, motor switching, or arc flash events — from propagating into the monitoring rack and corrupting measurement data. Additionally, proper grounding of the Bently Nevada junction box and cable armor at a single point eliminates ground loop interference, a common cause of signal drift in long cable runs across large plant areas.

For facilities operating Emerson Ovation DCS or Honeywell Experion PKS platforms, the proximity probe data can be integrated via the communication gateway into the plant-wide safety instrumented system (SIS), enabling coordinated emergency shutdown (ESD) responses across multiple process units. This integration is particularly valuable in continuous production environments — such as ethylene crackers, LNG compressor trains, or large centrifugal pump stations — where unplanned downtime carries significant safety and financial consequences.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude oil distillation columns and catalytic cracking units, rotating machinery such as charge pumps, wet gas compressors, and air blowers operate continuously under high load. The 330104-00-07-90-02-00 monitors shaft radial vibration and axial position, providing early warning of bearing wear, rotor imbalance, or misalignment before catastrophic failure occurs. Its resistance to hydrocarbon vapors and high ambient temperatures makes it suitable for Zone 1 and Zone 2 hazardous area installations when paired with appropriate intrinsic safety barriers.

Power Generation: Steam turbine-generator sets in thermal power plants demand sub-millisecond response times for overspeed and high-vibration trips. The 3300 XL proximity probe system, anchored by the 330104-00-07-90-02-00, provides the measurement accuracy required to meet API 670 machinery protection standards. It is routinely installed on HP/IP turbine bearing housings and generator end shields in coal-fired, gas-fired, and nuclear power stations.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe mechanical shock and high dust concentrations. The IP67-rated stainless steel construction of the 330104-00-07-90-02-00 withstands these conditions, delivering reliable shaft monitoring data to the plant control room even in the harshest open-pit or underground environments.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities benefit from continuous vibration monitoring to prevent unexpected failures that could disrupt water supply. The proximity probe’s low-maintenance design and long service life reduce the total cost of ownership in these budget-constrained public utility environments.

Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps operate in environments with intense electromagnetic fields and mechanical vibration. The EMI-hardened design of the 330104-00-07-90-02-00 ensures measurement integrity even when installed within meters of high-current bus bars and large transformer banks.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers any functional failure of the 330104-00-07-90-02-00 under normal operating conditions, including signal output failure, sensitivity drift beyond OEM tolerance, and housing integrity defects. Warranty claims are processed promptly with replacement units dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-00-07-90-02-00 unit undergoes gap voltage output verification, nominal sensitivity confirmation (200 mV/mil ± 10%), cable continuity and insulation resistance testing, and physical inspection for housing and connector integrity. A test report is available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330104-00-07-90-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® driver and integrates directly with 3500 Series monitors including the 3500/40M and 3500/42M. It is also backward-compatible with legacy 3300 Series installations, making it an ideal drop-in replacement for aging probes without requiring system reconfiguration.

Q4: Can you support long-term or recurring supply requirements?
Yes. SMARTNEXMSK maintains dedicated stock of the 330104-00-07-90-02-00 and related 3300 XL Series components to support planned maintenance programs, annual turnaround spare parts kits, and emergency replacement needs. Contact our team to discuss blanket order arrangements or priority allocation for critical plant spares.
