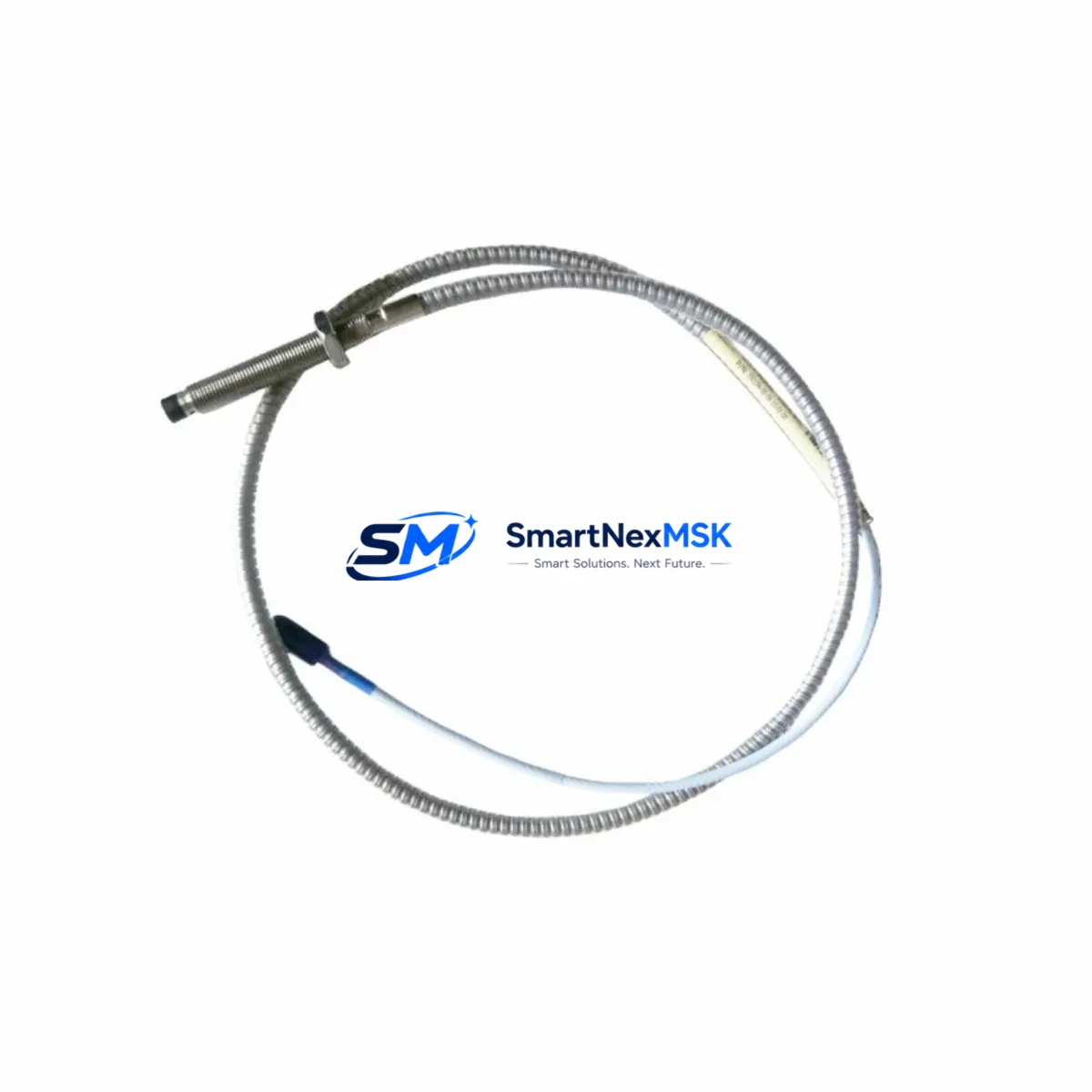

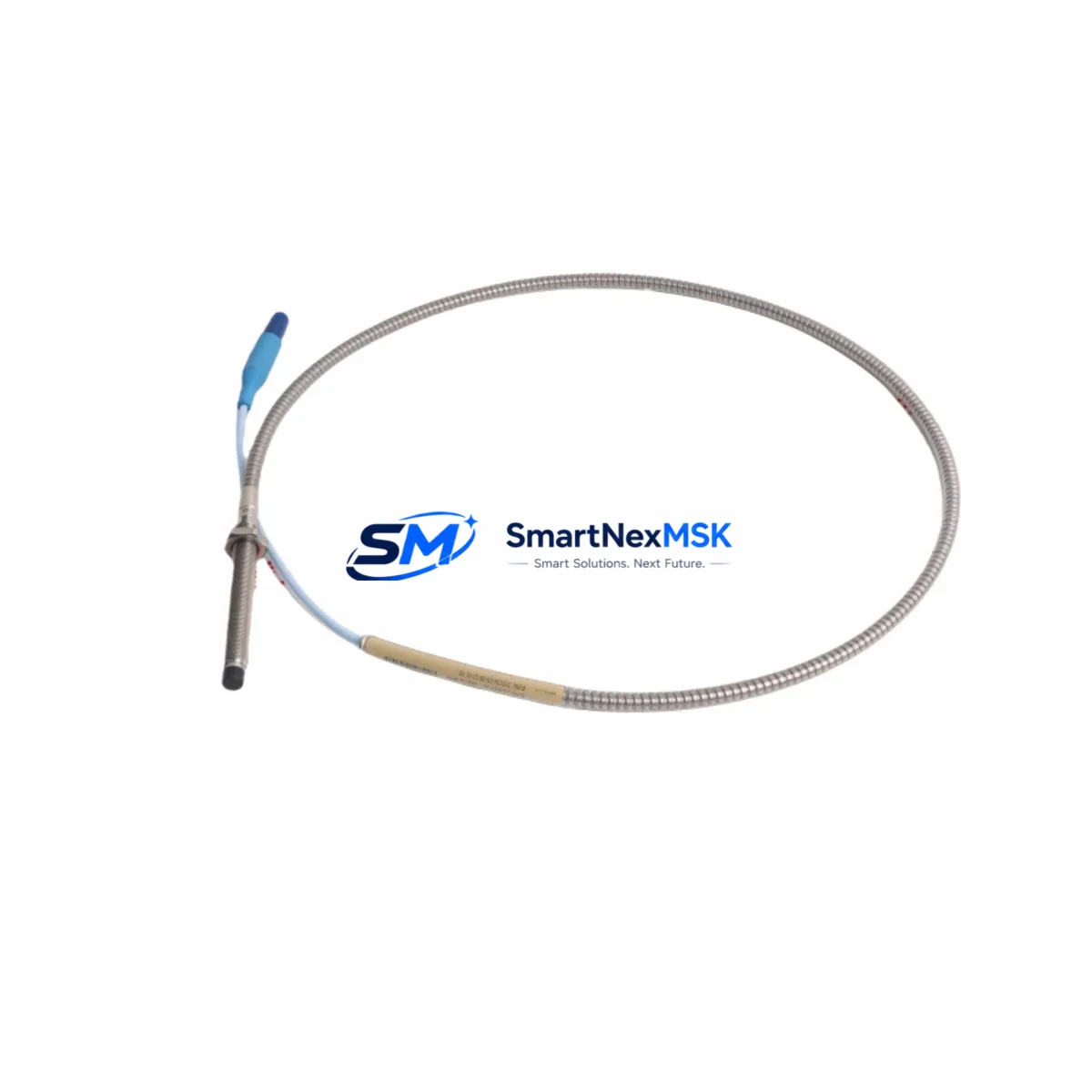

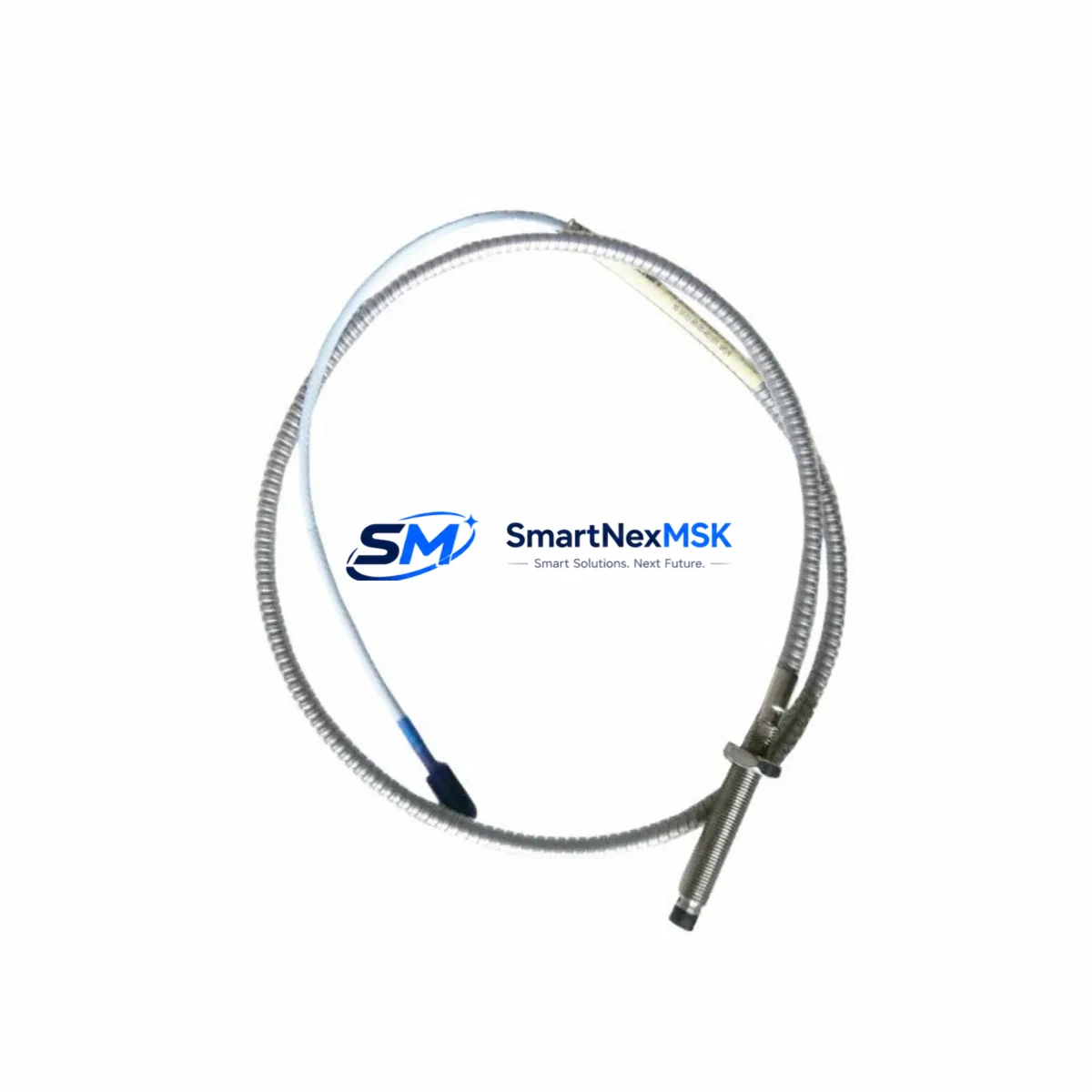

Bently Nevada 330104-00-08-10-01-00 Safety Proximity Probe

Bently Nevada 330104-00-08-10-01-00 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

The Bently Nevada 330104-00-08-10-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered specifically for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Whether deployed in petrochemical refineries, power generation turbines, mining compressors, water treatment pump stations, or heavy metallurgical processing lines, this probe delivers the signal integrity and mechanical durability that rotating machinery protection demands.

In high-load, high-interference control environments, signal drift and probe failure are not merely operational inconveniences — they are safety events. The 330104-00-08-10-01-00 addresses this directly through its ruggedized stainless-steel housing, hermetically sealed tip, and precision-wound sensing coil, all calibrated to work seamlessly within the Bently Nevada 3300 XL monitoring system. When paired with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, the system forms a complete, interference-resistant measurement chain that maintains sub-micron displacement accuracy even in the presence of strong electromagnetic fields, high-frequency switching noise from variable frequency drives, and aggressive chemical atmospheres.

Safety Reliability Table

Control Cabinet Protection Strategy

A proximity probe is only as reliable as the complete measurement chain and the protection architecture surrounding it. In a well-engineered rotating machinery protection cabinet, the 330104-00-08-10-01-00 probe feeds its raw oscillator signal through the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-CN), which conditions the signal and outputs a clean DC voltage proportional to gap distance. This conditioned signal is then received by the Bently Nevada 3500/42M Proximitor Monitor, which performs real-time alarm and danger threshold evaluation, triggering relay outputs to the machine’s safety interlock system when vibration exceeds safe limits.

To protect the entire signal chain from power-line transients and surge events — a common threat in heavy industrial substations — the monitoring rack should be powered through a Bently Nevada 3500/15 Power Supply Module with redundant input capability. Surge protection devices such as the Phoenix Contact TRABTECH surge arrester series are commonly installed at the cabinet entry point to clamp voltage spikes before they reach sensitive monitor cards.

For facilities running distributed control systems, the vibration data from the 3500 monitor rack is typically transmitted via Modbus TCP or OPC-DA/UA gateway modules to the plant DCS — such as a Honeywell Experion PKS C300 Controller or an Emerson DeltaV M-Series I/O module — enabling centralized alarm management and historian trending. In safety instrumented systems (SIS), the danger relay output from the 3500 monitor may be wired directly into a Triconex TRICON Safety Controller or a Hima HIMatrix F60 safety module to enforce automatic machine trip logic in compliance with IEC 61511 functional safety requirements.

Grounding integrity is critical in proximity probe installations. A dedicated instrument earth bus, isolated from power earth, prevents ground loops that can introduce low-frequency noise into the measurement signal — a known cause of false alarms and nuisance trips. Cable routing should maintain physical separation from high-voltage power cables and VFD output conductors to minimize capacitive coupling.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-08-10-01-00 proximity probe is deployed across a wide range of safety-critical rotating machinery applications:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers where continuous shaft vibration monitoring is mandated by API 670. Undetected rotor imbalance or bearing wear in these machines can lead to catastrophic seal failures, hydrocarbon releases, and fire hazards. The 330104-00-08-10-01-00 provides the early-warning signal that allows operators to schedule maintenance before a failure event occurs.

Power Generation: Used on gas turbine generator sets, boiler feed pumps, and induced draft fans in thermal power plants. In these applications, the probe monitors shaft radial position and dynamic vibration simultaneously, enabling both steady-state alignment verification and transient event capture during startup and shutdown transients.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, slurry pump shafts, and crusher drive motors operating in high-dust, high-moisture environments. The IP67-rated sealed tip and stainless armored cable of the 330104-00-08-10-01-00 resist abrasive slurry ingress and mechanical impact that would destroy standard instrumentation.

Water & Wastewater Treatment: Monitors vertical turbine pumps and blower shafts in pump stations where unplanned downtime disrupts municipal water supply. The probe’s long-term calibration stability eliminates the need for frequent field recalibration, reducing maintenance burden in remote installations.

Metallurgy & Steel: Deployed on rolling mill drive spindles and continuous caster pinch roll drives, where thermal cycling, scale buildup, and high electromagnetic interference from large DC drives challenge conventional sensors. The 3300 XL system’s differential measurement architecture rejects common-mode interference, maintaining measurement accuracy in these extreme conditions.

Port & Bulk Material Handling: Used on ship unloader slewing ring drives and conveyor belt drive gearboxes, where early detection of gear mesh frequency anomalies prevents structural failures that could halt port operations for days.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330104-00-08-10-01-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional performance deviations from the published Bently Nevada 3300 XL specification. If the probe fails to meet its stated sensitivity, linearity, or temperature performance within the warranty period under normal operating conditions, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each probe?
Every 330104-00-08-10-01-00 unit undergoes functional verification prior to shipment, including oscillator output voltage check, gap-versus-voltage linearity verification across the full measurement range, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330104-00-08-10-01-00 is a factory-matched component of the Bently Nevada 3300 XL measurement system. It is fully compatible with all 3300 XL Proximitor Sensor models and all 3500 Series monitor cards that accept 8mm probe inputs. No recalibration of the monitor is required when replacing a like-for-like probe within the same system.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain dedicated safety-stock inventory of the 330104-00-08-10-01-00 to support planned maintenance shutdowns, emergency replacements, and multi-unit spare parts programs. For facilities requiring guaranteed availability under a long-term supply agreement, please contact our sales team to discuss consignment stock or blanket order arrangements. We support both spot procurement and strategic sparing programs for continuous-process industries.
