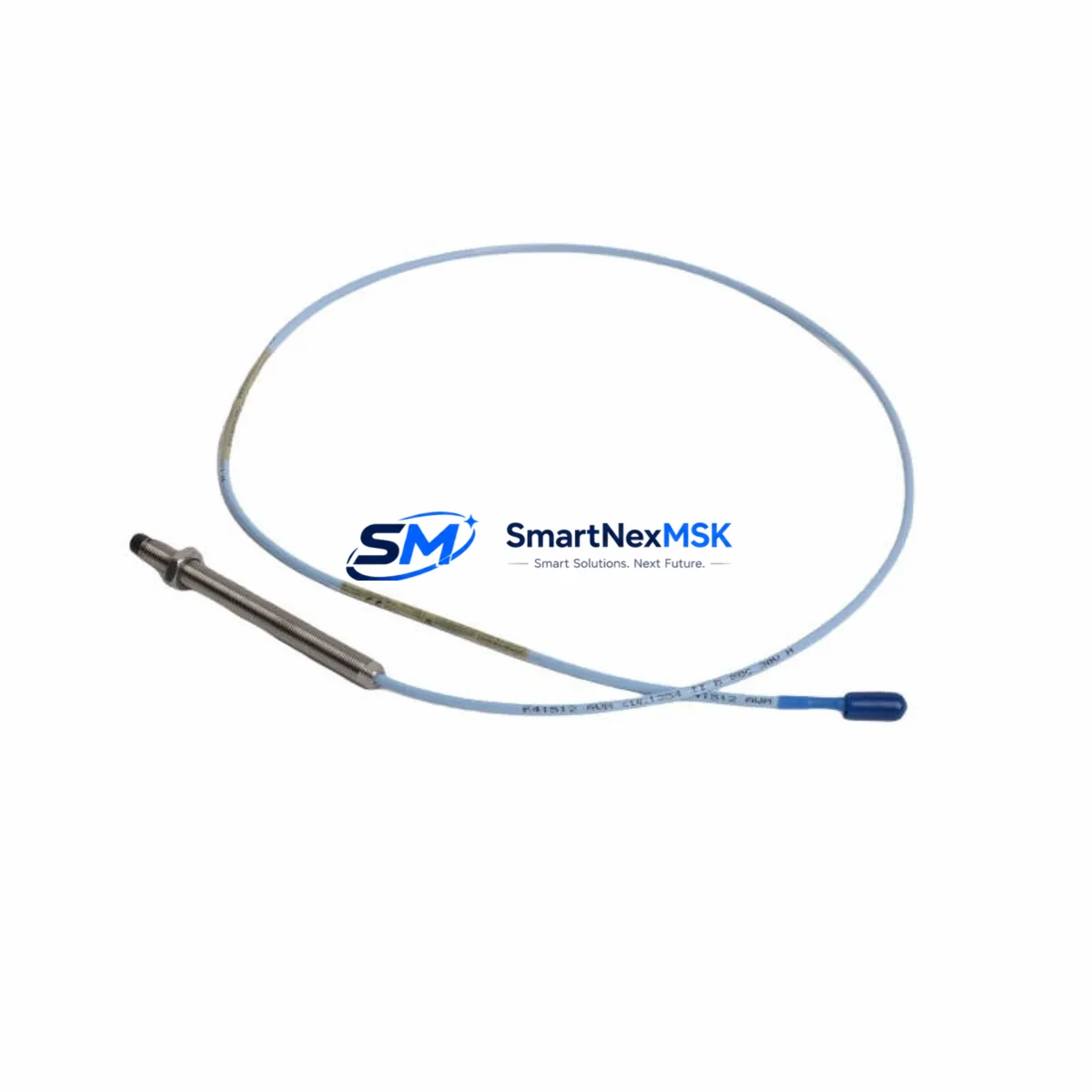

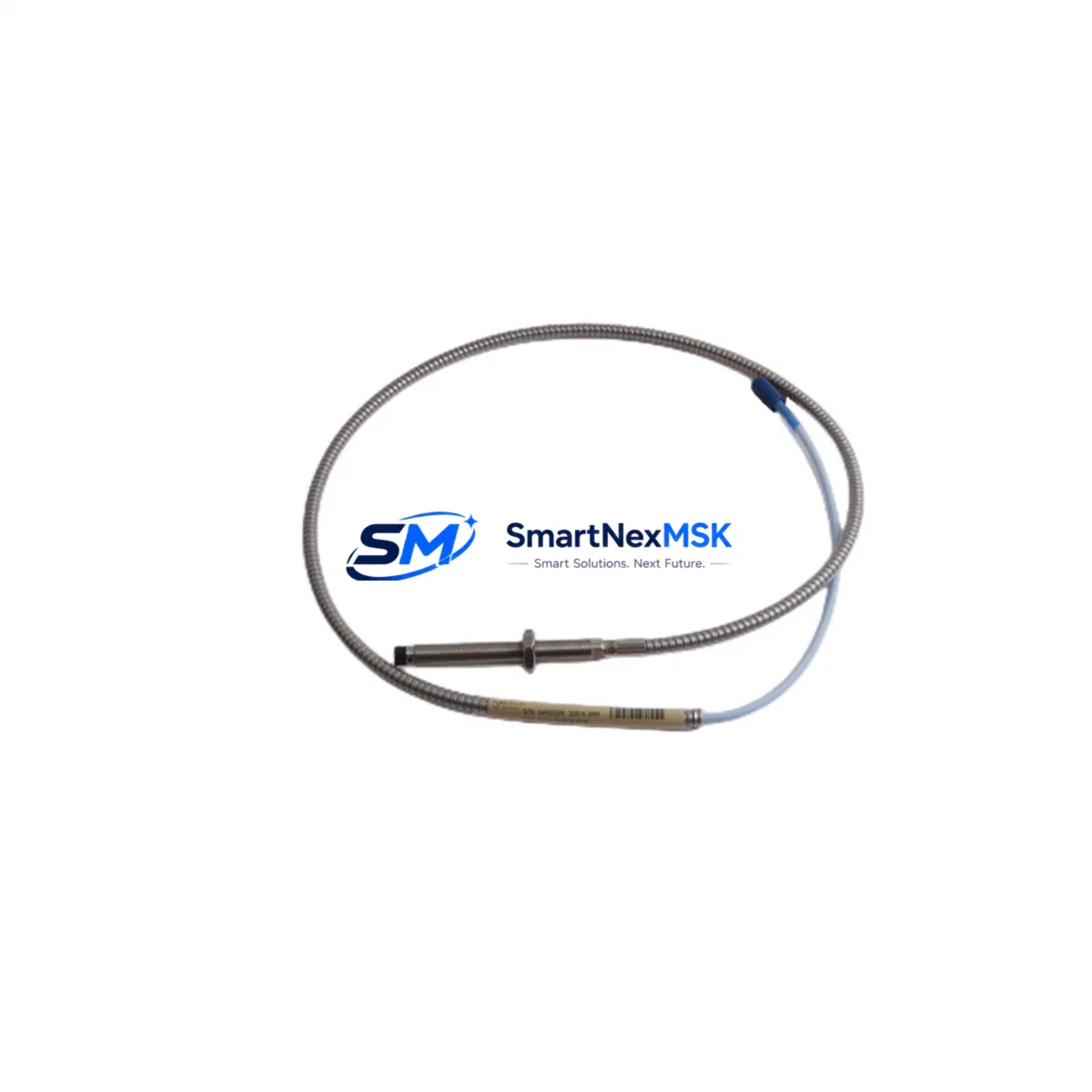

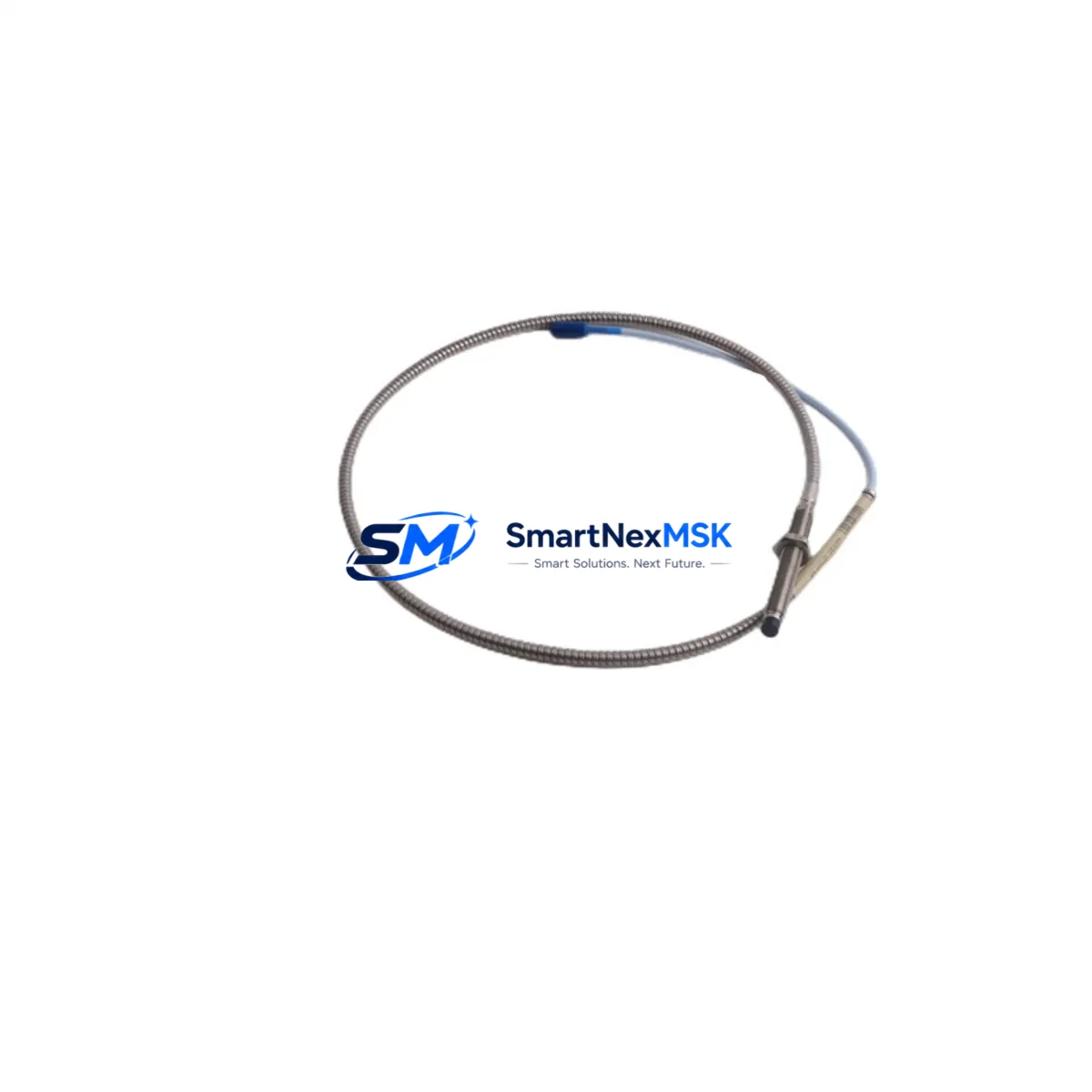

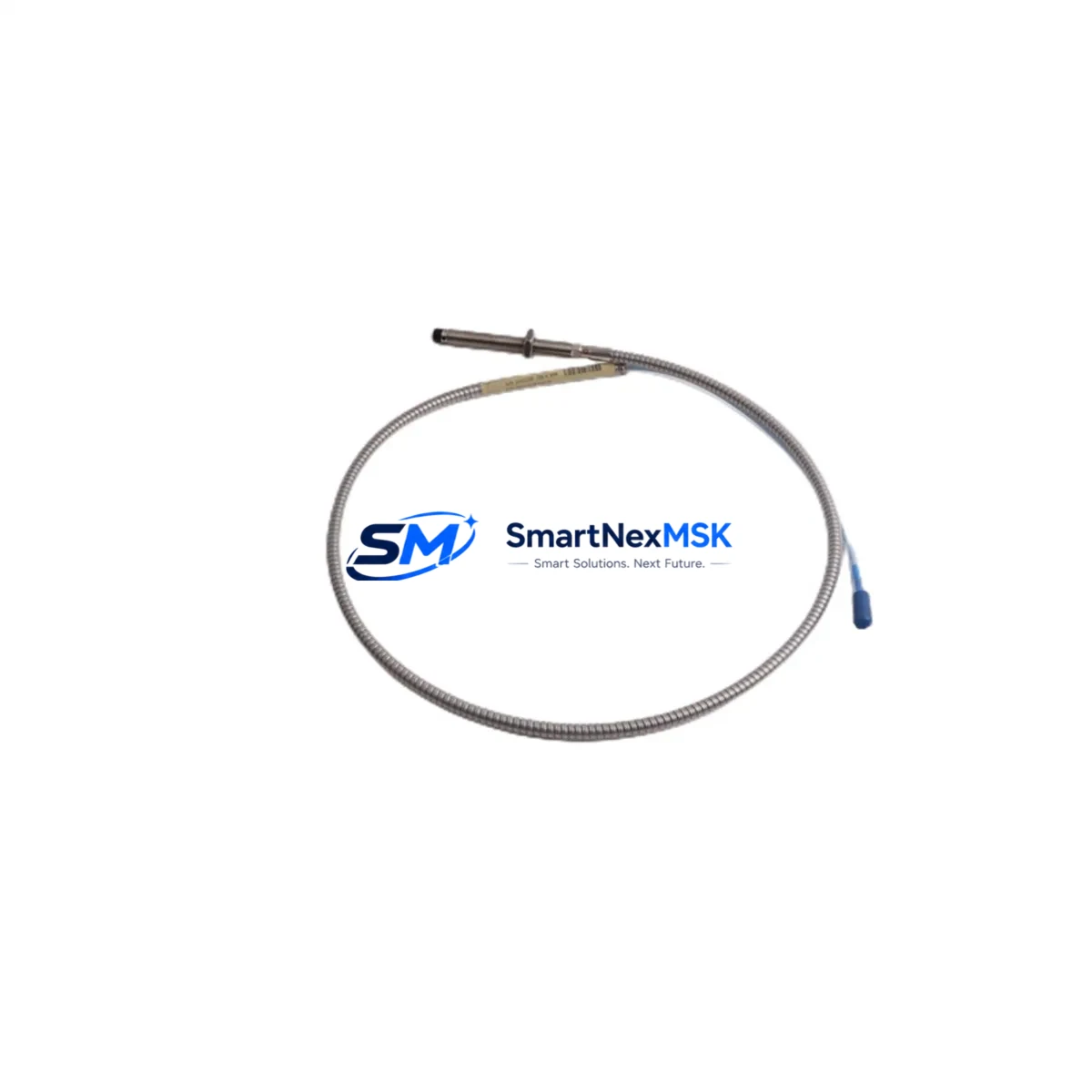

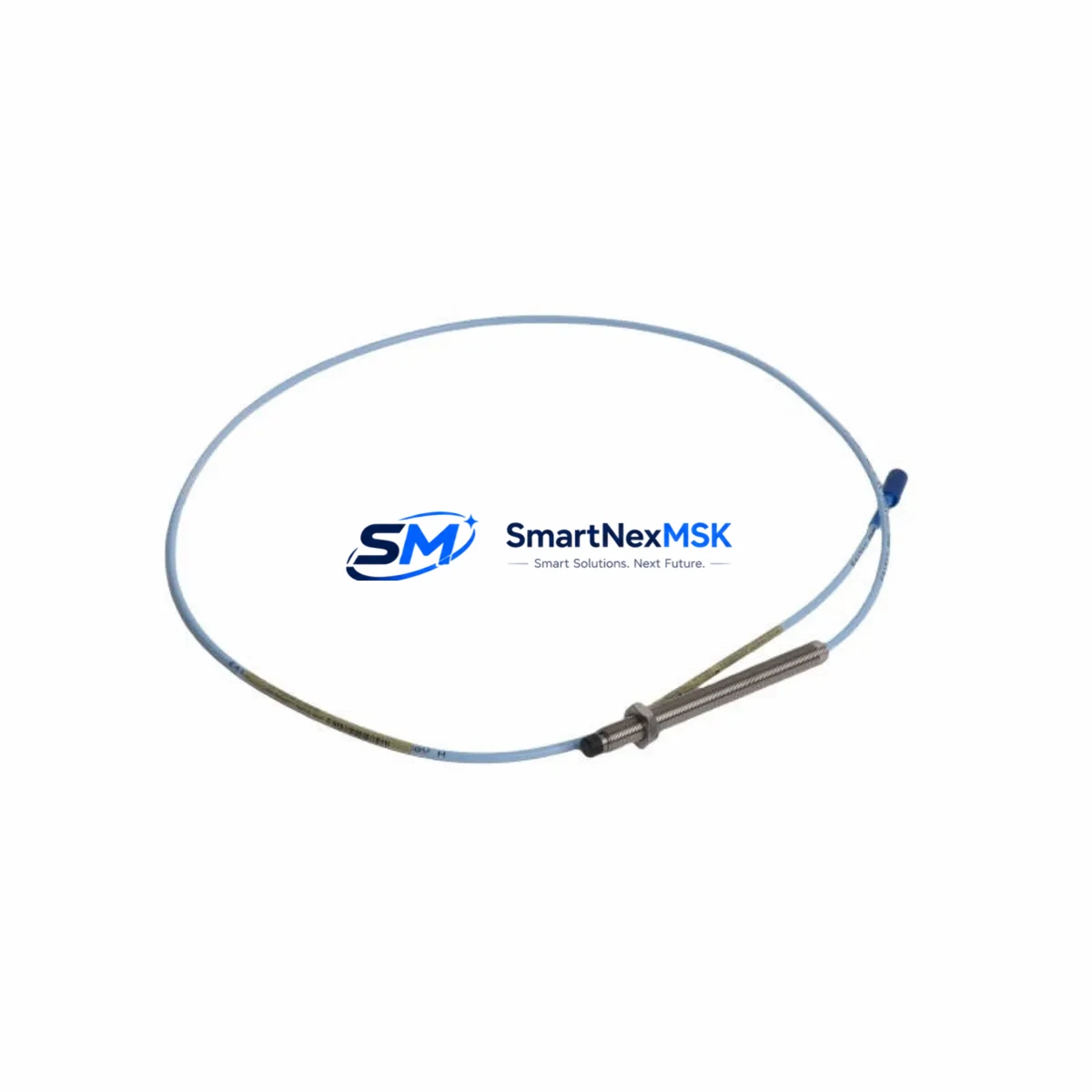

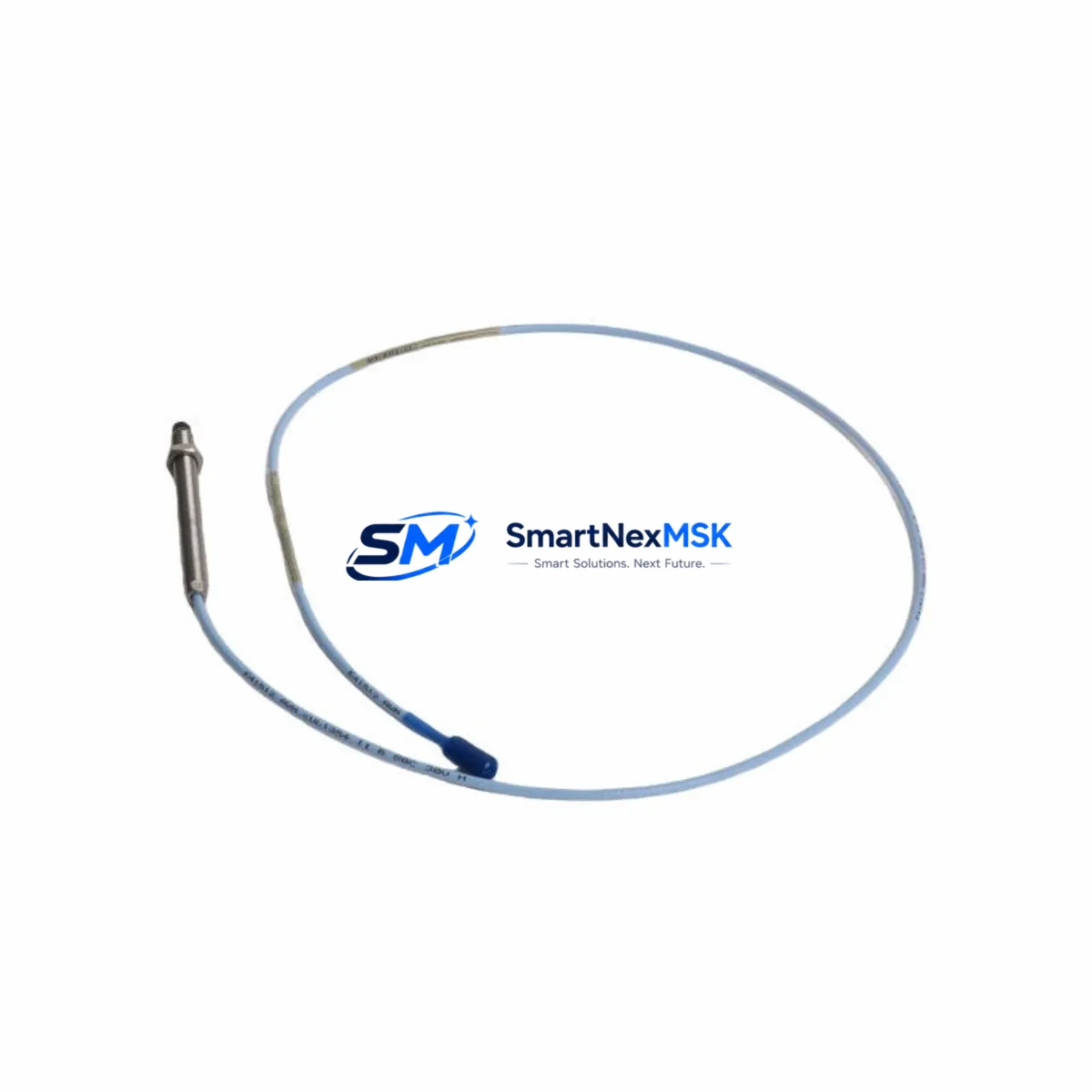

Bently Nevada 330104-00-08-10-02-00 Safety Proximity Probe

Bently Nevada 330104-00-08-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330104-00-08-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe is designed to deliver unwavering signal integrity in high-load rotating machinery, high-interference control cabinets, and hazardous-area installations where control interruption is never an option.

Built to API 670 machinery protection standards, the 330104-00-08-10-02-00 provides the measurement accuracy and environmental resilience required for critical interlock loops in petrochemical plants, power generation facilities, mining operations, metallurgical mills, water treatment stations, and continuous process manufacturing. Its ruggedized construction ensures stable output even under severe electromagnetic interference, shaft voltage fluctuations, and ambient temperature extremes — conditions that routinely cause signal drift or module misoperation in lesser sensors.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection system, the 330104-00-08-10-02-00 probe does not operate in isolation — it is the field-sensing front end of a complete, layered protection architecture. The probe connects via a matched Bently Nevada 330130 extension cable to a Bently Nevada 3300 XL 8mm Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a clean, calibrated voltage output. This output feeds directly into a Bently Nevada 3500/40M Proximitor®/Seismic Monitor rack module, where trip and alarm setpoints are enforced in real time.

Within the control cabinet, signal integrity is protected by routing probe cabling away from high-voltage power conductors and using dedicated shielded conduit. Surge protection devices — such as the Bently Nevada 330030 Proximitor® Power Supply — regulate the –24 VDC supply rail, preventing power fluctuations from inducing measurement errors or nuisance trips. For installations in classified hazardous areas, Zener barrier assemblies or galvanic isolators are inserted between the Proximitor® and the DCS input card to maintain intrinsic safety compliance and protect both field instruments and control room equipment from surge events.

The vibration data acquired by the 330104-00-08-10-02-00 is typically integrated into a plant-wide System 1® condition monitoring platform, where trend data, alarm histories, and spectral signatures are archived for predictive maintenance decisions. In critical interlock applications — such as high-vibration shutdown loops on compressors, turbines, or pumps — the monitor output is hardwired to a Safety Instrumented System (SIS) input module, ensuring that a confirmed high-vibration event triggers an automatic, fail-safe machine shutdown without relying on DCS logic scan cycles. Complementary instruments such as the Bently Nevada 330500 Velomitor® CT Velocity Sensor may be installed in parallel to provide redundant vibration measurement on the same machine train, further reducing the risk of undetected mechanical faults.

Critical Industrial Safety Applications

Petrochemical & Refinery: Centrifugal compressors and process pumps in hydrocarbon service demand continuous, API 670-compliant vibration monitoring. The 330104-00-08-10-02-00 provides the radial shaft vibration signal that protects against bearing failure, rotor rub, and surge events — all of which can escalate to catastrophic releases in high-pressure, flammable-fluid service. Its IP67 rating and wide temperature tolerance ensure reliable operation in outdoor compressor trains exposed to process fluid mist and ambient temperature swings.

Power Generation: Steam and gas turbines require sub-millisecond vibration trip response to prevent blade-loss events. Installed on turbine journal bearings, the 330104-00-08-10-02-00 delivers the low-noise, high-bandwidth signal needed for both protection trips and diagnostic analysis. Its compatibility with the 3500 Series rack ensures seamless integration into existing turbine control and protection panels.

Mining & Mineral Processing: Ball mills, SAG mills, and large conveyor drive motors operate in environments with extreme dust loading, water ingress, and structural vibration. The IP67-rated 330104-00-08-10-02-00 withstands these conditions while maintaining measurement accuracy, enabling early detection of bearing wear and misalignment before unplanned downtime occurs.

Metallurgy & Steel: Rolling mill drives and induction furnace blowers generate intense electromagnetic interference that corrupts signals from unshielded sensors. The coaxial shielded construction of the 330104-00-08-10-02-00 rejects common-mode EMI, delivering clean vibration data even in the immediate vicinity of large variable-frequency drives and bus-bar power distribution systems.

Water & Wastewater Treatment: High-service pumps and blowers in water treatment facilities run continuously, often unattended. Proximity probe monitoring enables condition-based maintenance scheduling, reducing the risk of unexpected pump failure that could interrupt water supply or cause regulatory compliance violations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330104-00-08-10-02-00?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to meet its specified scale factor, frequency response, or environmental ratings within the warranty period, we will replace or repair it at no charge. Warranty claims are processed promptly to minimize your site downtime.

Q2: How is the 330104-00-08-10-02-00 tested before shipment?
Every unit undergoes a full pre-shipment inspection that includes scale factor verification, gap voltage linearity check, insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada OEM specifications are quarantined and not dispatched. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor® systems and 3500 Series monitors?
Yes. The 330104-00-08-10-02-00 is a direct OEM-equivalent replacement for all 3300 XL 8mm probe system installations. It is fully compatible with 330130 extension cables, 330180 Proximitor® sensors, and the complete 3500 Series monitor rack. No recalibration of the monitor is required when replacing a like-for-like probe.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated inventory of the 330104-00-08-10-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact our team to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs tailored to your plant’s maintenance calendar.
