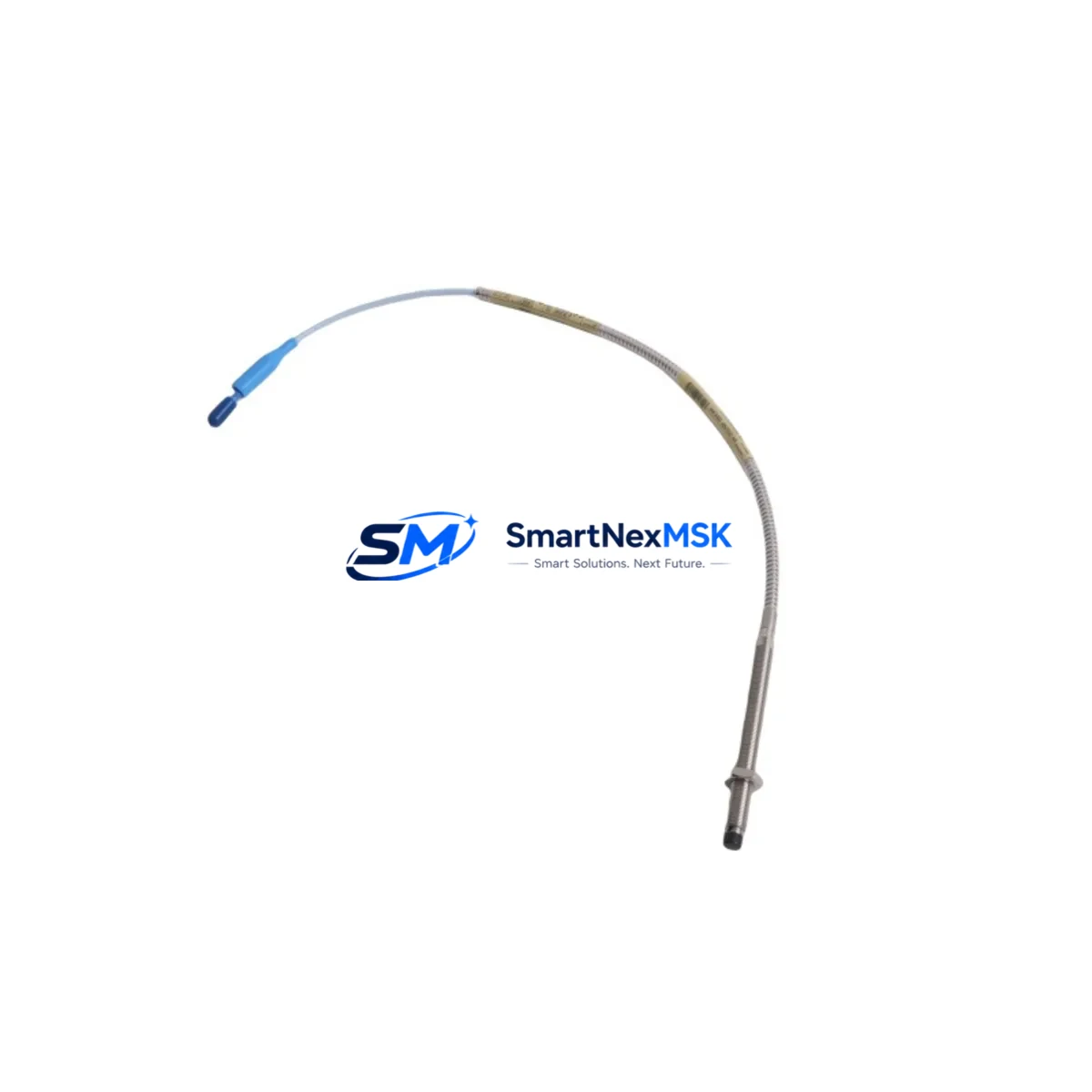

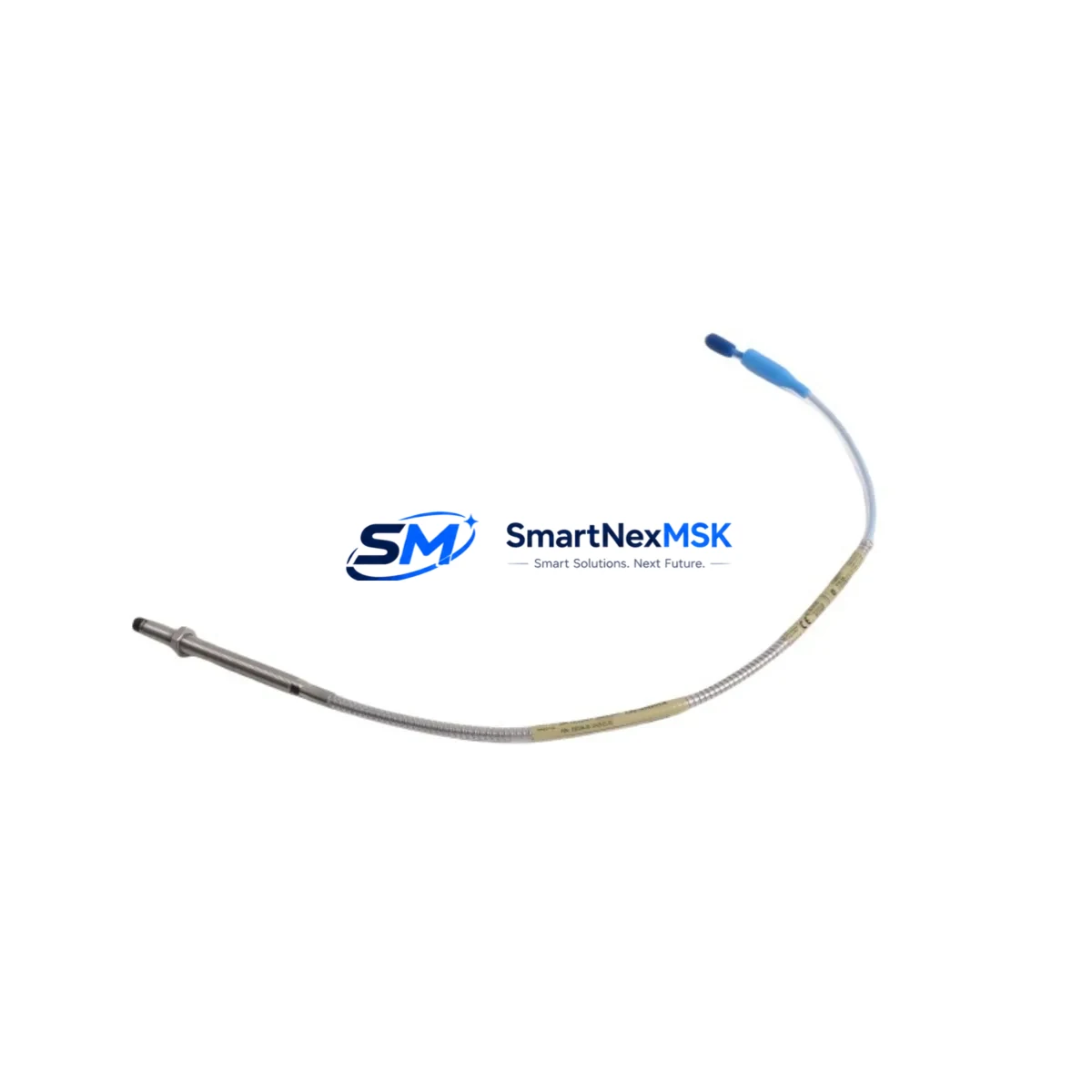

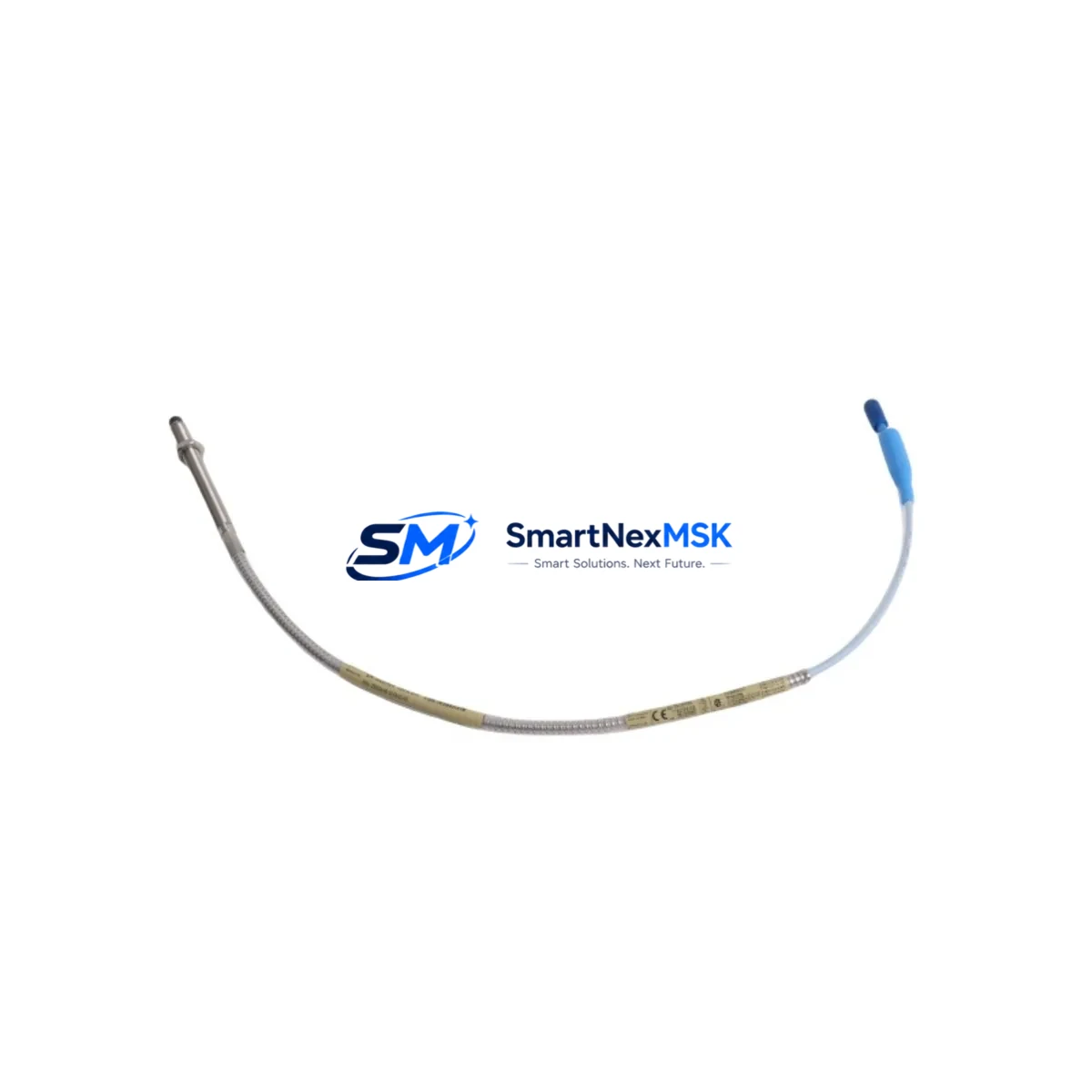

Bently Nevada 330104-00-10-05-01-BR Retrofit-Ready 8mm Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330104-00-10-05-01-BR is an 8mm eddy-current proximity probe engineered for direct retrofit into existing 3300 XL continuous machinery monitoring systems. As legacy 3300 Series installations approach end-of-service milestones, plant engineers and reliability teams increasingly require verified drop-in replacements that preserve original signal chain integrity without requiring re-engineering of the monitoring rack, field wiring, or vibration analysis software. This probe is stocked and tested to meet that demand, with 12-month warranty coverage and same-day dispatch from available inventory.
The 330104-00-10-05-01-BR carries a 5-metre (standard) integral cable with a Bently Nevada-compatible connector termination, designed to interface directly with the 3300 XL proximitor/driver module — typically the 330180 series proximitor — without adapter hardware. The probe body is constructed from 316 stainless steel with a PTFE-jacketed cable, suitable for high-temperature, high-vibration turbomachinery environments including steam turbines, gas compressors, centrifugal pumps, and gearboxes.
Upgrade Compatibility Table
| Parameter | 330104-00-10-05-01-BR Specification | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Matches standard 3300 XL 8mm probe bore; no re-boring required |
| Cable Length | 5 m (integral) | Verify total cable run to proximitor; extension cable 330130 available if required |
| Connector Type | Bently Nevada standard coaxial | Direct mating with 330180 proximitor input; no adapter needed |
| Target Material Compatibility | Steel / Iron (non-magnetic correction factor applies for other alloys) | Confirm shaft material; apply correction factor per 3300 XL calibration manual if non-standard |
| Operating Temperature | -35°C to +177°C (probe tip) | Suitable for most turbomachinery bearing housings; verify ambient at installation point |
| Supply Voltage | -24 VDC (from proximitor) | Powered by 330180 proximitor; no separate probe power supply required |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) | Matches 3300 XL system calibration; no re-scaling of monitor channels required |
| Linear Range | 0.25 mm – 2.54 mm (10–100 mil) | Set gap per OEM specification; typical gap 1.0–1.5 mm for radial vibration |
| Replacement for | 330104-00-10-05-01 (non-BR suffix), 330104-00-10-05-00 | BR suffix denotes blue connector; functionally equivalent to non-BR variants |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test certificate |
Retrofit Planning for Existing Automation Systems
Replacing a proximity probe in an operating plant requires careful coordination across mechanical, electrical, and software disciplines. When retrofitting the 330104-00-10-05-01-BR into a 3300 XL monitoring rack, the first step is to confirm the proximitor model installed in the rack — the 330180-51-00 and 330180-91-00 are the most common drivers paired with 8mm probes in this series. Both accept the 330104 probe family without modification. The rack itself, typically a 3300/16 or 3300/20 chassis, does not require reconfiguration for a like-for-like probe swap.
Field wiring should be inspected before installation. The coaxial cable shield must be grounded at one end only — typically at the proximitor barrier terminal — to prevent ground loops that can introduce noise into the vibration signal. If the existing installation uses a 330130 extension cable to bridge the distance between the probe and the proximitor, verify that the extension cable is within its rated length and that the total cable capacitance remains within the 330180 proximitor’s specification. Exceeding the rated cable length degrades sensitivity and linearity.
For plants migrating from older 3300/05 or 3300/10 monitor cards to the current 3300 XL platform, the probe itself is compatible, but the monitor card slot assignments and channel configuration in the System 1 condition monitoring software may need to be updated. The 3500/42M proximity monitor card, commonly used in parallel 3500 Series racks, uses the same probe family and can share spare inventory with 3300 XL installations, simplifying storeroom management. Similarly, the 3500/22M transient data interface and the 3500/15 power supply module are frequently found in the same control cabinet and should be inspected for age-related degradation during any planned probe replacement outage.
In applications where the 330104-00-10-05-01-BR is being installed as part of a broader control system upgrade — for example, migrating from a legacy DCS to a modern platform — it is common to simultaneously replace the 3300 XL monitor cards with 3500 Series equivalents, update the I/O termination assemblies, and reconfigure the Modbus or 4–20 mA output signals feeding the plant DCS or safety instrumented system. The probe replacement itself is the lowest-risk element of such a migration; the higher-risk items are the monitor card address assignments, the alarm setpoint re-entry, and the verification of the OK relay output wiring to the machine trip circuit.
Before returning the machine to service, perform a static gap check using a digital voltmeter at the proximitor output terminals. With the shaft stationary, the DC gap voltage should fall within the linear range specified in the 3300 XL calibration manual — typically between -10 VDC and -18 VDC for a correctly gapped 8mm probe. Record the as-found and as-left gap voltages in the maintenance management system. A functional vibration test at slow-roll speed, using the System 1 software or a portable 3500 rack tester, confirms signal chain integrity before full-speed operation resumes.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging. The 330104-00-10-05-01-BR should be bench-tested against a known-good 330180 proximitor before the maintenance window opens. Confirm output voltage, sensitivity, and connector integrity on the bench so that no diagnostic time is consumed at the machine during the outage.
Where the plant schedule permits only a short outage window, prepare a pre-wired probe assembly with the coaxial connector already terminated and the cable routed to the proximitor location. This reduces in-field installation time to the mechanical gap-setting procedure and the final electrical verification. If the machine cannot be taken offline, some 3300 XL installations support hot-swap of the monitor card while the probe remains in place; consult the 3300 XL system manual and the site safety authority before attempting any energized work.
Preserving the original program logic in the connected DCS or safety system is critical. The 3300 XL monitor outputs — OK relay, alert relay, and danger relay — must be confirmed to be in their correct states before and after the probe swap. If the monitor card is placed in bypass mode during the replacement, ensure that the bypass status is logged, that the machine protection philosophy is maintained through alternative means, and that bypass is removed and verified before the machine returns to load. The System 1 historian should be checked to confirm that data logging resumes correctly after the replacement, with no gap in the vibration trend record that could mask a developing fault.
Retrofit Support FAQ
Q: Is the 330104-00-10-05-01-BR a direct replacement for the 330104-00-10-05-01 (without BR suffix)?
A: Yes. The BR suffix designates the blue connector colour coding used in later production batches for field identification purposes. The electrical and mechanical specifications are identical. The probe is a direct drop-in replacement with no wiring or configuration changes required.
Q: What gap voltage should I expect after installation?
A: With the shaft stationary and the probe gapped to the OEM-specified distance (typically 1.0–1.5 mm for radial vibration applications), the DC output at the proximitor terminals should read between -10 VDC and -18 VDC. The exact value depends on the gap set and the shaft material. Record this value as the baseline for future maintenance reference.
Q: Can this probe be used with a 3500 Series monitor rack instead of the 3300 XL?
A: Yes. The 330104-00-10-05-01-BR is compatible with 3500 Series proximity monitor cards, including the 3500/42M, when paired with the appropriate 330180 proximitor. Sensitivity and linear range specifications are identical across both platforms, and no recalibration of the monitor card is required for a like-for-like probe swap.
Q: What does the 12-month warranty cover, and is a test certificate included?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is functionally tested prior to dispatch, and a pre-shipment test certificate is available on request. Warranty claims are processed through SMARTNEXMSK; contact sales@smartnexmsk.com with the order reference and a description of the fault.
