Bently Nevada 330104-00-13-15-01-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330104-00-13-15-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

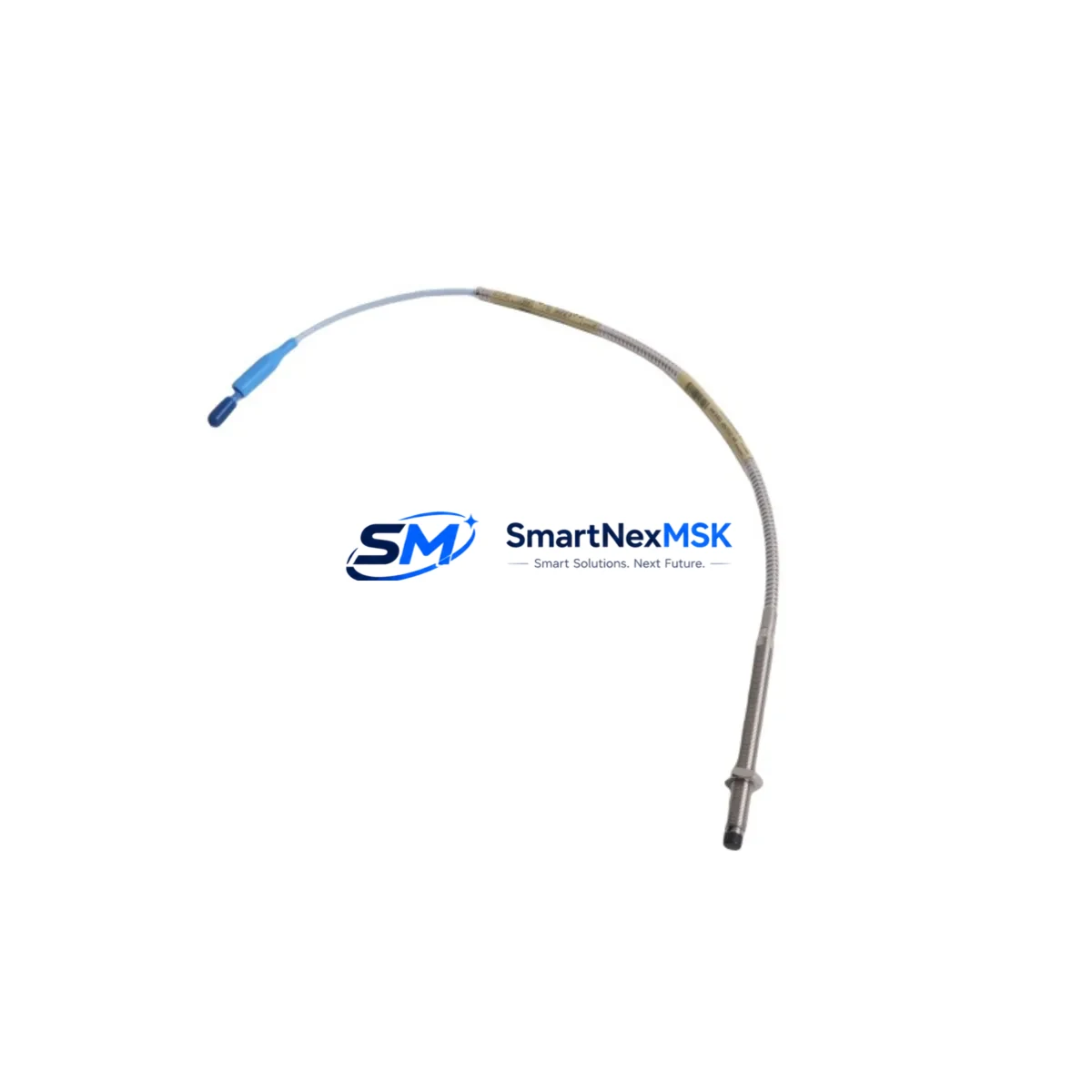

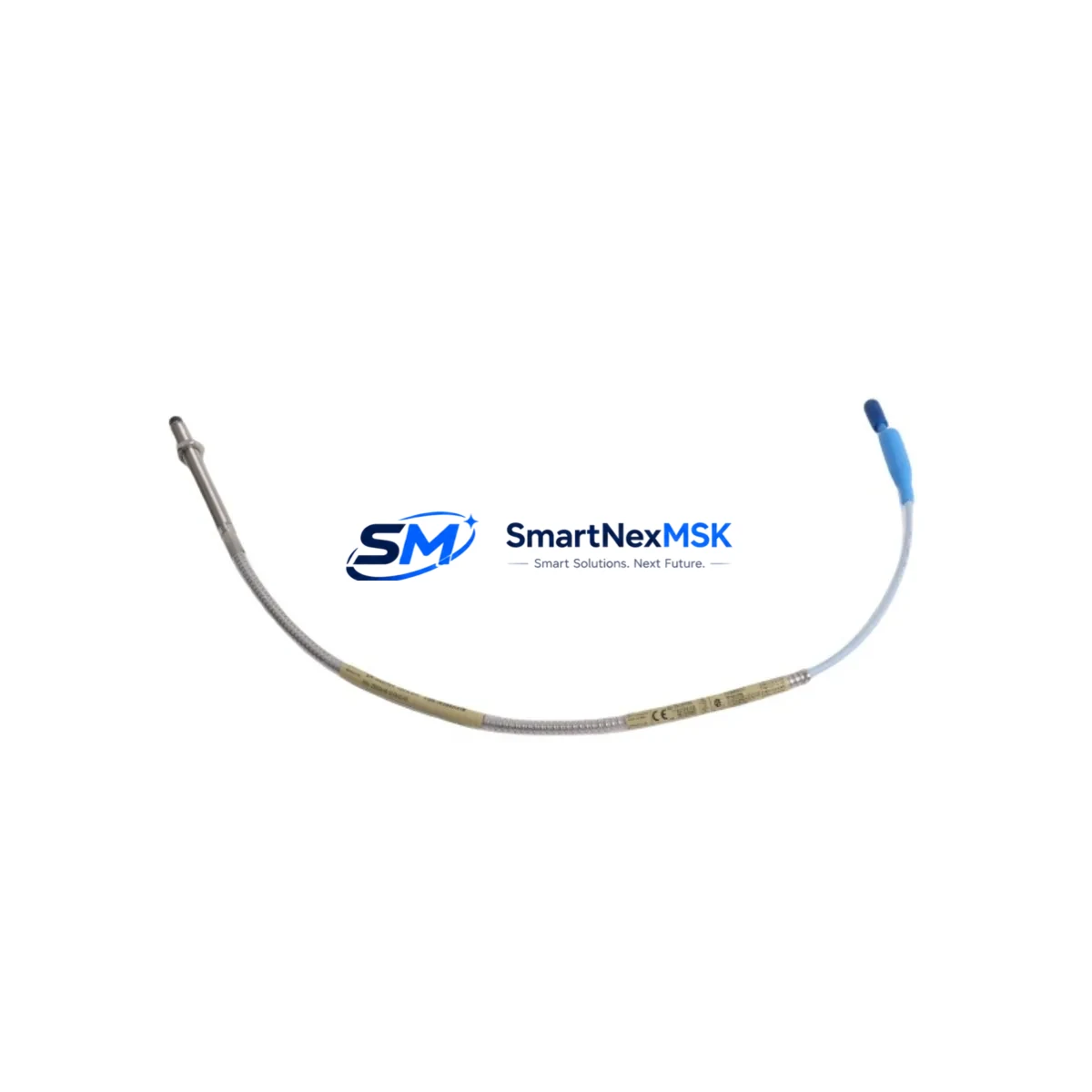

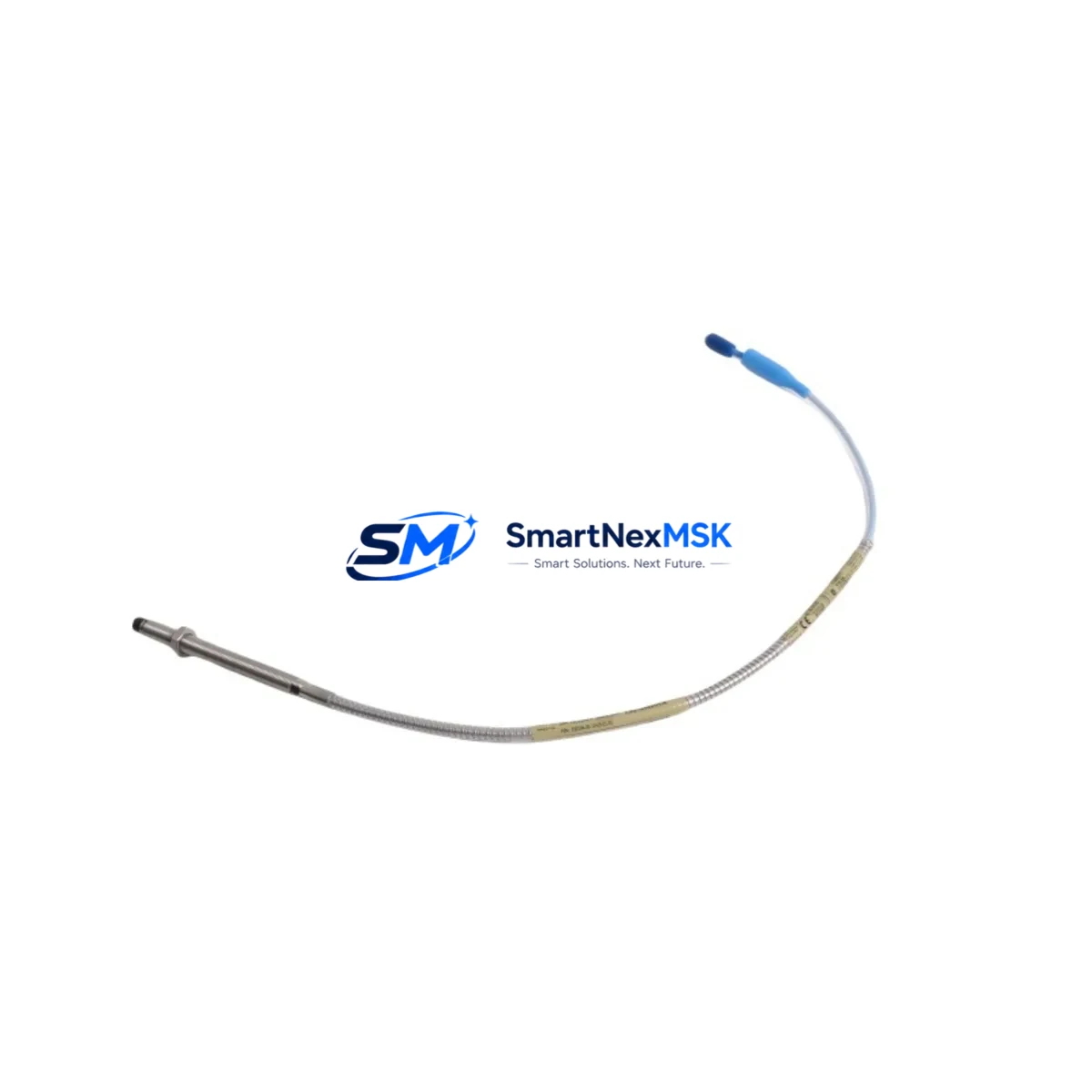

The Bently Nevada 330104-00-13-15-01-00 is an 8mm eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy machinery monitoring infrastructure ages across refineries, power generation facilities, and rotating equipment plants, this probe serves as the primary retrofit solution for engineers replacing discontinued or worn proximity transducers without requiring full system overhauls. Its standardized 5-metre integral cable, -5 Vdc to -24 Vdc output range, and 200 mV/mil sensitivity make it a direct functional replacement for earlier 3300 Series probes, enabling control continuity while modernizing field instrumentation.

When planning a retrofit around the 330104-00-13-15-01-00, engineers must verify several critical compatibility parameters before installation. The probe operates with the Bently Nevada 330180-51-05 extension cable and the 330130-040-00-00 proximitor/oscillator driver, which conditions the raw eddy-current signal for the 3300 XL monitor rack. Confirm that the existing proximitor is rated for the 8mm probe gap range (typically 0.25 mm to 2.54 mm linear range) and that the driver output voltage matches the monitor card input specification. If the existing proximitor is a legacy 7200 Series unit, a driver swap to the 330130 Series is required before the new probe will calibrate correctly within the 3500/22M or 3300/16 monitor modules.

Terminal wiring during replacement follows the standard three-conductor shielded cable scheme: signal (white), common (black), and shield drain. When retrofitting into an existing junction box or marshalling cabinet, verify that the cable shield is grounded at one end only — typically at the monitor rack — to prevent ground loops that introduce noise into the vibration signal chain. If the original installation used a 330101 or 330103 Series probe with a different cable length, the 330104-00-13-15-01-00’s 5-metre integral cable may require a 330180 extension to reach the proximitor mounted in the control cabinet. Always document the as-found gap voltage before removing the old probe to establish a baseline for post-installation calibration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-13-15-01-00 into an operating plant environment requires coordinated planning across instrumentation, control, and maintenance disciplines. The probe integrates directly into the 3300 XL monitor rack, which typically houses the 3300/16 dual-channel vibration monitor card alongside power supply modules such as the 3300/05 or 3300/10 rack power supply. Before scheduling the replacement window, confirm that the rack power supply can sustain the additional current draw if multiple probes are being replaced simultaneously — each 8mm probe and proximitor pair draws approximately 25 mA from the -24 Vdc supply rail.

In systems where the 3300 XL rack communicates with a DCS or safety system via a 3500/92 communication gateway or a Modbus TCP interface card, verify that the channel address mapping in the gateway configuration matches the physical slot position of the replacement probe channel. Incorrect address mapping after a card swap can cause the DCS historian to log data against the wrong tag, creating compliance and audit issues in API 670-governed machinery protection applications.

For plants migrating from older 7200 Series proximity systems to the 3300 XL platform, the retrofit scope typically includes replacing the 7200-series proximitor with a 330130-040-00-00 driver, re-terminating the field cable at the junction box, and updating the monitor configuration using System 1 Evolution software or the Rack Configuration Software (RCS) utility. HMI screens displaying shaft vibration trends from the legacy system will require tag remapping in the SCADA or DCS engineering workstation — this step is frequently overlooked and can cause operators to lose visibility of critical vibration alarms during the cutover window.

When the retrofit also involves expanding I/O capacity — for example, adding a new measurement point on a previously unmonitored bearing — the 3300 XL rack can accommodate additional monitor cards in open slots, provided the rack backplane and power supply have sufficient capacity. Companion components commonly required in such expansions include the 3300/20 four-channel monitor card, additional 330104 or 330105 Series probes for axial position measurement, and the 330180 extension cable sets to reach remote bearing housings. If the control cabinet layout requires a new terminal block row, Bently Nevada-compatible DIN rail terminal assemblies with shielded cable clamps should be specified to maintain signal integrity.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is achievable through disciplined pre-outage preparation. Before the maintenance window opens, stage all replacement components — including the 330104-00-13-15-01-00 probe, the 330180 extension cable, and any required 330130 proximitor — at the work site with pre-verified part numbers and serial numbers logged. Use the existing gap voltage reading (typically -10.0 Vdc ±0.5 Vdc at the nominal air gap) as the acceptance criterion for the replacement probe, and prepare a calibration data sheet in advance.

To protect original program logic and alarm setpoints during the swap, export the current 3300 XL rack configuration from RCS or System 1 before beginning work. This configuration file preserves all alert and danger setpoints, transducer scale factors, and channel enable/disable states, allowing the rack to be restored to its pre-outage configuration in minutes if a card or module fault occurs during the replacement. For systems integrated with a Bently Nevada System 1 Evolution condition monitoring platform, confirm that the historian is set to record the last known good value during the channel bypass period rather than logging a fault or zero-value gap reading, which would corrupt trend data used for machinery health analysis.

During the physical swap, bypass the affected channel in the monitor rack before disconnecting the probe cable to prevent spurious vibration alarms from reaching the DCS or safety system. After installing the 330104-00-13-15-01-00 and reconnecting the proximitor, measure the gap voltage at the proximitor output with a calibrated digital multimeter before removing the bypass. Only release the channel from bypass once the gap voltage is within the linear range specification and the monitor card displays a valid, stable reading. This sequence — bypass, replace, verify, release — is the industry-standard procedure for zero-trip probe replacements on running machinery.

Retrofit Support FAQ

Q1: Is the 330104-00-13-15-01-00 a direct replacement for the 330101 and 330103 Series probes?
Yes. The 330104-00-13-15-01-00 is dimensionally and electrically compatible with earlier 330101 and 330103 Series 8mm proximity probes used in 3300 and 3300 XL monitor systems. The M10 threaded tip, 200 mV/mil sensitivity, and -24 Vdc supply requirement are identical, allowing direct substitution without modifying the proximitor, extension cable, or monitor card configuration in most installations. Always verify the gap voltage after installation to confirm calibration.

Q2: What wiring changes are required when replacing a legacy 7200 Series probe with the 330104-00-13-15-01-00?
The 7200 Series and 3300 XL Series use the same three-conductor shielded cable convention, so field wiring at the junction box typically requires only re-labelling and shield continuity verification. However, the 7200-series proximitor must be replaced with a 330130-040-00-00 driver, as the two series use different driver electronics and are not interchangeable. After the driver swap, re-calibrate the gap voltage and update the monitor card configuration to reflect the new transducer scale factor if it differs from the legacy setting.

Q3: How is the probe tested before shipment, and what does the 12-month warranty cover?
Each 330104-00-13-15-01-00 unit supplied by SMARTNEXMSK undergoes functional output testing — gap voltage linearity, sensitivity verification, and cable continuity — prior to shipment. The 12-month warranty covers manufacturing defects, output sensitivity deviation beyond specification, and cable insulation failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, supply voltage outside the specified range, or mechanical impact. Warranty claims are supported with a return merchandise authorization (RMA) process and replacement shipment within the agreed lead time.

Q4: Can this probe be used in API 670 machinery protection applications?
Yes. The Bently Nevada 330104-00-13-15-01-00, when used with a compatible 330130 Series proximitor and a 3300 XL or 3500 Series monitor, meets the transducer performance requirements referenced in API 670 (Machinery Protection Systems) for radial vibration and position measurement on critical rotating equipment. Confirm that the complete transducer system — probe, extension cable, and proximitor — is listed in the monitor’s approved transducer list within the RCS configuration before commissioning in a safety-critical application.
