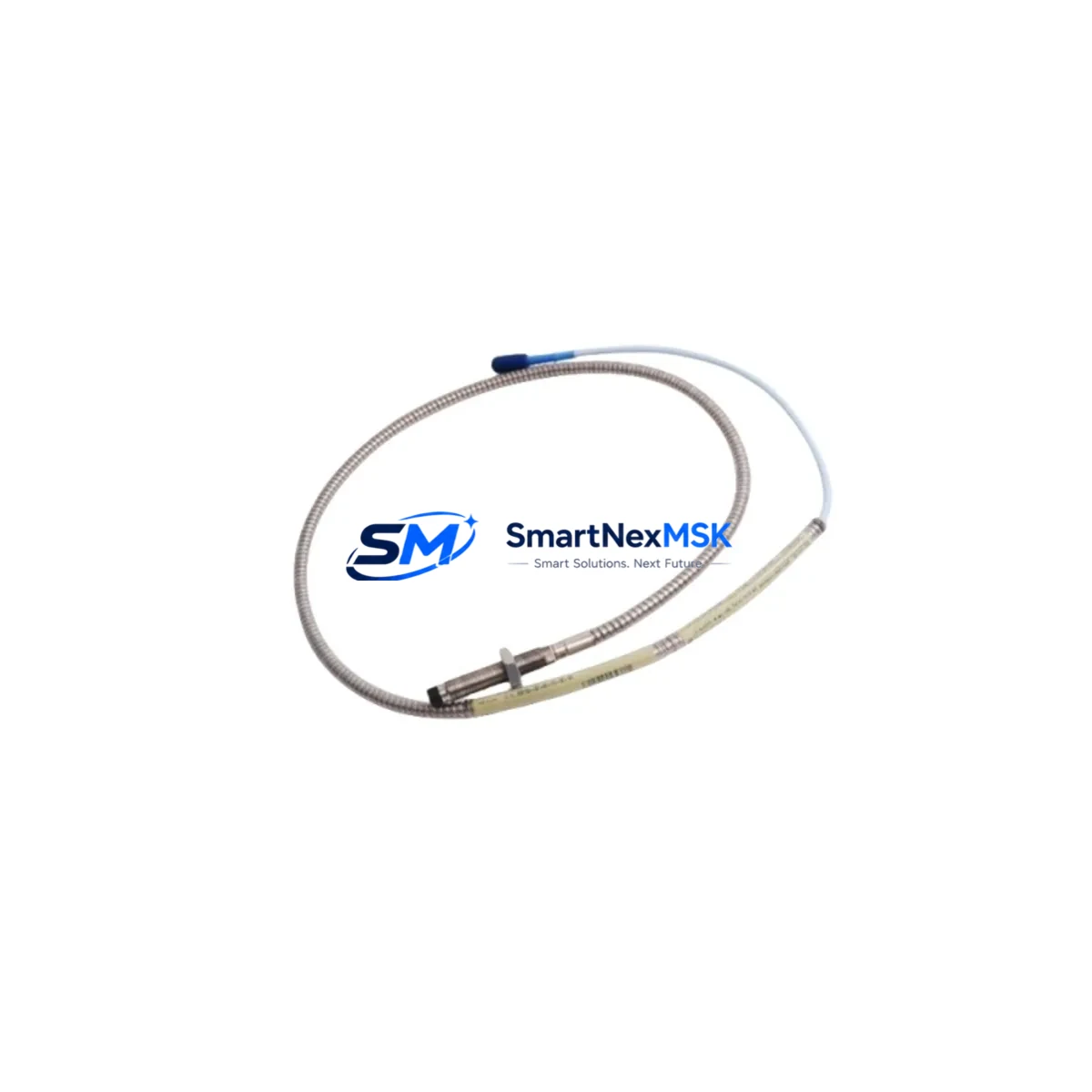

Bently Nevada 330104-00-14-10-02-CN Safety Proximity Probe

Bently Nevada 330104-00-14-10-02-CN Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Control Environments

The Bently Nevada 330104-00-14-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this proximity probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines.

In safety-critical control architectures, signal integrity is non-negotiable. The 330104-00-14-10-02-CN delivers stable, low-noise output that feeds directly into machinery protection systems such as the Bently Nevada 3500 Series Machinery Protection System, where any signal drift or interruption can trigger false trips or — more dangerously — mask a real fault condition. Its ruggedized construction and CN (cable-integrated) configuration eliminate connector-point failure modes that are common in high-vibration installations, significantly reducing the risk of intermittent signal loss in critical interlock loops.

When deployed alongside the Bently Nevada 330180 Extension Cable and the Bently Nevada 330500 Proximitor Sensor, this probe forms a complete eddy-current measurement chain that meets the stringent signal conditioning requirements of API 670-compliant machinery protection. The Proximitor converts the probe’s raw impedance signal into a calibrated voltage output, ensuring that the 3500/40M Proximitor I/O Module receives clean, drift-free data even in environments with significant electromagnetic interference from variable frequency drives, high-current bus bars, or adjacent motor windings.

In power plant turbine halls and compressor trains, where continuous operation is mandatory and unplanned downtime carries severe financial and safety consequences, the 330104-00-14-10-02-CN is routinely installed in shaft radial vibration, axial position, and differential expansion measurement loops. Its compatibility with the Bently Nevada 3300 XL 8mm Proximitor ensures that the entire measurement chain — from probe tip to rack output — maintains calibration traceability and system-level accuracy. This is particularly important in safety instrumented systems (SIS) where the proximity probe signal may serve as an input to a Triconex Safety Controller or similar IEC 61511-compliant logic solver for emergency shutdown (ESD) activation.

In mining and mineral processing environments, where dust ingress, mechanical shock, and chemical exposure are constant threats, the probe’s robust stainless-steel housing and sealed cable assembly provide IP-rated protection that maintains measurement reliability over extended service intervals. When integrated with Bently Nevada 3500/22M Transient Data Interface modules, the system can capture high-resolution transient vibration data during startup and shutdown sequences — critical for identifying developing faults in gearboxes, fans, and pumps before they escalate to catastrophic failure.

For water treatment and municipal utility applications, where motor-driven pumps and blowers operate continuously with minimal maintenance windows, the 330104-00-14-10-02-CN provides the long-term measurement stability required to support condition-based maintenance programs. Its low power consumption and compatibility with standard 24 VDC instrument power supplies — including those distributed through Phoenix Contact QUINT Power or Siemens SITOP redundant power supply modules — make it straightforward to integrate into existing control cabinet architectures without requiring dedicated signal conditioning infrastructure.

In metallurgical and steel mill environments, where high ambient temperatures, heavy vibration, and aggressive airborne contaminants challenge every installed instrument, the probe’s thermal stability ensures that gap voltage output remains within specification across the full operating temperature range. When paired with Bently Nevada 3500/42M Proximitor I/O cards and monitored through System 1 Condition Monitoring Software, operators gain real-time visibility into bearing health, shaft centerline position, and rotor dynamic behavior — enabling proactive intervention before a safety-critical threshold is breached.

Port and heavy logistics facilities operating large crane drives, conveyor systems, and ship-loader mechanisms rely on proximity probes in their drive train monitoring systems. The 330104-00-14-10-02-CN‘s immunity to surge transients — common in environments with frequent motor starts and large inductive loads — ensures that the monitoring system remains online and accurate even during high-energy switching events that would compromise lesser sensors. Surge protection at the rack level, provided by modules such as the Bently Nevada 3500/15 Power Supply, works in concert with the probe’s inherent electrical robustness to maintain system availability.

Every 330104-00-14-10-02-CN unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including gap voltage linearity checks and cable continuity testing, to confirm that the probe meets Bently Nevada factory specifications before dispatch. Units are sourced from verified supply channels and are supported by a 12-month warranty covering manufacturing defects and performance deviations. Stocked inventory ensures rapid fulfillment for both planned maintenance replacements and emergency spare requirements, minimizing the risk of extended machinery downtime due to parts unavailability.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330104-00-14-10-02-CN requires careful attention to every element of the signal chain and power distribution system within the control cabinet. The probe connects to the Bently Nevada 330500-02-00 Proximitor Sensor, which conditions the raw eddy-current signal and provides the calibrated -24 VDC bias voltage required for linear operation. The Proximitor output feeds into the Bently Nevada 3500/40M Proximitor I/O Module housed in the 3500 rack, where alert and danger setpoints are configured for each monitored shaft position.

Rack power integrity is maintained by the Bently Nevada 3500/15 Power Supply Module, which provides regulated, filtered DC power to all I/O modules and includes built-in transient suppression to protect sensitive signal conditioning electronics from voltage spikes originating in the plant power distribution network. For installations in areas with high surge risk — such as near large motor control centers or transformer substations — additional surge protection devices from the Phoenix Contact TRABTECH series are recommended at the cabinet entry point to prevent surge energy from propagating into the instrument bus.

Communication between the 3500 rack and the plant DCS or safety PLC is typically handled via the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus TCP, Profibus DP, and other industrial protocols. This ensures that vibration data and alarm states are available in real time to the Emerson DeltaV or Honeywell Experion PKS distributed control system, enabling integrated alarm management and automated response to developing machinery faults. For SIS applications, the proximity probe signal may be hardwired directly to a Triconex Tricon or HIMA HIMax safety controller input card, bypassing the DCS layer to ensure that ESD logic is not dependent on network availability.

Within the control cabinet, cable segregation between the low-level proximity probe signal cables and high-voltage power cables is essential to prevent capacitive and inductive coupling that could introduce noise into the measurement. Shielded cable trays, proper grounding of cable shields at a single point (typically at the Proximitor), and physical separation of instrument and power cable runs are standard practices that preserve the signal integrity that the 330104-00-14-10-02-CN is designed to deliver.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 330104-00-14-10-02-CN is installed on centrifugal compressors, steam turbines, and boiler feed pumps — rotating machines where bearing failure or rotor instability can result in catastrophic release of flammable or toxic process fluids. The probe’s continuous, non-contact measurement of shaft radial vibration provides the early warning data that allows operators to initiate controlled shutdowns before a failure event, protecting both personnel and process containment integrity.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe monitors turbine shaft vibration and axial position throughout the full operating speed range, from startup through full-load operation. Accurate axial position measurement is particularly critical in steam turbines, where differential thermal expansion between the rotor and casing must be tracked continuously to prevent blade-to-casing contact during transient operating conditions.

In mining and mineral processing operations, the probe is deployed on large ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps. These machines operate in environments with extreme dust loading, high ambient vibration, and frequent electrical transients from large variable-speed drives. The probe’s ruggedized construction and high EMI immunity ensure reliable operation in these conditions, supporting condition-based maintenance programs that reduce unplanned downtime in continuous production circuits.

In water treatment and municipal utility plants, the probe monitors large vertical turbine pumps, centrifugal blowers, and digester gas compressors. These assets operate continuously with minimal maintenance access, making reliable remote monitoring essential for safe and efficient operation. The probe’s long-term measurement stability and low maintenance requirements make it well-suited to these applications.

In metallurgical and steel mill environments, the probe is used on rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower trains. High ambient temperatures, heavy mechanical vibration, and aggressive chemical environments challenge every installed instrument, and the 330104-00-14-10-02-CN‘s proven performance in these conditions makes it a preferred choice for machinery protection engineers specifying replacement or upgrade components.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-14-10-02-CN?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and performance deviations from published Bently Nevada specifications. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair at no additional cost to the customer, minimizing the impact on your maintenance schedule and spare parts inventory.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-00-14-10-02-CN undergoes functional verification prior to dispatch, including gap voltage linearity checks across the full measurement range and cable continuity and insulation resistance testing. This ensures that each unit meets Bently Nevada factory performance specifications and will perform correctly upon installation, reducing the risk of commissioning delays or early-life failures in critical machinery protection applications.

Q3: Is the 330104-00-14-10-02-CN compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330104-00-14-10-02-CN is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor sensor family (330500 series) and the 3500 Series Machinery Protection System rack. It is a direct replacement for equivalent 3300 XL 8mm probes and can be installed without modification to existing Proximitor calibration or rack configuration, provided the cable length and thread specification match the installation requirements.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts requirements?
SMARTNEXMSK maintains stocked inventory of the 330104-00-14-10-02-CN and related 3300 XL series components to support both planned maintenance schedules and emergency replacement requirements. For critical assets where unplanned downtime carries significant operational or safety risk, we recommend maintaining a site spare in your critical spare parts inventory. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss volume pricing, consignment stock arrangements, or expedited shipping options for urgent requirements.
