Bently Nevada 330104-00-15-90-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330104-00-15-90-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

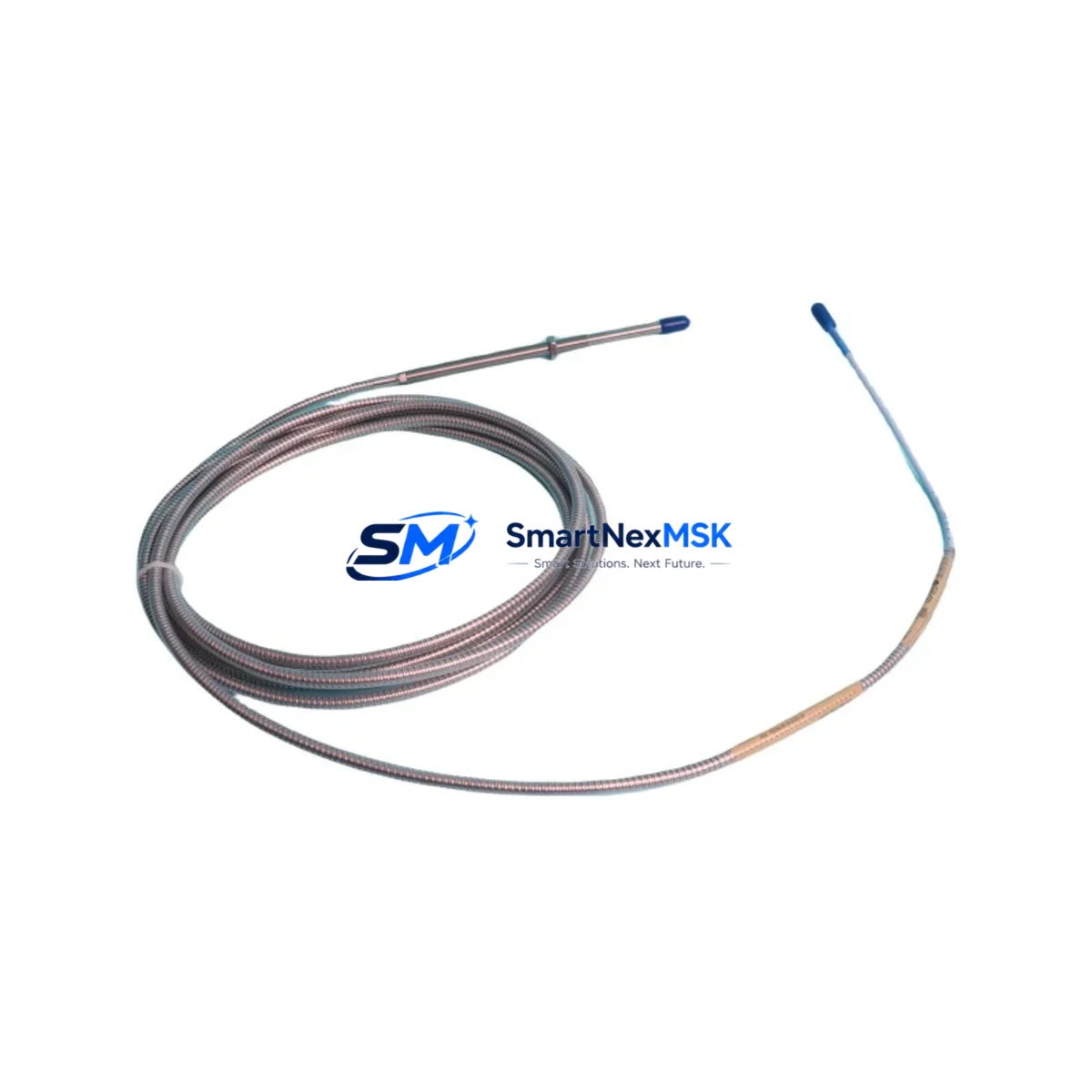

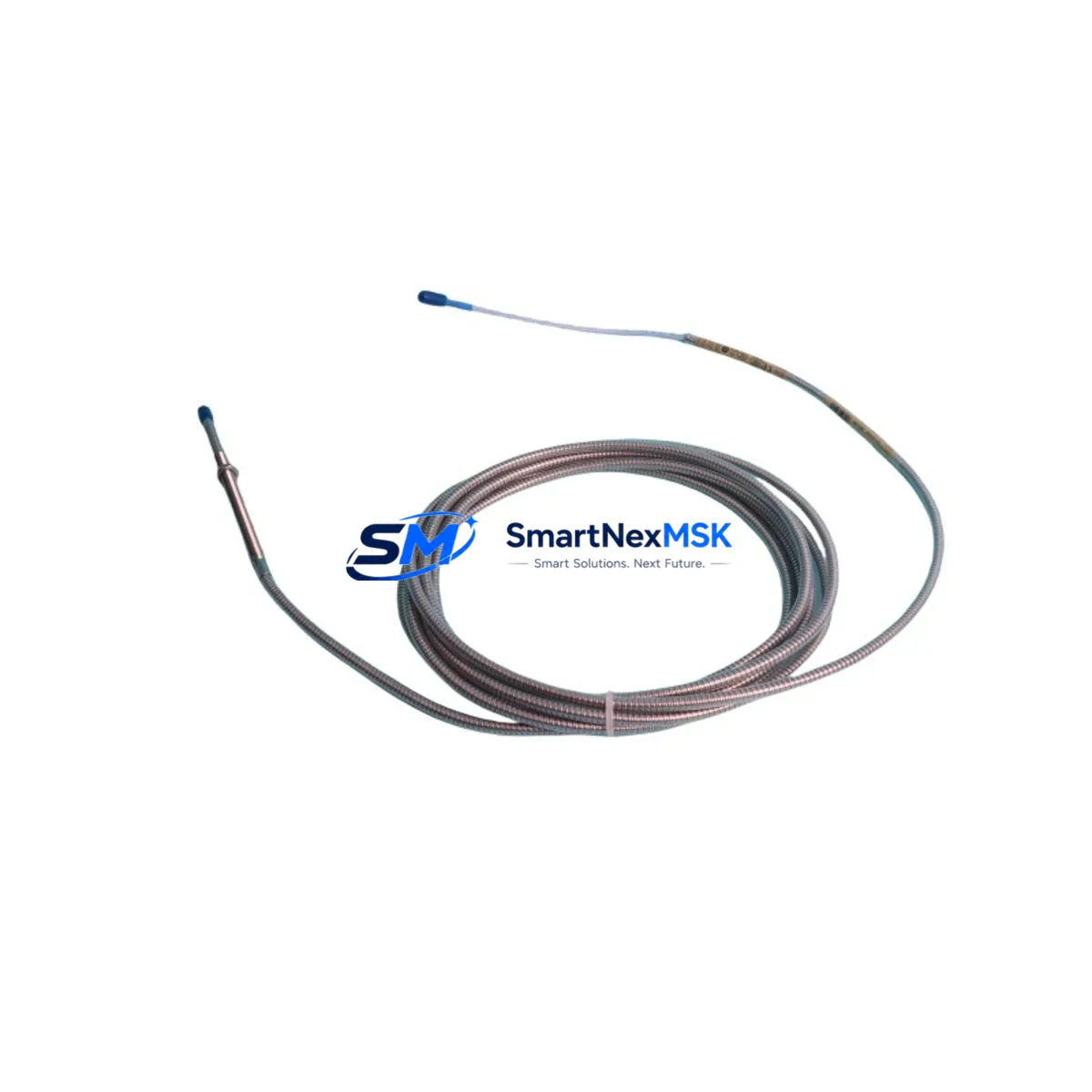

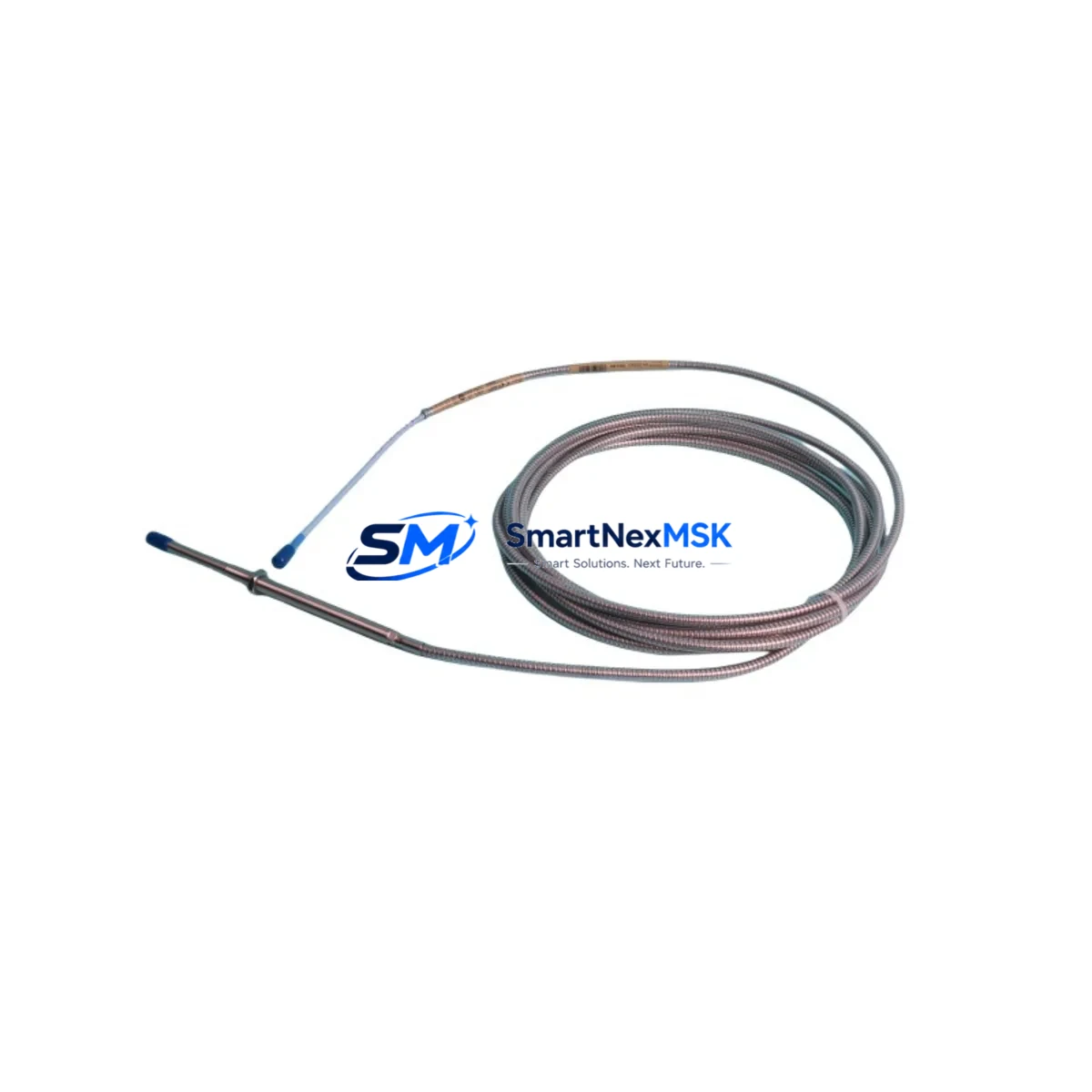

The Bently Nevada 330104-00-15-90-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, extreme temperature cycling, aggressive chemical exposure, and mechanical shock, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous process industries.

In high-stakes control environments — where a single sensor failure can cascade into unplanned downtime, equipment damage, or a safety incident — the 330104-00-15-90-02-00 delivers the signal integrity and mechanical robustness that plant engineers and reliability teams depend on. Its non-contact measurement principle eliminates mechanical wear, ensuring long-term stability in critical interlock and trip circuits where signal drift or probe failure is not an option.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330104-00-15-90-02-00 proximity probe does not operate in isolation — it is one element of a tightly integrated machinery protection architecture. In a typical turbine or compressor control cabinet, this probe connects to the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output readable by the protection system. The Proximitor is typically mounted in a DIN-rail enclosure within the control cabinet, where it interfaces with the Bently Nevada 3500 Series Rack — a modular, API 670-compliant machinery protection platform that processes vibration, position, speed, and temperature signals simultaneously.

Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/25 keyphasor module work in concert with the 330104-00-15-90-02-00 to deliver real-time shaft orbit analysis and phase-referenced vibration data. For power supply integrity — a critical factor in preventing spurious trips — the rack is typically powered through a 3500/15 Power Supply Module with redundant input capability, ensuring that voltage fluctuations or momentary power interruptions do not cause false shutdowns or missed alarms.

In installations where the control cabinet also houses Emerson DeltaV or Honeywell Experion DCS I/O modules, the 3500 rack communicates via Modbus or OPC-DA/UA gateways, maintaining data integrity across the safety and process control layers. Surge protection devices — such as Phoenix Contact TRABTECH signal line arresters — are commonly installed on the probe cable entry points to guard against lightning-induced transients in outdoor or semi-outdoor installations. Additionally, Pepperl+Fuchs IS barriers or galvanic isolators may be inserted in the signal path when the probe is deployed in ATEX/IECEx Zone 1 or Zone 2 classified hazardous areas, ensuring intrinsic safety compliance without compromising measurement accuracy.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units, hydrocracker compressors, and centrifugal pump trains, the 330104-00-15-90-02-00 monitors shaft radial vibration and axial displacement continuously. Any deviation beyond alarm setpoints triggers an automated shutdown sequence via the safety instrumented system (SIS), preventing catastrophic bearing failure or seal blowout in high-pressure, high-temperature service.

Power Generation: Steam turbine and gas turbine installations rely on this probe series for real-time shaft eccentricity and differential expansion monitoring. In combined-cycle power plants, where turbine availability directly impacts grid stability, the probe’s immunity to high-frequency electrical noise from variable-frequency drives (VFDs) and generator excitation systems ensures alarm fidelity and eliminates nuisance trips.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and corrosive slurry environments. The 330104-00-15-90-02-00’s robust stainless-steel housing and sealed cable construction maintain measurement accuracy even in these aggressive conditions, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower trains in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation onset, and bearing degradation before they escalate to pump failure and service interruption.

Metallurgy & Steel: In rolling mill drives, blast furnace blowers, and continuous casting machine drives, the probe operates in environments with intense electromagnetic fields from large AC motors and induction furnaces. Its shielded coaxial cable and differential signal architecture reject common-mode interference, preserving signal quality in electrically hostile control rooms.

Port & Heavy Lifting: Crane hoist motors and port conveyor drive systems increasingly incorporate vibration monitoring for predictive maintenance. The 330104-00-15-90-02-00 provides the measurement foundation for condition-based maintenance strategies that maximize equipment availability in 24/7 port operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330104-00-15-90-02-00?
The 12-month warranty covers all manufacturing defects, functional failures under normal operating conditions, and calibration deviations from factory specifications. It applies from the date of shipment. Probes that fail due to installation error, mechanical damage, or operation outside rated parameters are assessed case by case. Warranty replacements are dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each probe?
Every 330104-00-15-90-02-00 unit undergoes functional verification prior to dispatch, including output voltage linearity check against a calibrated steel target, cable continuity and insulation resistance test, and visual inspection of the probe tip, housing, and connector. Units sourced from authorized channels include original factory test documentation where available.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor installations?
Yes. The 330104-00-15-90-02-00 is a direct, drop-in compatible replacement for all standard 3300 XL Series Proximitor systems. It maintains the same sensitivity (200 mV/mil, 7.87 V/mm), gap voltage range, and connector interface as the original factory specification, requiring no recalibration of the Proximitor or protection rack when used as a like-for-like replacement.

Q4: Can you support long-term or scheduled supply for maintenance programs?
Yes. We maintain standing inventory of the 330104-00-15-90-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, annual turnarounds, and critical spare parts programs. Blanket purchase orders and scheduled delivery arrangements are available. Contact our team to discuss your site’s spare parts strategy and lead-time requirements.
