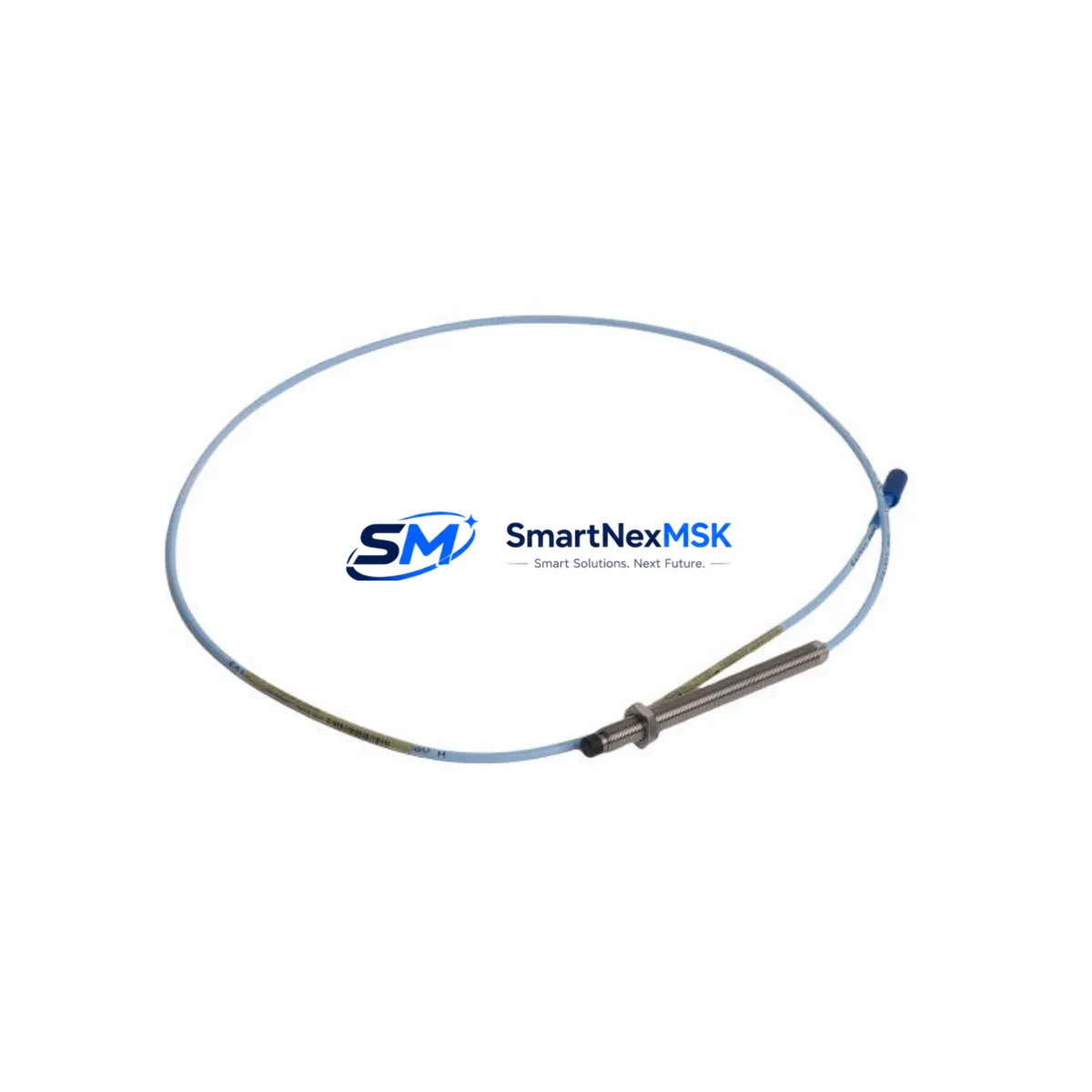

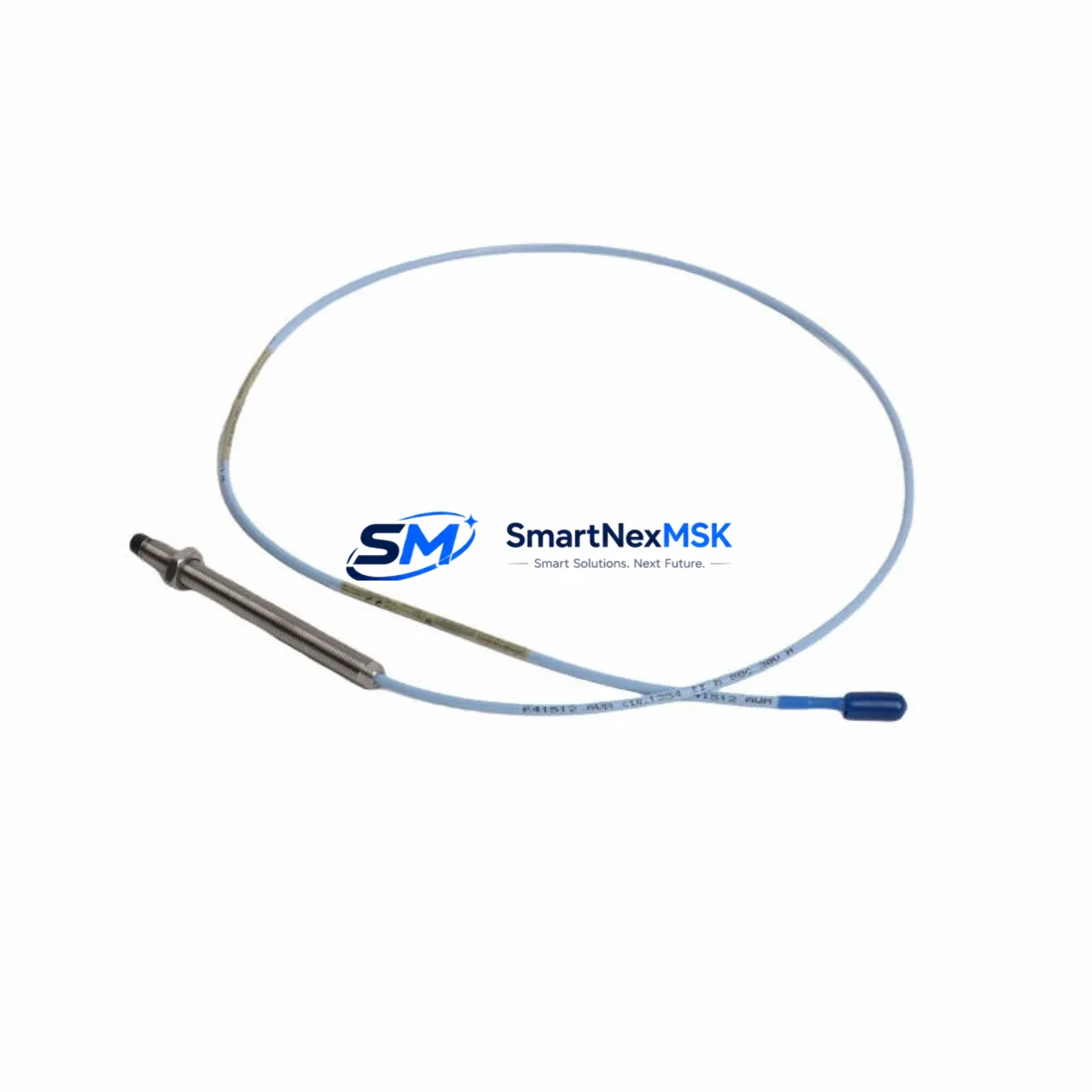

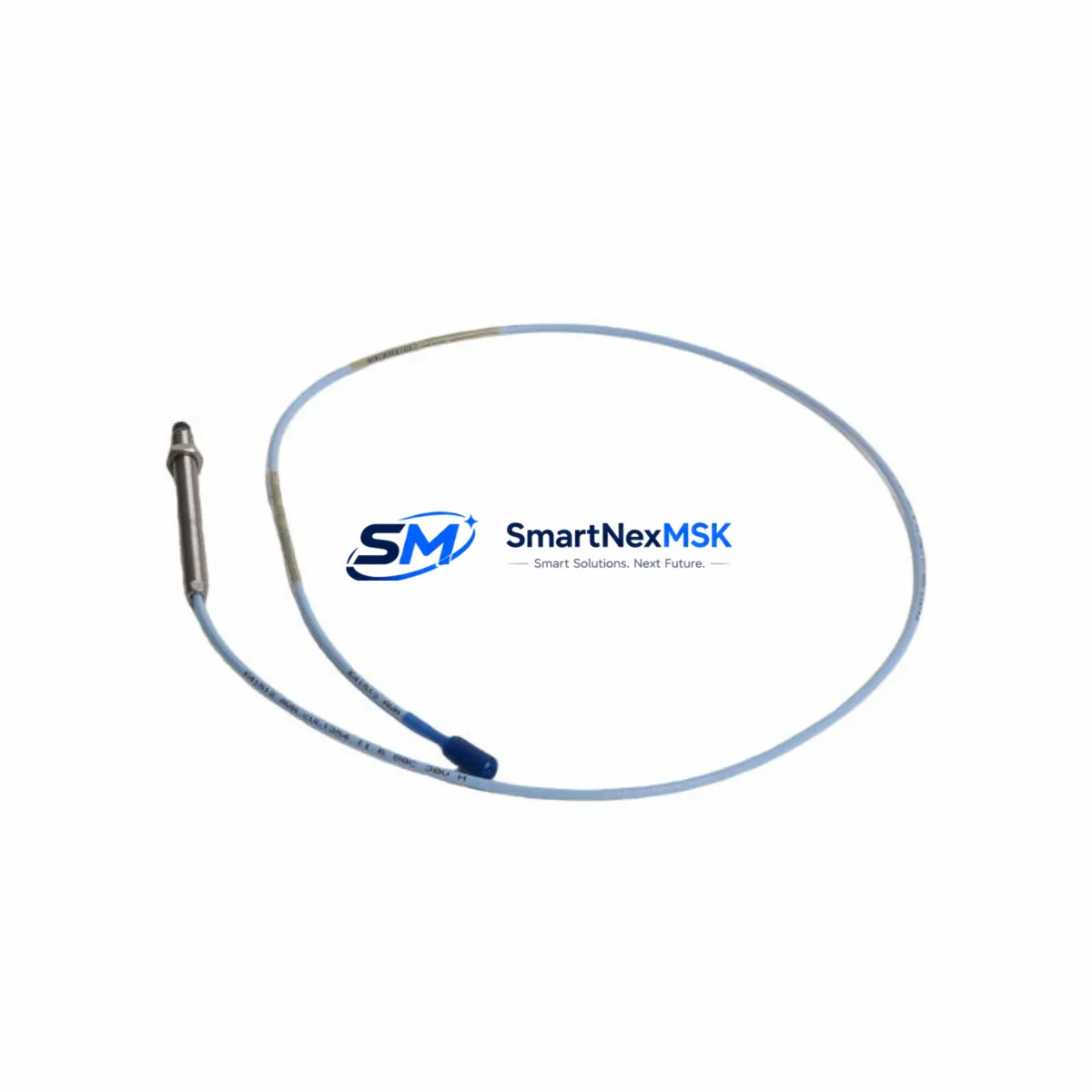

Bently Nevada 330104-00-17-05-02-CN Safety Proximity Probe

Bently Nevada 330104-00-17-05-02-CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330104-00-17-05-02-CN is a ruggedized eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity shaft displacement and vibration monitoring in the most demanding industrial environments. Designed for critical rotating machinery protection, this probe is a cornerstone component in safety instrumented systems (SIS), turbine protection panels, compressor control cabinets, and high-availability continuous process lines where control interruption is not an option.

In high-load, high-interference industrial facilities — including petrochemical plants, power generation stations, mining operations, metallurgical smelters, water treatment infrastructure, and port crane systems — the reliability of proximity sensing directly determines whether a machine trips safely or catastrophically fails. The 330104-00-17-05-02-CN addresses this challenge with a hardened coaxial cable assembly, corrosion-resistant stainless steel housing, and a thermally stable sensing tip that maintains calibrated output across wide temperature swings and aggressive chemical exposure.

Signal drift is one of the most insidious risks in continuous production environments. This probe’s eddy-current sensing principle is inherently immune to contamination by oil mist, steam, and conductive particles — common culprits of signal drift in optical or capacitive alternatives. The output remains stable even when the target surface is wet, coated, or thermally expanded, ensuring that the Bently Nevada 3500 Series rack or 3300 Series monitor receives a clean, drift-free signal at all times.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 330104-00-17-05-02-CN probe does not operate in isolation. It is the field-sensing front end of a complete vibration monitoring chain. The probe connects to a Bently Nevada 330130 Proximitor® Sensor (signal conditioning driver), which converts the raw inductance change into a calibrated DC voltage signal. This conditioned signal feeds directly into a Bently Nevada 3500/40M Proximitor®/Seismic Monitor or a 3300/16 Monitor housed in the protection rack.

Within the control cabinet, surge protection is critical. Transient voltage spikes from nearby variable frequency drives (VFDs), motor starters, or switching power supplies can corrupt the low-level analog signal. Installing a Bently Nevada 330077 Proximitor® Extension Cable with proper grounding, combined with a dedicated -24 VDC isolated power supply module (such as those in the Bently Nevada 3500/15 Power Supply family), eliminates ground loops and shields the signal path from power-line interference.

For facilities running Bently Nevada System 1 condition monitoring software, the probe data integrates seamlessly into the plant-wide asset health dashboard, enabling predictive maintenance scheduling before a bearing or seal failure escalates into an unplanned shutdown. In safety instrumented function (SIF) loops, the probe output can be hardwired to a Triconex or Rockwell GuardLogix Safety PLC via the monitor’s relay output, triggering an automatic machine trip if vibration exceeds the danger setpoint — a critical layer of protection in API 670-compliant machinery protection schemes.

Power quality at the cabinet level also matters. Pairing the monitoring rack with a Phoenix Contact QUINT UPS or equivalent uninterruptible power module ensures that a momentary grid disturbance does not cause a false trip or, worse, a missed alarm. Communication integrity between the 3500 rack and the DCS is maintained via Modbus RTU or Ethernet/IP gateway modules, keeping the control room informed even during electrical storms or grid switching events common in heavy industrial substations.

Critical Industrial Safety Applications

The 330104-00-17-05-02-CN is deployed across the full spectrum of heavy industry where rotating machinery is central to production continuity and personnel safety:

Petrochemical & Refining: Installed on centrifugal compressors, boiler feed pumps, and reactor agitators in API 670-governed machinery protection systems. The probe’s chemical resistance and wide temperature range make it suitable for hot hydrocarbon service where conventional sensors fail prematurely.

Power Generation: Used on steam turbine shaft monitoring systems at coal, gas, and nuclear power plants. Accurate radial vibration and eccentricity measurement during startup and coast-down prevents rotor rubs that can cause catastrophic blade damage.

Mining & Mineral Processing: Monitors SAG mill pinion bearings, slurry pump shafts, and crusher drive trains in environments with extreme dust loading, water ingress, and mechanical shock — conditions where the IP67-rated stainless housing of this probe provides a decisive reliability advantage.

Metallurgy & Steel: Applied to rolling mill drive motors, continuous caster pinch rolls, and blast furnace blower trains. The probe withstands radiated heat and electromagnetic interference from high-current induction furnaces without signal degradation.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower shafts in municipal and industrial water infrastructure, where unplanned downtime directly impacts public health and regulatory compliance.

Port & Bulk Handling: Installed on ship unloader slewing drives, conveyor head pulley bearings, and stacker-reclaimer travel drives in salt-air coastal environments, where corrosion resistance and sealed construction are non-negotiable.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-17-05-02-CN?
Every unit is covered by a 12-month warranty from the date of shipment. If the probe fails under normal operating conditions within this period, we provide a replacement or full refund. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: How is each probe tested before shipment?
All units undergo a full pre-shipment functional test including gap-versus-output linearity verification, insulation resistance check, and cable continuity test. Test records are available upon request. We do not ship untested or cosmetically refurbished units without explicit disclosure.

Q3: Is the 330104-00-17-05-02-CN compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. This probe is fully compatible with the Bently Nevada 330130 Proximitor® driver and all 3300/3500 Series monitors. It follows the standard 8 mm probe, 5 m cable, 5 m extension configuration. No recalibration of the monitor is required when replacing a like-for-like probe in the same gap range.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
Yes. We maintain standing inventory of the 330104-00-17-05-02-CN and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Lead times for standard orders are typically 1–3 business days. Contact our team to discuss blanket order arrangements for your facility’s critical spares program.
