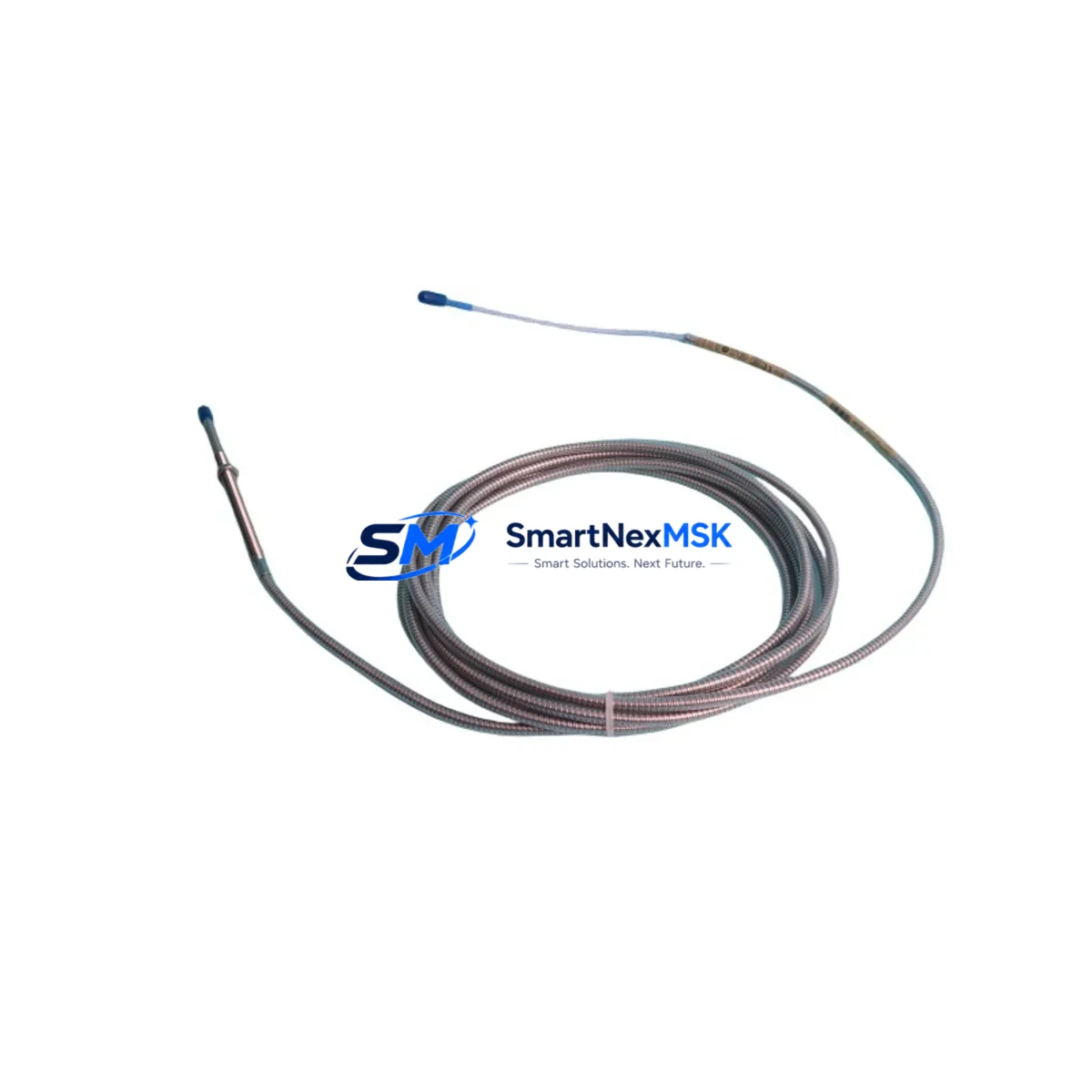

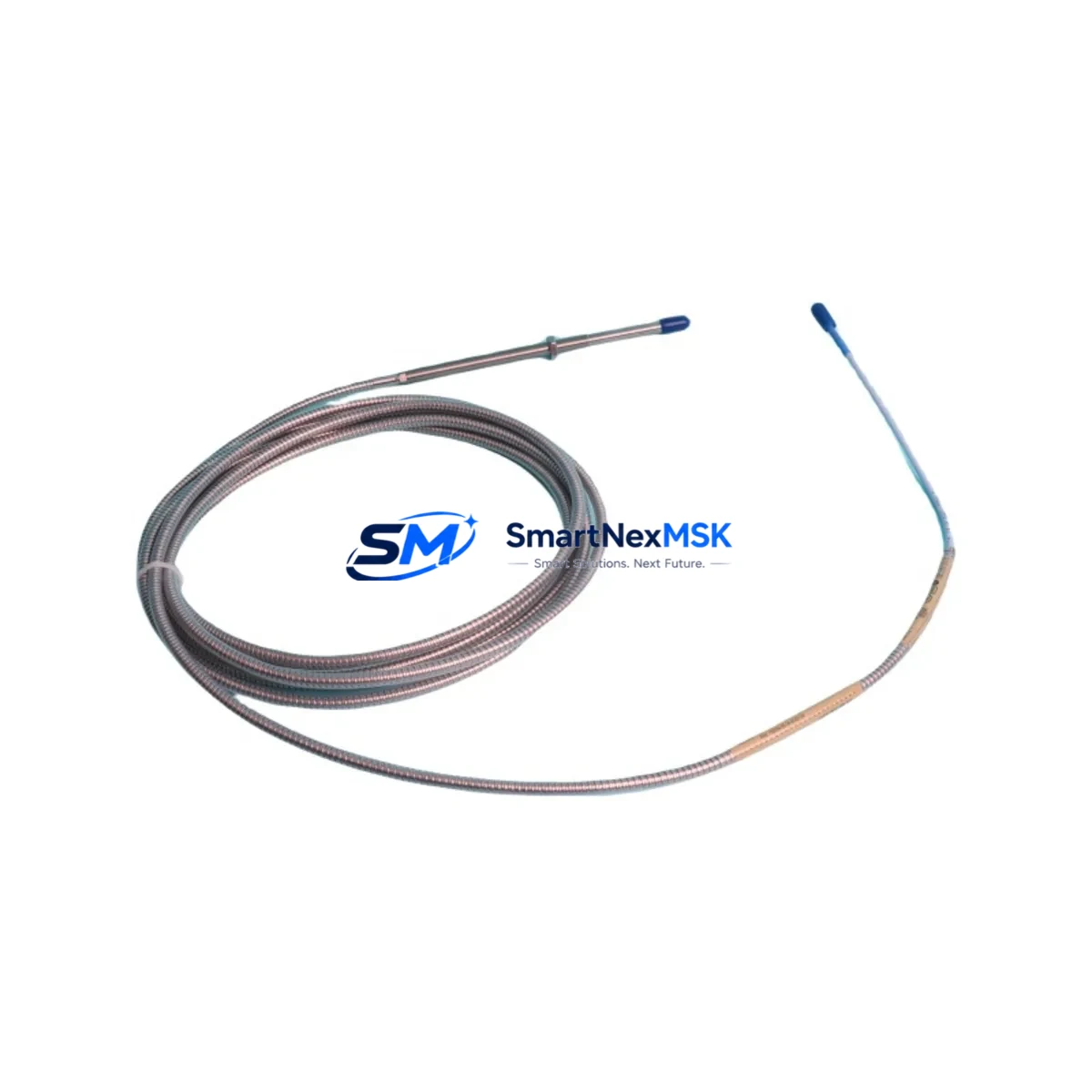

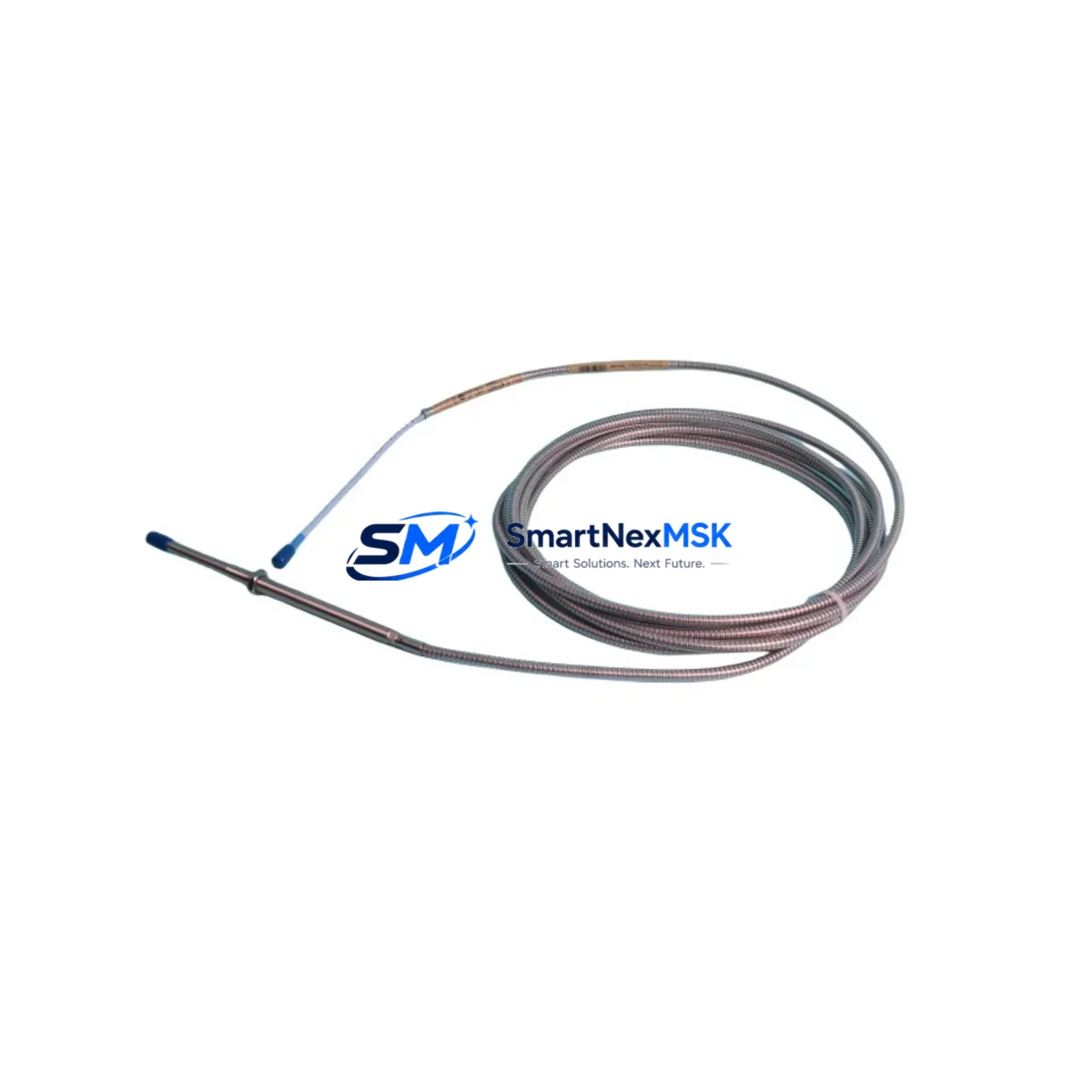

Bently Nevada 330104-00-17-90-02-00 Safety Proximity Probe

Bently Nevada 330104-00-17-90-02-00 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 330104-00-17-90-02-00 is an 8mm eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered specifically for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment infrastructure.

In high-stakes industrial control environments, signal integrity is non-negotiable. The 330104-00-17-90-02-00 delivers stable, drift-free output even under severe electromagnetic interference (EMI), mechanical shock, and thermal cycling — conditions that routinely cause inferior sensors to fail or produce erroneous readings. Its ruggedized stainless steel housing and hermetically sealed tip assembly ensure long-term mechanical integrity in oil mist, coolant splash, and corrosive gas atmospheres. When installed as part of a complete Bently Nevada 3300 XL proximity system — including the 330130-080-00-00 extension cable, 330180-X1-05 proximitor/seismic transducer, and 3300/16 dual-channel monitor module — it forms a fully validated, API 670-compliant machinery protection loop capable of triggering automatic shutdown before catastrophic bearing or shaft failure occurs.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330104-00-17-90-02-00 proximity probe does not operate in isolation. It is the field-sensing front end of a layered protection architecture. The probe’s coaxial output feeds directly into the Bently Nevada 330180-X1-05 proximitor module, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned signal is then processed by the Bently Nevada 3300/16 dual-channel vibration monitor, which compares real-time shaft displacement against pre-configured alert and danger setpoints.

For installations requiring redundant protection, the system is often paired with a Bently Nevada 3500/42M proximitor I/O module within the 3500 Series rack, enabling SIL-rated safety loop integration. Power supply stability is critical in these architectures — a dedicated Bently Nevada 3500/15 power supply module or equivalent 24 VDC industrial DIN-rail PSU with surge protection ensures the proximitor and monitor receive clean, regulated power even during grid transients or capacitor bank switching events.

Communication integrity is maintained through the Bently Nevada 3500/92 communication gateway, which bridges the protection system to plant-level DCS or SCADA platforms via Modbus TCP or OPC-DA. In facilities running GE System 1 asset management software, the 330104-00-17-90-02-00 probe data streams continuously into the condition monitoring database, enabling trend analysis, alarm correlation, and predictive maintenance scheduling without manual intervention. Surge protection devices — such as DIN-rail mounted transient voltage suppressors rated for the signal cable circuit — are recommended at the cabinet entry point to guard against lightning-induced surges in outdoor or semi-outdoor installations.

For complete loop integrity, the 330130-080-00-00 extension cable (2-meter armored extension) is the factory-matched interconnect between the probe and proximitor, preserving the system’s calibrated sensitivity and eliminating impedance mismatch errors that could cause false vibration readings or nuisance trips.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor trains and centrifugal pump drives, the 330104-00-17-90-02-00 monitors radial shaft vibration and axial position on critical rotating equipment. Undetected bearing wear or rotor imbalance in these environments can result in catastrophic seal failure, hydrocarbon release, and fire. The probe’s continuous, non-contact measurement eliminates the mechanical wear associated with contact sensors, ensuring reliable protection over multi-year turnaround cycles.

Power Generation: Steam turbine and gas turbine installations demand sub-millisecond response to shaft excursions. The 3300 XL probe’s DC-to-10 kHz frequency response captures both slow thermal bow events and high-frequency blade-pass vibration, providing operators with the full vibration spectrum needed to distinguish benign resonance from developing mechanical faults.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water ingress, and structural vibration. The IP67-rated, stainless steel housing of the 330104-00-17-90-02-00 withstands these conditions without signal degradation, maintaining protection continuity during continuous 24/7 production cycles.

Metallurgy & Steel: Rolling mill drives and induction furnace blower motors generate intense electromagnetic fields that can saturate conventional sensors. The shielded coaxial construction of the 3300 XL probe rejects common-mode EMI, delivering clean vibration signals even in the immediate vicinity of high-current bus bars and variable frequency drives.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment plants require long-term, maintenance-free vibration monitoring. The 330104-00-17-90-02-00’s hermetically sealed design prevents moisture ingress in humid pump houses, while its wide operating temperature range accommodates both tropical outdoor installations and climate-controlled indoor vaults.

Port & Bulk Material Handling: Ship unloaders, stacker-reclaimers, and conveyor drive gearboxes benefit from continuous proximity monitoring to detect early-stage gear mesh anomalies and bearing defects before they escalate to unplanned downtime events that disrupt cargo throughput schedules.

Safety and Quality FAQ

Q1: What warranty does the 330104-00-17-90-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your equipment downtime.

Q2: How is each unit tested before shipment?
Every 330104-00-17-90-02-00 proximity probe undergoes a 100% functional outgoing inspection prior to dispatch. Testing includes sensitivity verification at the rated 7.87 V/mm output, cable continuity and insulation resistance checks, and connector integrity inspection. A test report is available upon request for critical installation documentation packages.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330104-00-17-90-02-00 is fully compatible with all Bently Nevada 3300 XL proximitor modules and integrates seamlessly into 3500 Series protection racks when used with the appropriate I/O module. It is also backward-compatible with legacy 3300 Series installations, making it an ideal like-for-like replacement during planned maintenance or emergency spare deployment.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the 330104-00-17-90-02-00 and related 3300 XL Series components to support both spot purchases and scheduled maintenance programs. We provide lead-time commitments and can arrange consignment stock arrangements for customers with high-volume or multi-site requirements. Contact our technical sales team to discuss a supply agreement tailored to your maintenance cycle.
