Bently Nevada 330104-00-25-10-12-00 Maintenance-Ready Spare 3300 XL Automation

Bently Nevada 330104-00-25-10-12-00 Maintenance-Ready Spare 3300 XL Automation

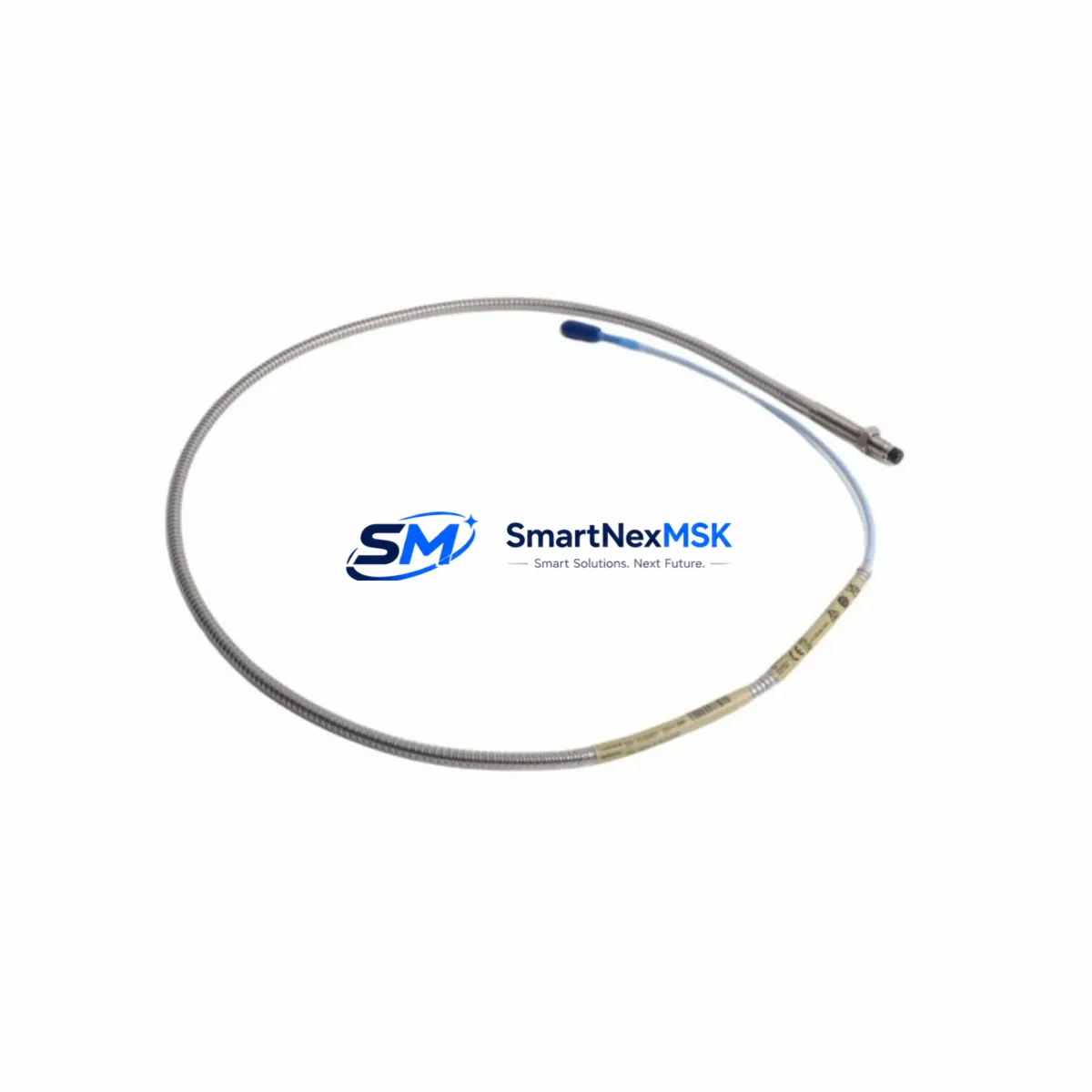

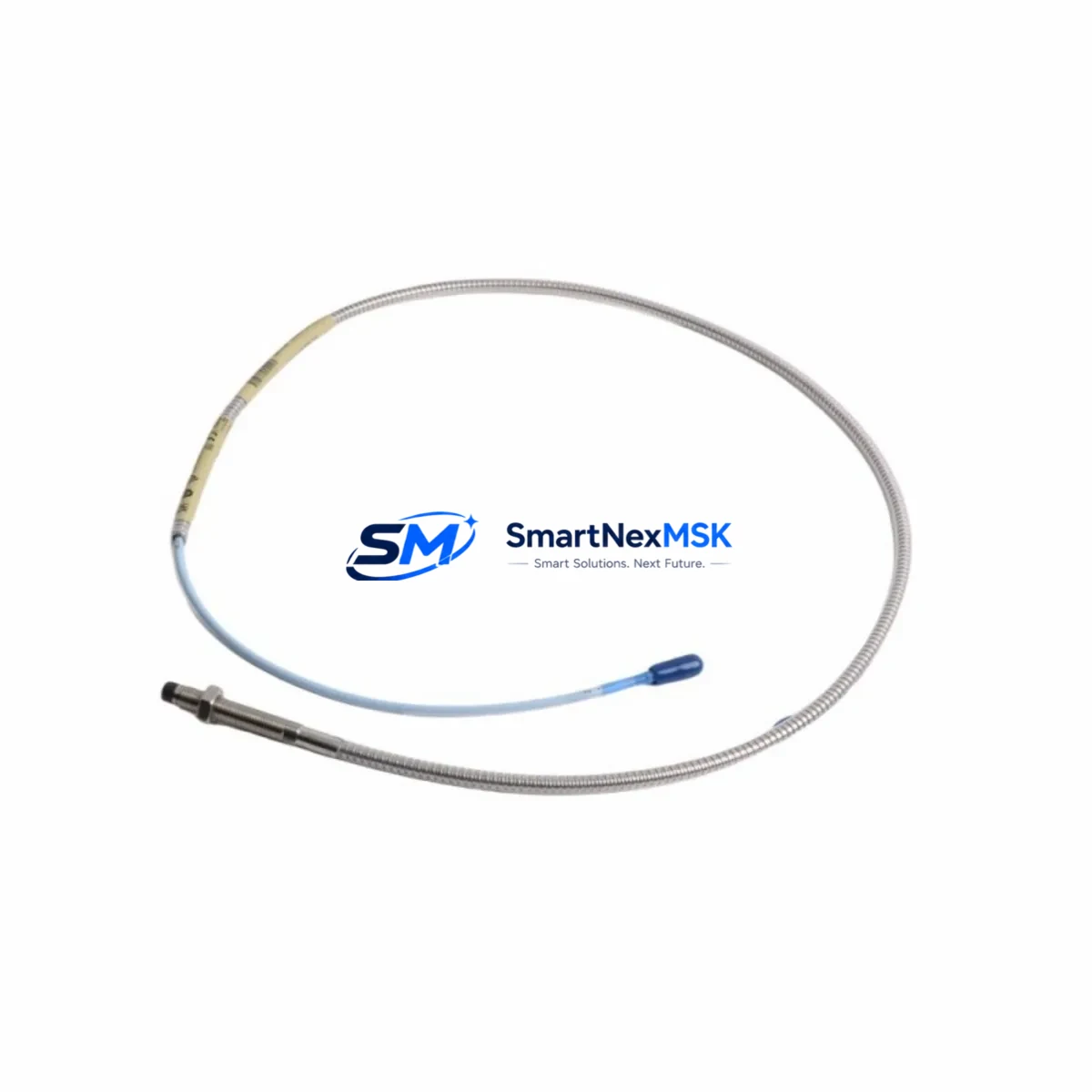

The Bently Nevada 330104-00-25-10-12-00 is an original 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for turbomachinery, compressors, pumps, and rotating equipment in oil & gas, power generation, and heavy process industries, this transducer delivers non-contact radial vibration, axial position, and eccentricity measurements critical to predictive maintenance programs. Sourced directly from authorized supply channels, every unit shipped by SMARTNEXMSK undergoes pre-shipment electrical verification and is backed by a 12-month warranty.

For maintenance engineers managing aging DCS or machinery protection systems, having a verified spare of the 330104-00-25-10-12-00 on the shelf is the single most effective strategy to eliminate unplanned downtime. This transducer integrates directly with the Bently Nevada 3300 XL proximitor/extension cable assemblies and is fully compatible with the 3300/16 RAM and 3500 Series rack-based monitoring platforms without firmware reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-25-10-12-00 transducer is flagged during a routine control cabinet inspection or condition monitoring audit, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient for a complete corrective action. A thorough site assessment should include the following associated components to prevent repeat failures and ensure system integrity:

• 330130-080-00-00 Extension Cable (8m) — Inspect for jacket abrasion, connector corrosion, and continuity. Extension cables are a common failure point in high-vibration environments and should be replaced as a matched set with the transducer.
• 330180-X1-05 Proximitor (3300 XL 8mm) — Verify output voltage and gap voltage calibration. A degraded proximitor will cause false alarms even with a new transducer installed.
• 3500/42M Proximitor I/O Module — Check for channel faults, blown input protection fuses, and firmware revision compatibility when migrating from legacy 3300 racks to 3500 platforms.
• 3300/16 RAM Power Supply Module — Measure DC rail voltages under load. Undervoltage conditions accelerate transducer drift and reduce MTBF across the entire monitoring loop.
• Terminal Blocks and Field Wiring — Inspect DIN-rail mounted terminal strips for oxidation, loose ferrules, and incorrect torque on signal wiring. Poor terminations introduce noise that mimics real vibration events.
• Signal Isolators (e.g., MTL or P+F series) — In installations where the proximitor signal crosses hazardous area boundaries, verify that Zener barriers or galvanic isolators are within calibration and have not degraded.
• 3500/22M Transient Data Interface (TDI) — If the machine has a history of transient events, confirm TDI buffer integrity and that event timestamps align with DCS historian records.
• Keyphasor Transducer (330980 series) — Validate Keyphasor signal quality and gap voltage. Phase reference errors will corrupt all vector-based vibration analysis derived from the 330104 channel.
• 3500/15 Power Supply Module — Perform a load test and inspect capacitor health. Intermittent power supply faults are frequently misdiagnosed as transducer failures.
• Rack Backplane and I/O Bus Connectors — Clean and reseat all module connectors. Oxidized backplane contacts cause intermittent channel dropouts that are difficult to reproduce during bench testing.

Procurement engineers should note that the 330104-00-25-10-12-00 is a direct-fit replacement for earlier 7200 Series 8mm transducers in many installations, subject to gap recalibration. Maintaining a minimum of two units per critical machine train in the site spare parts inventory is the industry-standard recommendation for API 670-compliant machinery protection programs.

Site Replacement Workflow

Replacing a 330104-00-25-10-12-00 in the field follows a structured sequence to minimize downtime and avoid introducing new faults:

1. Isolate and document: Record the existing gap voltage (typically -10.0 to -10.5 VDC at the nominal air gap of 1.27 mm / 50 mil) before removal. This baseline is essential for post-installation verification.
2. De-energize the monitoring channel: Inhibit the channel at the 3500 or 3300 rack to prevent spurious trips during the swap. Do not de-energize the entire rack if other channels are protecting running equipment.
3. Remove and inspect: Unthread the transducer using the correct spanner. Inspect the probe tip for target contact damage, which indicates excessive shaft runout or a bearing failure event.
4. Install the replacement unit: Thread the new 330104-00-25-10-12-00 to the correct gap per the OEM calibration curve. Use a non-metallic feeler gauge or the proximitor output voltage as the reference.
5. Reconnect and verify: Reconnect the extension cable and proximitor. Power up the channel and confirm output voltage is within the linear range. Check for noise floor and compare against adjacent channels.
6. Return to service and log: Remove the channel inhibit, confirm alarm setpoints are active, and update the CMMS with the replacement date, new part serial number, and gap voltage reading.

This workflow applies equally to planned outage replacements and emergency corrective maintenance. SMARTNEXMSK ships all 330104-00-25-10-12-00 units with a pre-shipment test report, reducing the risk of installing a defective spare under time pressure.

Spare Parts Support FAQ

Q1: Is the 330104-00-25-10-12-00 compatible with both 3300 and 3500 Series racks?
Yes. The 330104-00-25-10-12-00 is fully compatible with the Bently Nevada 3300 XL and 3500 Series monitoring platforms when paired with the correct 3300 XL 8mm Proximitor (330180 series). No hardware modification is required. Confirm the proximitor part number and rack I/O module revision before installation to ensure the signal conditioning chain is matched.

Q2: What is the recommended spare parts inventory strategy for this transducer?
For API 670-compliant installations, maintain a minimum of two spare transducers per critical machine train, plus one matched extension cable and one spare proximitor per four monitored channels. For non-critical applications, one spare per site is acceptable. SMARTNEXMSK supports blanket order arrangements for customers managing multi-unit facilities.

Q3: How is each unit tested before shipment?
Every 330104-00-25-10-12-00 unit is electrically verified prior to shipment. Testing includes output voltage linearity check across the full gap range, insulation resistance measurement, and connector integrity inspection. A test report is included with each shipment. Units that do not meet OEM specification are quarantined and not shipped.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, target contact, chemical exposure beyond rated limits, or unauthorized modification. Warranty claims are processed within 5 business days of receiving the returned unit, with replacement or full refund options available.
