Bently Nevada 330104-01-14-10-01-05 Safety Proximity Probe

Bently Nevada 330104-01-14-10-01-05 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Control Environments

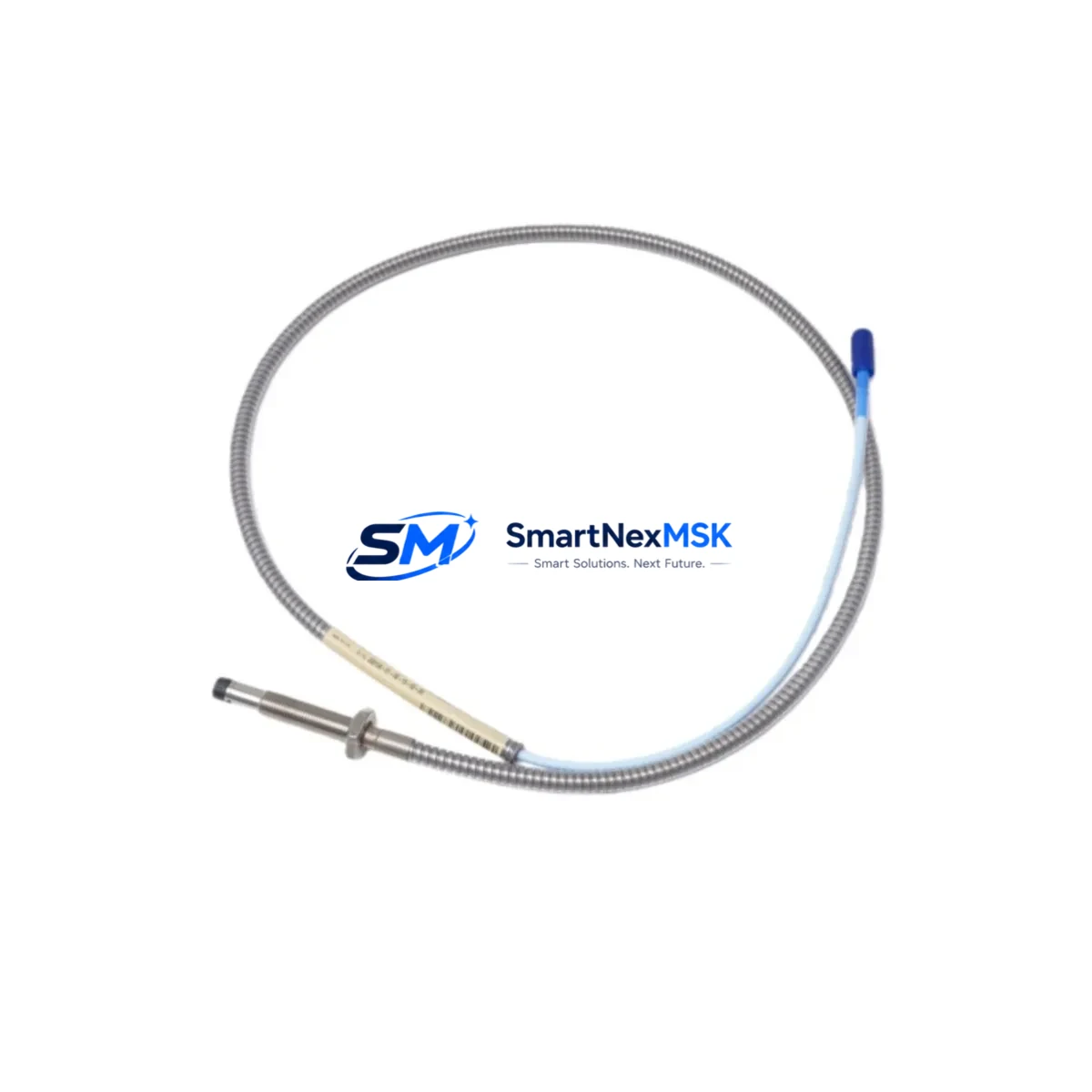

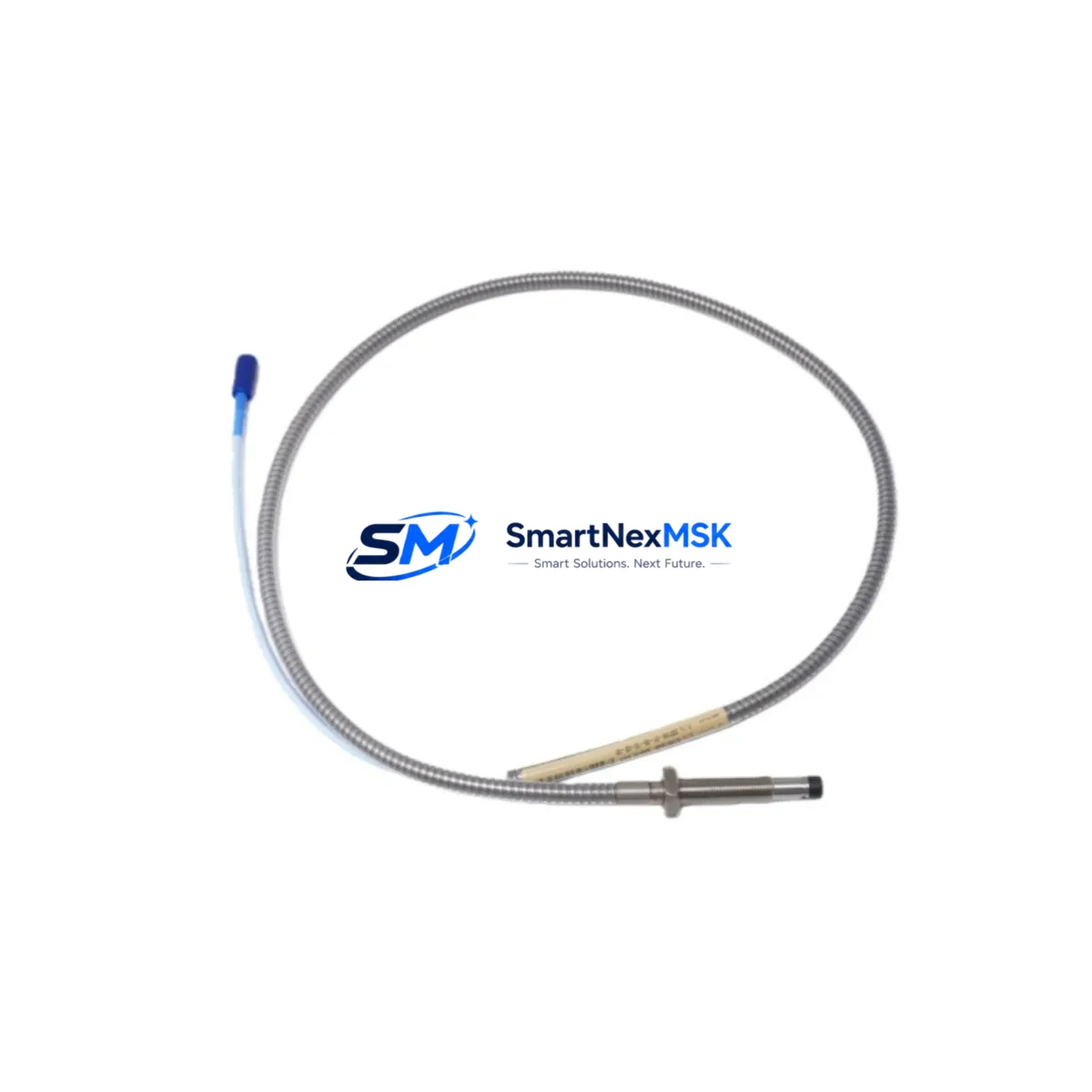

The Bently Nevada 330104-01-14-10-01-05 is an 8mm ruggedized proximity probe engineered for continuous, safety-critical vibration and position monitoring in demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity Transducer System, this probe delivers stable, interference-resistant eddy-current sensing across rotating machinery, critical drive trains, and high-load turbine shafts where control interruption is not an option.

In petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and continuous manufacturing sites, shaft vibration monitoring is a frontline safety function. The 330104-01-14-10-01-05 is built to maintain signal integrity under conditions of strong electromagnetic interference, mechanical shock, thermal cycling, and chemical exposure — precisely the conditions where lesser sensors fail and trigger unplanned shutdowns or, worse, undetected machinery faults.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330104-01-14-10-01-05 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a properly engineered control cabinet, the probe signal feeds into a Bently Nevada 3300 XL Proximitor (330180-91-00), which conditions the raw eddy-current output into a clean DC voltage signal suitable for the Bently Nevada 3500/42M Proximitor I/O Module or equivalent rack-based monitoring hardware.

To protect against power-line transients and surge events that can corrupt proximity signals or damage front-end electronics, the control cabinet should incorporate a Phoenix Contact TRABTECH surge protection device on the 24 VDC supply rail feeding the Proximitor. Stable, clean power is equally critical: a Bently Nevada 3500/15 Power Supply Module within the 3500 rack ensures the monitoring system remains energized even during upstream grid disturbances.

For installations where the probe is located far from the monitoring rack — common in large turbine halls or compressor stations — a Bently Nevada 330130 Series Extension Cable bridges the distance without signal degradation. The coaxial, shielded construction of both the probe cable and extension cable suppresses induced noise from adjacent VFD wiring, high-current bus bars, and motor starters that are typical in heavy industrial switchgear rooms.

In safety instrumented systems (SIS), the vibration signal from the 330104-01-14-10-01-05 is often routed to a Triconex 3700A Safety Controller or a Rockwell Automation GuardLogix Safety PLC for high-integrity interlock processing. These safety controllers evaluate the vibration amplitude against pre-set trip thresholds and initiate controlled shutdowns before mechanical damage propagates. Pairing the proximity probe with a Bently Nevada 3500/40M Proximitor Monitor provides dual-channel redundancy and self-diagnostic capability, further reducing the risk of spurious trips or missed alarms.

Communication between the monitoring rack and the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — is handled via Modbus RTU or FOUNDATION Fieldbus H1 interfaces embedded in the 3500 rack’s communication gateway module. This integration ensures that vibration trend data is continuously visible to control room operators, enabling predictive maintenance decisions before a developing fault reaches a critical threshold.

Critical Industrial Safety Applications

The 330104-01-14-10-01-05 proximity probe is deployed across the most demanding sectors of heavy industry:

Petrochemical & Refining: Installed on centrifugal compressors, reactor agitators, and boiler feed pumps where shaft displacement monitoring is mandated by API 670. Continuous operation in hydrogen-rich, high-temperature atmospheres demands the probe’s IP67 sealing and high-temperature cable insulation.

Power Generation: Used on steam turbine journal bearings and generator shaft extensions. In combined-cycle plants, the probe feeds vibration data to the turbine control system, enabling automatic load shedding before bearing damage occurs during grid frequency excursions.

Mining & Mineral Processing: Mounted on SAG mill pinion bearings, crusher drive shafts, and slurry pump impellers. The ruggedized construction withstands the high-vibration, dust-laden, and moisture-heavy environments typical of underground and open-pit mining operations.

Water & Wastewater Treatment: Applied to large vertical turbine pumps and blower shafts in municipal treatment plants. Reliable shaft monitoring prevents catastrophic pump failures that would interrupt water supply or cause environmental compliance violations.

Metallurgy & Steel: Deployed on rolling mill drive trains and continuous casting machine drives, where thermal shock, scale, and heavy vibration are constant. The probe’s wide operating temperature range and robust mechanical design ensure consistent performance in these extreme conditions.

Port & Material Handling: Used on large crane hoist motors and conveyor drive gearboxes. Early detection of shaft misalignment or bearing wear prevents load-drop incidents and unplanned port stoppages.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330104-01-14-10-01-05?
The 12-month warranty covers all manufacturing defects, functional failures, and sensitivity deviations from the Bently Nevada factory specification. If the probe fails to perform within its rated linear range or exhibits signal instability under normal operating conditions within the warranty period, we will replace or repair the unit at no charge. Warranty claims are processed within 5 business days of receipt.

Q2: How is each unit tested before shipment?
Every 330104-01-14-10-01-05 unit undergoes a full pre-shipment functional test including sensitivity verification (7.87 V/mm ± 10%), cable continuity check, connector integrity inspection, and visual examination for physical damage. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL Proximitor drivers and 3500 rack systems?
Yes. The 330104-01-14-10-01-05 is fully compatible with the Bently Nevada 3300 XL Proximitor family (330180 Series) and integrates directly with the 3500/40M and 3500/42M monitoring modules. It is also backward-compatible with legacy 3300 Series drivers when used with the appropriate extension cable and gap voltage settings.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain standing inventory of the 330104-01-14-10-01-05 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For critical infrastructure operators requiring guaranteed stock allocation, contact our sales team to discuss a dedicated inventory reservation arrangement.
