Bently Nevada 330104-01-14-10-01 Spare 3300 XL Probe: Precision Replacement for Vibration Monitoring Systems

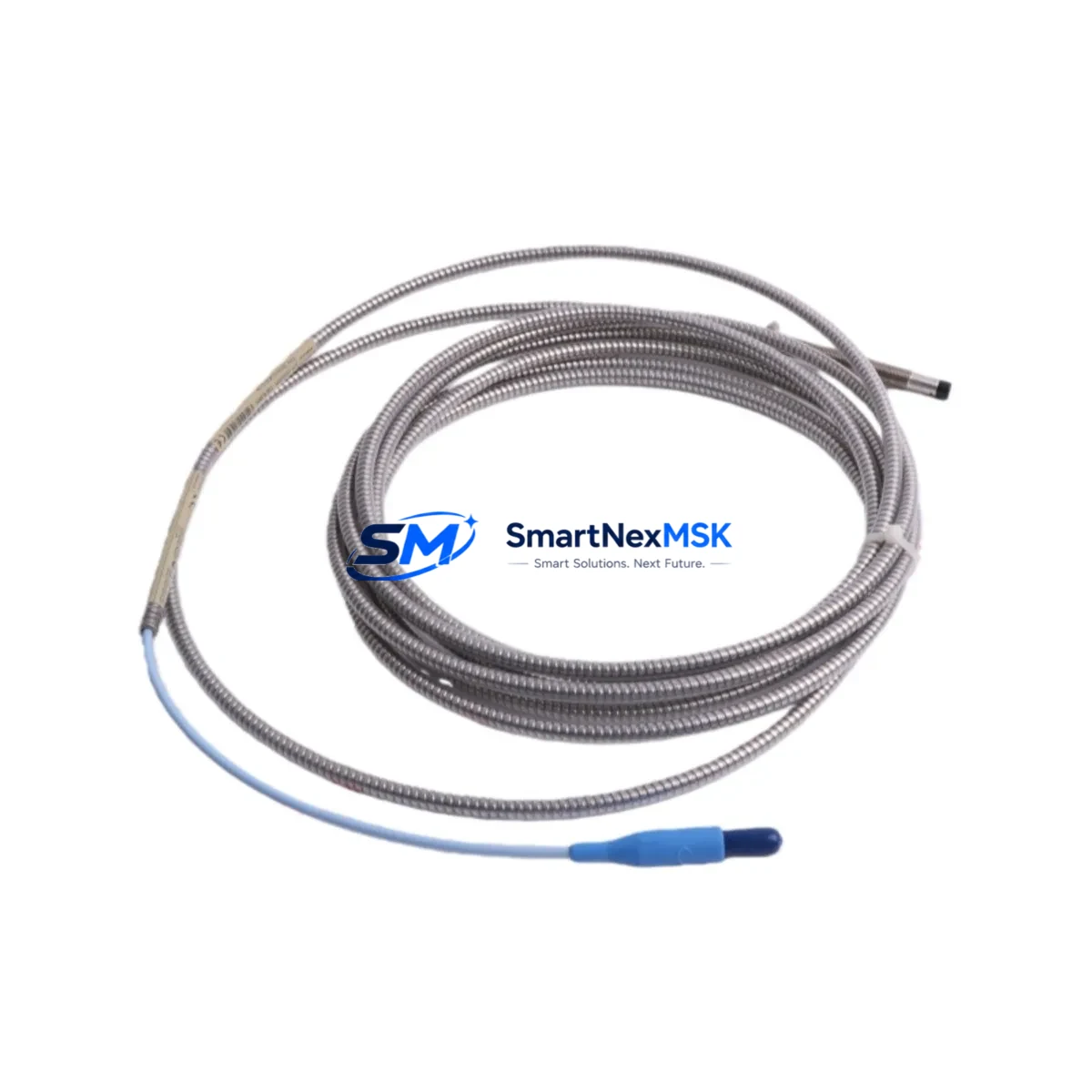

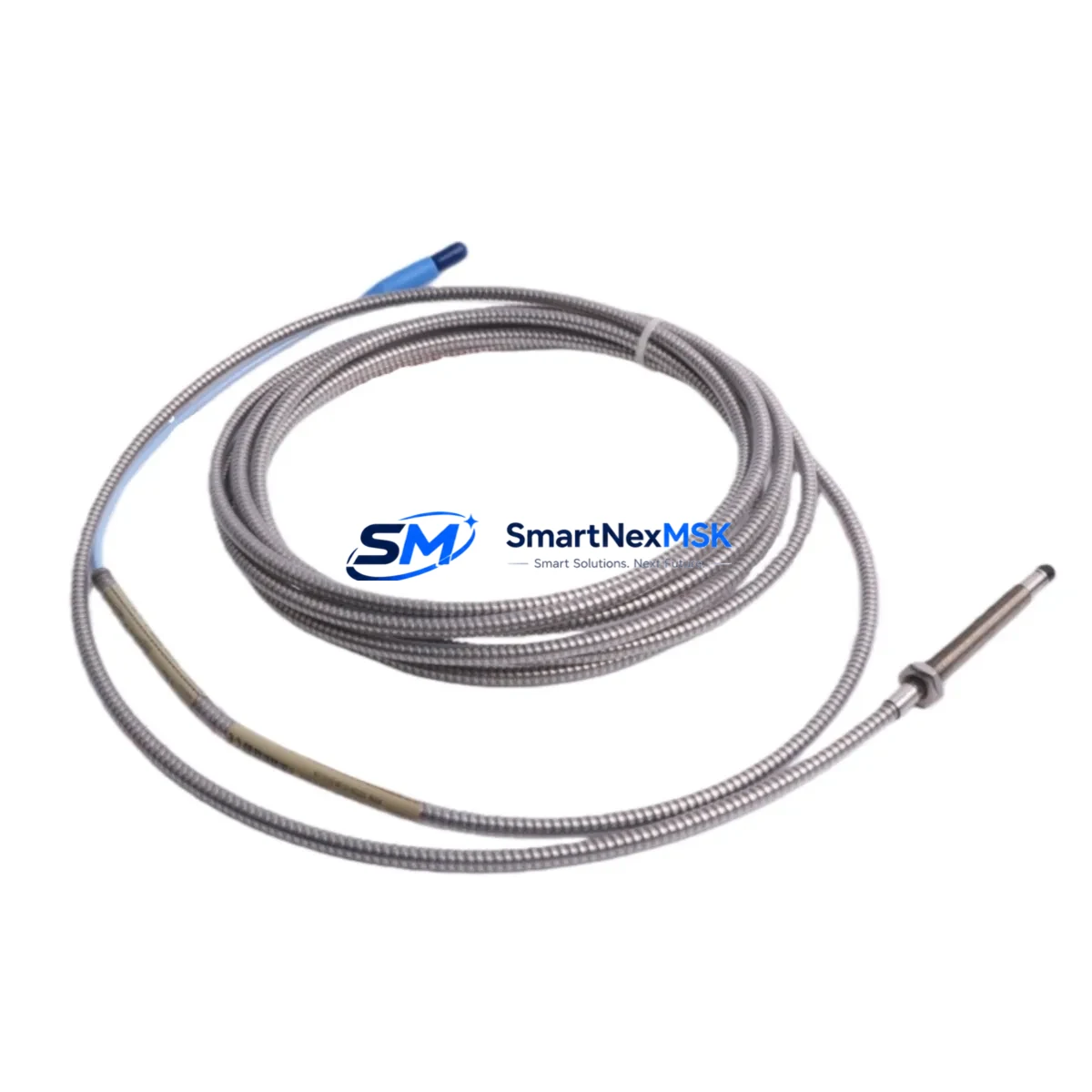

The Bently Nevada 330104-01-14-10-01 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare component for turbines, compressors, pumps, and gearboxes operating in demanding industrial environments. Maintaining a verified stock of this probe directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled and emergency maintenance events.

For maintenance engineers managing aging machinery or legacy DCS/PLC-integrated monitoring systems, the 330104-01-14-10-01 represents a direct, drop-in replacement that preserves signal integrity and system calibration. Its 8mm sensing tip, standard 5-metre cable configuration, and -24 VDC bias voltage output are fully compatible with the 3300 XL proximitor/seismic monitor series, ensuring no reconfiguration is required at the rack level upon installation.

Procurement engineers sourcing this probe for MRO inventory should note that the 330104-01-14-10-01 is a long-lifecycle component with consistent demand across petrochemical, power generation, and heavy manufacturing sectors. Each unit shipped by SMARTNEXMSK is function-tested prior to dispatch and covered by a 12-month warranty against manufacturing defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-01-14-10-01 proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal accuracy. Maintenance engineers should begin by verifying the condition of the 330130 Series extension cable, which connects the probe to the proximitor. Cable jacket abrasion, connector corrosion, or impedance drift in the extension cable are common causes of false vibration alarms that are often misattributed to the probe itself.

The 330180 or 330185 Proximitor/Seismic Monitor should be inspected for LED fault indicators and output voltage stability. A proximitor showing output outside the -18 VDC to -22 VDC range at the nominal gap may indicate internal component degradation and should be scheduled for replacement alongside the probe. At the rack level, confirm that the 3300 XL monitor card is seated correctly and that its OK relay output is functioning — a faulty OK relay can mask genuine probe faults during normal operation.

Power supply integrity is equally critical. The 3300/20 Power Supply module feeding the monitor rack should be checked for output ripple and voltage stability, as supply noise directly affects the probe’s bias voltage and measurement linearity. Where redundant power supply configurations are in use, verify automatic switchover function is operational.

For systems integrated with a System 1 Condition Monitoring platform or a DCS historian via 4–20 mA or Modbus outputs, confirm that the signal chain from the proximitor to the I/O termination board is intact. Loose terminal connections on the 3300/16 I/O module or corroded DIN rail terminal blocks are a frequent source of intermittent signal loss. Inspect the 3300/55 Keyphasor module if phase-referenced vibration analysis is part of the maintenance program — a degraded Keyphasor signal will corrupt synchronous vibration data across all channels in the rack.

For facilities managing older turbomachinery with extended service intervals, consider stocking the 330104-00-06-10-01 (3-metre cable variant) and 330104-01-08-10-01 (4-metre cable variant) alongside the standard 5-metre version to cover varying installation geometries without field modification. Maintaining a minimum of two probe assemblies per critical machine train is a widely adopted best practice in API 670-compliant maintenance programs.

Site Replacement Workflow

Replacing the 330104-01-14-10-01 in a live industrial environment requires a structured approach to minimise downtime and avoid introducing new faults. Begin by documenting the existing gap voltage reading at the proximitor output — typically between -10 VDC and -18 VDC depending on installed gap — before disconnecting the probe. This baseline reading is essential for verifying correct installation of the replacement unit.

Disconnect the extension cable from the probe connector and remove the probe from its mounting bracket. Inspect the target area on the shaft for surface damage, rust, or scoring that could affect the new probe’s linear range. Clean the target surface if necessary before installing the replacement probe. Set the new probe gap to the manufacturer-specified value (typically 1.0 mm / 40 mil for standard 8mm probes) using a non-metallic feeler gauge, then verify the output voltage at the proximitor falls within the expected range.

For systems where the 330104-01-14-10-01 is replacing an older 3300 Series (non-XL) probe, confirm that the proximitor model is also updated to the 3300 XL-compatible version, as the XL series uses a revised sensitivity curve that is not backward-compatible with legacy 3300 proximitors. This is a common compatibility oversight that leads to measurement errors after replacement.

Once installed, perform a static gap check and a dynamic run-up test if the machine can be safely started. Log the new baseline vibration readings in the condition monitoring system and update the maintenance record with the probe serial number, installation date, and gap voltage. This documentation supports warranty claims and future fault diagnosis.

Spare Parts Support FAQ

Q1: Is the 330104-01-14-10-01 compatible with both 3300 and 3300 XL monitor racks?
The 330104-01-14-10-01 is specifically designed for the 3300 XL series and uses the XL sensitivity specification (7.87 V/mm). While the physical connector is compatible with legacy 3300 racks, using this probe with a non-XL proximitor will result in measurement errors. Always verify the proximitor model before installation. SMARTNEXMSK can assist with compatibility confirmation prior to order.

Q2: What is included in the 12-month warranty and how is it claimed?
Each 330104-01-14-10-01 unit shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the fault. Replacement units are dispatched upon verification.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging in a dry, temperature-controlled environment (0°C to 40°C) away from strong magnetic fields and mechanical vibration. The connector should be capped to prevent contamination. Inspect stored probes annually for cable jacket integrity and connector corrosion. Probes stored correctly retain full functionality for 5+ years.

Q4: Can SMARTNEXMSK supply multiple units for a planned shutdown or MRO inventory build?
Yes. SMARTNEXMSK maintains stock of the 330104-01-14-10-01 and related 3300 XL components to support planned shutdowns, turnaround projects, and MRO inventory programs. Bulk orders are accommodated with lead time confirmation. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss quantity requirements and delivery scheduling.
