Bently Nevada 330104-04-18-50-02-00 Safety Proximity Transducer

Bently Nevada 330104-04-18-50-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

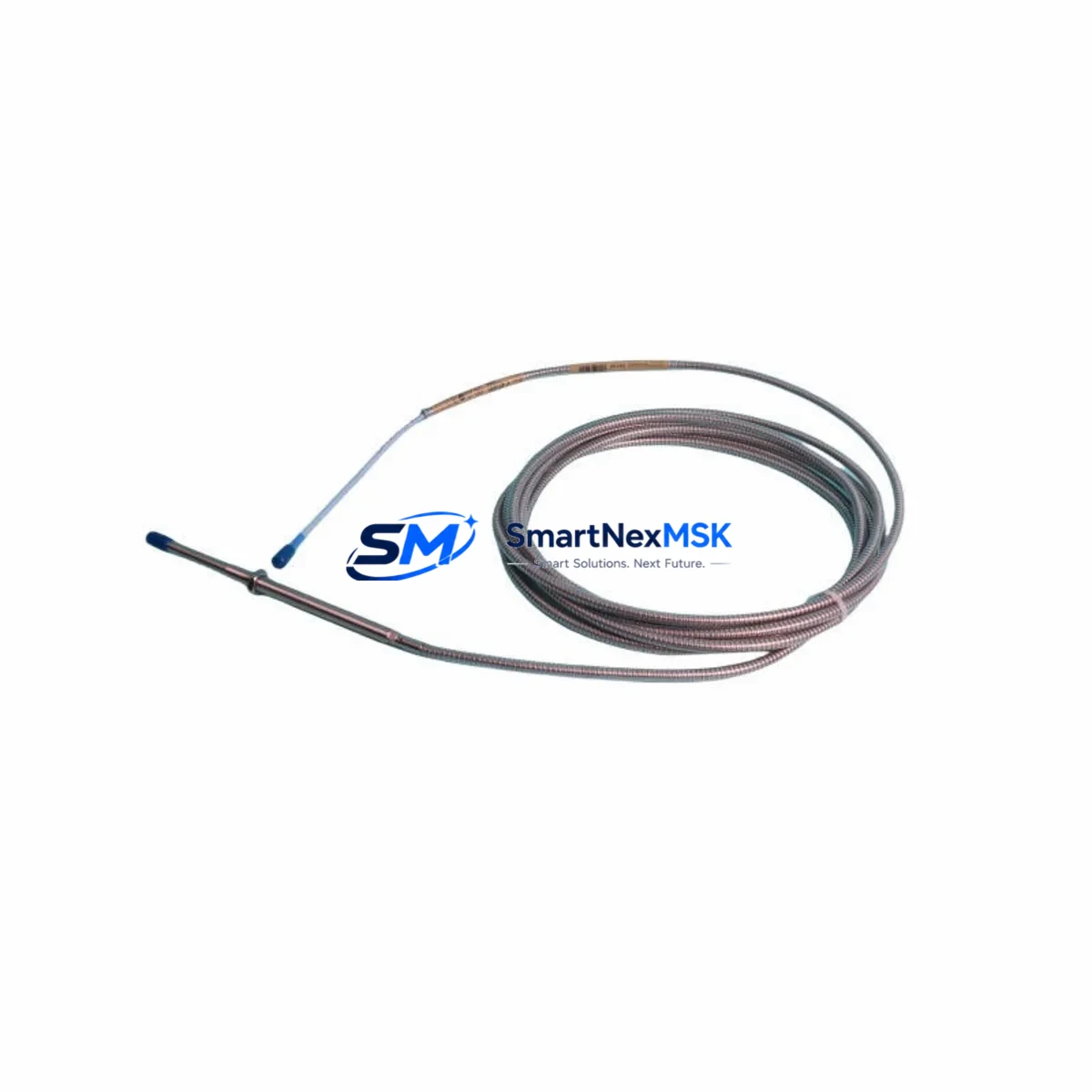

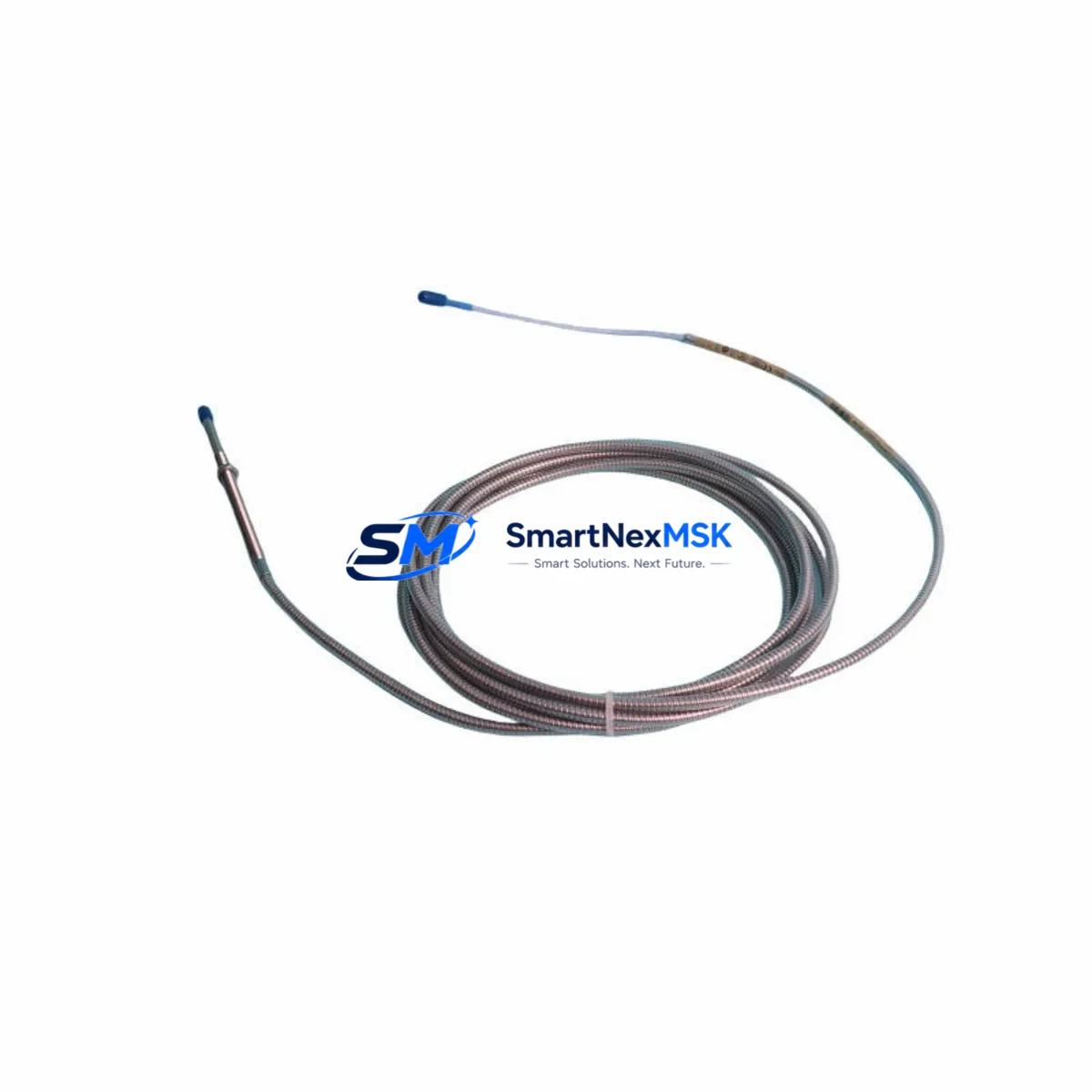

The Bently Nevada 330104-04-18-50-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity shaft vibration and position measurement in the most demanding industrial control environments. Designed for integration into critical machinery protection systems, this transducer provides the signal accuracy and environmental resilience required to safeguard rotating equipment in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous-process manufacturing lines.

In high-load, high-interference production environments where control interruption carries severe safety and financial consequences, the 330104-04-18-50-02-00 delivers stable, drift-free output even under conditions of intense electromagnetic interference, mechanical vibration, thermal cycling, and chemical exposure. Its ruggedized construction ensures that the transducer remains operational across the full lifecycle of the machinery it monitors, reducing the risk of false trips, missed alarms, and unplanned shutdowns that can cascade into broader process failures.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level, but its effectiveness depends on the integrity of the entire signal chain from the transducer tip to the control room. The 330104-04-18-50-02-00 is designed to operate as part of a tightly integrated protection architecture. In a typical heavy-industry control cabinet, this transducer interfaces directly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a clean DC voltage output suitable for processing by the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module.

Within the 3500 rack system, the transducer signal is monitored alongside outputs from Bently Nevada 330730 velocity transducers and 3300 XL 25mm proximity probes (such as the 330105-02-12-10-02-00) to provide comprehensive shaft and casing vibration coverage. The 3500 rack’s 3500/20 Rack Interface Module manages communication between the protection system and the plant DCS or safety PLC, ensuring that alarm and trip signals are transmitted without latency or data corruption even under high electromagnetic load.

To protect the power supply rail feeding the Proximitor® sensors, industrial-grade 24 VDC DIN-rail power supplies with surge protection and redundant output capability are recommended. Pairing these with Phoenix Contact or Weidmüller surge protection devices on the signal lines prevents transient voltage spikes — common in motor-heavy environments — from reaching the sensitive transducer circuitry. For installations in classified hazardous areas, Bently Nevada intrinsic safety barriers or galvanic isolators are inserted between the Proximitor® and the control system to maintain Zone 1 or Zone 2 compliance.

In critical interlock loops, the transducer’s output feeds directly into the 3500/40M Proximitor®/Seismic Monitor or the 3500/50 Tachometer Module for speed and phase reference, enabling the protection system to execute automatic turbine or compressor trip sequences within milliseconds of detecting an over-vibration event. This rapid response capability is essential in applications where shaft contact or bearing failure can escalate to catastrophic equipment loss within seconds.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous-process refinery environments, the 330104-04-18-50-02-00 is deployed on centrifugal compressors, boiler feed pumps, and reactor agitators where unplanned shutdowns carry multi-million-dollar consequences. The transducer’s resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it the preferred choice for API 670-compliant machinery protection systems.

Power Generation: Steam turbines and gas turbines in power plants operate at shaft speeds exceeding 3,000 RPM under continuous load. The 3300 XL proximity transducer provides the sub-micron resolution required to detect early-stage rotor instability, oil whirl, and rub events before they progress to bearing failure. Its compatibility with the Bently Nevada 3500 protection rack ensures seamless integration into existing plant protection architectures.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and temperature swings. The ruggedized construction of the 330104-04-18-50-02-00 allows it to maintain calibration accuracy in these environments, providing reliable shaft position data to the plant control system and preventing costly mill liner failures caused by undetected bearing degradation.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities require continuous vibration monitoring to meet regulatory uptime requirements. The proximity transducer’s IP67-equivalent sealing and corrosion-resistant materials ensure long-term reliability in humid, chemically aggressive pump station environments.

Metallurgy and Steel Production: Rolling mills, continuous casters, and induction furnace drives operate in environments with intense electromagnetic interference from high-current bus bars and variable-frequency drives. The shielded coaxial cable design of the 330104-04-18-50-02-00 provides effective EMI rejection, maintaining signal integrity in conditions that would compromise lesser transducer designs.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-04-18-50-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair at no additional cost to the customer.

Q2: How is each unit tested before shipment?
Every 330104-04-18-50-02-00 undergoes pre-shipment functional verification including sensitivity check, cable continuity test, and connector integrity inspection. Units are packaged in anti-static, shock-absorbing materials to prevent transit damage. A test report is available upon request for critical-application orders.

Q3: Is the 330104-04-18-50-02-00 compatible with existing 3300 XL and 3500 system installations?
Yes. This transducer is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor family and integrates directly into 3500 Series protection racks. It is a direct replacement for worn or failed units in existing installations, requiring no recalibration of the Proximitor® or monitor module when the gap is set correctly per Bently Nevada installation guidelines.

Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains standing inventory of the 330104-04-18-50-02-00 and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers operating large fleets of Bently Nevada-protected machinery are encouraged to contact our team to discuss consignment stock or priority supply arrangements.
