Bently Nevada 330104-05-12-05-02-00 Safety Proximity Transducer

Bently Nevada 330104-05-12-05-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

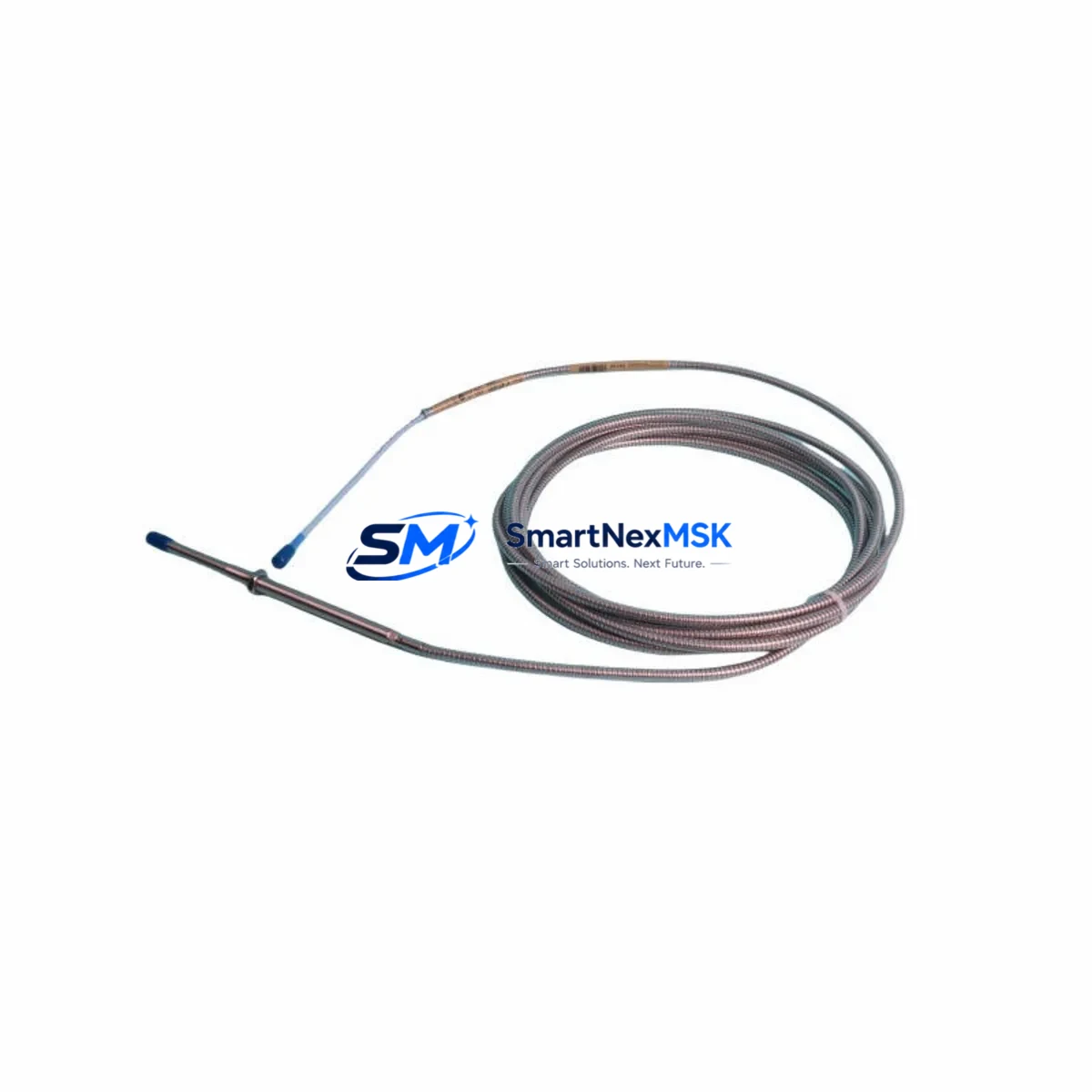

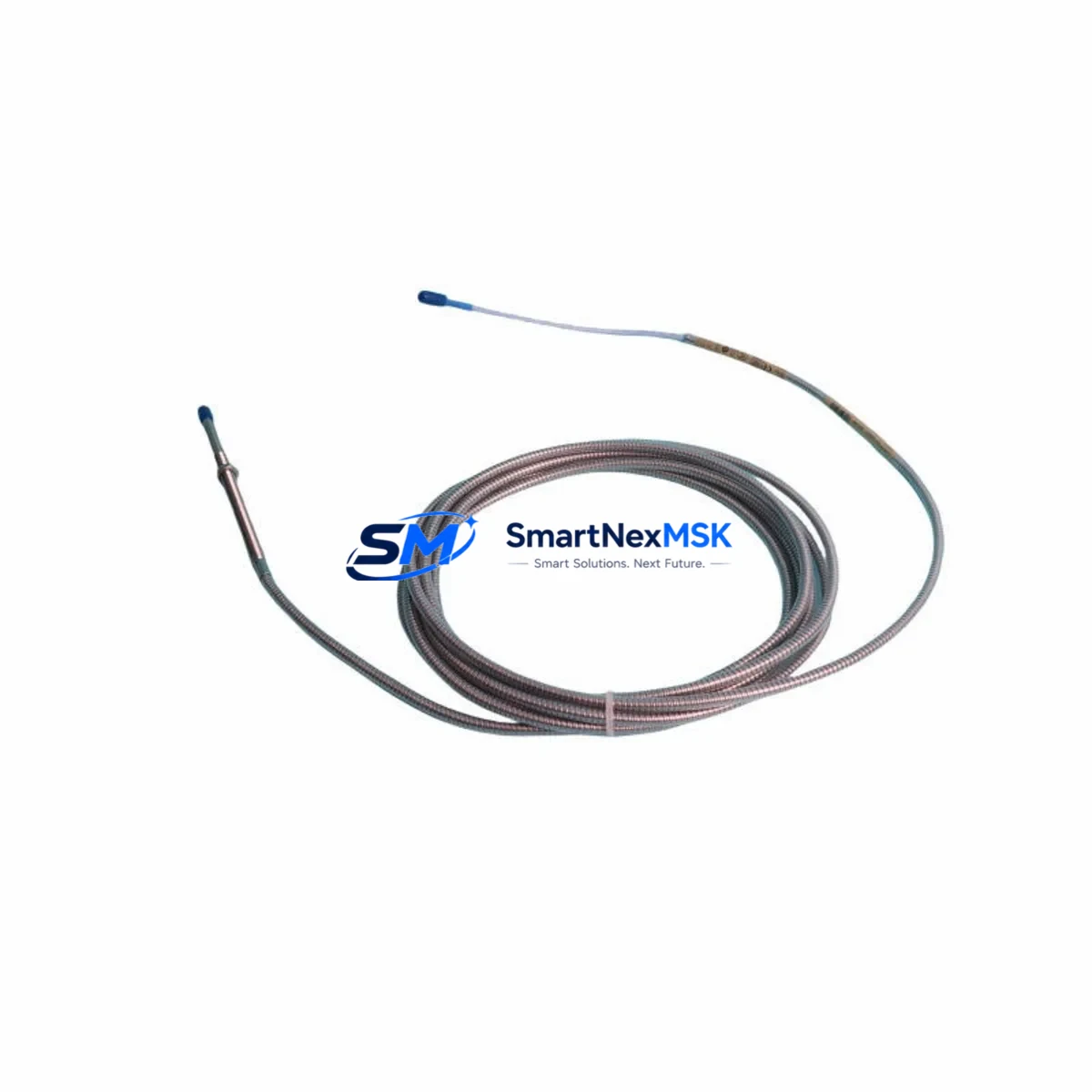

The Bently Nevada 330104-05-12-05-02-00 is a 5mm eddy-current proximity transducer engineered for the 3300 XL Series continuous monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing — this transducer delivers precise, non-contact shaft displacement and vibration measurements that are critical to machinery protection and safety interlock systems.

In high-load, high-interference environments where control continuity is non-negotiable, the 330104-05-12-05-02-00 provides the signal stability and environmental resilience that maintenance and reliability engineers depend on. Its rugged construction resists electromagnetic interference, thermal cycling, and mechanical vibration, ensuring that the 3300 XL monitoring loop remains accurate and responsive even under the harshest site conditions. When a proximity transducer fails or drifts in a critical rotating machinery application, the consequences can range from unplanned downtime to catastrophic equipment failure — making a verified, original spare part an essential component of any proactive maintenance strategy.

Safety Reliability Table

Control Cabinet Protection Strategy

Replacing the 330104-05-12-05-02-00 in a live machinery protection system is not an isolated task — it is an opportunity to audit the entire measurement chain and associated control cabinet components for wear, drift, or latent faults. A thorough replacement workflow should begin with the 330130-080-00-00 extension cable, which connects the probe to the Proximitor module. Extension cables are subject to insulation degradation and connector corrosion in wet or chemically aggressive environments; any sign of impedance shift or continuity loss warrants immediate replacement alongside the transducer.

The 3300 XL Proximitor / Seismic Monitor (such as the 330180-X1-05 or 330180-X1-08 depending on probe diameter) should be verified for correct gap voltage output and signal conditioning performance. A degraded Proximitor can produce false readings even with a new probe installed, masking the true source of measurement error. Similarly, the 3500/42M Proximitor I/O Module in rack-based 3500 Series systems should be inspected for channel calibration and alarm setpoint integrity.

Power supply stability is equally critical. The 3500/15 Power Supply Module provides conditioned DC power to the entire 3500 rack; voltage ripple or dropout events can cause transient signal errors that mimic probe faults. Pairing the transducer replacement with a power supply health check — including verification of the 3500/05 Rack Interface Module communication status — ensures that the monitoring system is restored to full integrity, not just partial function.

In control cabinets serving hazardous area installations, Zener barrier assemblies and galvanic isolators protecting the transducer signal loop should be tested for correct clamping voltage and isolation resistance. These passive protection devices degrade silently over time and can introduce signal attenuation that is easily misattributed to probe wear. For systems integrated with a DCS or safety PLC via the 3500 rack’s communication gateway, the 3500/92 Communication Gateway Module Modbus or Ethernet link should be confirmed operational to ensure that vibration alarms propagate correctly to the plant control room.

Terminal blocks, cable glands, and grounding connections within the junction box should also be inspected during any transducer replacement. Loose terminations on the 3300 XL field wiring are a common source of intermittent signal faults that are difficult to diagnose remotely. A complete replacement workflow — covering the probe, extension cable, Proximitor, power supply, isolators, and communication path — is the most reliable way to restore machinery protection system integrity and prevent repeat failures.

Critical Industrial Safety Applications

The Bently Nevada 330104-05-12-05-02-00 is deployed across a wide range of safety-critical rotating machinery applications in heavy industry. In petrochemical and refinery environments, it monitors shaft radial vibration on centrifugal compressors, pumps, and turbines that operate continuously under high pressure and temperature. Any vibration exceedance triggers safety interlock actions — including automatic shutdown — making transducer accuracy a direct safety requirement under IEC 61511 functional safety standards.

In power generation facilities — including gas turbines, steam turbines, and large motor-driven auxiliaries — the 3300 XL proximity system provides the real-time shaft position data that operators rely on to detect rotor instability, bearing wear, and misalignment before they escalate to forced outages. The 330104-05-12-05-02-00’s ability to maintain calibrated output across wide temperature swings and in the presence of strong electromagnetic fields from generator windings makes it particularly well-suited to these applications.

Mining and mineral processing operations depend on continuous crusher, conveyor drive, and slurry pump availability. Proximity transducers installed on these machines provide early warning of mechanical degradation, enabling condition-based maintenance scheduling that avoids unplanned production stoppages. In water and wastewater treatment plants, the transducer supports reliable monitoring of high-speed blowers and centrifugal pumps in environments with high humidity and chemical exposure.

In metallurgical and steel mill applications — where rolling mill drives, continuous casters, and large induction motors operate under extreme mechanical stress — the 330104-05-12-05-02-00 provides the vibration and position data needed to protect high-value assets and maintain production continuity. Port and marine terminal crane and conveyor drive systems similarly benefit from the transducer’s robust construction and resistance to salt-laden, high-humidity atmospheres.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330104-05-12-05-02-00?
The 12-month warranty covers manufacturing defects, premature failure under normal operating conditions, and any deviation from published Bently Nevada 3300 XL performance specifications. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.

Q2: How is the 330104-05-12-05-02-00 tested before shipment?
Every unit undergoes full functional verification prior to dispatch, including output voltage measurement at the specified gap distance, cable continuity and insulation resistance testing, and visual inspection for connector and tip integrity. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 330104-05-12-05-02-00 compatible with both 3300 XL and 3500 Series systems?
The 330104-05-12-05-02-00 is natively compatible with the Bently Nevada 3300 XL Series monitoring system using the appropriate 5mm Proximitor module. Compatibility with the 3500 Series depends on the specific Proximitor I/O module installed in the rack; our technical team can confirm compatibility based on your system configuration before order placement.

Q4: Can you support long-term or repeat supply of this part for ongoing maintenance programs?
Yes. We maintain stock of the 330104-05-12-05-02-00 and related 3300 XL Series components to support planned maintenance schedules, annual turnaround outages, and emergency replacement requirements. Volume pricing and reserved stock arrangements are available for B2B customers with recurring procurement needs. Contact us to discuss a supply agreement tailored to your maintenance program.
