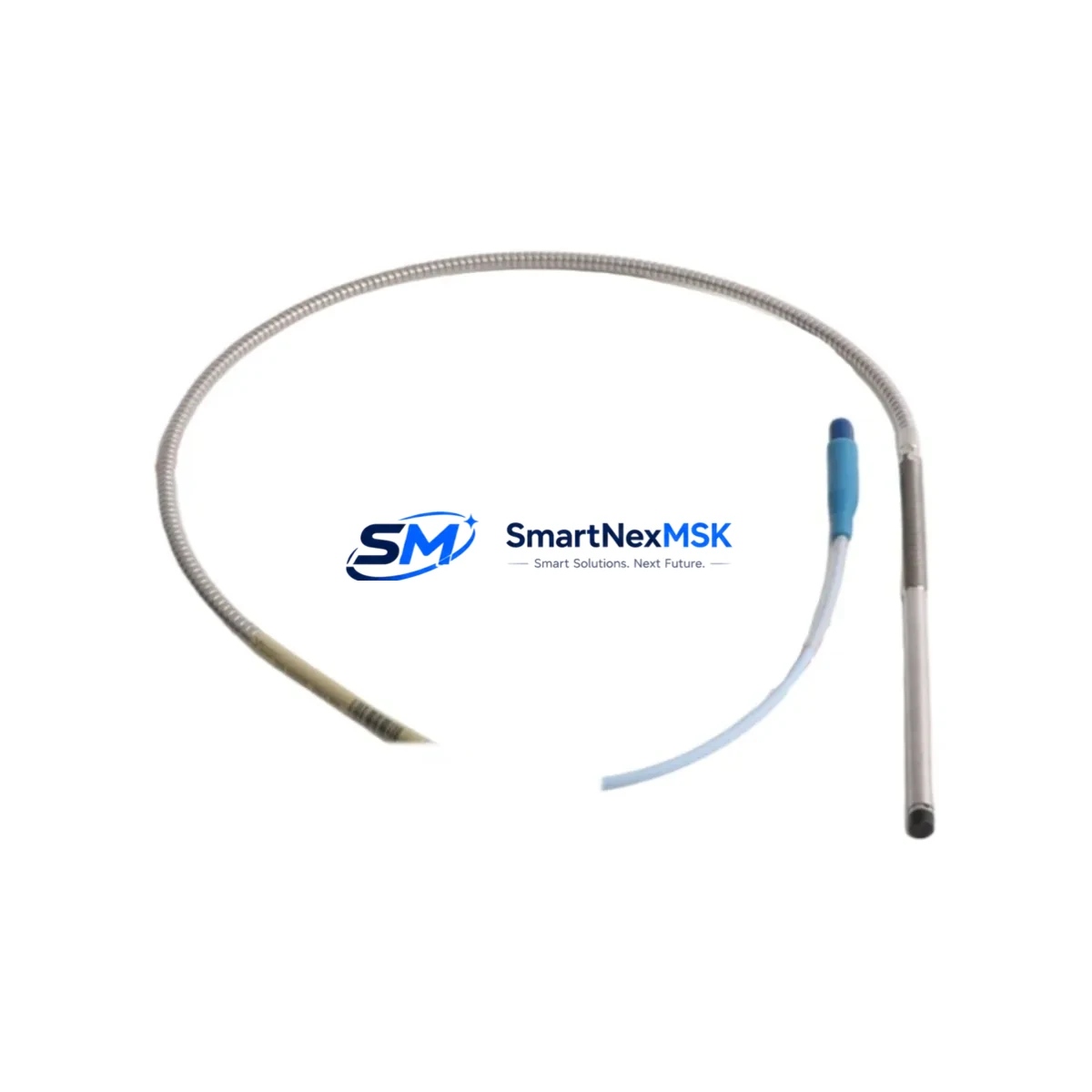

Bently Nevada 330104-10-16-10-02-00 Safety Proximity Probe

Bently Nevada 330104-10-16-10-02-00 Safety Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330104-10-16-10-02-00 is a ruggedized 8mm eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemical exposure, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and port logistics facilities.

In high-stakes control architectures where a single point of failure can trigger unplanned shutdowns or catastrophic equipment damage, the 330104-10-16-10-02-00 delivers the signal integrity and mechanical durability that safety engineers and reliability teams depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent output over extended service intervals without signal drift or calibration degradation — a critical advantage in continuous production environments where maintenance windows are scarce.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-designed rotating machinery protection cabinet, the 330104-10-16-10-02-00 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL monitoring chain. The probe connects via matched extension cable — typically the 330130-080-00-00 or 330130-045-00-00 extension cable — to a 330180-X1-05 Proximitor Sensor, which conditions the raw eddy-current signal into a clean DC voltage output suitable for the monitor rack.

Within the monitor rack, the conditioned signal feeds into a 3300/16 Dual Voting Logic Monitor or a 3500/42M Proximitor/Seismic Monitor module, where trip and alarm setpoints are enforced. These monitors interface with the plant’s Safety Instrumented System (SIS) via hardwired relay outputs or HART/Modbus communication, ensuring that any abnormal shaft displacement or vibration exceedance triggers a controlled shutdown before mechanical damage propagates.

To protect the entire monitoring loop from power-related disturbances — including voltage sags, surges, and ground loops common in heavy industrial switchgear rooms — the system is typically powered through a Bently Nevada 3300/20 Power Supply or an equivalent DIN-rail mounted 24 VDC industrial SMPS with surge suppression. Upstream, a Phoenix Contact TRABTECH surge protection device or equivalent transient voltage suppressor is installed at the cabinet entry point to absorb lightning-induced and switching transients before they reach sensitive monitor electronics.

For facilities operating under IEC 61511 or IEC 62061 functional safety standards, the probe’s output is often cross-validated against a redundant 330104-10-16-10-02-00 probe mounted at 90° on the same journal bearing, enabling 2oo2 or 2oo3 voting logic within the 3500 Series rack. This redundancy architecture eliminates single-sensor failure as a cause of spurious trip or missed shutdown — a requirement in SIL 2 and SIL 3 rated protection loops for compressors, turbines, and large pumps.

Communication from the monitor rack to the DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — is typically handled via Modbus RTU/TCP or OPC-UA gateway modules, allowing real-time vibration trend data to be displayed on operator workstations and historian servers without interrupting the hardwired safety shutdown path.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, the 330104-10-16-10-02-00 monitors shaft radial vibration and axial position on centrifugal compressors and steam turbines. Early detection of rotor imbalance, bearing wear, or surge events allows operators to intervene before a forced outage or — in worst cases — a fire or explosion hazard from seal failure on hydrocarbon-handling equipment.

Power Generation: Gas turbines, steam turbines, and large generator sets in thermal and combined-cycle power plants rely on proximity probe arrays to maintain shaft centerline position within design clearances. The 330104-10-16-10-02-00’s wide operating temperature range and EMI immunity make it suitable for installation in close proximity to high-voltage busbars and generator excitation systems.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, iron ore, and coal processing plants subject monitoring equipment to extreme vibration, dust, and moisture. The probe’s IP67-equivalent sealing and armored cable construction resist ingress and mechanical damage, maintaining reliable signal output even in the harshest below-ground or open-pit environments.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment plants require continuous vibration monitoring to prevent unplanned failures that could disrupt water supply. The 330104-10-16-10-02-00 provides the long-term stability needed for 24/7 unattended monitoring in remote pump stations.

Metallurgy & Steel: Rolling mills, continuous casters, and large induction furnace drives operate under severe electromagnetic interference from high-current bus systems. The probe’s shielded coaxial construction and Proximitor signal conditioning reject common-mode noise, delivering clean vibration signals even in the presence of strong magnetic fields from nearby transformers and motor drives.

Port & Heavy Logistics: Ship-to-shore cranes, bulk material handling conveyors, and large harbor tugboat propulsion systems increasingly incorporate condition monitoring. The 330104-10-16-10-02-00’s corrosion-resistant construction and wide temperature tolerance support reliable operation in marine-adjacent, salt-laden atmospheres.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects, sensitivity out-of-specification conditions, and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch within 3 business days upon confirmation of the defect. Physical damage caused by installation error or overvoltage is assessed case by case.

Q2: What pre-shipment testing is performed on the 330104-10-16-10-02-00?
Every unit undergoes full functional verification prior to dispatch, including sensitivity measurement (target: 7.87 V/mm ±5%), linear range confirmation, cable continuity and insulation resistance check, and connector integrity inspection. A test report is available upon request for quality-critical procurement.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330104-10-16-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family (330180 series) and integrates directly with 3500/42M and 3500/40M monitor modules. It is also backward-compatible with legacy 3300 series installations, making it a direct drop-in replacement without recalibration of the Proximitor gap voltage.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated safety-critical spare inventory for the 330104-10-16-10-02-00 and related 3300 XL components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Customers with critical infrastructure requirements are encouraged to contact our team to discuss consignment stock or priority allocation arrangements.
