Bently Nevada 330104-12-17-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330104-12-17-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

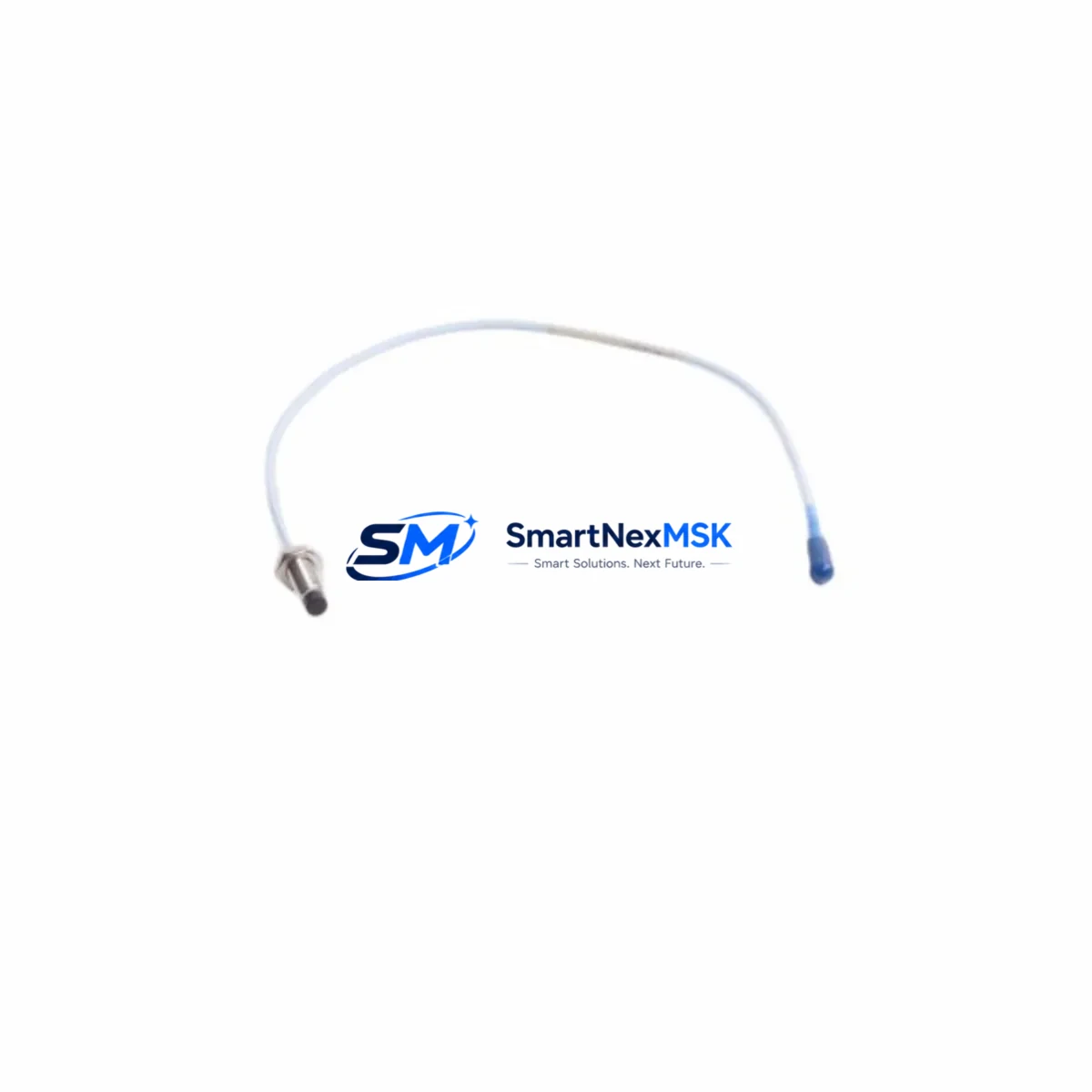

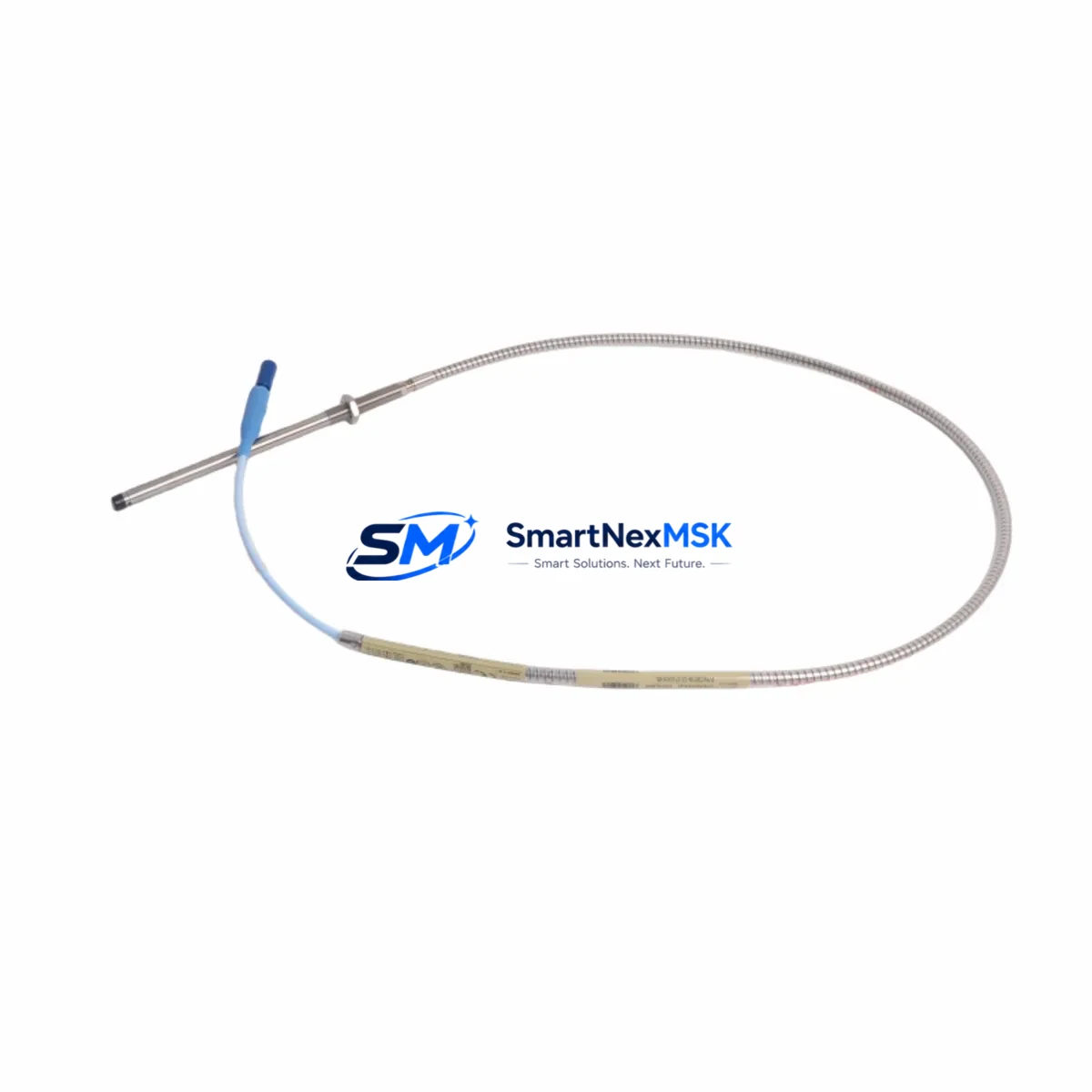

The Bently Nevada 330104-12-17-10-01-05 is a 12 mm reverse-mount eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems age and OEM support windows close, this probe serves as a verified drop-in replacement for facilities undertaking control-system modernization, predictive-maintenance upgrades, and rotating-equipment protection retrofits. Whether you are restoring a turbine monitoring loop, replacing a failed sensor in a compressor train, or migrating an entire rack from an older 3300 Series installation to the current 3300 XL architecture, the 330104-12-17-10-01-05 delivers the dimensional accuracy, output sensitivity, and cable geometry required for a seamless field swap with minimal downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-12-17-10-01-05 into an existing machinery protection loop begins well before the probe reaches the field. Engineers should first audit the installed 3300 XL rack configuration, confirming that the target channel’s proximitor driver — typically a 330130-080-00-00 or 330180-X1-CN proximitor — is serviceable and correctly matched to a 12 mm probe system. If the proximitor is also end-of-life, a simultaneous replacement prevents a second outage cycle.

Extension cable continuity is the next checkpoint. The 330104-12-17-10-01-05 ships with a 5 m integral cable; field runs beyond that distance require a compatible 330130 series extension cable to maintain the system’s calibrated sensitivity. Inspect the armored conduit path for chafing, moisture ingress, or connector corrosion before pulling the new cable through.

On the rack side, verify that the 3300 XL I/O module assigned to the channel — often a 3300/16 or 3300/20 monitor card — has not accumulated configuration drift. Export the current rack configuration from System 1 software or the legacy 3300 Series configuration utility before any hardware change. This snapshot protects alarm setpoints, danger thresholds, and Keyphasor® reference assignments that would otherwise require manual re-entry.

For facilities running a mixed environment where older 3300 Series monitors coexist with newer 3500 Series racks, the 330104-12-17-10-01-05 can feed signal into a 3500/42M position monitor or a 3500/40M proximitor I/O module through appropriate signal conditioning. Confirm the channel’s full-scale range and transducer scale factor settings match the 200 mV/mil output of this probe before enabling the channel in the 3500 rack’s configuration software.

HMI screens tied to the vibration channel — whether running on a GE Cimplicity, Wonderware InTouch, or Ignition SCADA platform — should be reviewed for tag mapping. A probe replacement that also involves a rack card swap may shift the OPC-UA or Modbus register address of the vibration variable, causing the HMI trend to display a flat line or a stale value until the tag is remapped. Coordinate with the control-room team to update display faceplates and alarm banners before returning the machine to service.

Power supply capacity in the control cabinet deserves attention when multiple probes are being replaced in a single outage window. Each 3300 XL proximitor draws approximately 35 mA at −24 VDC. If the cabinet’s 24 VDC power supply — for example a Phoenix Contact QUINT or a Siemens SITOP unit — is already loaded near its rated output, adding replacement probes without a power audit risks nuisance trips on adjacent I/O cards or communication modules.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Begin by placing the affected 3300 XL monitor channel into bypass mode through the rack’s front-panel keyswitch or via the System 1 software inhibit function. This prevents a spurious danger trip to the machine train while the probe is disconnected. Document the bypass action in the site’s permit-to-work system and set a hard time limit for the bypass window.

With the channel inhibited, disconnect the existing probe at the proximitor junction box rather than at the rack terminal strip. This preserves the rack wiring and reduces the risk of disturbing adjacent channels. Thread the 330104-12-17-10-01-05 into the probe holder, set the initial air gap to the manufacturer’s nominal value (typically 1.0–1.5 mm for a 12 mm probe), and torque the locknut to specification.

Reconnect the extension cable and measure the proximitor output voltage with a calibrated digital multimeter before releasing the bypass. A reading between −10 VDC and −18 VDC at the nominal gap confirms the probe-cable-proximitor system is functioning correctly. Log the as-found and as-left gap voltages in the maintenance management system for future reference.

Once the gap voltage is verified, release the channel bypass, confirm that the vibration reading on the 3300 XL front panel and the SCADA trend are within expected baseline values, and close the work order. The entire swap — from bypass to release — can typically be completed within 45 to 90 minutes by a two-person team familiar with the 3300 XL platform, keeping the machine train’s total protection outage well within most site risk-tolerance windows.

Retrofit Support FAQ

Q1: Is the 330104-12-17-10-01-05 a direct replacement for the older 330104-12-17-10-01-00 or -01-CN variants?
A: Yes. The -05 suffix denotes the cable jacket material specification for the integral cable. The probe body dimensions, thread pitch, sensitivity, and connector interface are identical to earlier -00 and -CN variants, making it a drop-in mechanical and electrical replacement in all standard 3300 XL installations.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, measure the proximitor output voltage at the nominal air gap and compare it against the system’s calibration record. Verify the channel reading in the 3300 XL rack display and in the connected SCADA or DCS historian. Confirm alarm and danger setpoints are active and that the Keyphasor® channel (if used) is triggering correctly on the reference notch.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack?
A: The 330104-12-17-10-01-05 is natively calibrated for the 3300 XL proximitor ecosystem. Use with a 3500 Series rack requires a compatible 3500/42M or 3500/40M I/O module and correct transducer scale factor configuration. Consult the 3500 rack configuration guide and verify the channel’s full-scale range before enabling.

Q4: What warranty and pre-shipment testing does SMARTNEXMSK provide?
A: Every 330104-12-17-10-01-05 unit shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes output sensitivity verification and continuity testing prior to dispatch. Expedited shipping options are available to support urgent maintenance windows and unplanned outage recovery.
