Bently Nevada 330104-15-23-10-02-00 Safety 8mm Proximity Transducer

Bently Nevada 330104-15-23-10-02-00 Safety-Enhanced 8mm Proximity Transducer for Harsh Industrial Sites

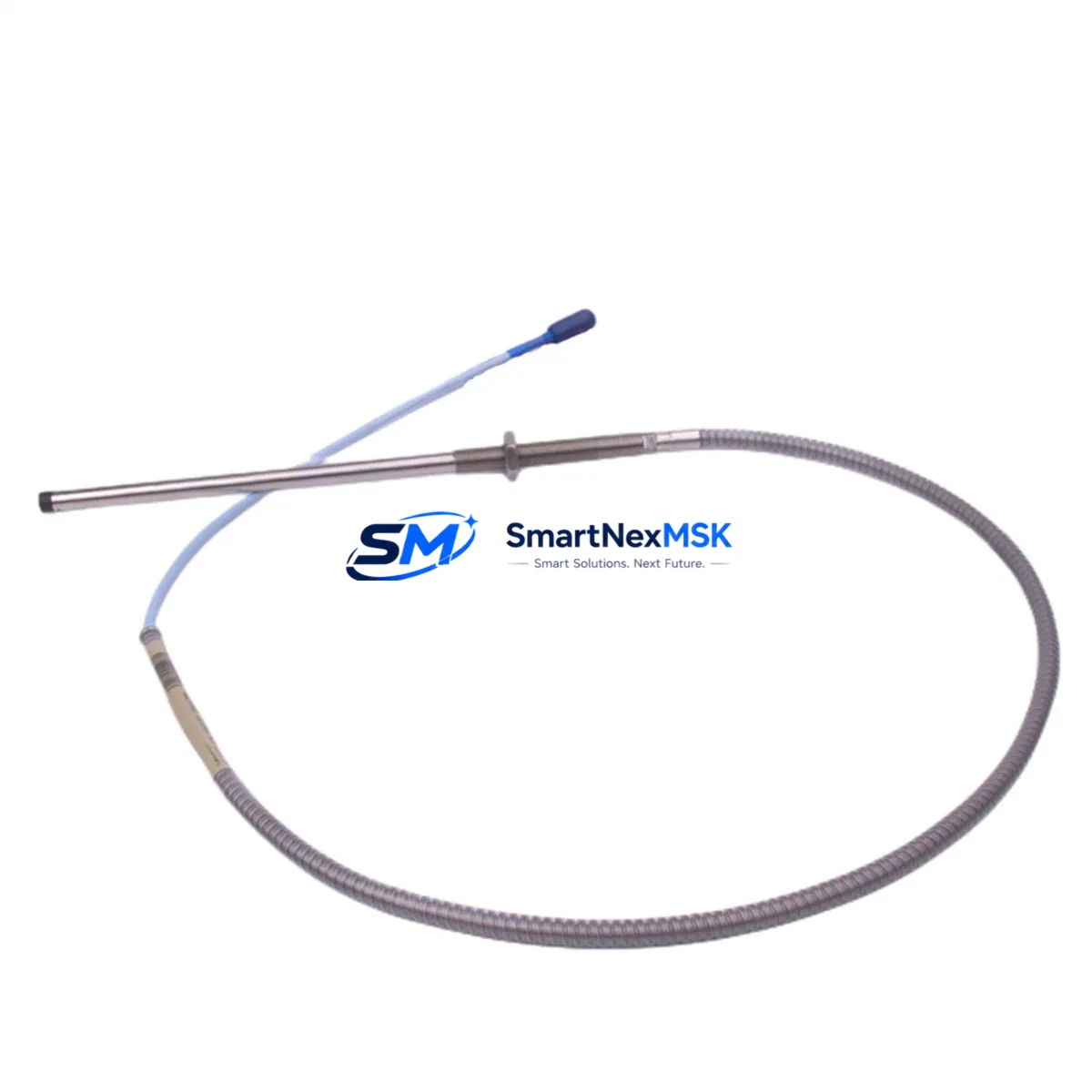

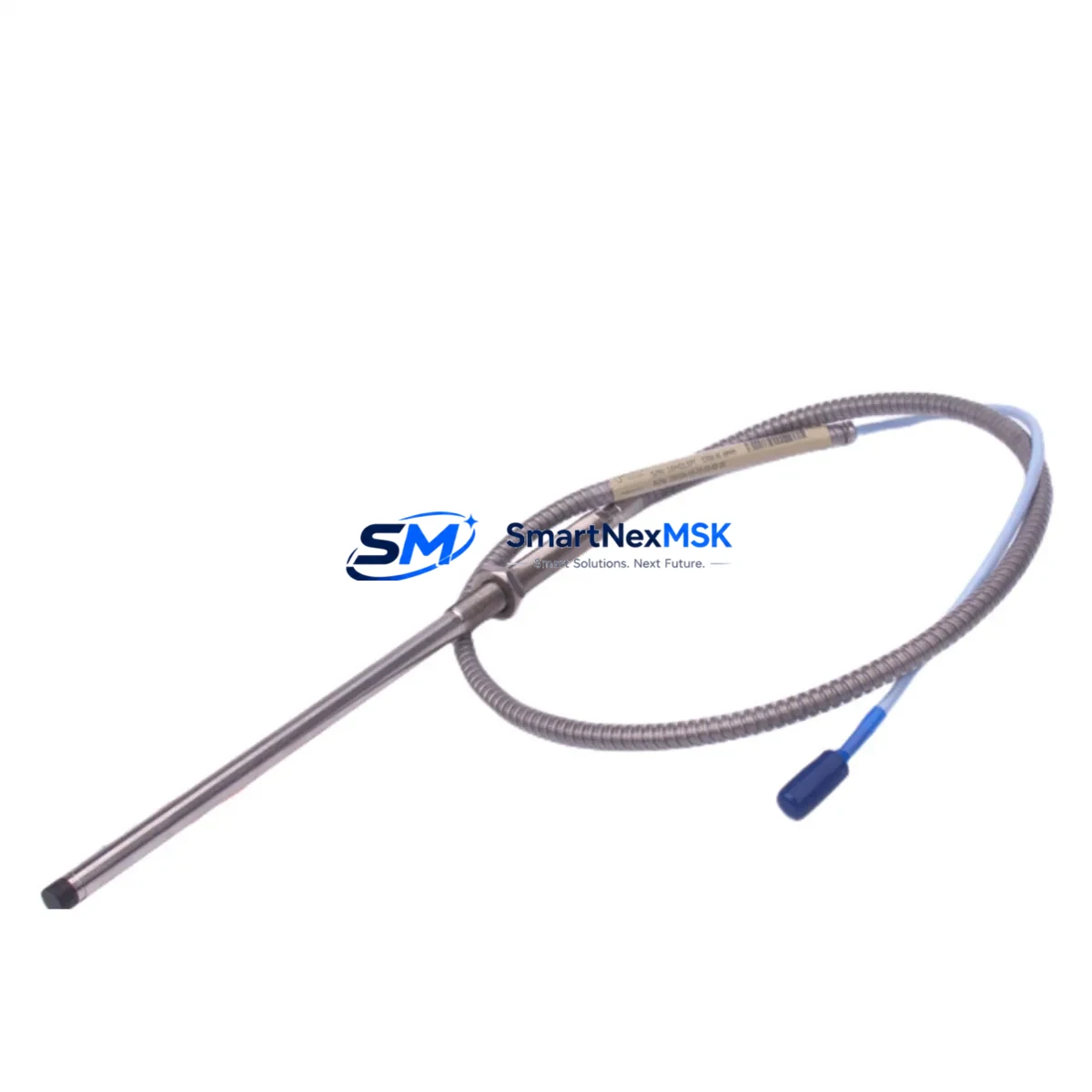

The Bently Nevada 330104-15-23-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy-interference control cabinets, and hazardous-area installations, this transducer delivers the signal integrity and mechanical robustness that process-critical applications demand.

In petrochemical plants, power generation facilities, mining operations, metallurgical mills, water treatment stations, and continuous manufacturing lines, unplanned machinery downtime carries severe safety and financial consequences. The 330104-15-23-10-02-00 addresses these risks directly — its precision-wound sensing coil and hardened stainless-steel housing resist electromagnetic interference (EMI), mechanical vibration, chemical exposure, and wide temperature swings, ensuring that the vibration signal reaching your Bently Nevada 3300 XL Proximitor Sensor remains accurate and drift-free under all operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor, but true control-loop protection requires a coordinated system of components working in concert. The 330104-15-23-10-02-00 transducer is the front-line sensing element in a protection chain that typically includes the Bently Nevada 330130-040-00-00 Extension Cable for signal transmission without impedance mismatch, and the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05) as the signal conditioning driver that converts gap distance into a calibrated DC voltage output.

Within the control cabinet, this conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor — a rack-mounted safety monitor that enforces alarm and trip setpoints for shaft radial vibration, axial position, and differential expansion. To protect the entire monitoring loop from power-line transients and surge events, installations commonly incorporate Phoenix Contact TRABTECH surge protection devices on both the power supply rails and signal input channels. A stable, clean DC supply — typically provided by a Bently Nevada 3500/15 Power Supply Module — is essential to prevent false trips caused by voltage ripple or momentary power interruptions.

For installations in classified hazardous areas (Zone 1 / Division 1), the transducer system is paired with MTL or Pepperl+Fuchs Zener barriers or galvanic isolators to maintain intrinsic safety integrity across the field wiring. Communication of trip and alarm status to the plant DCS is handled through the Bently Nevada 3500 System Communication Gateway, which supports Modbus, Profibus, and OPC-UA protocols, ensuring that the safety interlock logic in the Rockwell Automation GuardLogix Safety PLC or equivalent safety-rated controller receives real-time machinery health data without latency or data corruption.

Grounding discipline is equally critical: all transducer cable shields must be terminated at a single-point ground within the control cabinet to prevent ground-loop interference — a common cause of signal drift and nuisance alarms in high-noise industrial environments.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330104-15-23-10-02-00 is widely deployed on centrifugal compressors, turbine expanders, and boiler feed pumps in refineries and LNG facilities, where shaft radial vibration monitoring is a mandatory API 670 requirement. Continuous, drift-free measurement prevents catastrophic bearing failures that could trigger emergency shutdowns, fire suppression activation, or personnel evacuation.

Power Generation: Steam turbine and gas turbine installations rely on 3300 XL proximity transducers to monitor shaft eccentricity, differential expansion, and thrust position. A single missed alarm on a 500 MW turbine can result in multi-million-dollar rotor damage. The 330104-15-23-10-02-00’s wide operating temperature range and EMI immunity make it suitable for both the hot-end and cold-end bearing pedestals.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water ingress, and structural vibration. The IP67-rated probe body and stainless-steel construction of the 330104-15-23-10-02-00 withstand these conditions, providing reliable shaft orbit data to the protection system without signal degradation.

Metallurgy & Steel: Rolling mill drive trains and continuous caster pinch rolls demand vibration monitoring under high radial loads and thermal cycling. The transducer’s –35 °C to +177 °C operating range covers both cold-start and full-production thermal states without recalibration.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water facilities benefit from non-contact proximity monitoring to detect impeller imbalance and bearing wear before they escalate to unplanned outages that compromise water supply safety.

Port & Heavy Lifting: Crane hoist gearboxes and ship-loader drive systems use proximity transducers to monitor gear mesh frequency and shaft runout, enabling condition-based maintenance scheduling that prevents load-drop incidents.

Safety and Quality FAQ

Q1: What warranty does the 330104-15-23-10-02-00 carry?
Every unit ships with a 12-month full replacement warranty. If the transducer fails under normal operating conditions within 12 months of the invoice date, we will replace it at no charge, including return shipping. Warranty claims are processed within 5 business days.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-15-23-10-02-00 undergoes bench verification of output sensitivity (7.87 V/mm ± 5%), cable continuity, insulation resistance, and connector integrity before dispatch. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test record is available upon request.

Q3: Is this transducer compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330104-15-23-10-02-00 is fully system-matched to the Bently Nevada 3300 XL Proximitor Sensor and is calibrated for use with 3500 Series rack monitors. It is a direct drop-in replacement for worn or damaged transducers in existing installations — no reconfiguration of the monitor or driver is required, provided the extension cable length and target material remain unchanged.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare-parts programs?
We maintain dedicated buffer stock of the 330104-15-23-10-02-00 to support planned maintenance shutdowns, annual turnarounds, and emergency spare-parts requirements. Standing purchase orders and blanket agreements are available for facilities that require guaranteed allocation. Lead time for standard orders is 1–3 business days from confirmed payment.
