Bently Nevada 330105-02-12-10-02-00 Retrofit Proximity Probe

Bently Nevada 330105-02-12-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

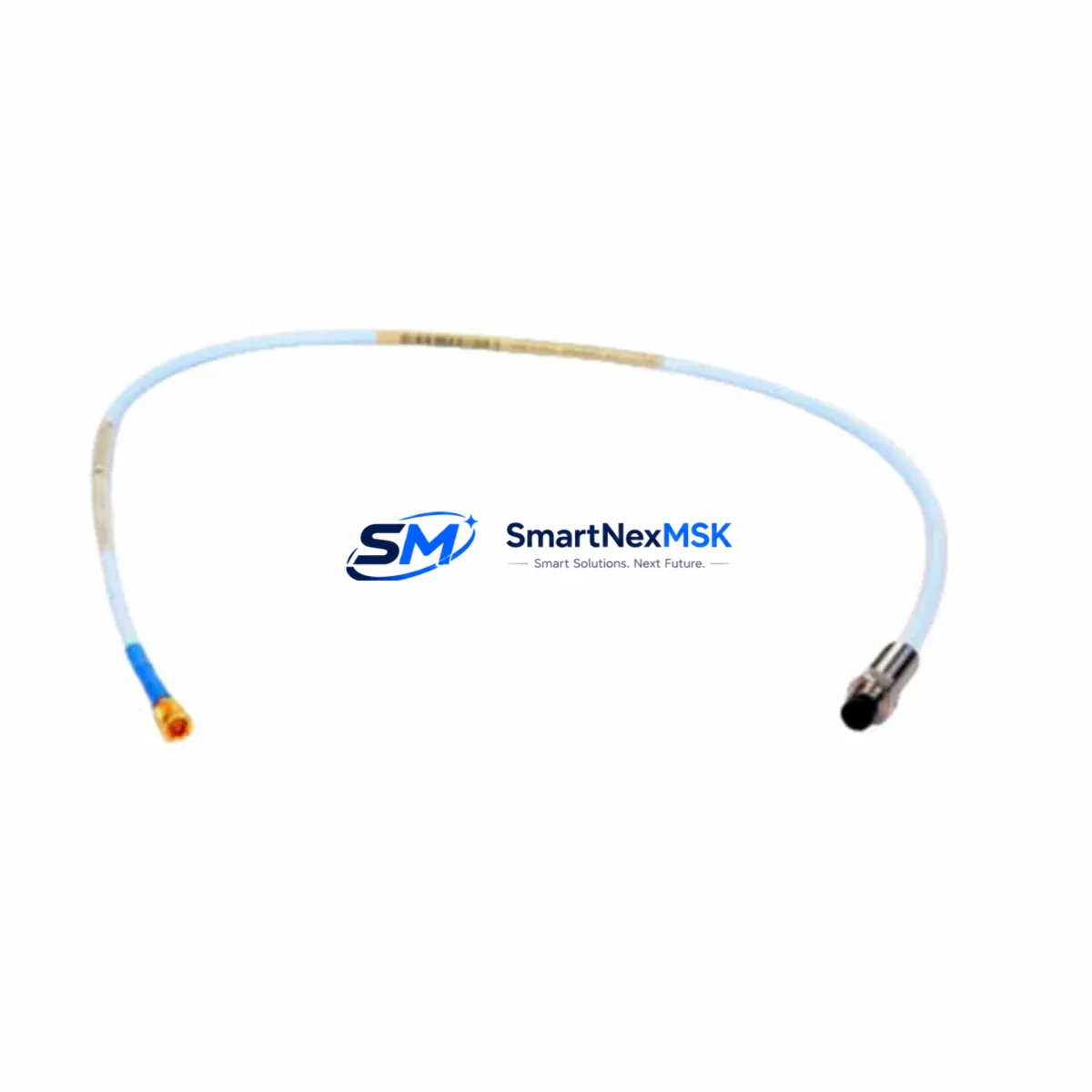

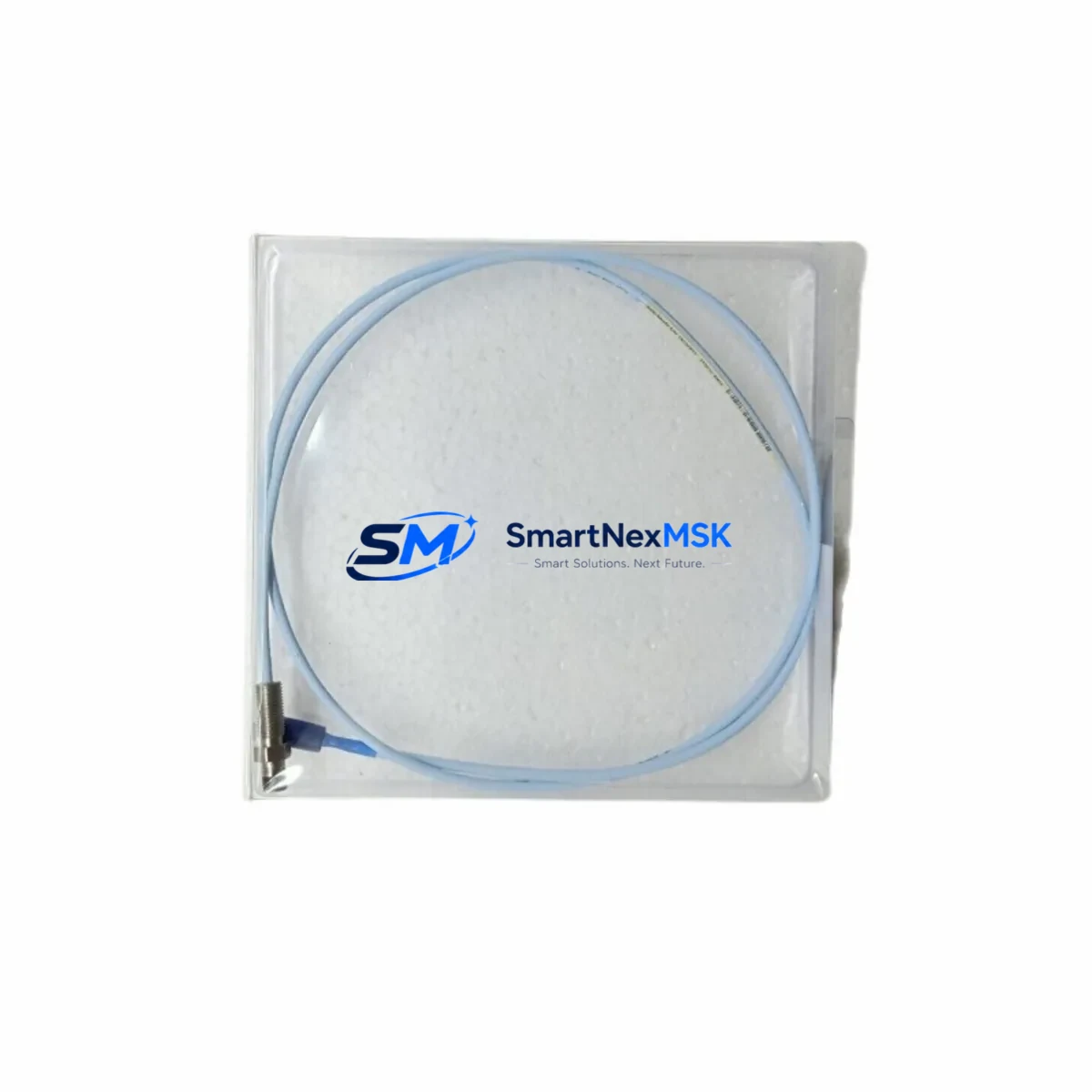

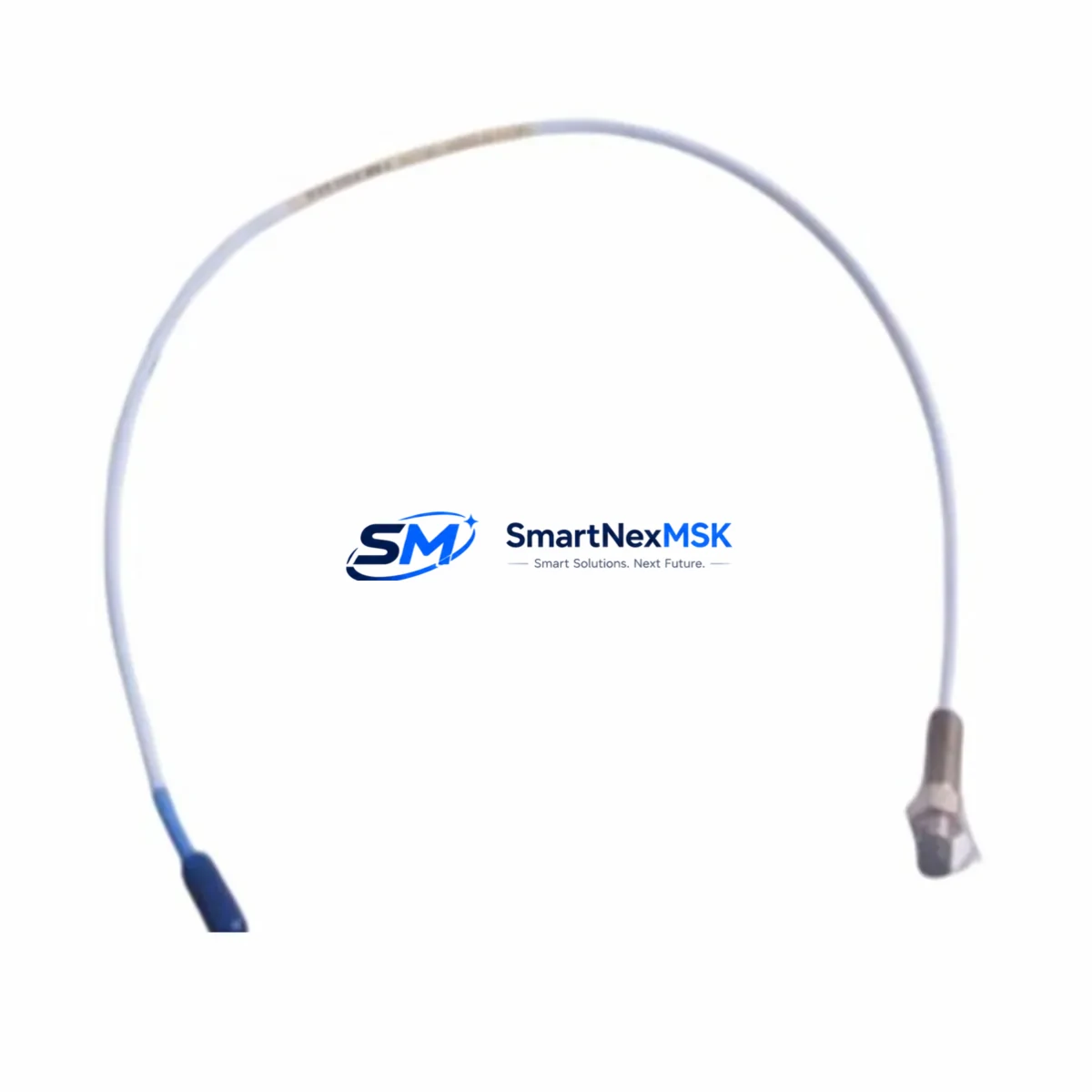

The Bently Nevada 330105-02-12-10-02-00 is an 8mm reverse-mount eddy-current proximity probe engineered for continuous shaft vibration and axial position monitoring in rotating machinery. Designed as a direct retrofit replacement within the Bently Nevada 3300 XL continuous monitoring system platform, this probe delivers the same signal output, sensitivity, and mechanical form factor as the original OEM component — enabling seamless integration into existing monitor racks, field wiring, and machinery protection logic without reprogramming or hardware redesign.

For plants operating legacy turbine protection, compressor monitoring, or pump surveillance systems built around the 3300 XL architecture, the 330105-02-12-10-02-00 provides a verified, in-stock replacement path that eliminates the risk of extended downtime caused by obsolete or discontinued spare parts. Each unit is pre-tested against Bently Nevada sensitivity and gap voltage specifications before shipment, backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant requires careful coordination across mechanical, electrical, and control system disciplines. The 330105-02-12-10-02-00 is most commonly encountered in turbine bearing housings, compressor journal bearing pedestals, and pump shaft monitoring brackets where the original 3300 XL system was installed during the 1990s or early 2000s. Many of these installations remain in service today, and sourcing a verified replacement probe is the first step in a structured retrofit plan.

Before removing the existing probe, engineers should document the current gap voltage reading at the 3300 XL Proximitor® Sensor — typically a 330180-series module mounted in the field junction box or local panel. This baseline reading confirms the original installation gap and provides a reference for re-commissioning the replacement unit. The Proximitor output feeds directly into the 3300/20 Dual Voting Monitor or 3300/25 Keyphasor® Monitor rack module, where vibration alarm and danger setpoints are stored. These setpoints do not need to be re-entered when replacing only the probe, provided the extension cable — commonly a 330130-045-00-00 or equivalent 3300 XL series extension — remains in place and undamaged.

For installations where the extension cable must also be replaced, technicians should verify the total system cable length against the Proximitor calibration range. The 3300 XL system is calibrated for specific probe-plus-extension combinations, and mismatched lengths will shift the gap voltage curve, requiring recalibration of the Proximitor or replacement with a pre-calibrated assembly. In multi-probe installations — such as X-Y vibration measurement pairs on a single bearing — both probes should be replaced simultaneously to maintain matched sensitivity and eliminate differential measurement error.

Where the plant is migrating from the 3300 XL platform to the newer Bently Nevada 3500 Series rack-based monitoring system, the 330105-02-12-10-02-00 probe remains compatible when paired with the appropriate 3500/42M Proximitor®/Seismic Monitor input module and a 3500-compatible Proximitor sensor. This migration path preserves the existing field wiring and probe installation, reducing mechanical intervention to zero and limiting the upgrade scope to the monitor rack, I/O modules, and communication cards. The 3500 system supports Modbus RTU, Modbus TCP/IP, and OPC-DA/UA protocols, enabling integration with modern DCS platforms such as Emerson DeltaV or Honeywell Experion without replacing field instrumentation.

For control cabinet upgrades where the 3300 XL rack is being retired, the replacement plan should also account for the 3300/10 Power Supply module, which provides regulated -24 VDC to the Proximitor sensors. If the new rack uses a different power architecture, a dedicated DIN-rail 24 VDC power supply with sufficient current capacity for all active probes must be specified. Wiring terminations at the field junction box should be inspected and re-torqued during the probe replacement, as terminal oxidation and loose connections are a common source of signal noise in long-service installations.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or 3300 XL system migration requires a structured pre-outage preparation process. The most effective approach is to pre-configure and bench-test the replacement probe assembly — including the 330105-02-12-10-02-00 probe, extension cable, and Proximitor sensor — before the maintenance window begins. Bench testing confirms gap voltage linearity, cable continuity, and Proximitor output range, so that field installation is limited to mechanical mounting, cable connection, and final gap setting.

Where the plant operates continuous processes that cannot tolerate a full shutdown, a bypass strategy using the monitor’s inhibit or bypass function allows the affected channel to be taken out of the voting logic while the probe is replaced, without triggering a spurious trip. This function is available in the 3300/20 Dual Voting Monitor and must be authorized and logged in the plant’s management of change (MOC) system before use. Once the replacement probe is installed and gap voltage is verified, the channel is re-enabled and alarm response is confirmed before the bypass is removed.

For migrations to the 3500 Series platform, a parallel-run strategy — where the new rack is installed and commissioned alongside the existing 3300 XL system before cutover — eliminates the risk of losing machinery protection during the transition. The 3500 rack can be powered and signal-checked against the existing Proximitor outputs before the field wiring is transferred, ensuring that all alarm setpoints, danger levels, and communication links are verified in a live environment. This approach typically reduces cutover time to under four hours per machine train, preserving production continuity and protecting the original program logic stored in the plant’s DCS or safety system.

All replacement units supplied by SMARTNEXMSK are shipped with a pre-shipment test report confirming sensitivity, gap voltage curve, and cable integrity. Inventory is maintained in stock for immediate dispatch, supporting emergency replacement scenarios where lead time from the OEM is not acceptable.

Retrofit Support FAQ

Q1: Is the 330105-02-12-10-02-00 a direct replacement for the original Bently Nevada part with the same SKU?
Yes. The 330105-02-12-10-02-00 supplied by SMARTNEXMSK matches the original Bently Nevada OEM specification in probe diameter (8mm), mounting thread (M10 x 1), cable length (2.0 m), and signal sensitivity (200 mV/mil). It is a verified drop-in replacement for 3300 XL system installations. No modification to the Proximitor sensor, extension cable, or monitor module is required when replacing a like-for-like probe.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, the gap voltage must be set to the value specified in the original installation drawing — typically between -9.5 VDC and -10.5 VDC at the Proximitor output. This is achieved by adjusting the probe-to-shaft gap using the threaded body and locknut. Once the gap is set, the Proximitor output should be verified at the monitor module input terminals, and the channel alarm and danger setpoints should be confirmed against the plant’s machinery protection philosophy document. A functional test of the trip logic should be performed before returning the machine to service.

Q3: Can this probe be used with the Bently Nevada 3500 Series monitoring system?
Yes, with appropriate signal conditioning. The 330105-02-12-10-02-00 probe is compatible with the 3500 Series platform when paired with a 3500-compatible Proximitor® sensor and the 3500/42M Proximitor®/Seismic Monitor input module. The probe itself does not change; only the Proximitor sensor and rack module need to be specified for 3500 compatibility. This makes the probe a cost-effective field asset to retain during a rack-level platform upgrade.

Q4: What warranty and quality assurance does SMARTNEXMSK provide?
Every 330105-02-12-10-02-00 unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each probe undergoes a pre-shipment functional test covering gap voltage linearity, cable continuity, and connector integrity. A test report is included with each shipment. Units found to be defective within the warranty period are replaced or refunded without charge. For urgent replacement requirements, in-stock units are available for same-day or next-business-day dispatch.
