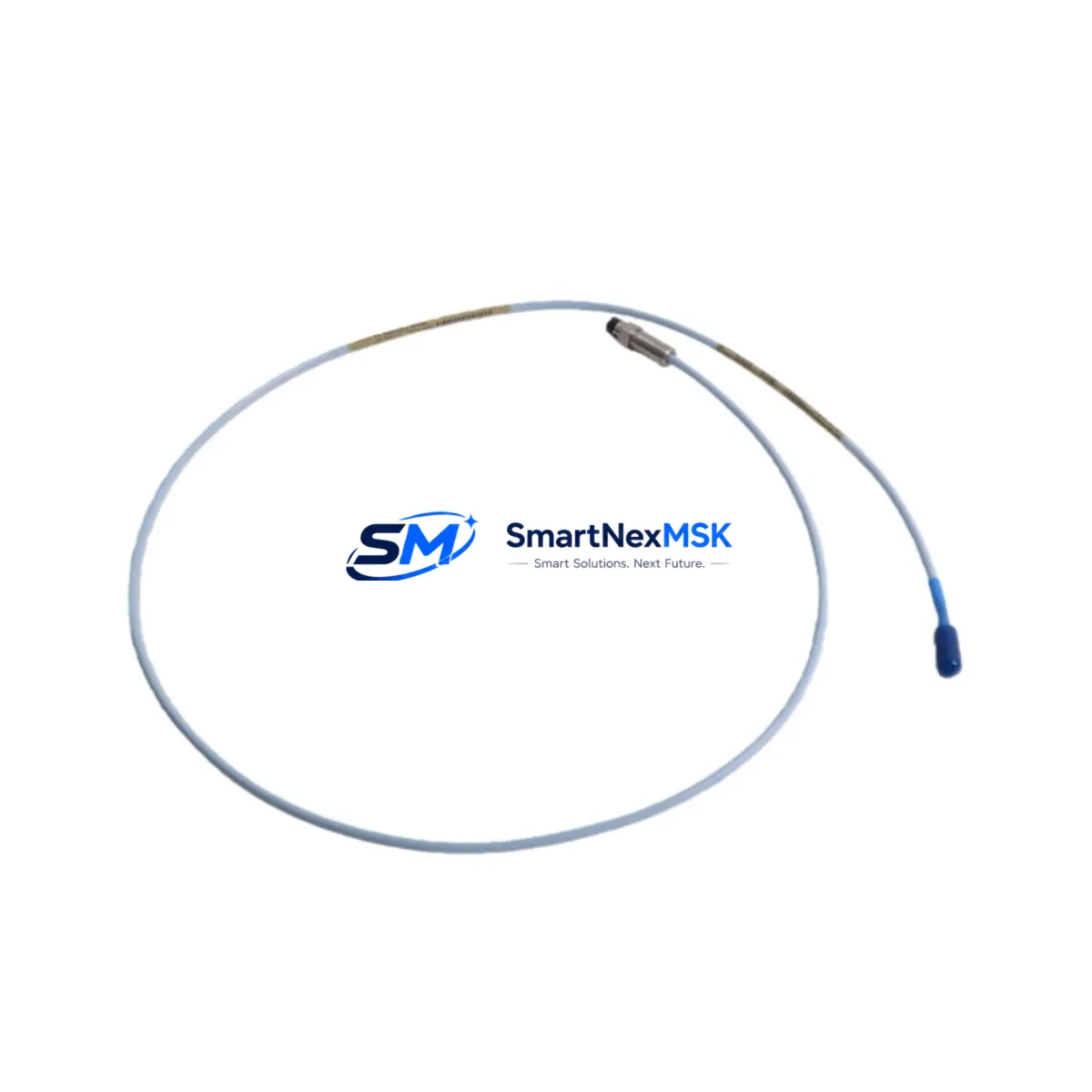

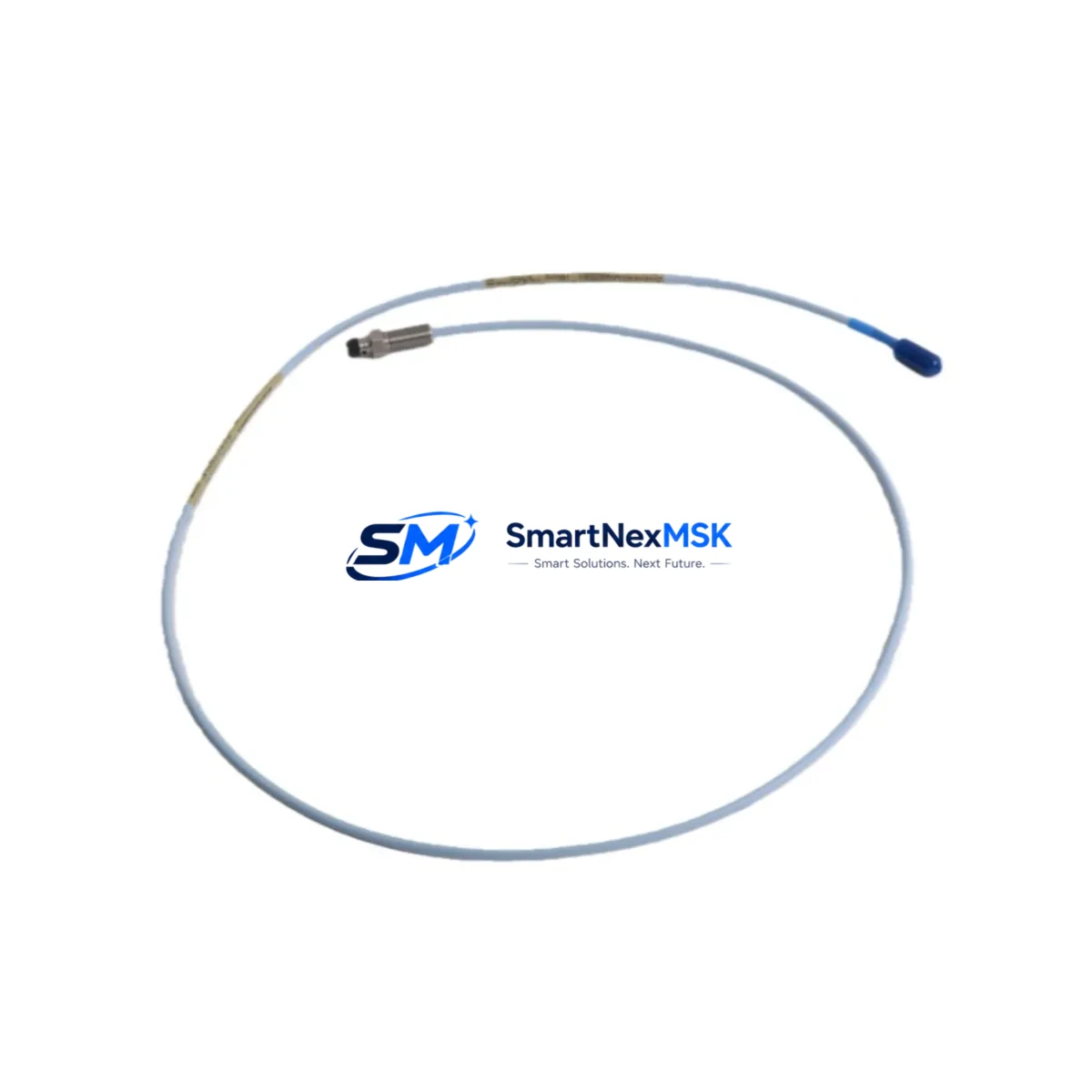

Bently Nevada 330105-02-12-10-12-CN Safety Proximity Probe

Bently Nevada 330105-02-12-10-12-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330105-02-12-10-12-CN is an 8mm reverse-mount eddy-current proximity probe from the industry-trusted 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemically aggressive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and port logistics facilities worldwide.

In high-stakes control architectures — where a single missed signal can trigger unplanned downtime, equipment damage, or a safety interlock failure — the 330105-02-12-10-12-CN delivers consistent, drift-free output that plant engineers and reliability teams depend on. Its ruggedized construction minimizes the risk of signal drift caused by temperature fluctuations, cable capacitance variation, or proximity to high-power drive systems. When integrated with the Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330130-040-00-00), the system forms a complete, calibrated measurement chain that meets API 670 machinery protection standards.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330105-02-12-10-12-CN does not operate in isolation. It is the field-sensing front end of a layered protection architecture. The probe signal is routed through a Bently Nevada 3300 XL Extension Cable (330130-040-00-00) to a 3300 XL Proximitor® Sensor (330180-X1-05), which conditions the raw eddy-current signal into a calibrated DC voltage for the monitoring system. This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor® / Seismic Monitor rack module, where trip setpoints and alarm thresholds are configured for radial vibration and shaft position protection.

To protect the entire signal chain from power-line transients and ground loops — common in heavy industrial switchgear rooms — engineers typically pair this probe system with Bently Nevada Zener Barrier Modules or equivalent galvanic isolators installed at the cabinet I/O boundary. On the power supply side, a Bently Nevada 3500 Power Supply Module (3500/15) provides regulated, redundant DC power to the monitoring rack, ensuring that voltage sags from large motor starts or capacitor bank switching do not compromise probe bias voltage or Proximitor® output stability.

For facilities running System 1® Evolution condition monitoring software, the 330105-02-12-10-12-CN integrates seamlessly into the data acquisition layer, enabling real-time trending, alarm management, and predictive maintenance workflows. In safety instrumented systems (SIS), the probe output can serve as a process input to a Triconex Tricon Safety Controller or equivalent IEC 61511-compliant logic solver, where shaft vibration exceeding trip thresholds initiates an automatic emergency shutdown sequence. Complementary field instruments — including Bently Nevada 330500 Velomitor® CT Sensors for casing vibration and 330750 Temperature Sensors for bearing temperature monitoring — are commonly deployed alongside the proximity probe to provide a comprehensive, multi-parameter machinery health picture within the same control cabinet zone.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor trains and centrifugal pump skids operating in classified hazardous areas, the 330105-02-12-10-12-CN monitors shaft radial vibration and provides the primary trip signal to the emergency shutdown system. Its resistance to hydrocarbon vapors, H₂S atmospheres, and high-pressure steam environments makes it the preferred choice for API 670-compliant machinery protection on critical rotating assets.

Power Generation: Steam turbine and gas turbine generator sets require continuous, millisecond-resolution shaft position and vibration data to prevent catastrophic bearing failure. The 330105-02-12-10-12-CN, installed at each bearing journal, feeds real-time data to the turbine protection system, enabling automatic load shedding or trip before vibration levels reach destructive thresholds.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and high ambient dust concentrations. The ruggedized probe housing and shielded cable of the 330105-02-12-10-12-CN maintain signal integrity even when mounted in close proximity to variable frequency drives and high-current motor feeders — conditions that would cause signal corruption in lesser-grade sensors.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in municipal water infrastructure require reliable vibration monitoring to prevent unplanned outages that could affect public water supply. The 330105-02-12-10-12-CN provides the continuous monitoring backbone for predictive maintenance programs in these critical utility assets.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic fields, high ambient temperatures, and mechanical shock. The 3300 XL Series probe system’s proven EMI immunity and wide operating temperature range make it the standard choice for machinery protection in these severe-duty applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330105-02-12-10-12-CN?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies identified under normal operating conditions. If the probe fails to meet Bently Nevada 3300 XL Series output specifications within the warranty period, we provide a direct replacement or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every 330105-02-12-10-12-CN undergoes a full pre-shipment functional verification, including bias voltage output check, sensitivity calibration confirmation against the 200 mV/mil standard, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor® Sensors and 3500 Series monitoring racks?
Yes. The 330105-02-12-10-12-CN is fully compatible with all Bently Nevada 3300 XL Series Proximitor® Sensors and integrates directly with 3500 Series rack monitors without requiring recalibration of the monitoring system, provided the extension cable length matches the original system design. Always verify the total cable length (probe + extension) matches the Proximitor® sensor’s calibrated range.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
Yes. We maintain dedicated safety stock of the 330105-02-12-10-12-CN and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Lead times for standard orders are typically 3–7 business days. For large-volume or scheduled outage requirements, contact our sales team to arrange a reserved inventory allocation.
