Bently Nevada 330106-00-06-10-02-CN Spare 3300 XL Automation

Bently Nevada 330106-00-06-10-02-CN Maintenance-Ready Spare for 3300 XL Automation

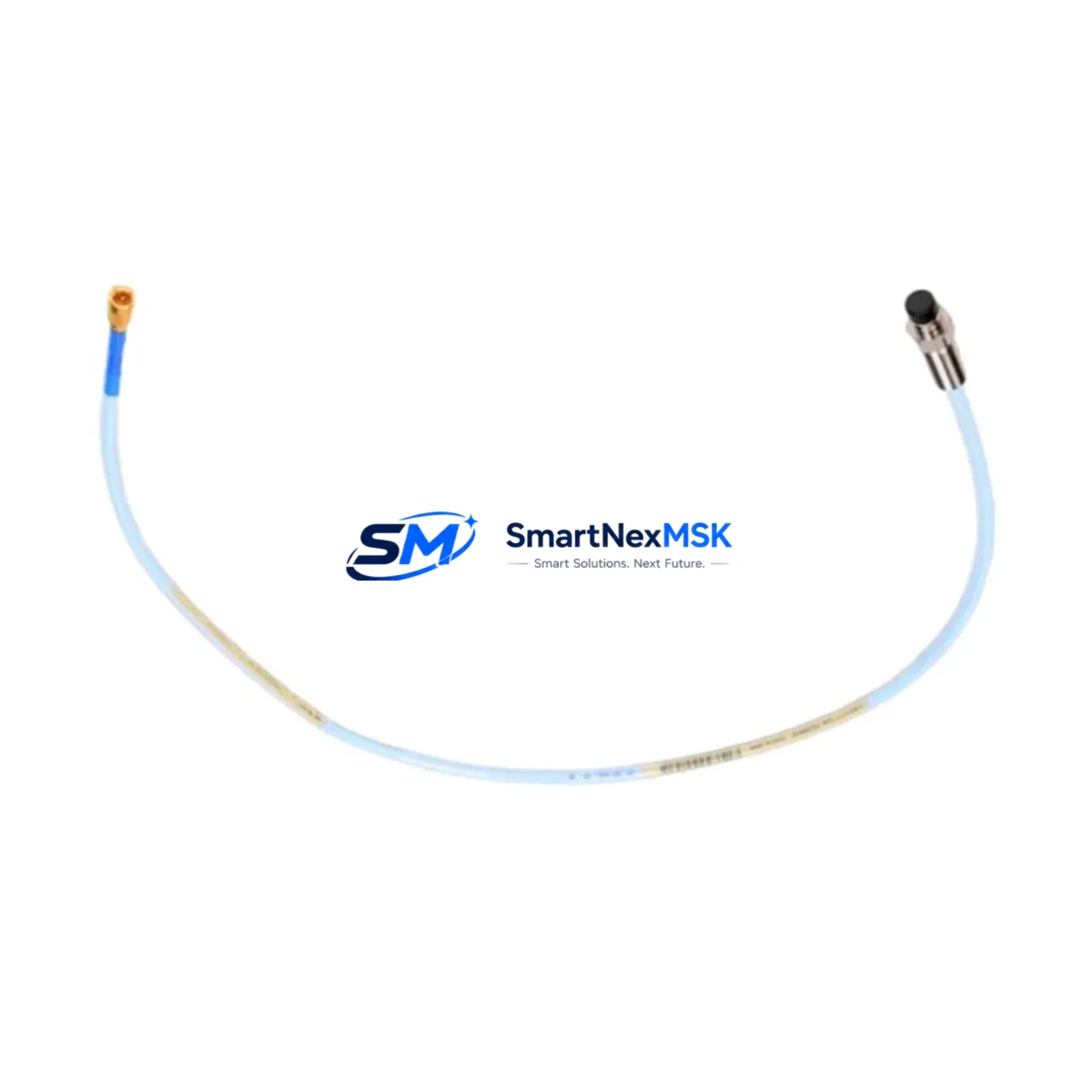

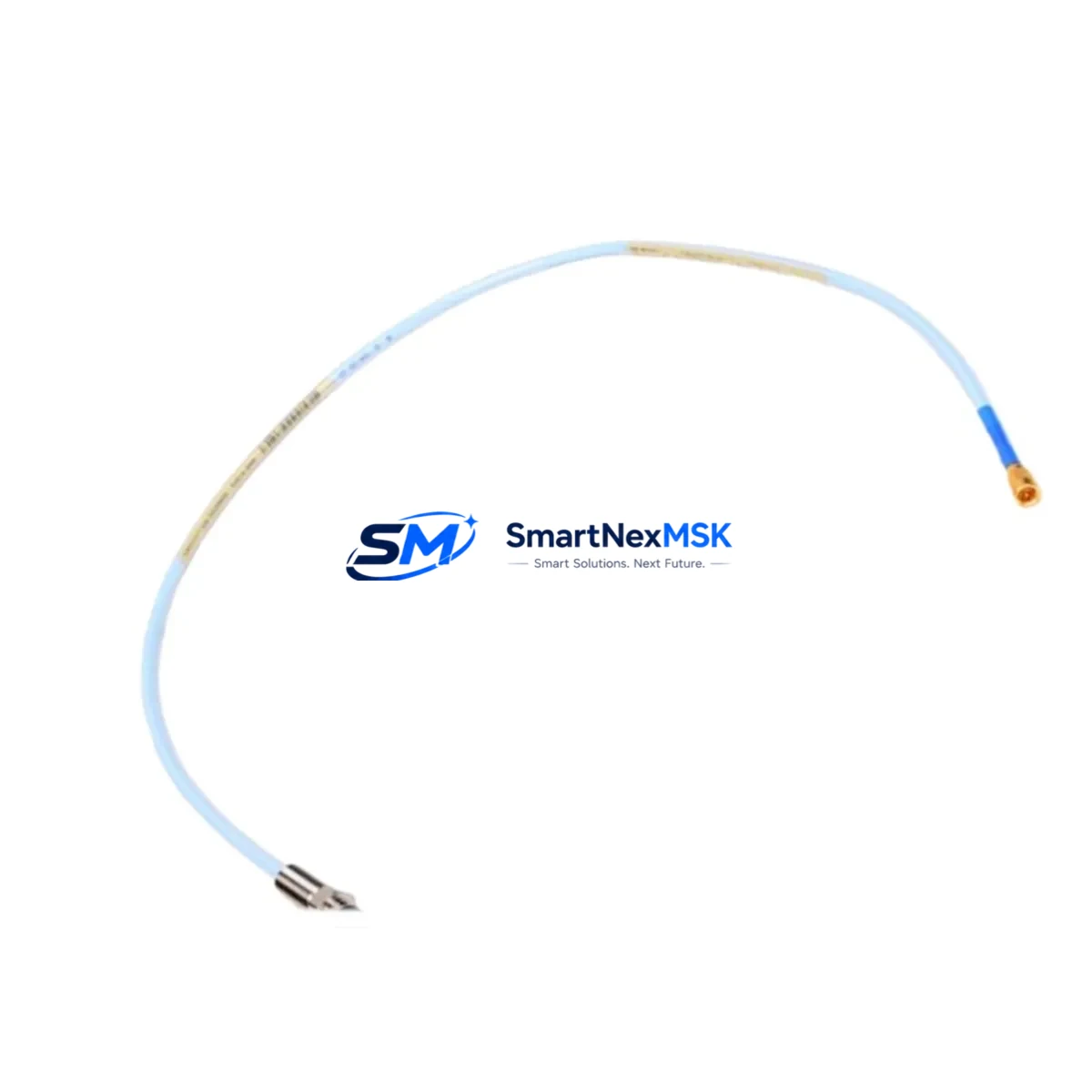

The Bently Nevada 330106-00-06-10-02-CN is an original reverse-mount proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor. Its failure or degradation directly triggers false trips, missed fault detection, or unplanned shutdowns. Stocking a verified replacement unit is not optional for any facility running Bently Nevada 3300 XL monitoring panels; it is a fundamental element of a defensible maintenance strategy.

This unit ships fully tested against original Bently Nevada factory specifications. Each probe undergoes output linearity verification, gap voltage confirmation, and cable continuity checks prior to dispatch. A 12-month warranty covers manufacturing defects and performance deviations from published specifications. Lead time from order confirmation to dispatch is typically 1–3 business days, supporting both planned turnaround schedules and emergency callout scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330106-00-06-10-02-CN probe is flagged during a routine control cabinet inspection or vibration trend review, the replacement workflow should extend beyond the probe itself. Maintenance engineers and procurement teams should treat this event as a trigger for a broader system health check across the associated monitoring loop.

The probe connects to a 3300 XL Proximitor® Sensor (typically a 3300/16 or 3300/20 series driver module) mounted in the 3300 XL rack. If the probe is showing drift or erratic gap voltage, the Proximitor® driver should be bench-tested simultaneously — driver output degradation is frequently misdiagnosed as a probe fault. The 3300 XL rack power supply module (–24 VDC regulated) should be load-tested; a sagging supply rail causes systematic gap voltage errors across all channels in the rack.

Inspect the 3300 XL I/O terminal blocks and field wiring for corrosion, loose terminations, or shield grounding faults. In high-vibration environments, connector pins at the probe junction box and at the rack backplane are common failure points. If the system includes a 3300 XL Keyphasor® module, verify its gap and signal output — a degraded Keyphasor® signal corrupts 1X and 2X vibration vector calculations across the entire monitoring system.

For facilities running System 1® condition monitoring software, confirm that the channel configuration (probe type, scale factor, alert/danger setpoints) is correctly mapped after probe replacement. A misconfigured channel can mask real machinery faults. Where the 3300 XL rack interfaces with a DCS or safety PLC via 4–20 mA output modules, verify that the analog output cards are transmitting correctly after the probe swap — these cards are often overlooked during probe-level maintenance.

If the installation includes signal isolators or barriers between the Proximitor® output and the DCS input, inspect these for drift. Zener barriers and galvanic isolators have finite service lives and can introduce offset errors that appear as probe faults. Facilities using Bently Nevada 3500 series rack systems in parallel monitoring roles should cross-reference alarm histories to determine whether the fault is isolated to the 3300 XL loop or systemic across both platforms.

Procurement engineers should consider stocking a minimum of two 330106-00-06-10-02-CN probes per monitored machine train, alongside one spare Proximitor® driver module and one spare power supply module per rack. This three-component spare set covers the statistically dominant failure modes in 3300 XL installations and supports a sub-four-hour return-to-service target for most planned outage scenarios.

Site Replacement Workflow

Step 1 — Isolation and documentation. Before removing the probe, record the current gap voltage reading from the Proximitor® front panel or System 1® display. This baseline confirms whether the fault is in the probe, the cable, or the driver. Tag and isolate the channel at the rack to prevent false trip signals during the swap.

Step 2 — Mechanical removal. Using the correct spanner, back out the probe from the bracket. Note the thread engagement depth — the replacement probe must be set to the same gap (typically 50 mil / 1.27 mm for standard steel targets) to restore calibrated output. Do not use thread sealant on the probe threads; use only the supplied locknut.

Step 3 — Cable inspection. Inspect the integral cable along its full routed length for chafing, kinking, or connector damage. The 330106-00-06-10-02-CN uses a 6 ft integral cable terminated with a standard Bently Nevada coaxial connector. If the cable shows physical damage, replace the probe assembly — do not attempt field cable repairs on proximity probe assemblies.

Step 4 — Installation and gap setting. Install the replacement probe, set the gap to the documented value, and torque the locknut to specification. Reconnect the coaxial cable to the Proximitor® driver. Restore channel isolation and verify gap voltage at the Proximitor® output — target is –10.0 VDC ±0.5 V for a 50 mil gap on a standard steel target.

Step 5 — System verification. Confirm that System 1® or the DCS is receiving a valid vibration signal. Check that 1X amplitude and phase readings are stable and consistent with pre-fault baseline trends. Document the replacement in the maintenance management system with the new probe serial number and gap setting.

This workflow is compatible with both hot-standby and cold-standby replacement scenarios and supports the goal of minimizing machinery downtime while maintaining full monitoring integrity.

Spare Parts Support FAQ

Q1: Is the 330106-00-06-10-02-CN a direct drop-in replacement for older 330106 series probes?
Yes. The 330106-00-06-10-02-CN is dimensionally and electrically compatible with earlier 330106 series reverse-mount probes used in 3300 XL installations. Gap setting and Proximitor® driver pairing remain unchanged. Verify the thread size (10-32 UNF) and cable length (6 ft) match your existing bracket and routing before installation.

Q2: How is the unit tested before shipment?
Each 330106-00-06-10-02-CN is tested for gap voltage linearity across the full operating range, cable continuity, and connector integrity. Test records are retained and available upon request. Units that do not meet Bently Nevada published specifications are not dispatched.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and performance deviations from published Bently Nevada specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature and gap range. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can you support long-term or blanket purchase orders for 3300 XL spare parts?
Yes. We support scheduled delivery agreements, blanket POs, and consignment stock arrangements for facilities with ongoing 3300 XL maintenance programs. Contact our technical sales team to discuss volume pricing, lead time commitments, and multi-SKU spare parts kitting for your specific machine train configuration.
