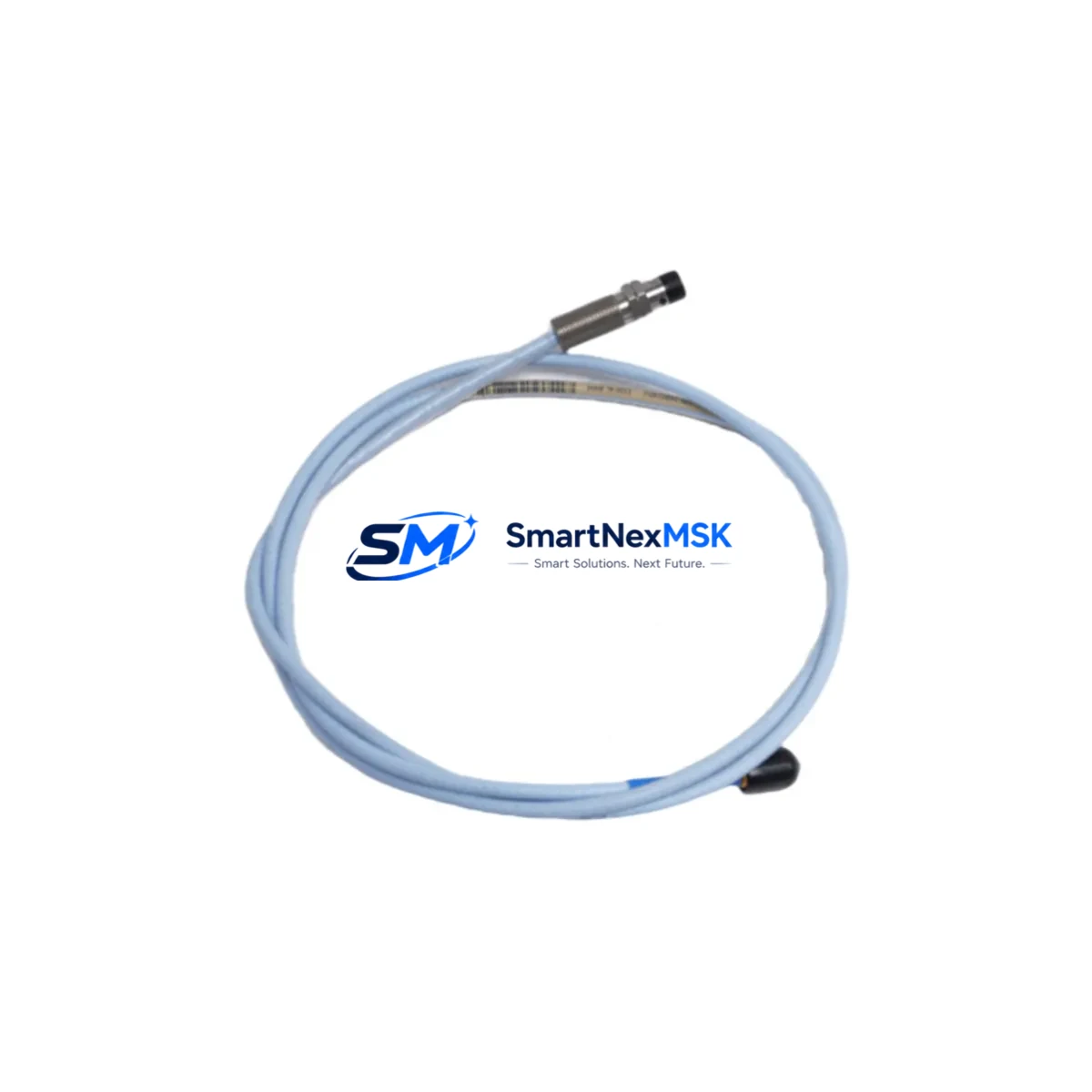

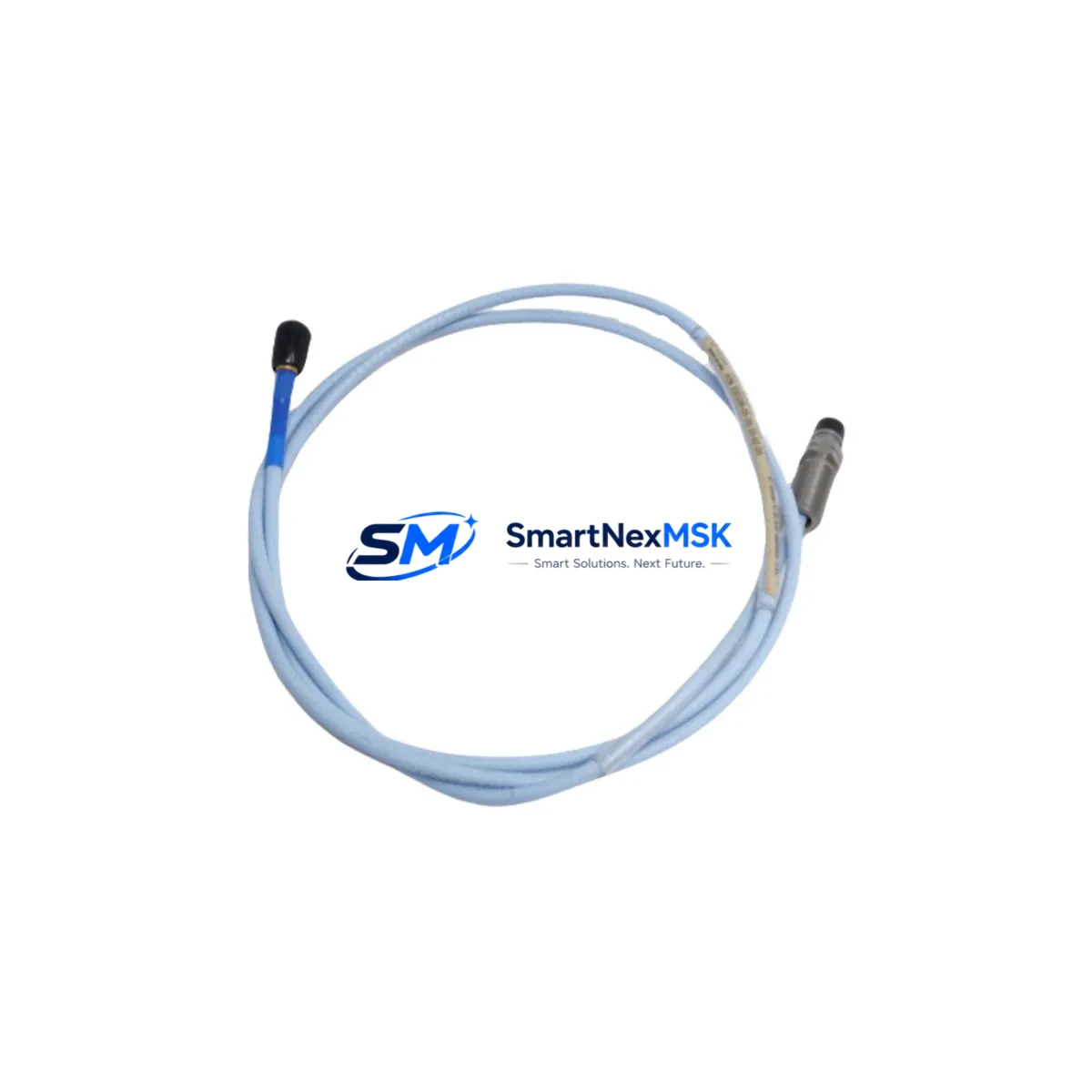

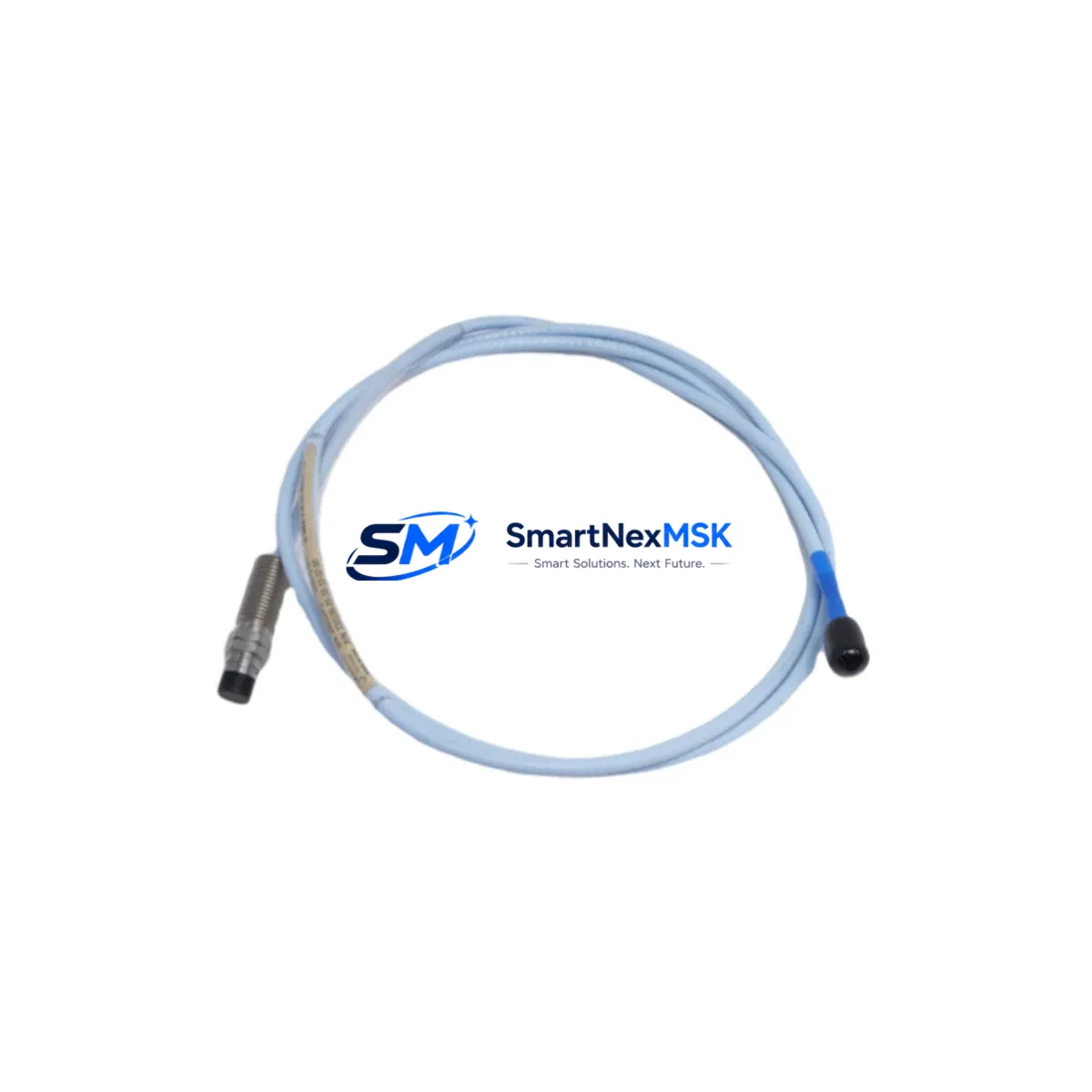

Bently Nevada 330106-00-24-10-02-05 Safety Proximity Probe

Bently Nevada 330106-00-24-10-02-05 Safety Proximity Probe: Precision Vibration Monitoring for Harsh Industrial Control Environments

The Bently Nevada 330106-00-24-10-02-05 is a ruggedized eddy current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, high-integrity shaft vibration and position monitoring in the most demanding industrial environments. Designed for critical rotating machinery protection, this probe is a cornerstone component in safety instrumented systems (SIS), turbine protection panels, compressor control cabinets, and high-availability process control loops where signal integrity and uninterrupted operation are non-negotiable.

With a 24-inch (approximately 610 mm) armored extension cable and a 5-meter (standard) driver cable, the 330106-00-24-10-02-05 is optimized for installations requiring extended reach in large bearing housings, high-temperature casings, or physically constrained machinery pedestals. Its non-contact sensing principle eliminates mechanical wear, making it inherently suitable for continuous 24/7 operation in petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment infrastructure.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330106-00-24-10-02-05 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL Proximity Transducer System. It is paired with the Bently Nevada 330130-080-00-00 or 330180-X1-05 extension cable to bridge the distance between the probe tip and the signal conditioning driver. The driver — typically a Bently Nevada 3300 XL 8mm Driver (330104-00-05-10-02-05) — converts the raw probe impedance signal into a calibrated DC voltage output that feeds directly into the Bently Nevada 3500/42M Proximitor I/O module or the 3500/40M Proximitor monitor card housed in the 3500 rack system.

Within the 3500 rack, the proximity signal is processed alongside inputs from Bently Nevada 3500/15 Power Supply modules, which provide regulated, isolated DC power to all monitoring cards — a critical safeguard against power rail fluctuations that could cause false trips or missed alarms in safety-critical loops. For installations requiring redundant power, dual 3500/15 supplies are deployed in parallel, ensuring that a single power supply failure does not interrupt vibration monitoring continuity.

The analog output from the 3500 monitor is typically wired into a Rockwell Automation 1756-IF16 or equivalent analog input module in the main DCS or safety PLC cabinet, where the vibration amplitude and gap voltage are continuously compared against API 670 alarm and danger setpoints. In SIL-rated loops, the signal may also feed a HIMA F3 DIO 20/8 01 or Pilz PNOZ m B0 safety relay module to trigger automatic machine trip sequences. Surge protection on the signal cable — using devices such as the Phoenix Contact TRABTECH MCR-VAL-2.4/0.2 — is strongly recommended in environments with frequent lightning activity or high-power switching equipment nearby.

For installations in hazardous classified areas (Zone 1 / Division 1), the probe signal is routed through a Bently Nevada 3300 XL Zener Barrier or galvanic isolator before entering the safe-area monitoring rack, maintaining ATEX / IECEx compliance and preventing ignition-capable energy from reaching the hazardous zone.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 330106-00-24-10-02-05 is widely deployed on centrifugal compressors, process gas turbines, and boiler feed pumps in refineries and ethylene crackers. In these environments, continuous shaft radial vibration monitoring is mandated by API 670 and plant safety management systems. The probe’s high-temperature tolerance and oil-resistant construction allow reliable operation in lube oil-flooded bearing housings at sustained process temperatures.

Power Generation: Steam turbine-generators and gas turbines in utility and industrial power plants rely on eddy current proximity probes for shaft eccentricity, differential expansion, and radial vibration monitoring. The 330106-00-24-10-02-05 integrates directly into existing Bently Nevada 3500 Series protection racks, enabling seamless replacement of legacy probes without recalibration of the entire monitoring chain.

Mining & Mineral Processing: Large ball mills, SAG mills, and slurry pumps in mining operations subject rotating shafts to extreme radial loads and shock vibration. The ruggedized construction of the 3300 XL probe series ensures signal stability even under high-amplitude, broadband vibration spectra typical of grinding and crushing circuits.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities benefit from continuous proximity monitoring to detect bearing wear, rotor imbalance, and misalignment before catastrophic failure. The probe’s non-contact design eliminates the need for periodic mechanical sensor replacement, reducing maintenance downtime in unmanned or remotely monitored pump stations.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and variable frequency drives. The shielded coaxial cable construction of the 330106-00-24-10-02-05 provides robust EMI rejection, maintaining signal fidelity in these electrically noisy control environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330106-00-24-10-02-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify sensitivity, gap voltage linearity, and cable integrity before dispatch. Warranty claims are supported with direct technical assistance and expedited replacement.

Q2: How is each unit tested before shipment?
Every 330106-00-24-10-02-05 probe is bench-tested against a calibrated AISI 4140 steel target using a reference Bently Nevada driver to verify output sensitivity (200 mV/mil ± 10%), linear range, and DC gap voltage at standard gap distances. Cable continuity, shield integrity, and connector seating are also verified. A test report is available upon request for critical safety applications.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330106-00-24-10-02-05 is a direct OEM-equivalent component within the Bently Nevada 3300 XL Proximity Transducer System. It is fully compatible with 3300 XL extension cables, 3300 XL drivers, and all 3500 Series Proximitor monitor cards. No system recalibration is required when replacing a like-for-like probe in an existing installation.

Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains standing inventory of the 330106-00-24-10-02-05 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. We provide supply continuity planning for critical spare parts programs, with typical lead times of 1–5 business days for in-stock items and documented sourcing channels for extended procurement needs.
