Bently Nevada 330106-05-30-10-02-00: Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

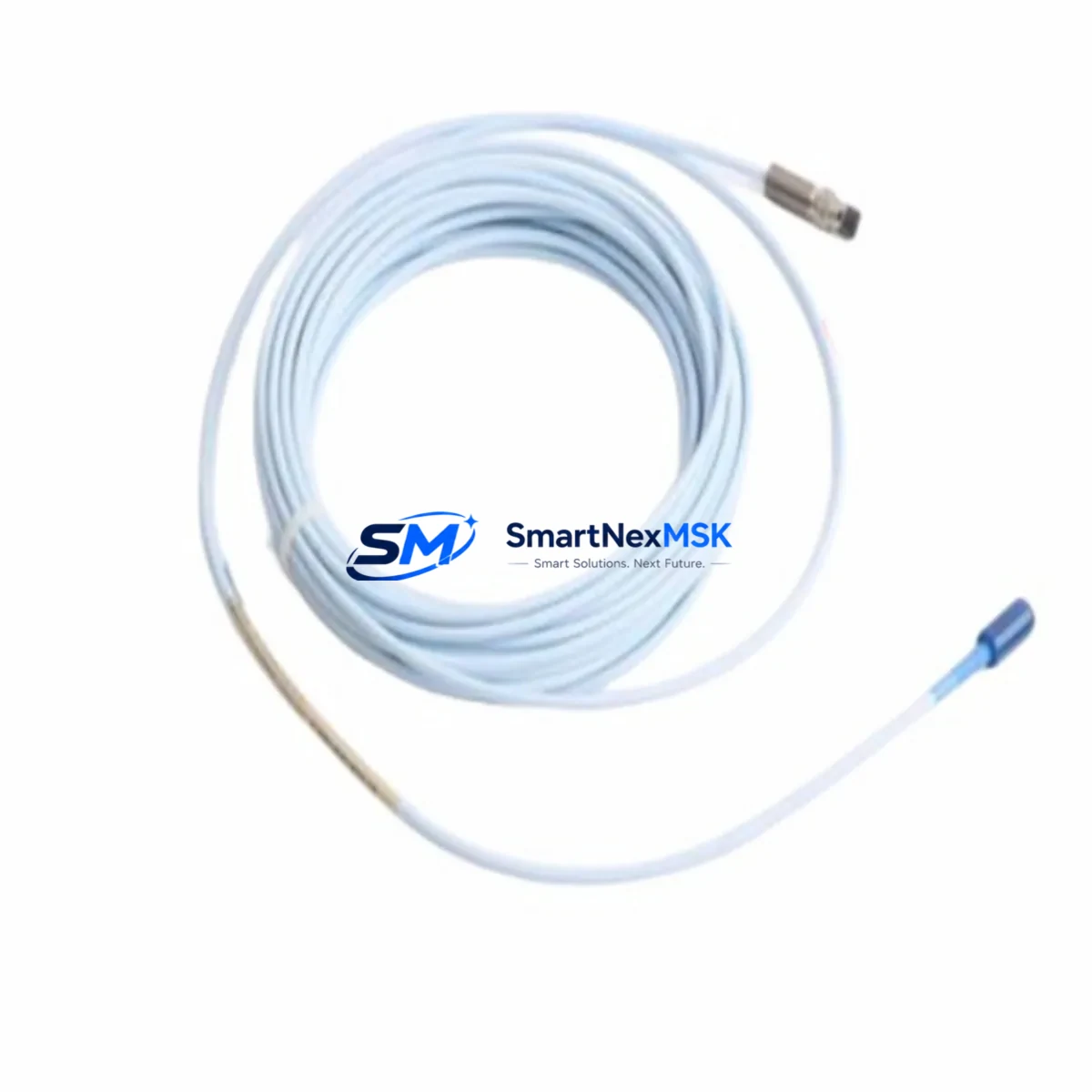

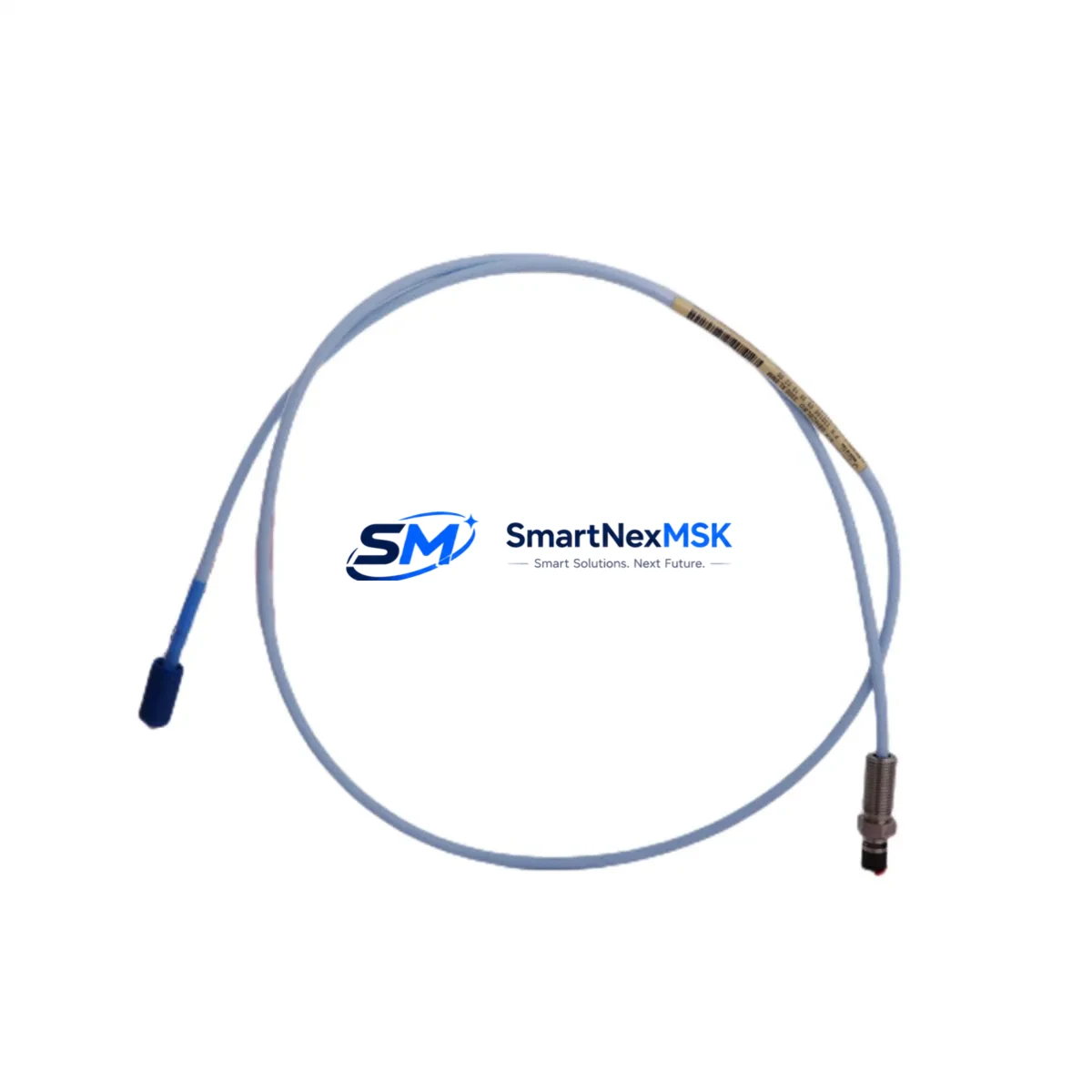

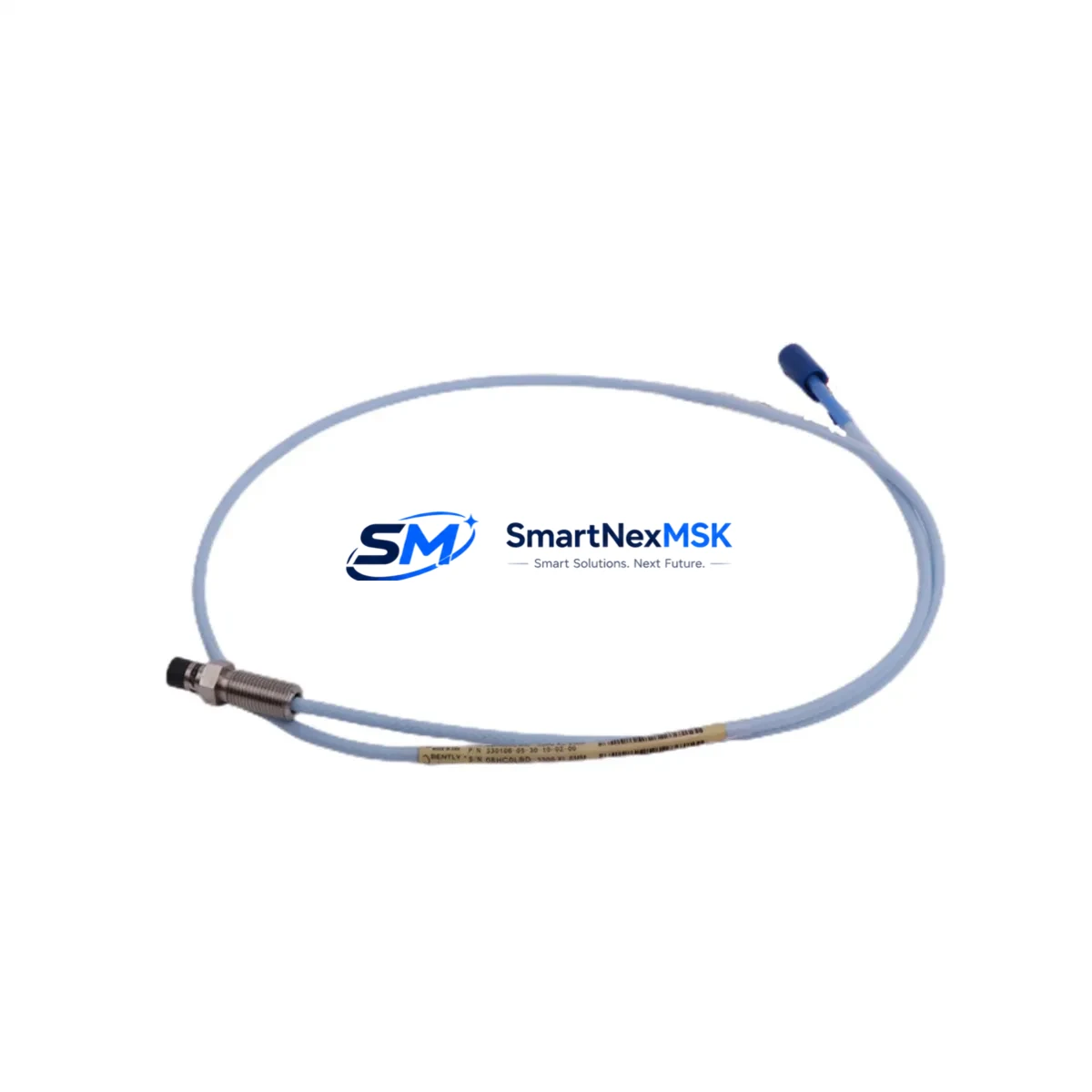

The Bently Nevada 330106-05-30-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity shaft vibration and position monitoring in the most demanding industrial environments. Designed for critical rotating machinery protection, this transducer is a cornerstone component in safety instrumented systems (SIS), turbine protection panels, compressor control cabinets, and emergency shutdown (ESD) loops where signal accuracy and operational continuity are non-negotiable.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, metallurgical mills, and continuous-process manufacturing lines — the 330106-05-30-10-02-00 provides the real-time radial vibration data that prevents catastrophic machinery failure. Its robust construction resists electromagnetic interference (EMI), radio-frequency interference (RFI), and ground loop noise, ensuring that vibration signals reaching the Bently Nevada 3300 XL Proximitor® Sensor remain clean and drift-free even in electrically noisy control environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered rotating machinery protection cabinet, the 330106-05-30-10-02-00 transducer operates as the primary sensing element within a tightly integrated signal chain. The probe connects via a matched extension cable — typically the Bently Nevada 330130-045-00-00 armored extension cable — to a dedicated Bently Nevada 3300 XL Proximitor® Sensor (330180-X1-05), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap distance.

This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, where vibration amplitude, DC gap, and 1X/2X vector data are processed against user-defined alert and danger setpoints. When vibration exceeds danger thresholds, the monitor drives relay outputs to the plant’s emergency shutdown (ESD) system or directly to a Triconex TRICON safety controller in SIL-rated interlock loops, triggering controlled machinery trip sequences before mechanical damage propagates.

Power integrity is critical in these circuits. The 3300 XL system draws regulated -24 VDC from a dedicated Bently Nevada 3500/15 Power Supply module, which provides isolated, low-ripple DC power to all Proximitor sensors in the rack. Redundant power supply configurations — using dual 3500/15 modules with automatic failover — eliminate power-loss-induced false trips and protect against voltage sag events common in heavy industrial facilities during motor start sequences.

For installations in hazardous classified areas (Zone 1 / Division 1), the signal path incorporates Bently Nevada 3300 XL Zener Barrier assemblies or galvanically isolated MTL 728 series safety barriers, ensuring that fault energy cannot propagate from the safe area rack into the hazardous area probe circuit. Grounding discipline — using a single-point ground at the Proximitor sensor — prevents ground loop currents that would otherwise introduce low-frequency noise and apparent vibration offsets into the monitoring system.

Communication of vibration data to the plant DCS or historian is handled through the Bently Nevada System 1® Evolution software platform, which aggregates data from multiple 3500 rack monitors via Ethernet or Modbus TCP, enabling real-time trending, alarm management, and predictive maintenance analytics across the entire rotating equipment fleet.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330106-05-30-10-02-00 is widely deployed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors in refinery environments. In these applications, undetected rotor imbalance or bearing wear can lead to seal failures, hydrocarbon releases, and fire or explosion hazards. Continuous proximity monitoring with API 670-compliant systems ensures that machinery is tripped safely before mechanical integrity is compromised.

Power Generation: Steam turbine and gas turbine protection systems in thermal and combined-cycle power plants rely on 3300 XL proximity transducers for shaft eccentricity, differential expansion, and radial vibration monitoring. The 330106-05-30-10-02-00’s wide operating temperature range and high-frequency response make it suitable for both high-pressure turbine stages and generator bearing pedestals, where rotor dynamics must be tracked continuously through all load transients.

Mining & Mineral Processing: In underground and surface mining operations, large ball mills, SAG mills, and slurry pumps operate under extreme mechanical loads and in environments with high levels of dust, moisture, and vibration. The IP67-rated probe body of the 330106-05-30-10-02-00 withstands these conditions, providing reliable shaft position data that protects gearboxes and drive trains from overload-induced failures that would halt production for days.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt water supply. The 3300 XL system’s low-maintenance, non-contact sensing principle eliminates wear-related sensor degradation, ensuring long-term monitoring reliability in wet, chemically aggressive environments.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains in steel plants operate under severe shock loading and high ambient temperatures. The 330106-05-30-10-02-00’s robust shielded cable construction and wide temperature tolerance ensure signal integrity even when routed through cable trays adjacent to high-current motor drives and induction heating equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330106-05-30-10-02-00?
The 12-month warranty covers all manufacturing defects, calibration drift beyond specification, and functional failures under normal operating conditions. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification including sensitivity check, linearity test, and cable continuity inspection. Warranty claims are processed with replacement or full refund, with no hidden conditions.

Q2: How is the 330106-05-30-10-02-00 tested before shipment?
Every unit is tested against Bently Nevada factory specifications prior to dispatch. Testing includes DC output voltage verification at known gap distances, frequency response check, insulation resistance measurement, and connector integrity inspection. A test report is available upon request for critical installation projects.

Q3: Is the 330106-05-30-10-02-00 compatible with existing 3300 XL and 3500 series systems?
Yes. The 330106-05-30-10-02-00 is fully compatible with all Bently Nevada 3300 XL Proximitor® Sensors, 3500 series rack monitors, and System 1® software platforms. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the Proximitor sensor, provided the extension cable length matches the original system configuration.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support?
Yes. SMARTNEXMSK maintains dedicated inventory of the 330106-05-30-10-02-00 and related 3300 XL series components to support both planned maintenance programs and emergency replacement requirements. Orders are typically processed and shipped within 1–3 business days. For critical spare parts programs requiring reserved stock or blanket purchase agreements, contact our sales team directly to discuss supply assurance arrangements.
