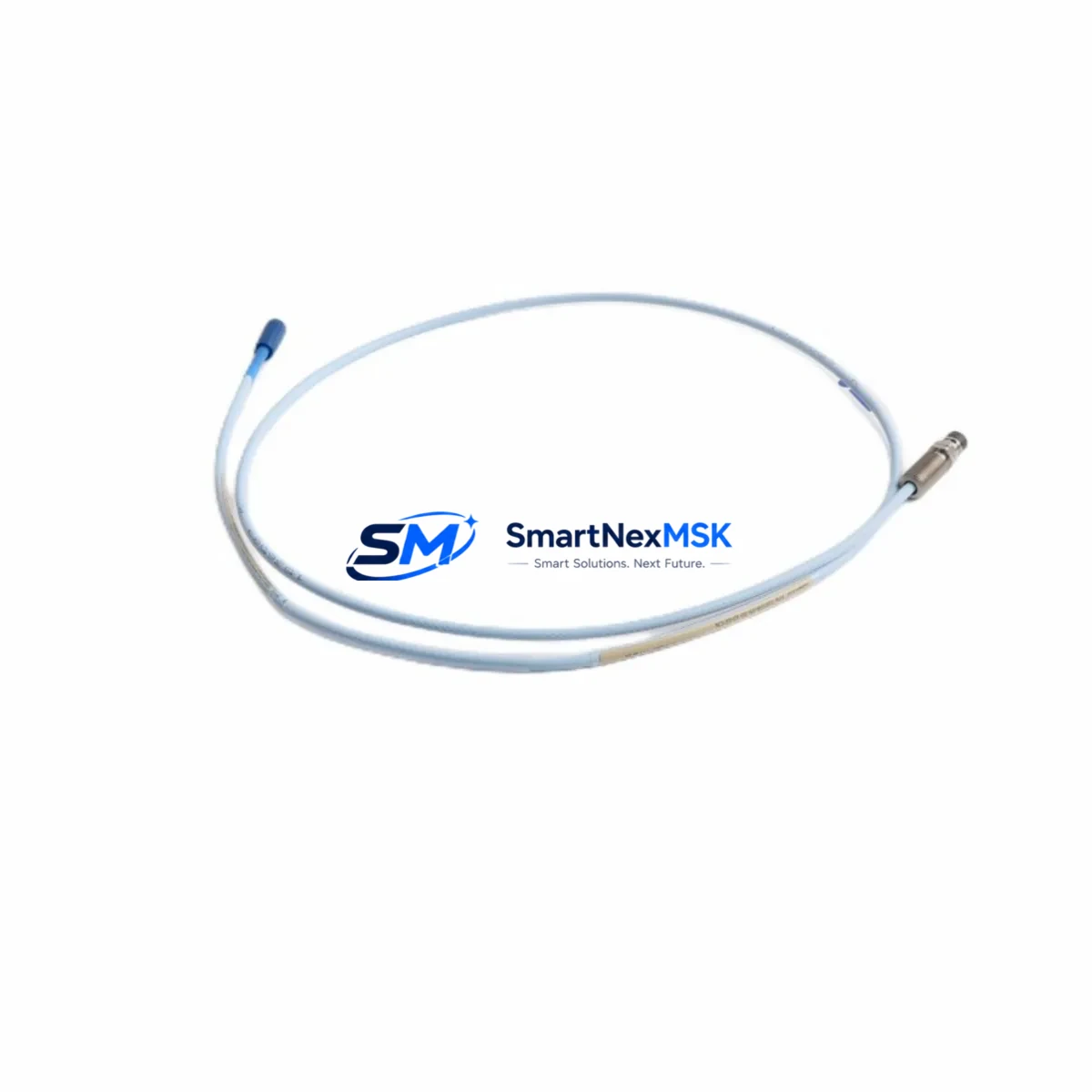

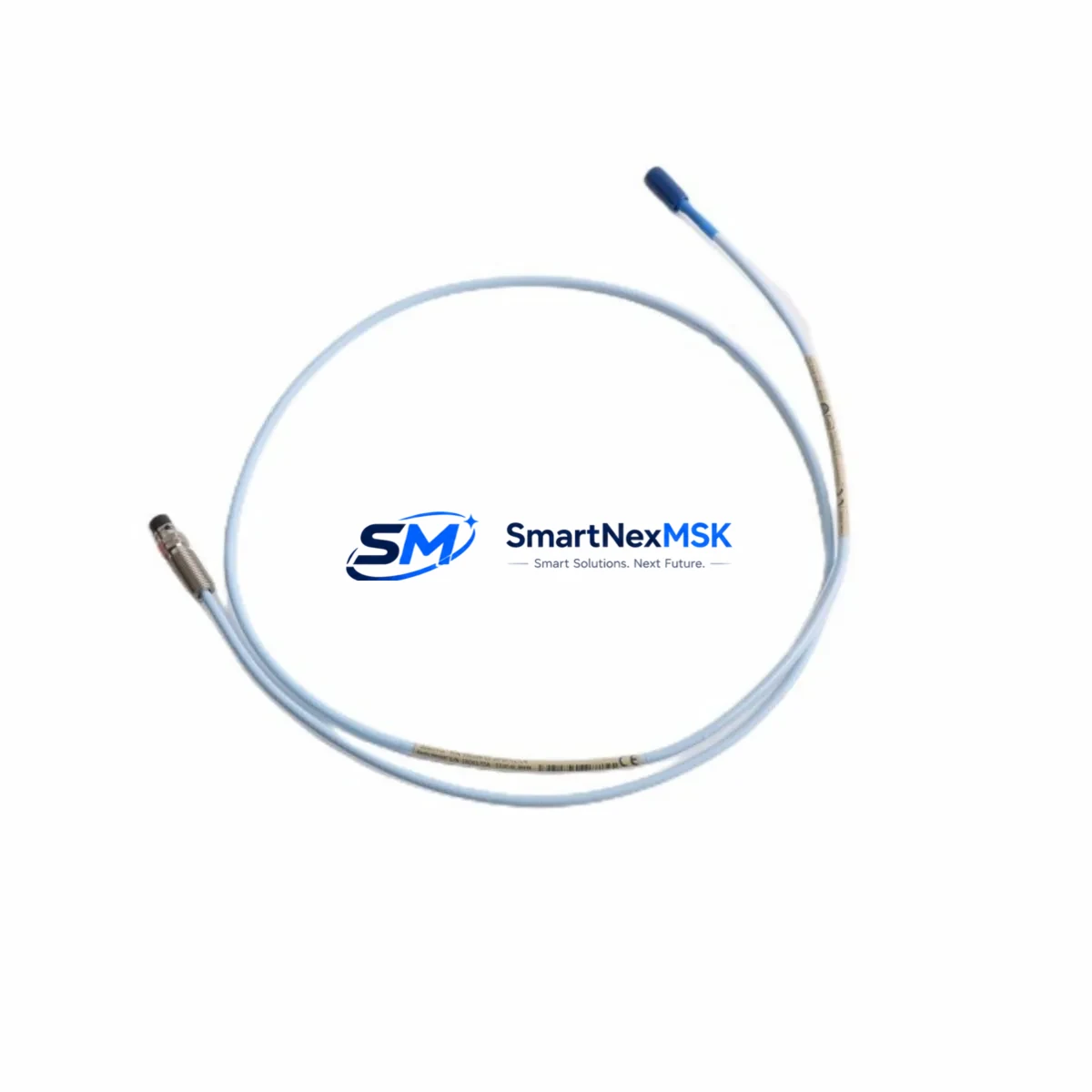

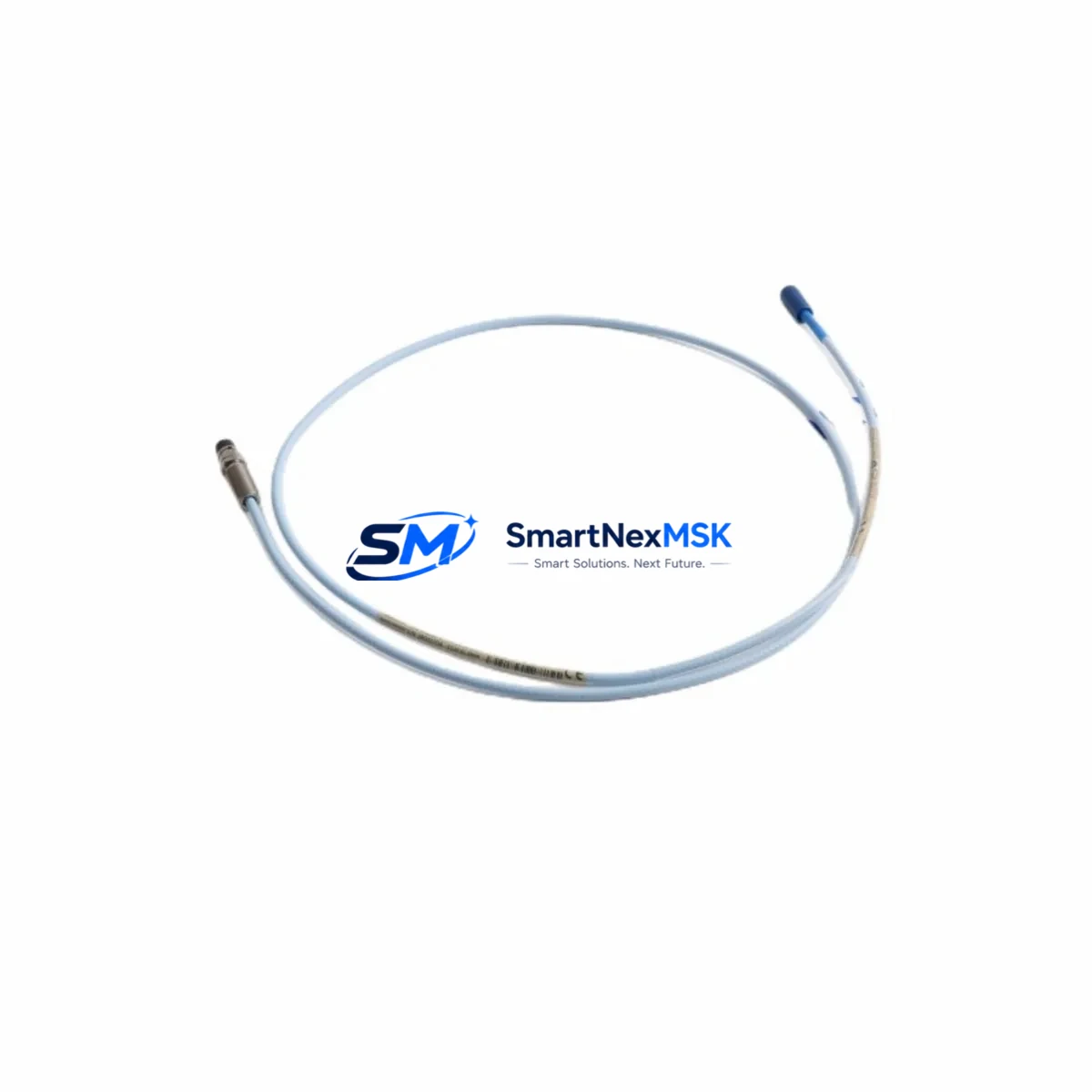

Bently Nevada 330106-05-30-10-02-CN Safety Proximity Probe

Bently Nevada 330106-05-30-10-02-CN Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

The Bently Nevada 330106-05-30-10-02-CN is an 8 mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, extreme temperatures, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

In high-load, continuous-production plants where unplanned downtime carries severe safety and financial consequences, the 330106-05-30-10-02-CN delivers the signal integrity and mechanical durability required to keep critical machinery protection loops fully operational. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term measurement accuracy without drift — a key requirement in safety instrumented systems (SIS) and API 670-compliant machinery protection architectures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330106-05-30-10-02-CN operates as the primary sensing element, feeding real-time shaft displacement and vibration data into the Bently Nevada 330180-X1-05 Proximitor Sensor, which conditions the raw probe signal into a clean, calibrated voltage output. This conditioned signal is then processed by the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which enforces alarm and trip setpoints to protect rotating assets from catastrophic failure.

Power supply stability is critical in these architectures. The Bently Nevada 3500/15 Power Supply module provides regulated, redundant DC power to the monitoring rack, preventing measurement errors caused by voltage sag or transient surges — a common source of nuisance trips in facilities with heavy motor starting loads. For plants operating under IEC 61511 functional safety requirements, the probe integrates seamlessly with Triconex TRICON safety controllers or Rockwell Automation GuardLogix PLCs via the 3500 rack’s relay output cards, enabling hardwired safety interlock actions on high-vibration events.

In high-interference environments such as arc furnace control rooms or variable-frequency drive (VFD) enclosures, the shielded coaxial cable assembly of the 330106-05-30-10-02-CN — paired with Bently Nevada 330130 Series armored extension cables — provides robust rejection of induced EMI noise that would otherwise corrupt displacement readings. Surge protection devices such as the Phoenix Contact TRABTECH series are commonly installed at the cabinet entry point to guard against lightning-induced transients on field cable runs extending to remote bearing housings.

For complete loop integrity, the probe assembly is typically paired with a Bently Nevada 3500/22M Transient Data Interface or a System 1 Condition Monitoring software node, enabling continuous waveform capture and trend analysis. This combination allows maintenance engineers to detect early-stage bearing wear, rotor imbalance, and misalignment — well before vibration levels reach protective trip thresholds — dramatically reducing unplanned shutdowns and extending mean time between failures (MTBF). The Bently Nevada 3500/32M relay output module further strengthens the interlock chain by providing configurable, fail-safe relay contacts that can directly drive emergency shutdown actuators or DCS input cards.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In compressor trains and centrifugal pump systems handling flammable or toxic process fluids, the 330106-05-30-10-02-CN provides the shaft radial vibration and axial position data required by API 670 machinery protection standards. A trip signal from the 3500 monitor rack — triggered by excessive shaft displacement measured by this probe — can initiate an emergency shutdown (ESD) sequence, isolating the machine before seal failure or bearing collapse leads to a process release or fire hazard.

Power Generation: Steam turbine and gas turbine protection systems rely on arrays of proximity probes to monitor shaft orbit, differential expansion, and eccentricity. The 330106-05-30-10-02-CN, with its wide operating temperature range of -35°C to +177°C and high-frequency response up to 10,000 Hz, is well-suited for turbine bearing pedestals where thermal gradients and high-speed shaft dynamics demand precise, drift-free measurement over extended operating cycles between planned outages.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject monitoring equipment to severe mechanical shock and vibration. The robust construction of the 3300 XL probe series ensures measurement continuity even in these high-shock environments, supporting predictive maintenance programs that prevent catastrophic gearbox or bearing failures that would halt production for days and create serious safety risks for site personnel.

Water & Wastewater Treatment: Large vertical turbine pumps and blower systems in municipal water infrastructure require continuous vibration monitoring to meet reliability and safety obligations. The 330106-05-30-10-02-CN supports 24/7 unattended monitoring in these applications, with its IP67-rated probe body resisting moisture ingress in humid pump station environments where condensation and washdown cycles are routine.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with extreme heat, scale, and electromagnetic interference from high-current bus bars. The EMI-resistant design of the 330106-05-30-10-02-CN ensures reliable signal transmission even in close proximity to high-power electrical equipment, maintaining the integrity of critical interlock circuits that protect both machinery and personnel.

Port & Heavy Logistics: Ship-to-shore crane drives, conveyor gearboxes, and large hoist motors in port environments are exposed to salt-laden air, wide temperature swings, and continuous high-cycle loading. The IP67 ingress protection and corrosion-resistant probe body of the 330106-05-30-10-02-CN make it a reliable choice for vibration monitoring in these coastal industrial sites, where sensor failure can halt cargo operations and create crane safety incidents.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330106-05-30-10-02-CN?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies arising under normal operating conditions as specified in the 3300 XL product documentation. If the probe fails to meet its published sensitivity or linearity specifications within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed before dispatch?
Every 330106-05-30-10-02-CN unit undergoes a full functional verification prior to shipment, including sensitivity calibration check (7.87 V/mm ± 5%), linear range confirmation, cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for customers requiring traceability documentation for their quality management systems.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330106-05-30-10-02-CN is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and 3500 series monitor modules. It is a direct functional replacement for earlier 330106 series probes and can be installed without recalibration of the Proximitor, provided the gap voltage is verified and adjusted per standard commissioning procedures after installation.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330106-05-30-10-02-CN to support planned maintenance shutdowns, emergency replacements, and multi-unit spare parts programs. For customers with critical infrastructure obligations, we offer reserved stock arrangements and priority dispatch agreements. Contact our sales team to discuss long-term supply contracts tailored to your plant’s maintenance schedule and safety spare parts strategy.
