Bently Nevada 330106-05-30-15-02-00 Retrofit-Ready Proximity Probe

Bently Nevada 330106-05-30-15-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

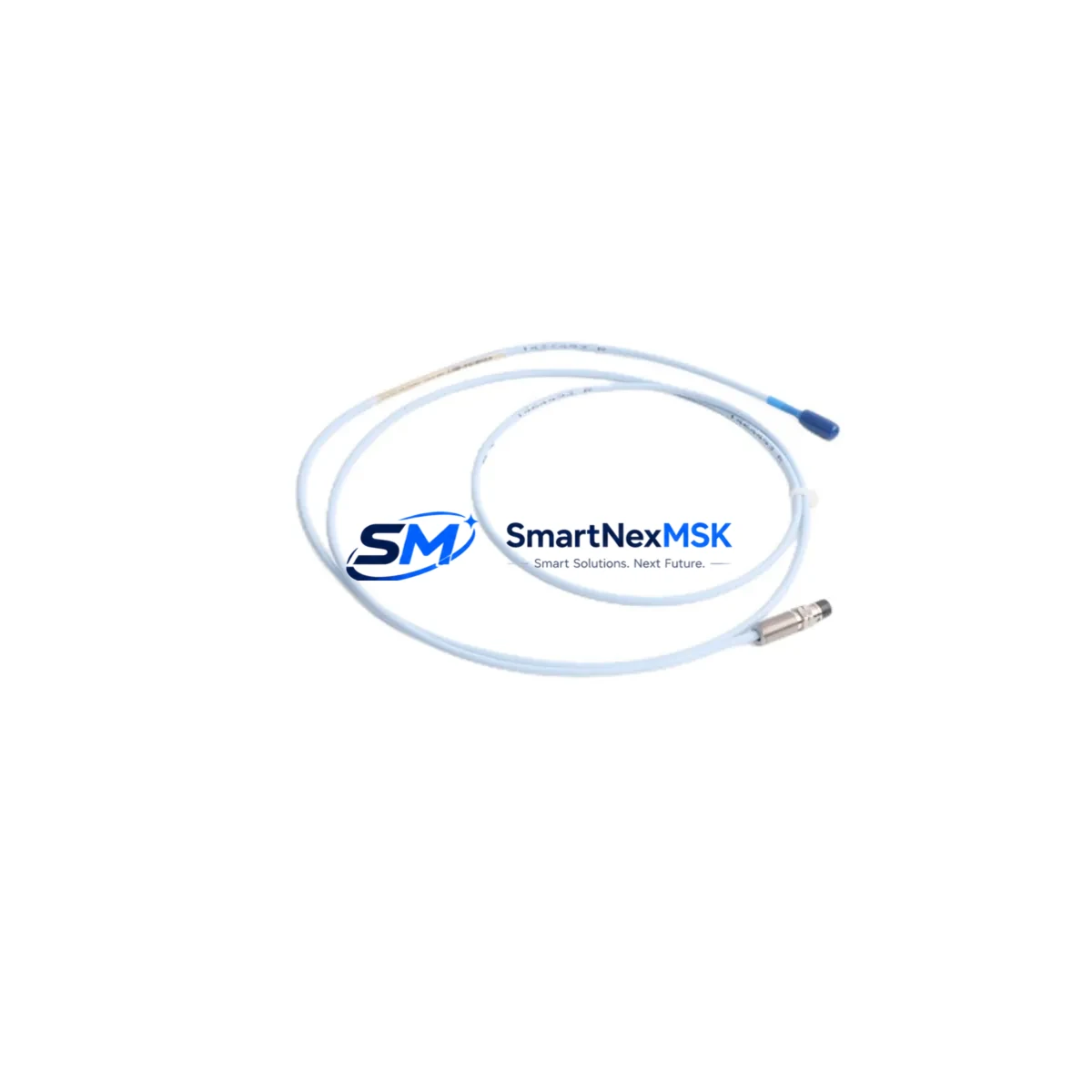

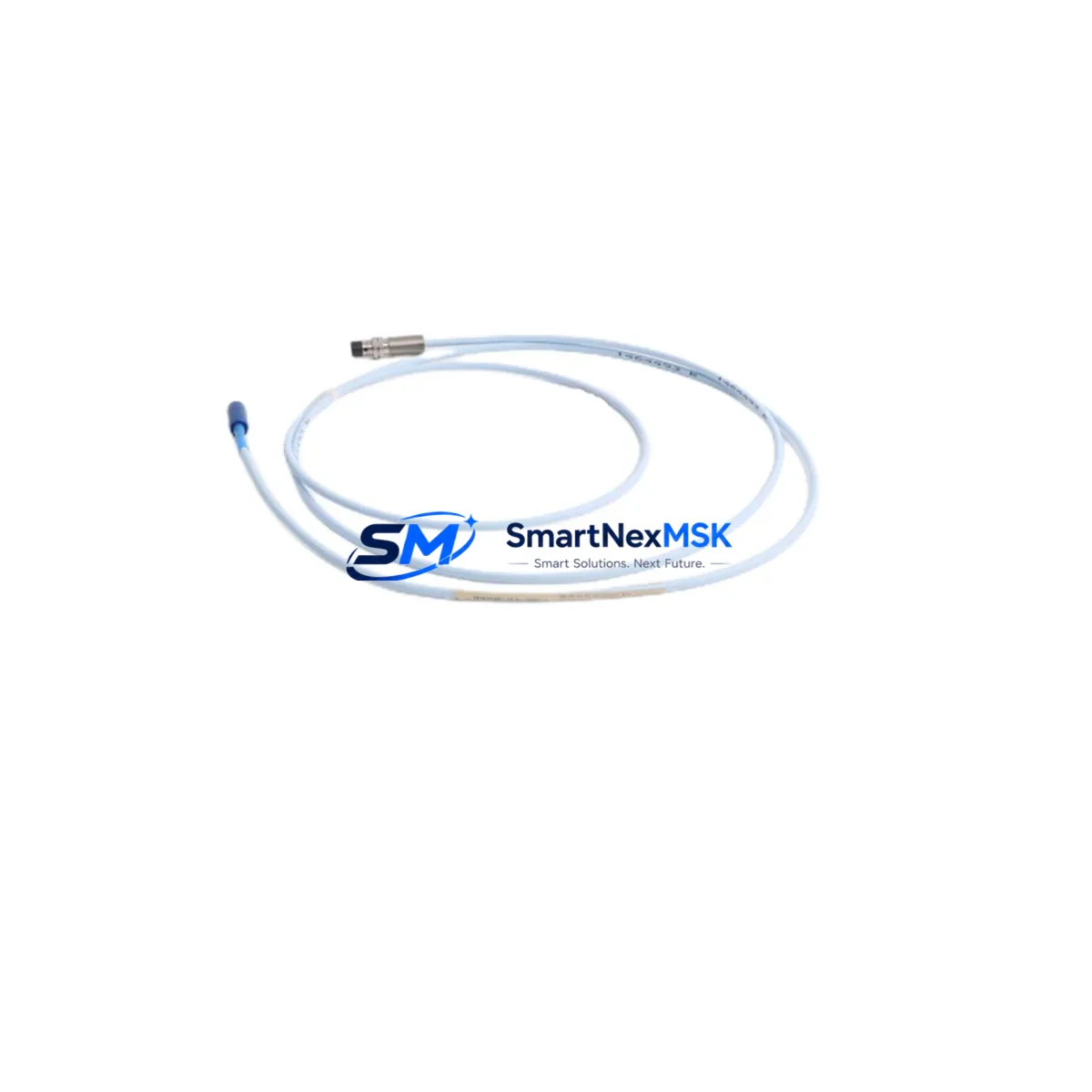

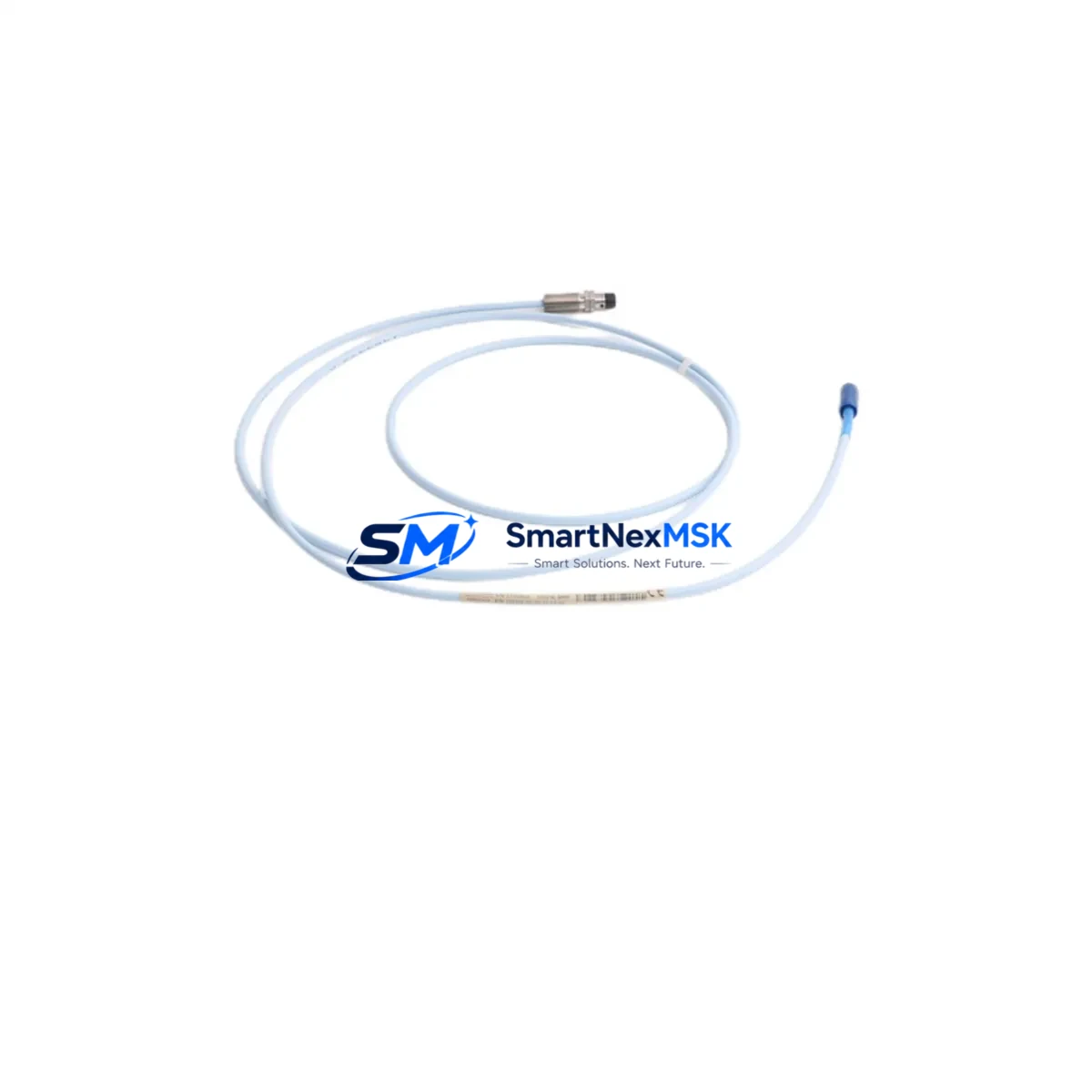

The Bently Nevada 330106-05-30-15-02-00 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy 3300 XL monitoring systems approach end-of-service milestones, this probe remains one of the most critical retrofit components for plants seeking to extend operational life without a full platform migration. Whether you are replacing a failed sensor on a compressor train, upgrading a turbine monitoring cabinet, or restoring a mothballed production line, the 330106-05-30-15-02-00 provides a verified drop-in solution with no firmware changes required on the 3300 XL monitor rack.

SMARTNEXMSK maintains ready stock of the 330106-05-30-15-02-00 with full functional testing prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and performance deviation from factory specification. Our technical team supports pre-shipment compatibility verification against your existing monitor channel configuration, cable assembly, and extension cable pairing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330106-05-30-15-02-00 in an operating plant requires careful coordination across multiple system layers. Before removing the existing probe, engineers should document the current DC gap voltage reading at the Bently Nevada 3300 XL monitor front panel — this baseline is essential for verifying correct reinstallation gap after the new probe is seated. The probe interfaces with the monitor rack through a Bently Nevada 330130 series extension cable; the total system cable length (probe integral cable plus extension) must match the calibration curve stored in the monitor channel. Mismatched cable lengths are a leading cause of sensitivity error after probe replacement and must be confirmed before energizing the channel.

In turbine and compressor monitoring cabinets, the 330106-05-30-15-02-00 typically feeds vibration and position data into a Bently Nevada 3300/16 or 3300/20 dual-channel monitor card. These monitor cards are housed in a 3300 XL rack alongside power supply modules — commonly the Bently Nevada 3300/05 power supply — and may share a backplane with thrust position monitors and keyphasor modules such as the 3300/25 Keyphasor module. When planning a probe replacement, confirm that the rack power budget is not affected by any simultaneous module swap, as the 3300 XL backplane distributes -24 VDC to all installed monitor cards.

For plants migrating from older 3300 standard (non-XL) racks to the 3300 XL platform, the probe itself is mechanically compatible, but the monitor channel sensitivity and gap calibration must be re-entered in the new monitor. The Bently Nevada 3300 XL Configuration Software (or the legacy Rack Configuration Software for older firmware) is used to set channel sensitivity, alarm thresholds, and OK relay logic. If the plant’s DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — receives vibration data via Modbus or 4–20 mA from the 3300 XL rack, the signal scaling must be verified after any monitor card or probe replacement to prevent false alarms or missed trips at the DCS level.

In I/O-intensive retrofit projects where multiple probes are being replaced simultaneously, it is advisable to stage replacements channel by channel rather than pulling all probes at once. This approach preserves at least partial machinery protection coverage during the maintenance window. Spare Bently Nevada 330180 series proximitor/oscillator modules should be on hand, as these are frequently found to be degraded when probes are replaced on aging systems. The proximitor converts the probe’s raw eddy current signal into a usable DC voltage; a faulty proximitor will produce incorrect gap readings even with a new probe installed.

For HMI integration, plants using GE iFIX, Wonderware InTouch, or Siemens WinCC as their operator interface should verify that vibration trend displays and alarm faceplates reference the correct I/O tag after any monitor card address change. If the 3300 XL rack slot assignment changes during a retrofit, the Modbus register map or hardwired I/O termination at the marshalling cabinet must be updated accordingly to maintain HMI display accuracy.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a live rotating machine requires a structured pre-outage checklist. Before the maintenance window opens, the replacement 330106-05-30-15-02-00 probe should be bench-tested against a reference target to confirm sensitivity is within the ±5% tolerance specified by Bently Nevada. The extension cable should be inspected for shield continuity and connector integrity, as cable degradation is a common source of noise after probe replacement.

During the outage, the sequence should follow: (1) de-energize the monitor channel and confirm OK relay drops, (2) remove the existing probe and extension cable assembly, (3) install the new 330106-05-30-15-02-00 and matching extension cable, (4) re-gap the probe to the target gap specified in the original installation record (typically 1.0–1.5 mm for most shaft applications), (5) re-energize the monitor channel and verify DC gap voltage at the monitor front panel, (6) confirm OK relay picks up and alarm setpoints are active, and (7) document the new gap voltage in the plant maintenance record.

If the original program logic in the DCS or safety system references the vibration channel by hardwired I/O address, no program changes are required — the 330106-05-30-15-02-00 is a direct signal-compatible replacement. However, if the retrofit involves moving the monitor card to a different rack slot, the Modbus address or I/O termination must be updated before the machine is returned to service. Keeping a pre-retrofit backup of the 3300 XL rack configuration file ensures that the original alarm setpoints and channel parameters can be restored immediately if commissioning reveals unexpected behavior. With proper pre-staging, most single-probe replacements on a 3300 XL system can be completed within a 2–4 hour maintenance window, preserving production continuity on adjacent machinery trains.

Retrofit Support FAQ

Q1: Is the 330106-05-30-15-02-00 a direct replacement for earlier 330106 variants?
Yes, provided the cable length configuration (5m integral cable) and target gap range match your existing installation. The -05-30-15-02-00 suffix encodes the cable length, connector type, and temperature rating. If your existing probe has a different suffix, contact our technical team to confirm cross-compatibility before ordering.

Q2: What commissioning steps are required after installation?
After seating the probe and connecting the extension cable, re-gap the probe to the target DC gap voltage documented in your installation record. Verify sensitivity at the 3300 XL monitor front panel (typically -7.87 V/mm or -200 mV/mil). Confirm the OK relay is energized and that vibration and gap alarms are active at the correct setpoints before returning the machine to service.

Q3: Can this probe be used with a Bently Nevada 3500 series monitor?
The 330106-05-30-15-02-00 is calibrated for the 3300 XL monitor platform. While the physical probe is mechanically compatible with 3500 series monitor inputs, the sensitivity calibration and cable system must be re-matched to the 3500 series channel specification. Do not assume direct interchangeability without recalibration — contact us for 3500-series compatible probe options.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and sensitivity deviation beyond ±5% of the Bently Nevada factory specification under normal operating conditions. Each unit undergoes functional testing prior to shipment. Warranty claims are supported by our technical team with replacement or refund options. Physical damage caused by incorrect installation, over-gapping, or electrical overstress is not covered.
