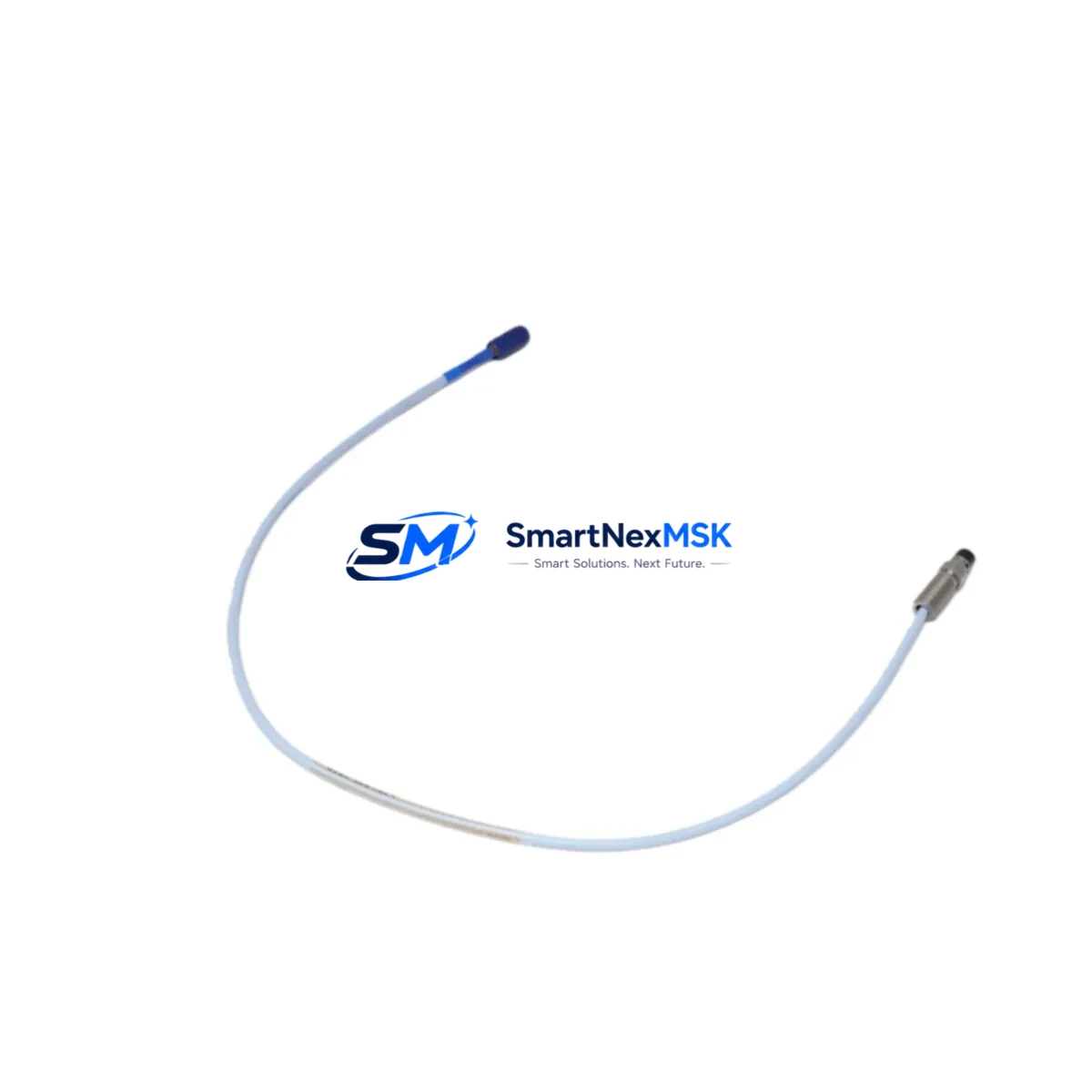

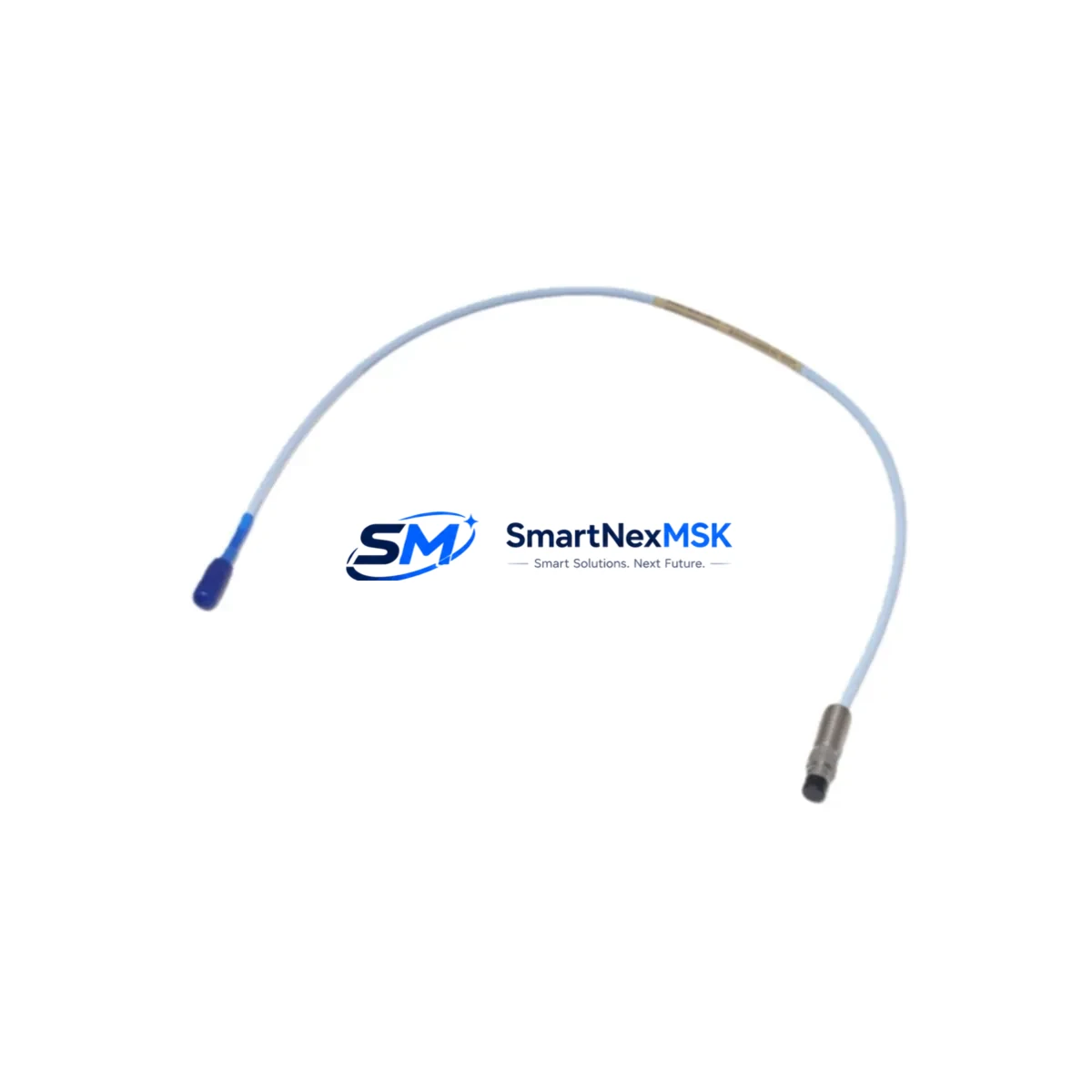

Bently Nevada 330106-05-30-90-02-00 Safety Proximity Probe

Bently Nevada 330106-05-30-90-02-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330106-05-30-90-02-00 is an 8mm eddy-current proximity probe from the renowned 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy electromagnetic interference zones, and hazardous area control cabinets, this probe is a cornerstone component for plant engineers who cannot afford control interruptions or measurement drift.

In petrochemical compressor trains, power generation turbines, mining hoists, and metallurgical rolling mills, shaft vibration monitoring is not optional — it is a primary safety interlock. The 330106-05-30-90-02-00 delivers sub-micron displacement resolution with exceptional signal stability, ensuring that your machinery protection system receives clean, accurate data even when surrounded by high-frequency switching noise, variable-speed drive harmonics, or ground potential fluctuations common in heavy industrial switchgear rooms.

This probe is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 series), which conditions the raw eddy-current signal into a calibrated voltage output readable by your Bently Nevada 3500 Series Machinery Protection System rack. Together, these components form a complete, certified vibration monitoring chain — from the probe tip to the relay output that trips your emergency shutdown system. When paired with the 3500/42M Proximitor®/Seismic Monitor or the 3500/25 keyphasor module, the system can simultaneously track radial vibration, axial position, and shaft speed — all critical parameters for safe turbomachinery operation.

Signal integrity is further protected when the 330106-05-30-90-02-00 is installed with Bently Nevada 330130 extension cables and properly shielded conduit runs. Surge and transient protection at the I/O terminal block — using dedicated transient suppressors compatible with the 3500 rack’s field wiring — prevents voltage spikes from welding operations, motor starts, or lightning events from corrupting proximity measurements or damaging the Proximitor front-end. In facilities where the control cabinet also houses Emerson DeltaV I/O modules or Rockwell Automation 1756 ControlLogix analog input cards, maintaining clean signal separation between the vibration monitoring loop and the process control loop is essential, and the 330106-05-30-90-02-00’s coaxial cable architecture supports this isolation by design.

For power system stability within the monitoring cabinet, a regulated -24 VDC instrument power supply — such as those from the Phoenix Contact QUINT series or equivalent DIN-rail units — ensures the Proximitor sensor receives stable excitation voltage, eliminating measurement errors caused by power rail ripple. In critical interlock loops, redundant power feeds with automatic changeover further reduce the risk of a single power failure causing a false trip or, worse, a missed trip on a genuine machinery fault.

The 330106-05-30-90-02-00 is rated for continuous operation across a wide temperature range and is constructed with a stainless steel housing that resists oil mist, coolant splash, and the corrosive atmospheres found in water treatment aeration zones and coastal port crane machinery rooms. Its armored cable jacket withstands mechanical abrasion in environments where cable trays are shared with power conductors. This physical robustness directly reduces the risk of field-side failures that could cause nuisance trips, unplanned shutdowns, or — in the worst case — undetected shaft damage leading to catastrophic equipment failure.

Every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification, including output voltage linearity checks across the full measurement range and insulation resistance testing on the coaxial cable assembly. This outgoing quality inspection ensures that the probe you install performs to Bently Nevada factory specifications from day one, eliminating the risk of commissioning delays caused by out-of-tolerance components. Stock is maintained to support both planned maintenance shutdowns and emergency spare-part requirements, with same-day dispatch available for in-stock units.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330106-05-30-90-02-00 integrates multiple layers of protection. The probe connects to a Bently Nevada 330180 Proximitor® Sensor mounted inside the cabinet, which drives the 3500/42M monitor card housed in a 3500 rack with a redundant 3500/15 power supply module. Relay outputs from the monitor card feed directly into the plant’s Safety Instrumented System (SIS) — typically a Triconex Tricon or Hima HIMatrix safety controller — where vibration high-high trip logic is executed in accordance with IEC 61511 functional safety requirements.

Within the same cabinet, Bently Nevada 3500/25 Keyphasor® modules provide shaft speed and phase reference signals essential for vector filtering and 1X/2X vibration analysis. Transient protection on all field cable entries — using MTL Surge Technologies or equivalent Zener barrier assemblies — prevents surge energy from reaching sensitive monitor inputs. DIN-rail mounted Phoenix Contact QUINT-PS regulated power supplies deliver clean -24 VDC to the Proximitor sensors, while a Schneider Electric Zelio or equivalent watchdog relay monitors supply health and triggers an alarm on power degradation before it affects measurement accuracy.

For facilities running Emerson Ovation DCS or ABB System 800xA, the 3500 rack communicates vibration data via Modbus TCP or OPC-UA to the process historian, enabling long-term trend analysis and predictive maintenance scheduling — all without interrupting the real-time protection function of the 330106-05-30-90-02-00 monitoring chain.

Critical Industrial Safety Applications

Petrochemical & Refinery: Installed on centrifugal compressors and steam turbine-driven pumps in hydrocracker and ethylene units, the 330106-05-30-90-02-00 provides the primary radial vibration signal that initiates emergency shutdown before bearing failure can cause seal damage, process gas release, or fire. Continuous operation in H₂S-rich atmospheres demands the probe’s corrosion-resistant stainless steel construction and sealed cable terminations.

Power Generation: On gas turbine generator sets and large steam turbines in thermal and combined-cycle power plants, shaft vibration monitoring with this probe is a mandatory protection requirement under OEM turbine protection specifications. The probe’s wide temperature tolerance accommodates the thermal cycling experienced during load-following operation.

Mining & Minerals Processing: Gyratory crushers, SAG mills, and large slurry pumps in copper, iron ore, and coal processing plants operate in environments with extreme dust loading, water ingress, and structural vibration. The 330106-05-30-90-02-00’s IP67-rated probe body and armored cable maintain measurement integrity in these conditions, supporting safe operation of equipment where unplanned downtime costs tens of thousands of dollars per hour.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water treatment facilities require continuous vibration monitoring to prevent catastrophic bearing failures that could interrupt water supply. The probe’s chemical resistance supports installation in aeration tank environments where corrosive gases are present.

Metallurgy & Steel: Rolling mill main drive motors and continuous caster pinch roll drives operate under extreme load cycling and electromagnetic noise from high-current DC drives. The coaxial shielding of the 330106-05-30-90-02-00 signal cable provides the interference rejection necessary to maintain reliable vibration data in these electrically hostile environments.

Safety and Quality FAQ

Q: What does the 12-month warranty cover?
A: The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. This includes probe sensitivity out of specification, cable insulation failure, and connector defects. Warranty claims are processed with priority to minimize your equipment downtime.

Q: What pre-shipment testing is performed on each unit?
A: Every 330106-05-30-90-02-00 unit undergoes output voltage linearity verification across the full 0–2.54 mm measurement range, coaxial cable continuity and insulation resistance testing, and visual inspection of the probe tip, cable jacket, and connector. A test record is available upon request.

Q: Is this probe a direct drop-in replacement for existing 3300 XL installations?
A: Yes. The 330106-05-30-90-02-00 is a standard 3300 XL series 8mm probe with a 5m cable and is fully interchangeable with other 330106 series probes of the same cable length in existing Bently Nevada 3300 XL Proximitor installations. No recalibration of the Proximitor is required when replacing a like-for-like unit.

Q: Can you support long-term or scheduled spare parts supply?
A: Yes. SMARTNEXMSK maintains standing inventory of the 330106-05-30-90-02-00 and related 3300 XL series components to support both planned maintenance shutdowns and emergency replacements. Blanket purchase orders and scheduled delivery programs are available for facilities with annual maintenance cycles.
