Bently Nevada 330130-030-02-05 Retrofit-Ready Extension Cable for 3300 XL Control Systems

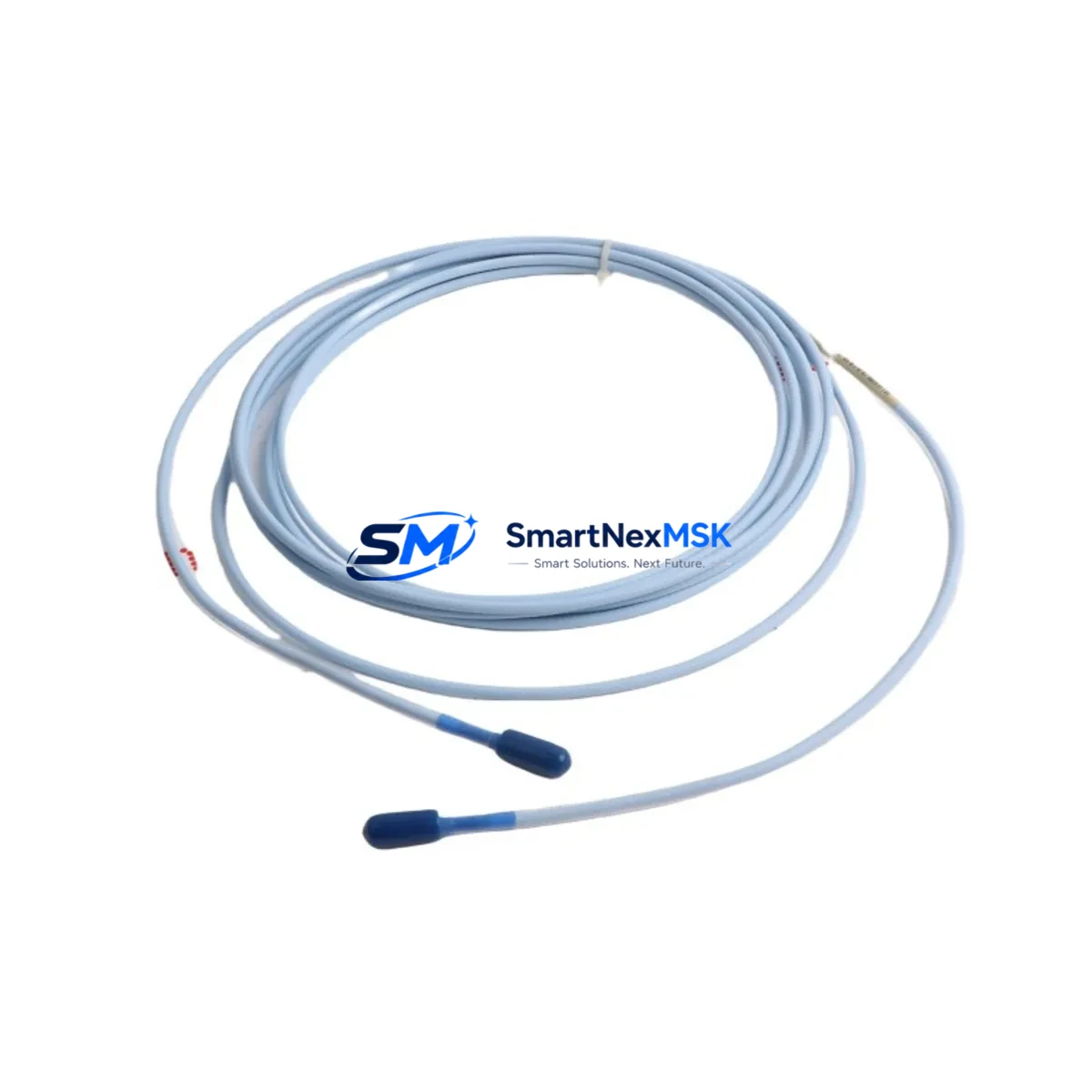

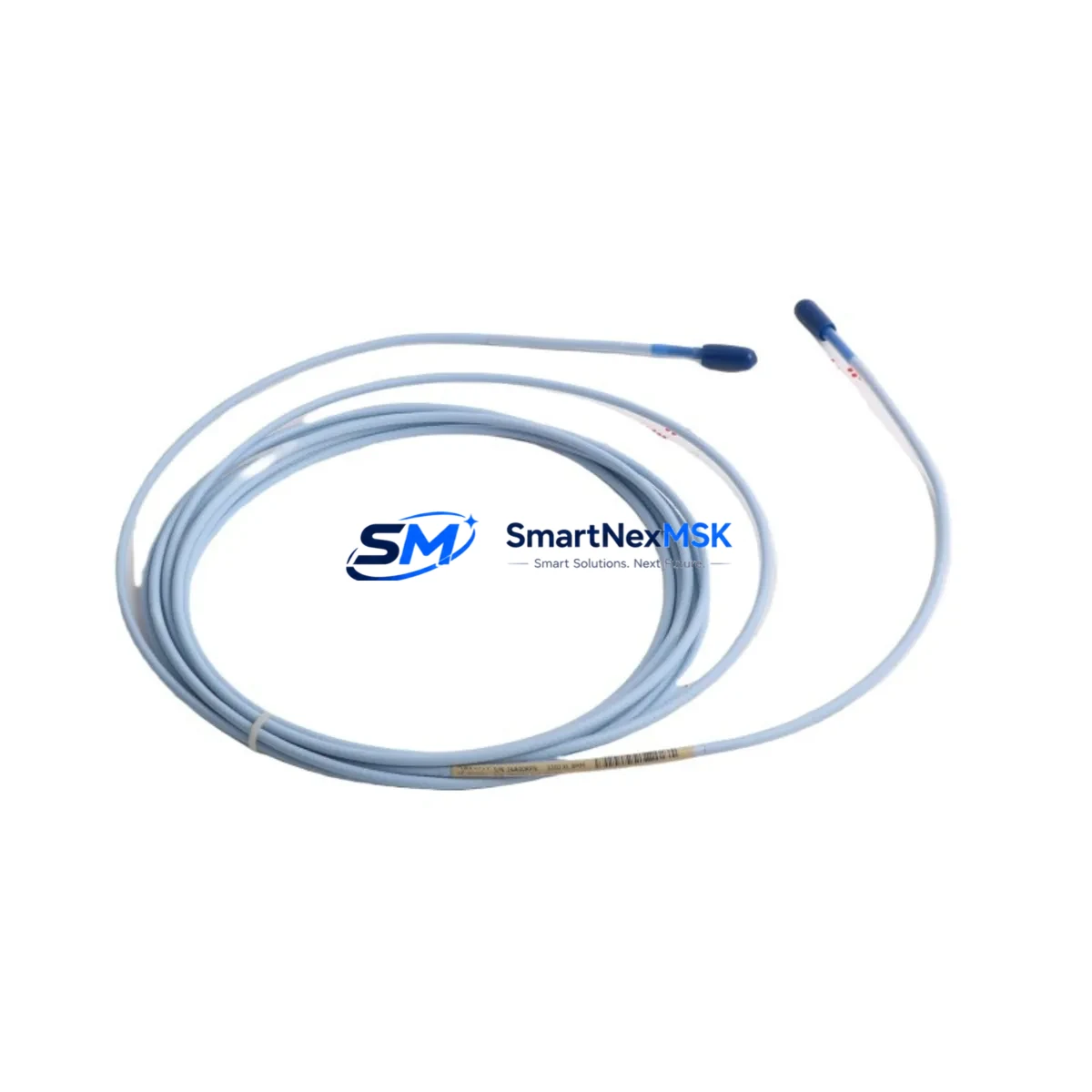

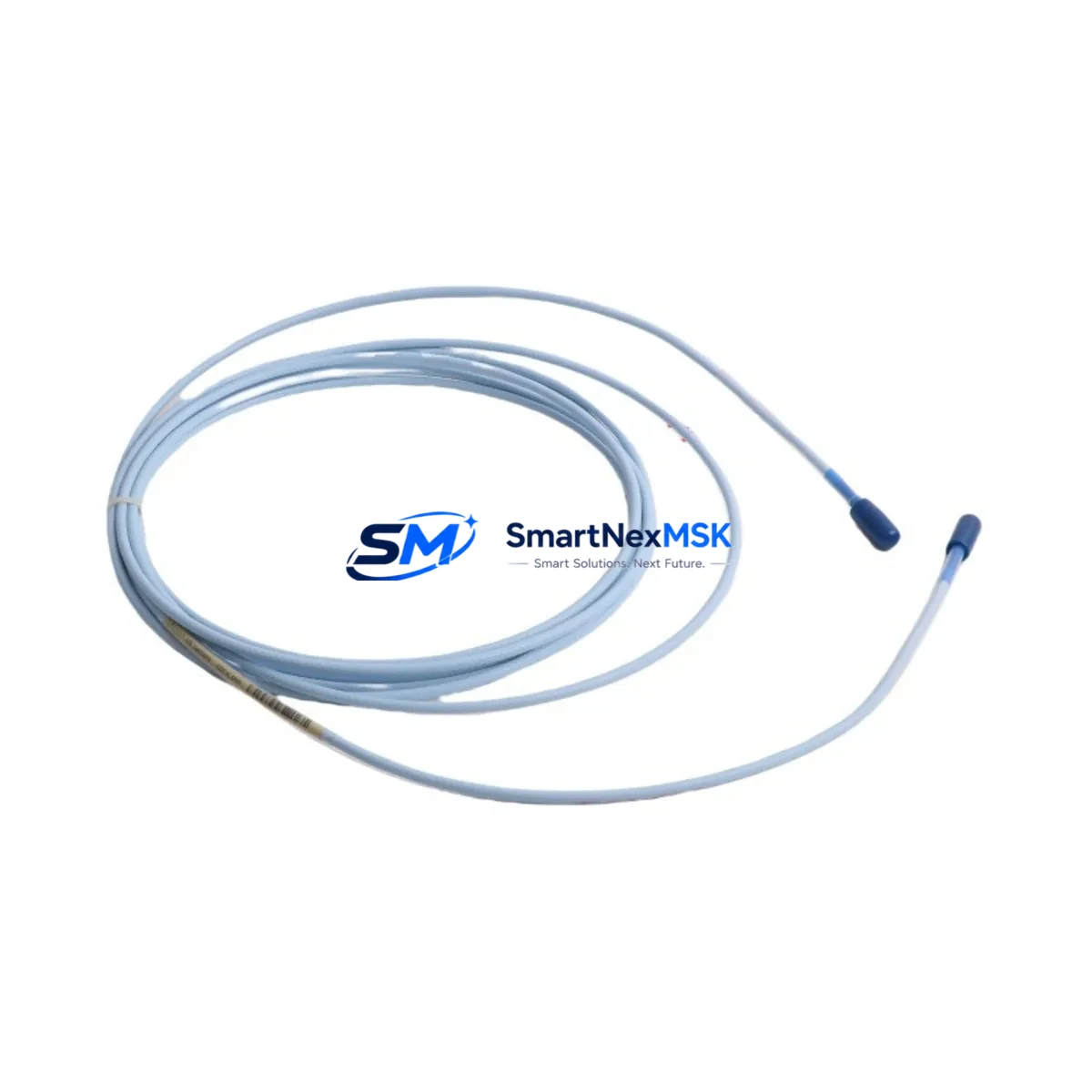

The Bently Nevada 330130-030-02-05 is a 30-foot (9-meter) coaxial extension cable engineered for the 3300 XL proximity measurement system. As legacy vibration monitoring infrastructure ages across rotating machinery installations — turbines, compressors, pumps, and gearboxes — this cable serves as the critical link between the proximity probe and the proximitor/driver module. Whether you are executing a planned retrofit, replacing a failed cable in an emergency shutdown scenario, or upgrading an aging Bently Nevada 3300 Series rack to the current 3300 XL platform, the 330130-030-02-05 provides a verified drop-in replacement path with no signal conditioning recalibration required when paired with the correct proximitor.

This extension cable is designed to work within the 3300 XL measurement chain, which typically consists of a proximity probe (such as the 330101 or 330103 series), the 330130 extension cable, and a proximitor/driver module such as the 3300 XL 8mm Proximitor (330180). The cable maintains the precise electrical characteristics — impedance, capacitance per foot, and connector interface — required for accurate eddy-current gap measurement. When retrofitting from an older 3300 Series installation, engineers must verify that the total cable length (probe + extension) matches the proximitor’s calibrated range, typically 5 meters or 9 meters for standard configurations.

During retrofit planning, the 330130-030-02-05 is frequently deployed alongside the Bently Nevada 3300 XL 16-channel monitor (3500/42M) or the 3500 Series rack infrastructure when customers are migrating from standalone 3300 monitors to the 3500 platform. In these upgrade scenarios, the extension cable itself remains compatible, but the proximitor module, terminal board (such as the 3500/20 Rack Interface Module), and I/O module assignments must be re-mapped in the System 1 configuration software. Field engineers should document the original gap voltage readings before disconnection to accelerate recommissioning after cable replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 330130-030-02-05 extension cable requires a systematic review of the entire measurement chain. Begin by auditing the existing proximity probe — if the installed probe is a 330101-00-08-10-02-00 or similar 8mm variant, the 330130 extension cable will interface correctly without modification. However, if the site is running an older 7200 Series probe system, a full probe-and-cable assembly replacement is required, as the 7200 and 3300 XL systems use different calibration curves and are not interchangeable.

For installations where the 3300 XL monitor cards — such as the 3300/16 or 3300/20 — are being retired in favor of the 3500/42M Proximitor I/O Module, the extension cable routing and conduit path typically remain unchanged. The 3500 Series rack accepts the same analog gap voltage signal from the proximitor, so the 330130-030-02-05 cable can be reused in the new rack architecture. Engineers should inspect the cable jacket and connector pins for corrosion or mechanical damage before reuse, particularly in high-vibration or high-temperature environments such as gas turbine enclosures.

Power supply integrity is another critical factor. The proximitor module requires a regulated –24 VDC supply, typically sourced from a Bently Nevada 3300/05 Power Supply or a 3500/15 Power Supply Module in larger rack configurations. Before replacing the extension cable, confirm that the power supply output is within specification, as an under-voltage condition can cause erratic gap readings that may be misdiagnosed as a cable fault. Similarly, the terminal board connections — whether on a 3500/20 Rack Interface Module or a standalone junction box — should be inspected for loose terminations that could introduce noise into the measurement signal.

In multi-channel monitoring cabinets, the 330130-030-02-05 is often one of several extension cables running in parallel to monitor multiple radial and axial measurement planes on a single machine train. Labeling each cable with its channel assignment and machine tag before disconnection is essential to avoid cross-wiring errors during reinstallation. A Bently Nevada 3300 XL system configured for a four-bearing turbine train may have eight or more extension cables routed through the same cable tray, making systematic documentation a prerequisite for zero-error recommissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity cable replacement or system migration requires pre-staging all replacement components before the maintenance window opens. For the 330130-030-02-05, this means having the replacement cable, a calibrated gap-setting tool, and a digital voltmeter available at the machine before the shutdown begins. If the replacement is part of a broader migration from a 3300 Series rack to a 3500 Series rack, the new rack should be fully configured, loop-checked on the bench, and loaded with the correct System 1 database before it is brought to the field.

To protect existing program logic and HMI displays during the migration, export the current System 1 configuration and alarm setpoints before any hardware is disconnected. The 3500 Series configuration software allows engineers to import historical setpoint data, which eliminates the risk of inadvertently changing vibration alarm thresholds during the hardware swap. If the plant DCS — such as a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — receives 4–20 mA or relay outputs from the Bently Nevada rack, verify that the output module assignments and scaling factors are preserved in the new configuration before re-energizing the system.

Once the 330130-030-02-05 extension cable is installed and the proximitor is reconnected, perform a static gap check by measuring the DC output voltage at the proximitor terminal. For a standard 8mm probe at the nominal 50-mil (1.27 mm) gap, the expected output is approximately –10.4 VDC. A reading outside the ±0.5 VDC tolerance band indicates a gap adjustment is required before the machine is returned to service. Document the final gap voltage, probe serial number, and cable installation date in the plant maintenance management system to support future predictive maintenance planning.

Retrofit Support FAQ

Q: Is the 330130-030-02-05 a direct replacement for older 330130 series cables?
A: Yes. The 330130-030-02-05 is dimensionally and electrically compatible with earlier 330130 variants of the same length. Verify the suffix codes: the third group (030) denotes 30-foot length, the fourth group (02) denotes the armor/jacket type, and the fifth group (05) denotes the connector configuration. Confirm all suffix positions match your existing installation before ordering.

Q: What commissioning checks are required after installing this cable?
A: After installation, measure the proximitor DC output voltage with the probe at the correct gap distance. Compare the reading to the pre-removal baseline recorded during the shutdown preparation phase. Verify that the 3300 XL or 3500 Series monitor is not displaying a fault or not-OK condition. Confirm that the System 1 trend data resumes without gap or spike artifacts before releasing the machine to operations.

Q: Can this cable be used with a 3500 Series rack if we are migrating from a 3300 XL system?
A: Yes. The 330130-030-02-05 extension cable is compatible with the 3500/42M Proximitor I/O Module when used with a compatible 8mm proximitor such as the 330180. The analog signal interface is identical between the 3300 XL and 3500 platforms. No cable modification is required; only the proximitor-to-monitor wiring at the rack terminal board changes.

Q: What warranty coverage is provided, and what does it include?
A: All units supplied by SMARTNEXMSK carry a 12-month warranty covering functional performance and dimensional conformance to OEM specifications. Each cable undergoes pre-shipment continuity and insulation resistance testing. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or refund upon receipt of the defective unit and a completed failure report. Contact sales@smartnexmsk.com for warranty registration and claim processing.
