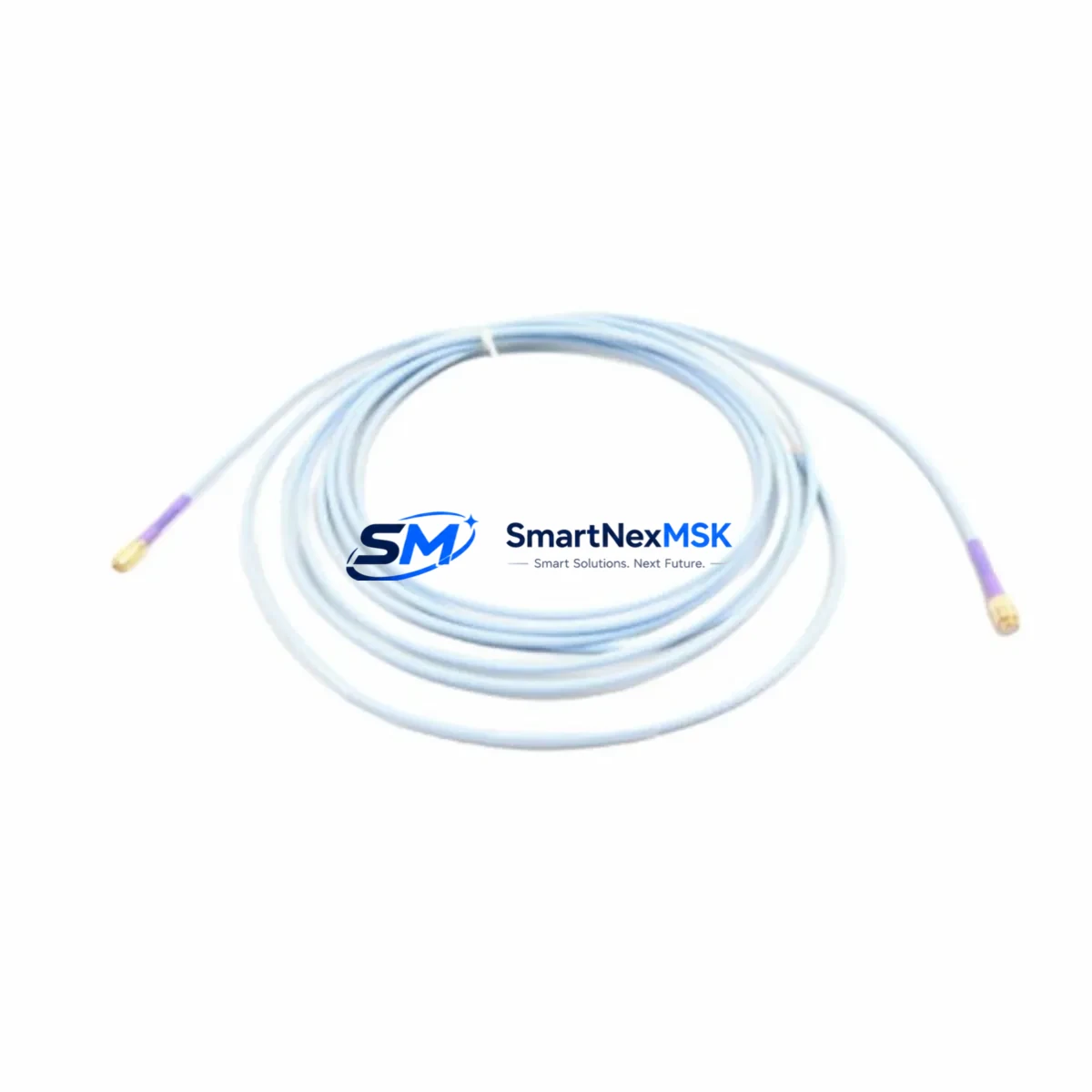

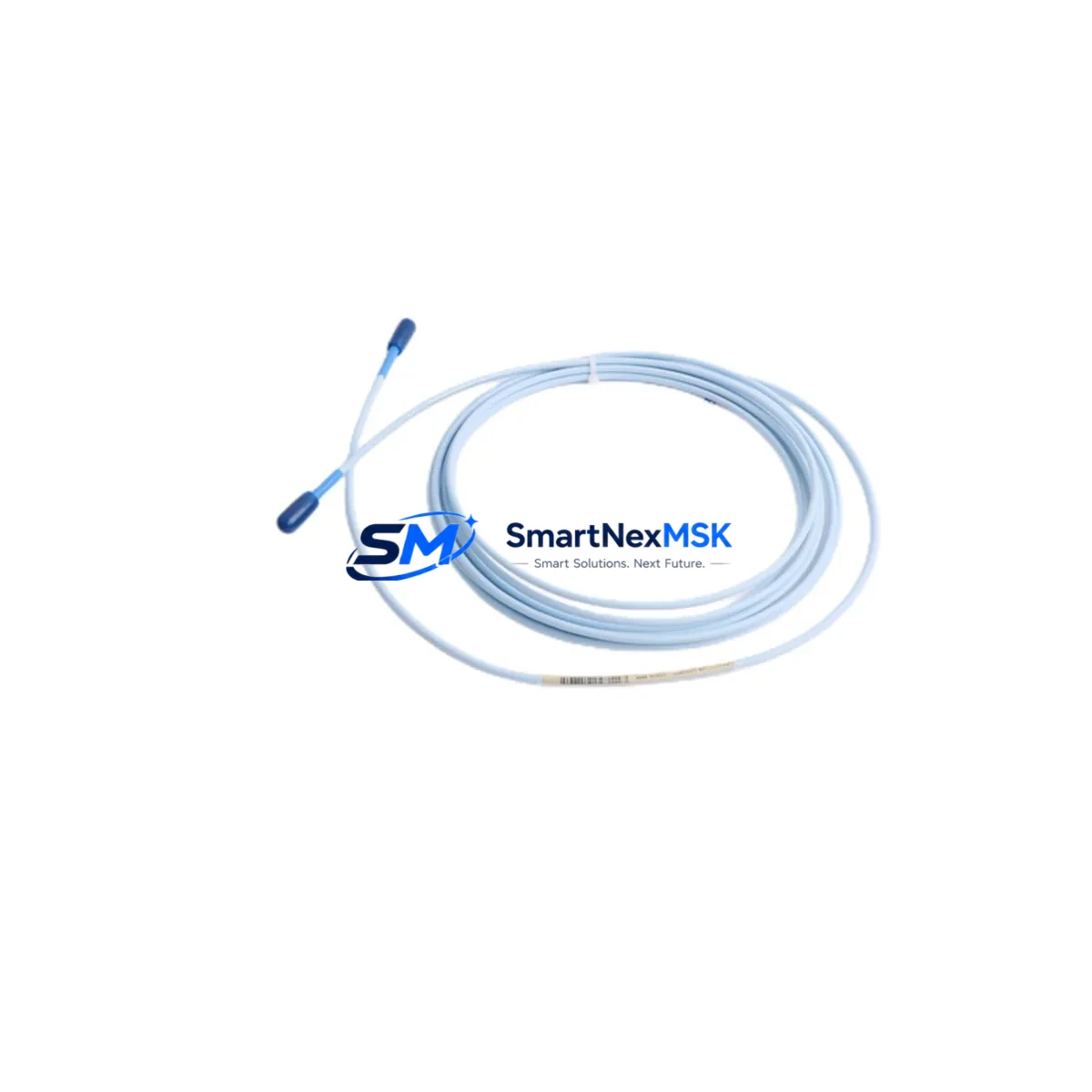

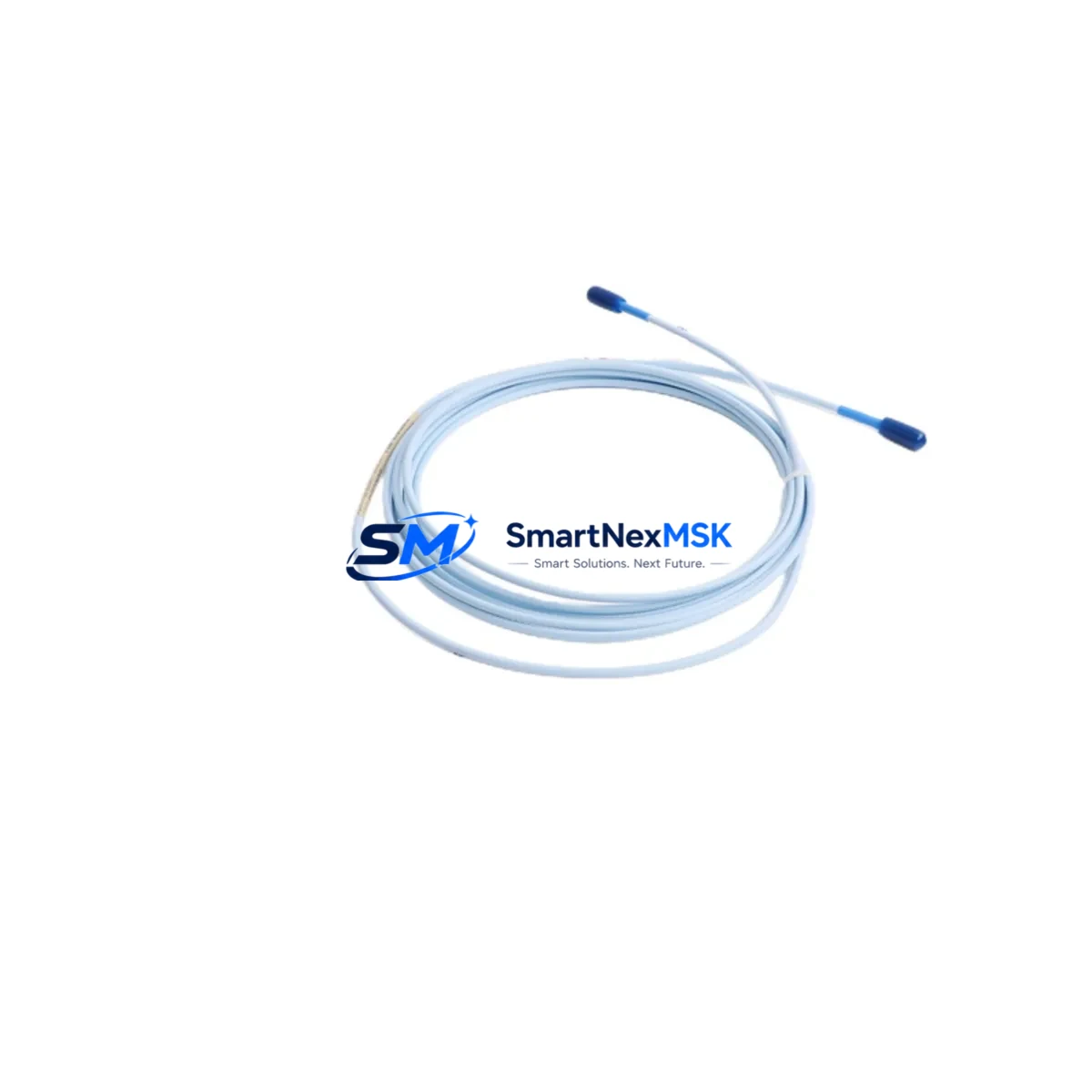

The Bently Nevada 330130-040-00-00 is a 40-foot (12.2 m) Standard Extension Cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process facilities, this cable is a critical link in the signal chain between the proximity probe and the Proximitor sensor. A failed or degraded extension cable can produce erroneous vibration readings, trigger nuisance trips, or — worse — mask genuine machinery faults. Keeping a verified spare of the 330130-040-00-00 on the shelf is a fundamental element of any responsible predictive maintenance program.

This listing supplies an original Bently Nevada 330130-040-00-00 extension cable, tested prior to dispatch and backed by a 12-month warranty. Each unit is inspected for connector integrity, shield continuity, and jacket condition before shipment. Whether you are executing a planned turnaround, responding to an unplanned trip, or building out your critical-spare inventory, this cable ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-040-00-00 extension cable is flagged during a routine control-cabinet inspection or a vibration channel self-check, experienced maintenance engineers know that the cable rarely fails in isolation. The 3300 XL signal chain is an integrated system, and a thorough site assessment should cover every component in the measurement loop before the machine is returned to service.

Begin at the probe end: verify that the 3300 XL 8 mm or 11 mm proximity probe (e.g., 330103 or 330104 series) shows no physical damage, tip contamination, or connector corrosion. A degraded probe will continue to produce erratic readings even after the extension cable is replaced. At the Proximitor end, confirm that the 3300 XL Proximitor Sensor (330180 series) output voltage is within the –10 to –18 VDC linear range at the known gap; if the Proximitor itself is suspect, it should be swapped as part of the same work order to avoid a repeat outage.

Inside the control cabinet, inspect the 3300 XL Monitor (e.g., 3300/16 or 3300/20 series) input card for bent pins, oxidized contacts, and correct channel configuration. While the cabinet door is open, check the 24 VDC or –24 VDC power supply module that feeds the Proximitor — a supply with marginal output voltage will cause the entire proximity channel to read incorrectly regardless of cable condition. Verify terminal block torque on the I/O terminal strip and confirm that cable routing does not place the extension cable in close proximity to high-voltage conductors or variable-frequency drive output cables, which are common sources of induced noise in vibration channels.

For facilities running the System 1 condition monitoring software or a DCS historian, confirm that the channel tag, engineering unit scaling, and alarm setpoints are correctly mapped after any hardware replacement. If the plant uses Bently Nevada 3500 series racks alongside legacy 3300 XL hardware, ensure that the correct cable system (3500/42 compatible cables are not interchangeable with 3300 XL cables) is maintained in separate, clearly labeled spare-parts bins to prevent cross-installation errors during emergency repairs.

A complete critical-spare kit for a 3300 XL vibration channel typically includes: the extension cable (330130 series, matched length), the proximity probe, the Proximitor sensor, a spare power supply fuse or fuse block for the instrument bus, and — where applicable — a signal isolator or barrier for intrinsically safe installations in hazardous areas. Documenting this kit in your CMMS against each machine tag ensures that the next maintenance team can locate and deploy the correct parts without delay.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and coordinate with the control room to place the affected vibration channel in bypass or maintenance mode within the 3300 XL Monitor. This prevents a spurious trip during cable disconnection.

Step 2 — Document as-found condition: Record the Proximitor output voltage (gap voltage) and any active alarms before disconnecting the cable. Photograph connector condition at both the probe and Proximitor ends.

Step 3 — Remove the old cable: Disconnect the coaxial connectors at both ends. Inspect the probe connector recess and the Proximitor input port for debris or corrosion. Clean with contact cleaner if required.

Step 4 — Install the 330130-040-00-00: Route the new cable following the original cable path. Avoid sharp bends at the connector exits. Hand-tighten coaxial connectors — do not over-torque. Secure cable with original clamps or tie-wraps at the same support points.

Step 5 — Verify gap and output: With the machine at rest, measure the Proximitor output voltage and confirm it falls within the linear range for the installed probe-to-target gap. Compare against the as-found reading. If the gap voltage has shifted significantly, re-check probe installation depth before assuming a cable fault.

Step 6 — Return to service: Remove the channel bypass in the monitor, confirm alarm setpoints are active, and log the replacement in the CMMS with the new cable serial number and installation date. Update the critical-spare inventory to trigger a replenishment order for the next 330130-040-00-00.

This workflow minimizes downtime, maintains system compatibility, and creates a traceable maintenance record — all essential for facilities operating under API 670 or equivalent vibration monitoring standards.

Spare Parts Support FAQ

Q1: Is the 330130-040-00-00 a direct drop-in replacement for older 330130 series cables?
Yes. The 330130-040-00-00 is dimensionally and electrically compatible with earlier 330130 series extension cables of the same length. No re-calibration of the Proximitor sensor is required when replacing a like-for-like cable length. Always confirm the probe series (8 mm or 11 mm) and total system cable length (probe cable + extension cable) matches the Proximitor’s calibrated range before installation.

Q2: How should I manage 330130-040-00-00 inventory for a multi-machine facility?
For facilities with 10 or more 3300 XL channels, a minimum stock of two to three extension cables per dominant cable length is recommended. Cables should be stored in their original packaging in a dry, temperature-controlled environment. Inspect stored cables annually for jacket cracking and connector oxidation. Rotate stock on a first-in, first-out basis and replenish immediately after any unplanned consumption.

Q3: What pre-shipment testing is performed on each unit?
Every 330130-040-00-00 supplied through this listing undergoes continuity testing of the center conductor and shield, connector pull-force verification, and visual inspection of the jacket and connector bodies. A test report is available upon request. Units are packed in anti-static, moisture-resistant packaging to maintain condition during transit.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector failure under normal installation conditions, and shield continuity faults. It does not cover damage resulting from incorrect installation, over-torqued connectors, chemical exposure, or use outside the specified operating temperature range. Warranty claims are processed within 5 business days of receipt of the returned unit, with a replacement dispatched upon confirmation of the defect.
