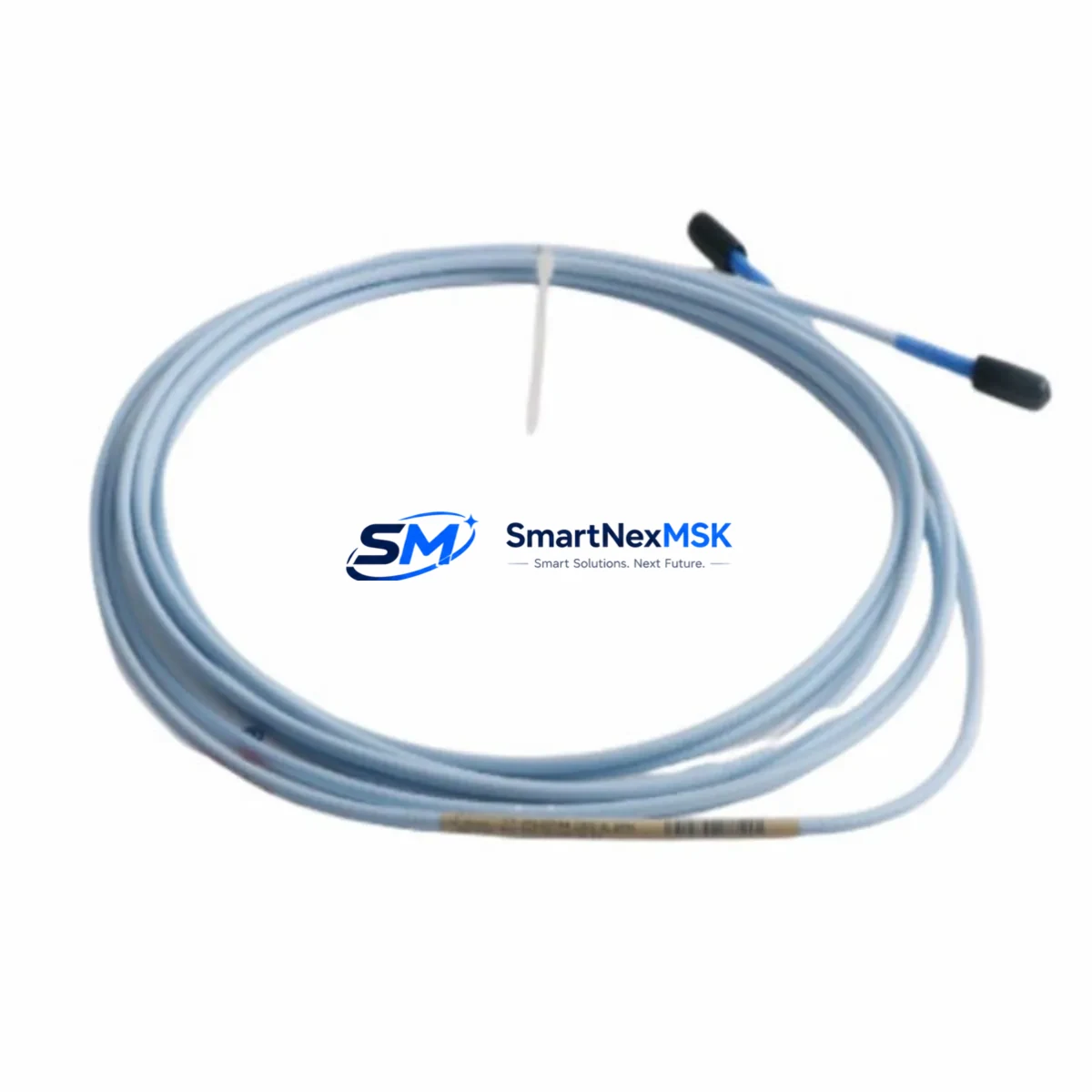

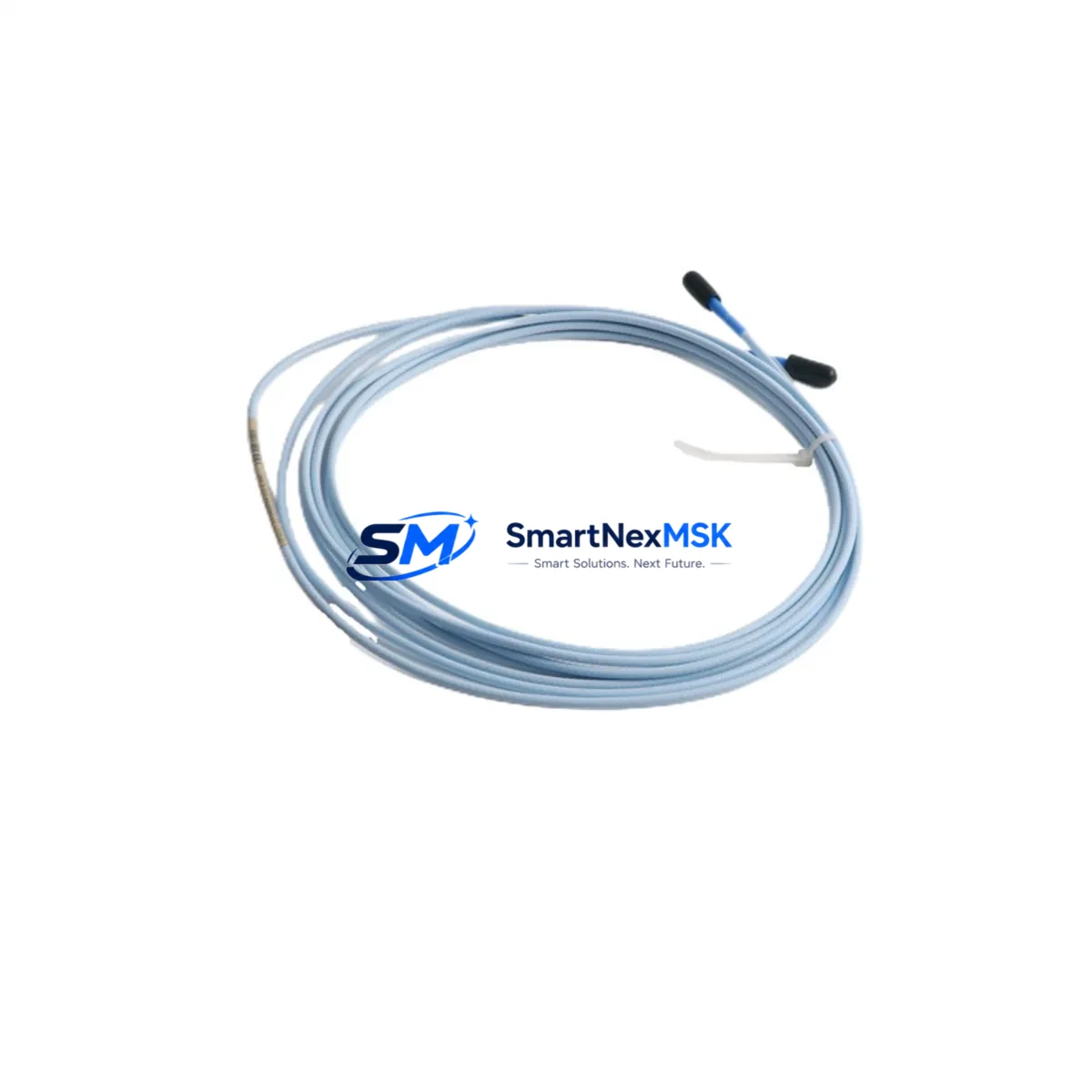

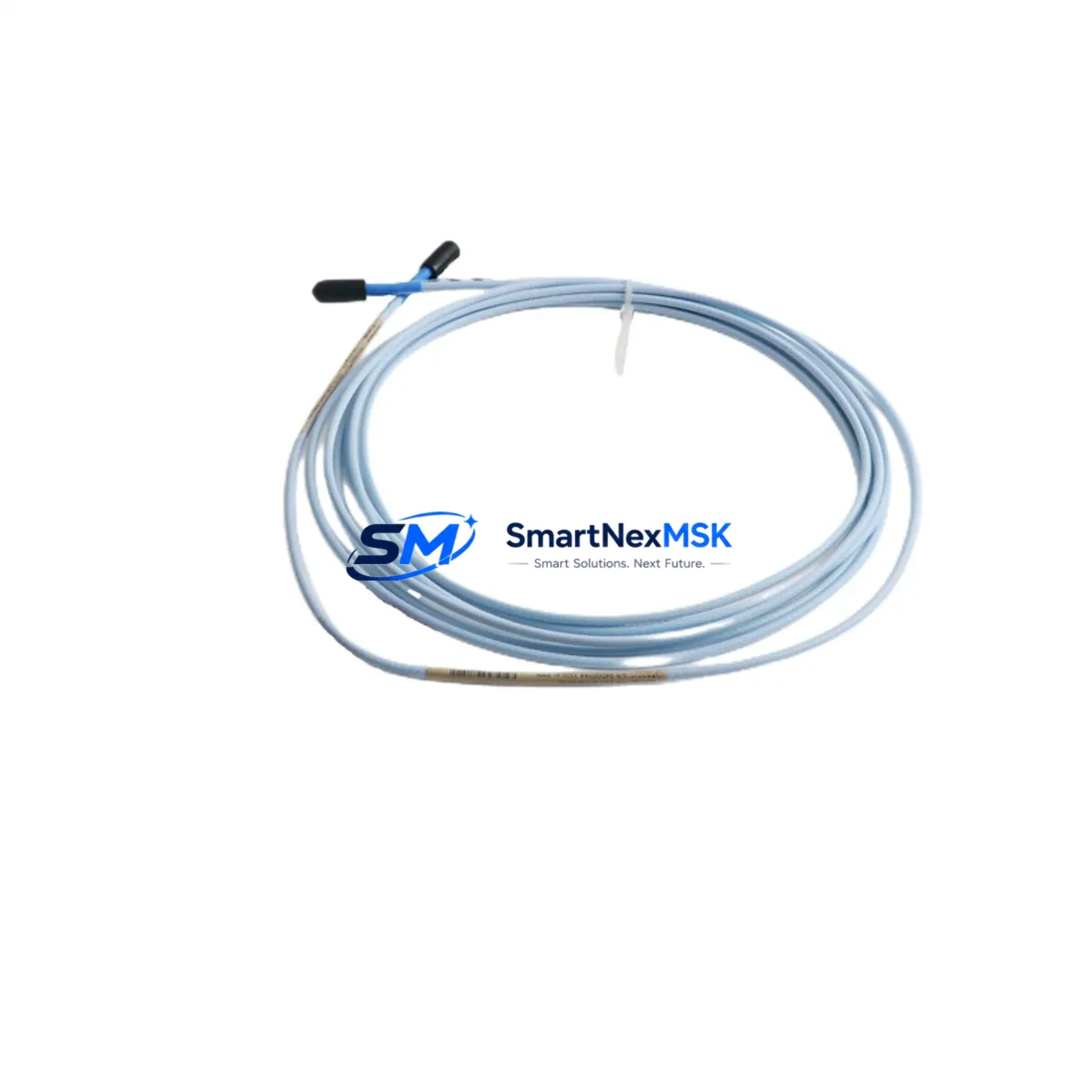

The Bently Nevada 330130-040-00-05 is an original 4.0-metre extension cable engineered for the 3300 XL 8mm Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this cable is a critical link in the signal chain between the proximity probe and the Proximitor sensor. A degraded or failed extension cable is a direct cause of false vibration trips, masked fault signals, and unplanned downtime. Stocking a verified original replacement is a fundamental element of any responsible predictive maintenance programme.

At SMARTNEXMSK, every 330130-040-00-05 unit is sourced as an original Bently Nevada component, inspected prior to dispatch, and shipped with a 12-month warranty. We support maintenance teams and procurement engineers who require fast, reliable access to genuine spare parts — with no compromise on signal integrity or system compatibility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-040-00-05 extension cable during a planned outage or emergency intervention, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration measurement loop. The extension cable connects the proximity probe to the Proximitor sensor, and any degradation in adjacent components will compromise the accuracy of the restored measurement chain.

Begin by inspecting the 3300 XL 8mm Proximity Probe (typically a 330103 or 330104 series unit) at the machine end. Check the probe tip for mechanical damage, contamination, or corrosion, and verify the probe gap using a calibrated gap voltage measurement. If the probe has been in service for more than three years in a high-temperature or high-vibration environment, proactive replacement alongside the extension cable is advisable.

At the panel end, verify the condition of the 3300 XL Proximitor Sensor (330180 or 330181 series). Confirm the output voltage is within the linear range for the target gap, and check the barrier or Zener barrier if the installation is in a hazardous area. A faulty Proximitor will produce erratic gap voltage readings even with a new cable installed.

Within the control cabinet, inspect the 3300 XL Monitoring System rack and its associated I/O modules. Verify that the vibration monitor card — such as a 3300/16 or 3300/20 series module — is seated correctly and that its channel configuration matches the probe system. Loose backplane connections or corroded card-edge contacts are a common source of intermittent faults that are incorrectly attributed to the cable.

Check all terminal blocks and field wiring in the junction box between the machine and the control room. Loose terminations, moisture ingress, or damaged cable armour can introduce noise into the signal and cause nuisance trips. Replace any suspect terminal blocks and re-torque all connections to specification.

If the system includes a signal conditioner or signal isolator in the vibration loop — common in older installations where the Proximitor output feeds a DCS analogue input card — verify the isolator’s output range and calibration. A drifted isolator will cause the DCS to display incorrect vibration values even after the extension cable is replaced.

For installations where the vibration data feeds a DCS analogue input module (such as a Honeywell, Emerson, or ABB I/O card), confirm the input range configuration and check for any active alarms or diagnostic flags on the channel. This is also the appropriate time to verify that the 4–20 mA loop power supply or the dedicated Proximitor power supply rail is within specification — typically –24 VDC for Bently Nevada systems.

Finally, review the HMI or operator workstation display for the affected measurement point. After cable replacement and system restoration, perform a bump test or slow-roll check to confirm that the vibration reading tracks correctly and that the gap voltage is within the calibrated linear range. Document the as-found and as-left gap voltages in the maintenance record.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a permit to work and isolate the measurement loop at the Proximitor sensor. Do not de-energise the entire monitoring rack unless required — most 3300 XL systems allow individual channel isolation without affecting adjacent channels.

Step 2 — As-found documentation: Record the existing gap voltage, vibration amplitude, and any active alarms before disconnecting the cable. Photograph the connector orientation and cable routing for reference during reinstallation.

Step 3 — Cable removal: Disconnect the 330130-040-00-05 at both the probe end and the Proximitor end. Inspect the connectors on the probe and Proximitor for damage or contamination. Clean with isopropyl alcohol if required.

Step 4 — New cable installation: Route the replacement 330130-040-00-05 following the original cable path. Avoid sharp bends, contact with hot surfaces, and proximity to high-voltage cables. Secure with cable ties or clamps at the original fixing points.

Step 5 — Connection and verification: Connect the new cable at both ends, ensuring the coaxial connectors are fully seated and finger-tight. Re-energise the Proximitor and measure the gap voltage. Confirm the reading is within the linear range (typically –10 VDC ± 2 VDC for an 8mm probe at nominal gap).

Step 6 — System restoration and sign-off: Clear any latched alarms at the monitoring rack and HMI. Confirm the vibration reading is stable and within normal operating limits. Complete the maintenance record and close the permit to work.

Using an original Bently Nevada 330130-040-00-05 ensures full compatibility with the 3300 XL system’s impedance requirements and eliminates the risk of signal degradation caused by non-standard cable assemblies. This is particularly important in API 670-compliant installations where measurement accuracy is subject to audit.

Spare Parts Support FAQ

Q1: Is the 330130-040-00-05 compatible with both the 3300 XL 8mm probe and the standard 3300 series Proximitor?
The 330130-040-00-05 is designed specifically for the 3300 XL 8mm Proximity Transducer System. It is compatible with 3300 XL 8mm probes (330103, 330104 series) and 3300 XL Proximitor sensors (330180, 330181 series). Compatibility with earlier 3300 (non-XL) components should be verified against the Bently Nevada system documentation for your specific installation, as connector and impedance specifications may differ.

Q2: How do you verify the cable before shipment, and what does the 12-month warranty cover?
Every unit undergoes continuity testing, impedance verification, and visual inspection of connectors and cable jacket before dispatch. The 12-month warranty covers manufacturing defects and component failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental range.

Q3: What is the recommended spare parts inventory strategy for the 330130-040-00-05?
For critical rotating machinery (turbines, compressors, large pumps), we recommend holding a minimum of one spare extension cable per monitored machine train, with an additional buffer unit for facilities with more than four monitored machines. Extension cables are a wear item in high-vibration environments and should be included in every annual planned maintenance kit alongside the proximity probe and Proximitor sensor.

Q4: Can you supply the 330130-040-00-05 in other lengths, and what is the typical lead time?
The 330130-040-00-05 is the 4.0-metre variant. Other standard lengths in the 330130 series include 5.0m, 7.62m, and 9.0m configurations. In-stock units are dispatched within 1–3 business days. For bulk orders or non-standard configurations, contact our team for availability and lead time confirmation.
