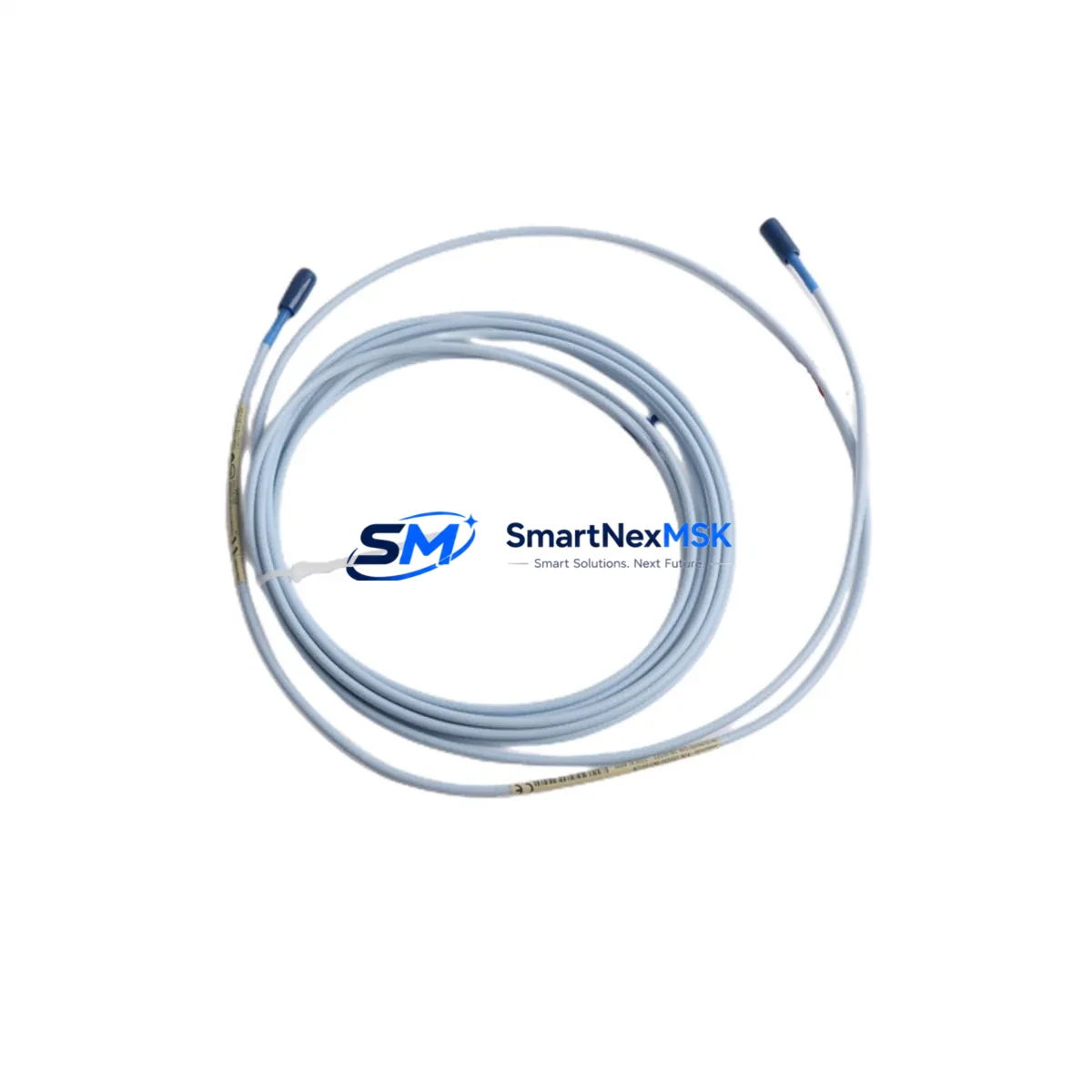

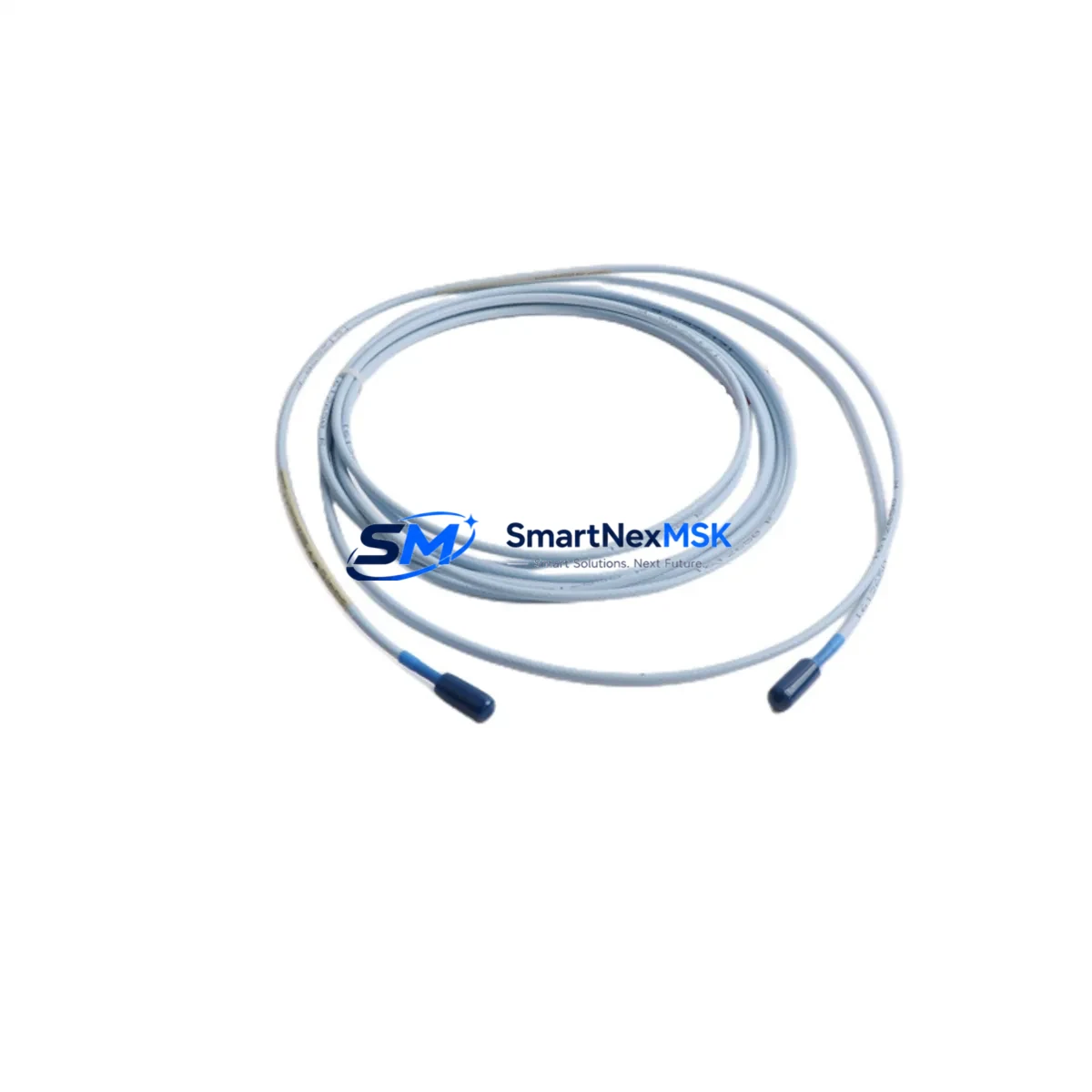

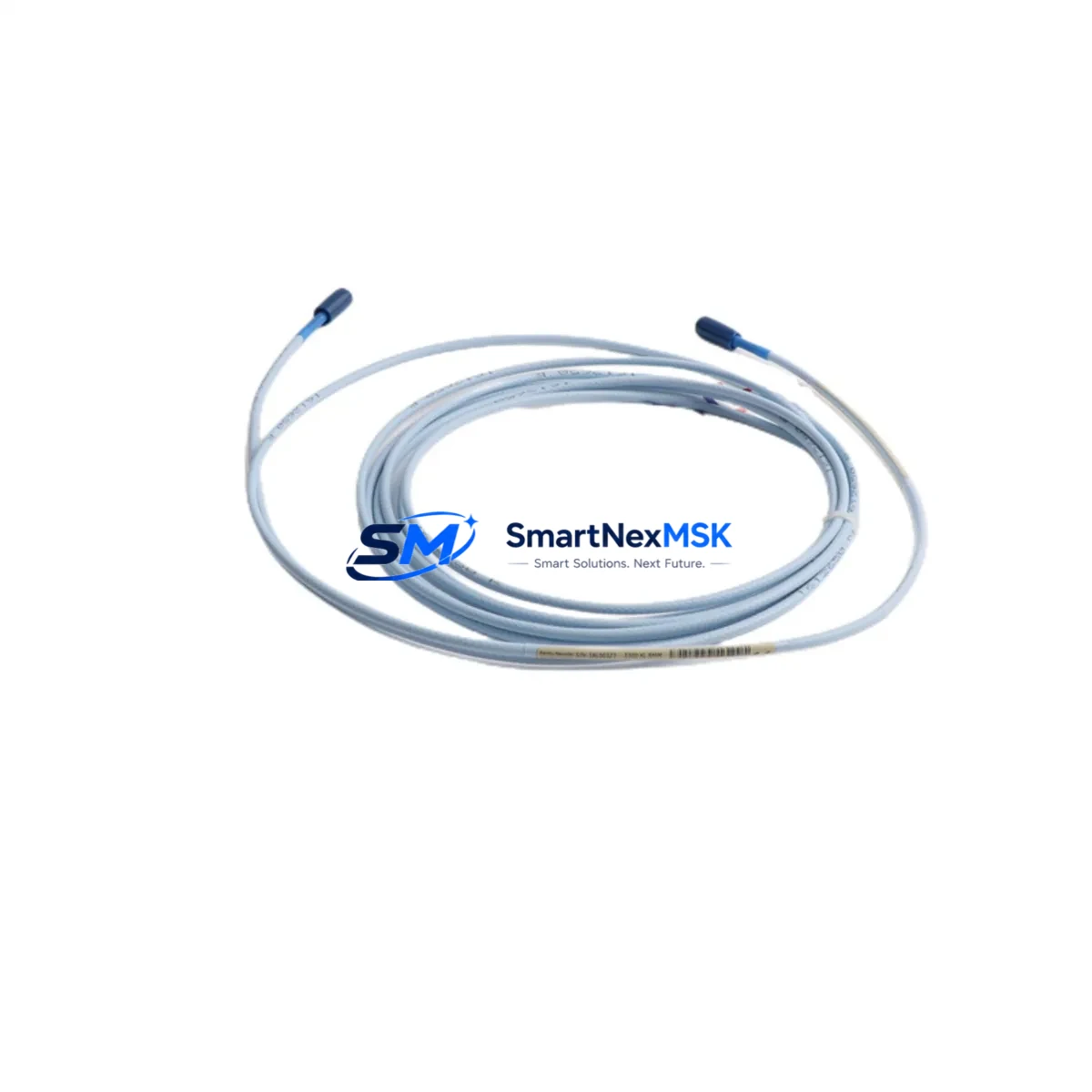

Bently Nevada 330130-040-00-CN 3300 XL Proximity Extension Cable

Bently Nevada 330130-040-00-CN: Retrofit-Ready Proximity Extension Cable for 3300 XL Control Systems

The Bently Nevada 330130-040-00-CN is a precision-engineered proximity extension cable designed for seamless integration into Bently Nevada 3300 XL continuous vibration monitoring systems. As legacy machinery protection infrastructure ages and OEM support windows close, this cable serves as a critical link in retrofit and upgrade projects — enabling engineers to restore full system functionality without replacing the entire monitoring chain. Whether you are replacing a failed cable in a running plant or executing a planned control system modernization, the 330130-040-00-CN delivers the signal integrity and mechanical compatibility required for reliable proximity transducer operation.

This extension cable connects the 3300 XL proximitor/sensor to the monitoring rack, maintaining the low-capacitance, shielded signal path essential for accurate shaft displacement and vibration measurement. It is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor series and integrates directly with the 3300/16 and 3300/20 monitor modules housed in standard 3300 XL rack assemblies. When paired with a replacement proximitor such as the 330180-X1-05 or 330104-00-06-10-02-00, the 330130-040-00-CN restores the complete sensing chain without requiring re-engineering of the existing cable routing or junction box layout.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of a Bently Nevada 3300 XL proximity monitoring loop requires careful coordination across multiple system components. Before replacing the 330130-040-00-CN extension cable, engineers should audit the full sensing chain: confirm the proximitor model (typically a 330180-X1-05 or 330104-00-06-10-02-00), verify the monitor module slot assignment within the 3300 XL rack, and check the existing cable routing for conduit fill and bend radius compliance.

Power supply integrity is a foundational concern. The 3300 XL system relies on a regulated –24 VDC supply — commonly sourced from a Bently Nevada 3300/05 Power Supply module — to bias the proximitor and drive the signal through the extension cable. Any degradation in supply voltage will manifest as erratic gap readings or false alerts at the monitor. Confirm supply output under load before commissioning the replacement cable.

Terminal wiring at the junction box must be inspected for corrosion, loose ferrules, and correct shield grounding. The 330130-040-00-CN uses a single-point shield ground at the monitor end; grounding at both ends introduces noise that can corrupt vibration amplitude readings. When the cable is routed through a shared conduit with power conductors, additional shielding or conduit separation may be required to maintain signal quality.

Backplane and rack interface checks are equally important. The 3300 XL rack accepts monitor modules via a passive backplane; no firmware or address configuration is required for the extension cable itself. However, if the retrofit is part of a broader migration from a legacy 3300 system to a 3500 Series rack — incorporating modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/22M Transient Data Interface — the cable length, connector type, and signal conditioning parameters must be re-evaluated against the new rack’s input specifications.

For plants running Bently Nevada System 1 software or integrating with a DCS via a 3500/92 Communication Gateway Module, the channel mapping and alarm setpoints stored in the monitor configuration must be preserved and re-validated after any hardware change. Export the current configuration from System 1 before beginning the retrofit, and re-import after the replacement cable is installed and gap voltage is confirmed. HMI screens tied to vibration trend displays should be verified for correct tag binding once the monitor is back online.

Where the retrofit involves replacing multiple cables across a machinery train — such as on a compressor with both radial and axial proximity probes — plan the work in stages to maintain partial monitoring coverage during the outage window. Use the 3300 XL rack’s channel inhibit function to suppress alarms on channels under maintenance without disabling the entire rack.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity cable replacement requires a structured pre-outage checklist and a clear rollback plan. Before taking the loop out of service, document the current gap voltage, vibration amplitude baseline, and alarm setpoints for the affected channel. This data serves as the acceptance criterion for post-installation commissioning.

During the cable swap, keep the proximitor in place if it is functional — replacing only the 330130-040-00-CN extension cable reduces the number of variables in the commissioning process and shortens the time to restore monitoring. Once the new cable is connected, measure gap voltage at the monitor terminal before powering the rack channel back online. A reading outside the –10 VDC ±0.5 V window indicates a wiring error, incorrect cable length, or a proximitor gap that requires mechanical adjustment.

For critical machinery where continuous monitoring is contractually or operationally required, consider deploying a portable vibration analyzer — such as a CSI 2140 or equivalent — to maintain trend data during the brief monitoring gap. This approach preserves the historical vibration record and supports root-cause analysis if a fault occurs during the transition window.

All replacement cables supplied by SMARTNEXMSK undergo pre-shipment functional testing, including continuity verification, insulation resistance measurement, and dimensional inspection against OEM drawings. A test report is available upon request. The 12-month warranty covers manufacturing defects and dimensional non-conformance, providing assurance that the replacement component will perform to specification from day one of installation.

Retrofit Support FAQ

Q1: Is the 330130-040-00-CN a direct replacement for the original Bently Nevada cable, or are there wiring differences I need to account for?
The 330130-040-00-CN is a direct drop-in replacement. Connector pinout, cable length (40 ft), and shield configuration are identical to the OEM specification. No wiring modifications are required at the junction box or monitor terminal strip.

Q2: How do I verify the cable is correctly installed before returning the monitor to service?
After installation, measure the DC gap voltage at the monitor input terminal with the proximitor positioned at the normal operating gap. The target reading is –10 VDC ±0.5 V. If the reading is outside this range, check the proximitor gap, cable continuity, and power supply voltage before proceeding.

Q3: Can this cable be used in a 3500 Series rack as part of a migration from a 3300 XL system?
The 330130-040-00-CN is designed for 3300 XL system architecture. For 3500 Series applications, the proximitor model, cable length, and connector interface must be verified against the specific 3500 monitor module input requirements. Contact our technical team for migration-specific guidance.

Q4: What does the 12-month warranty cover, and what is the claims process?
The warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement or refund is processed within 5 business days of claim approval.
