Bently Nevada 330130-040-12-CN Retrofit-Ready Extension Cable for 3300 Series

Bently Nevada 330130-040-12-CN Retrofit-Ready Extension Cable for 3300 Series Control Systems

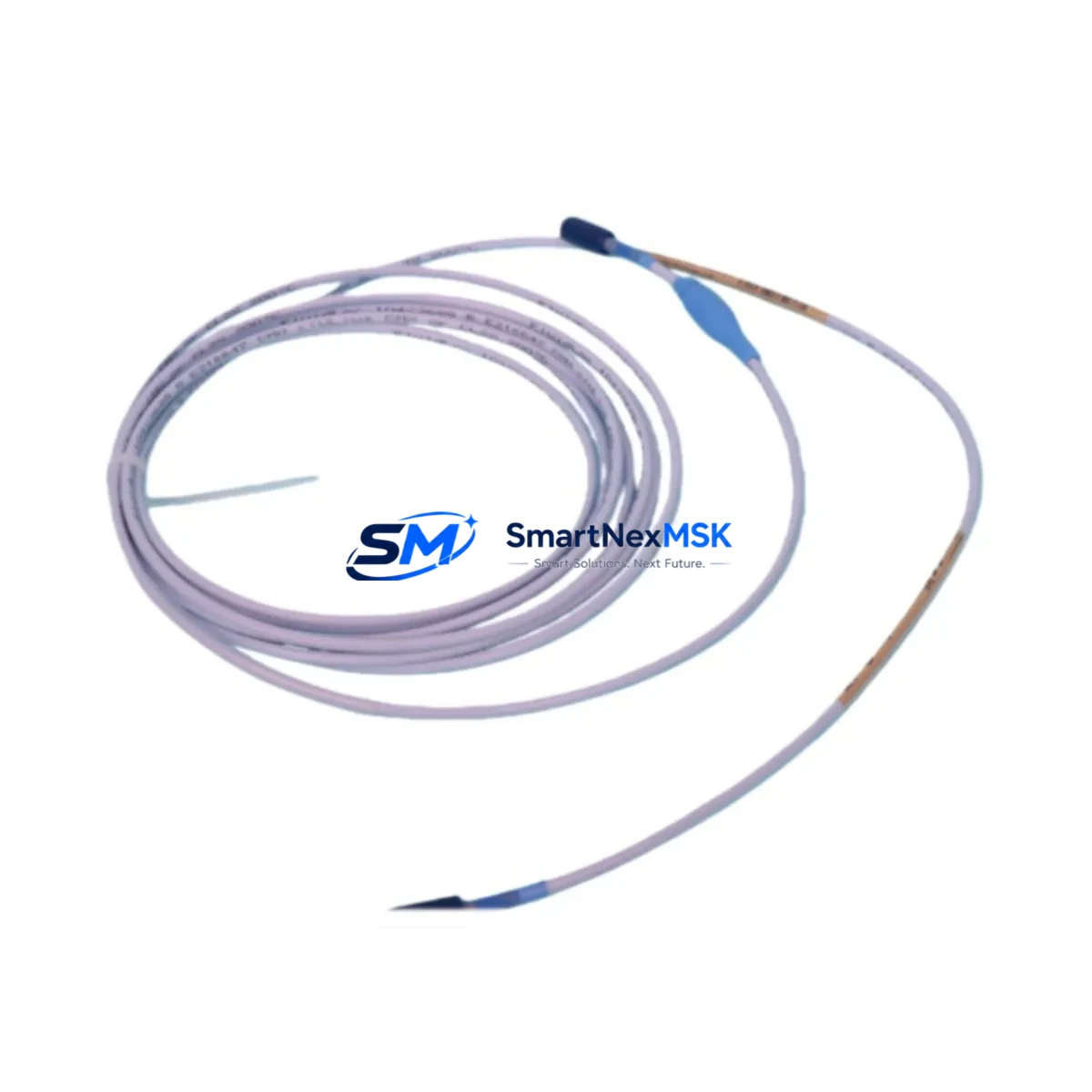

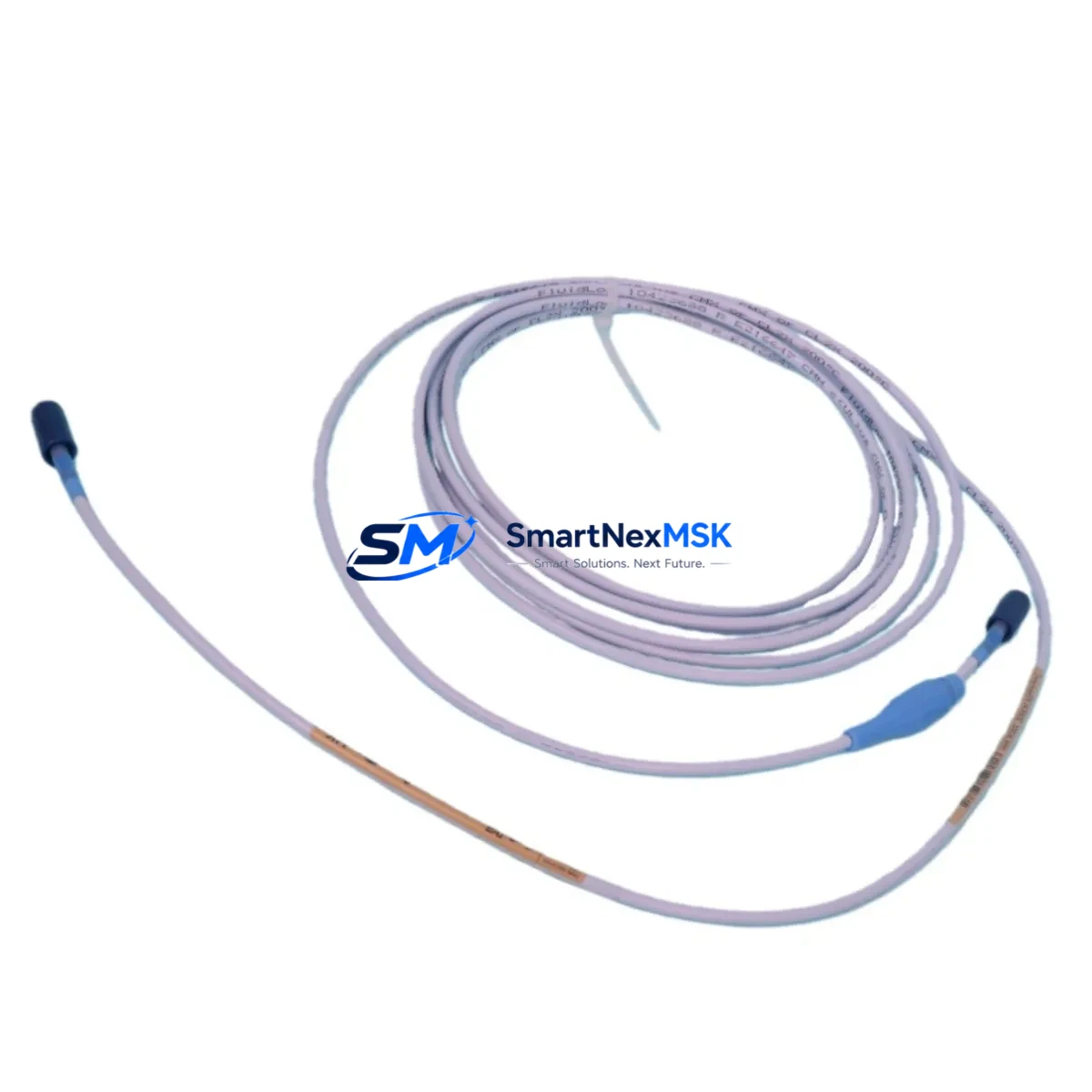

The Bently Nevada 330130-040-12-CN is a 40-foot (12-meter) proximity transducer extension cable engineered for seamless integration into existing 3300 Series vibration monitoring systems. Whether you are replacing a failed cable on an aging turbine protection panel, upgrading a legacy machinery monitoring rack, or migrating from an obsolete 3300/16 monitor to a current-generation 3500 Series platform, this cable delivers the signal integrity and mechanical compatibility required for reliable continuous operation in demanding industrial environments.

Designed as a direct drop-in replacement, the 330130-040-12-CN maintains the same connector pinout, impedance characteristics, and shielding specification as the original factory cable. This eliminates the need for field rewiring, custom adapter harnesses, or program logic modifications during the swap — a critical advantage when minimizing planned downtime on rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and gearboxes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a cable replacement or system upgrade around the 330130-040-12-CN, engineers must account for the full signal chain from probe tip to monitor input. A typical 3300 Series proximity measurement loop consists of a 330104-00-20-10-02-00 or similar eddy-current probe, the 330130-040-12-CN extension cable, and a 330180-X1-05 proximitor module mounted in the field junction box or directly on the machinery skid. The proximitor converts the raw oscillator signal into a DC voltage proportional to gap distance, which is then routed to a 3300/16 Dual Vibration Monitor or a 3500/42M Proximitor / Seismic Monitor installed in the control room rack.

For sites migrating from the legacy 3300/16 or 3300/20 monitor cards to the current 3500 Series platform, the 330130-040-12-CN extension cable is fully reusable without modification. The primary retrofit tasks shift to reconfiguring the 3500/20 Rack Interface Module, updating I/O terminal assignments on the 3500/92 Communication Gateway, and revising the Modbus or FOUNDATION Fieldbus tag mapping in the DCS historian. Sites running a System 1 or System 1 Evolution condition monitoring software platform will also need to remap channel configurations and alarm setpoints after the monitor card swap.

In control cabinet upgrades where the 3300 Series rack is being replaced by a 3500 Rack, engineers should verify that the existing 3500/05 Power Supply capacity is sufficient to support the expanded I/O count, particularly when adding 3500/40M Proximitor / Seismic Monitor cards for additional measurement points. Terminal block wiring from the field junction box to the rack typically remains unchanged when the 330130-040-12-CN is retained, reducing the scope of the cabinet retrofit and shortening the overall outage window.

For I/O expansion projects where new measurement points are being added alongside the cable replacement, the 3500/42M four-channel monitor card is the preferred choice, as it supports both radial vibration and axial position measurements on a single card, reducing rack slot consumption. Pair this with a 3500/22M Transient Data Interface if waveform capture capability is required for machinery diagnostics during the post-retrofit commissioning phase.

Downtime Control During System Migration

Controlling planned outage duration is the primary operational concern when replacing proximity cables on critical rotating equipment. The 330130-040-12-CN supports a hot-swap approach in non-redundant monitoring configurations: with the machine safely shut down and locked out, the failed cable can be disconnected at both the probe connector and the proximitor terminal, the replacement cable routed and connected, and gap voltage verified at the proximitor output — all within a single shift window of four to six hours for a standard single-shaft turbine installation.

To protect existing program logic during the migration, no changes to the PLC ladder program or DCS function block diagram are required when the cable is replaced in kind. The 330130-040-12-CN presents the same electrical characteristics as the original, so the monitor’s internal calibration, alarm trip setpoints, and OK relay logic remain valid without recalibration. Engineers should document the pre-outage gap voltage reading and vibration baseline from the System 1 trend historian before disconnecting the old cable, then verify that post-installation readings fall within ±0.5 VDC of the pre-outage baseline before returning the machine to service.

For sites with redundant monitoring architectures using dual-voting trip logic across two 3500/42M monitor channels, the cable replacement can be performed on one channel while the second channel remains in service, eliminating the need for a full machine shutdown in many cases. Coordinate with the control room operator to temporarily mask the affected channel’s trip output in the 3500/92 Communication Gateway or the DCS safety interlock logic before beginning work, and restore the trip mask immediately upon completion of gap voltage verification.

Retrofit Support FAQ

Q1: Is the 330130-040-12-CN a direct replacement for the original Bently Nevada cable, or are adapter connectors required?
The 330130-040-12-CN is a factory-terminated, direct drop-in replacement. Both the probe-end and proximitor-end connectors are identical to the original specification. No adapter cables, solder joints, or field terminations are required. The cable can be installed by a qualified instrumentation technician without specialized tooling.

Q2: Will I need to recalibrate the 3300 Series monitor after replacing the extension cable?
In most cases, no full recalibration is required. After installation, verify the proximitor output gap voltage at the nominal air gap (target –10 VDC ±1 V for standard 5 mm probes). If the reading falls within the pre-outage baseline ±0.5 VDC, the system is ready to return to service. A full calibration check is recommended if the probe or proximitor is also being replaced at the same time.

Q3: Is this cable compatible with the 3500 Series monitors if we are upgrading from 3300 Series?
Yes. The 330130-040-12-CN is electrically compatible with the 3500 Series monitoring platform when used with the appropriate 330180 or 330101 Series proximitor. The cable’s impedance and shielding characteristics meet the signal requirements of both the legacy 3300 and current 3500 monitor cards. No cable replacement is necessary when upgrading the monitor rack alone.

Q4: What warranty and pre-shipment testing does this unit carry?
Every 330130-040-12-CN unit is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each cable undergoes continuity testing, shield integrity verification, and connector insertion/extraction cycle inspection. A test report is available upon request. Units are shipped in anti-static packaging with individual part number labeling to support incoming inspection and traceability requirements.
