Bently Nevada 330130-045-00-05 Safety-Enhanced Proximity Cable: Reliable Control in Harsh Industrial Sites

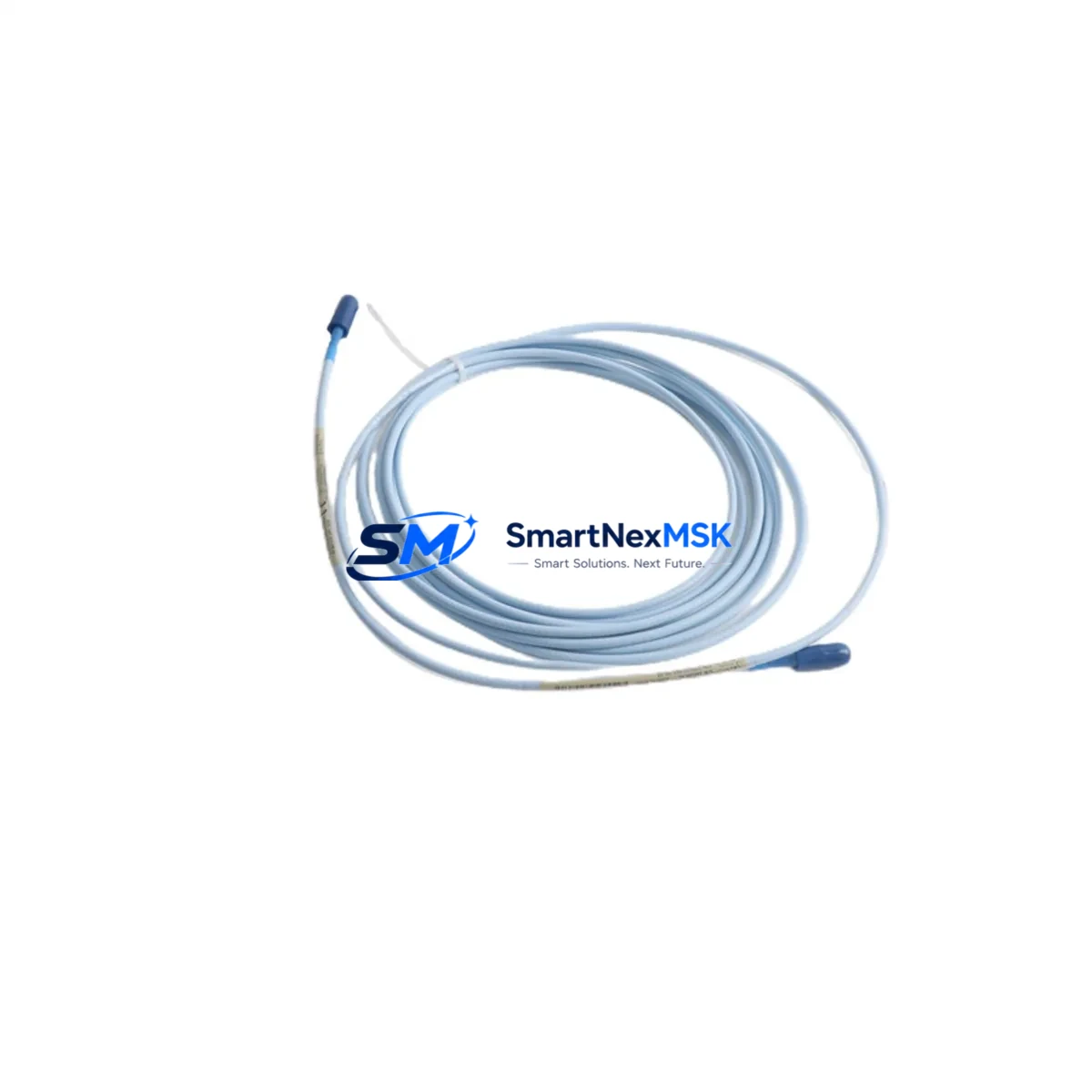

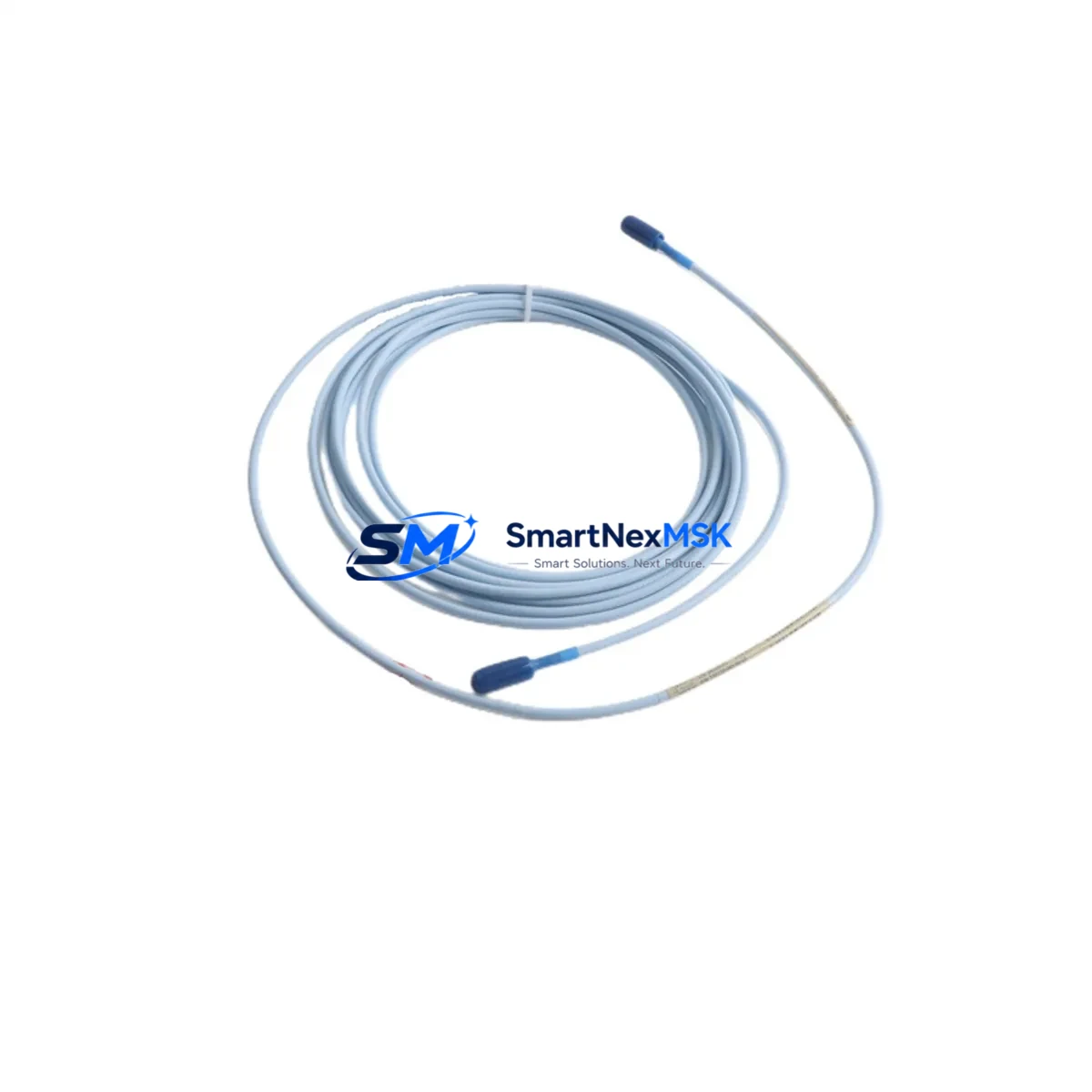

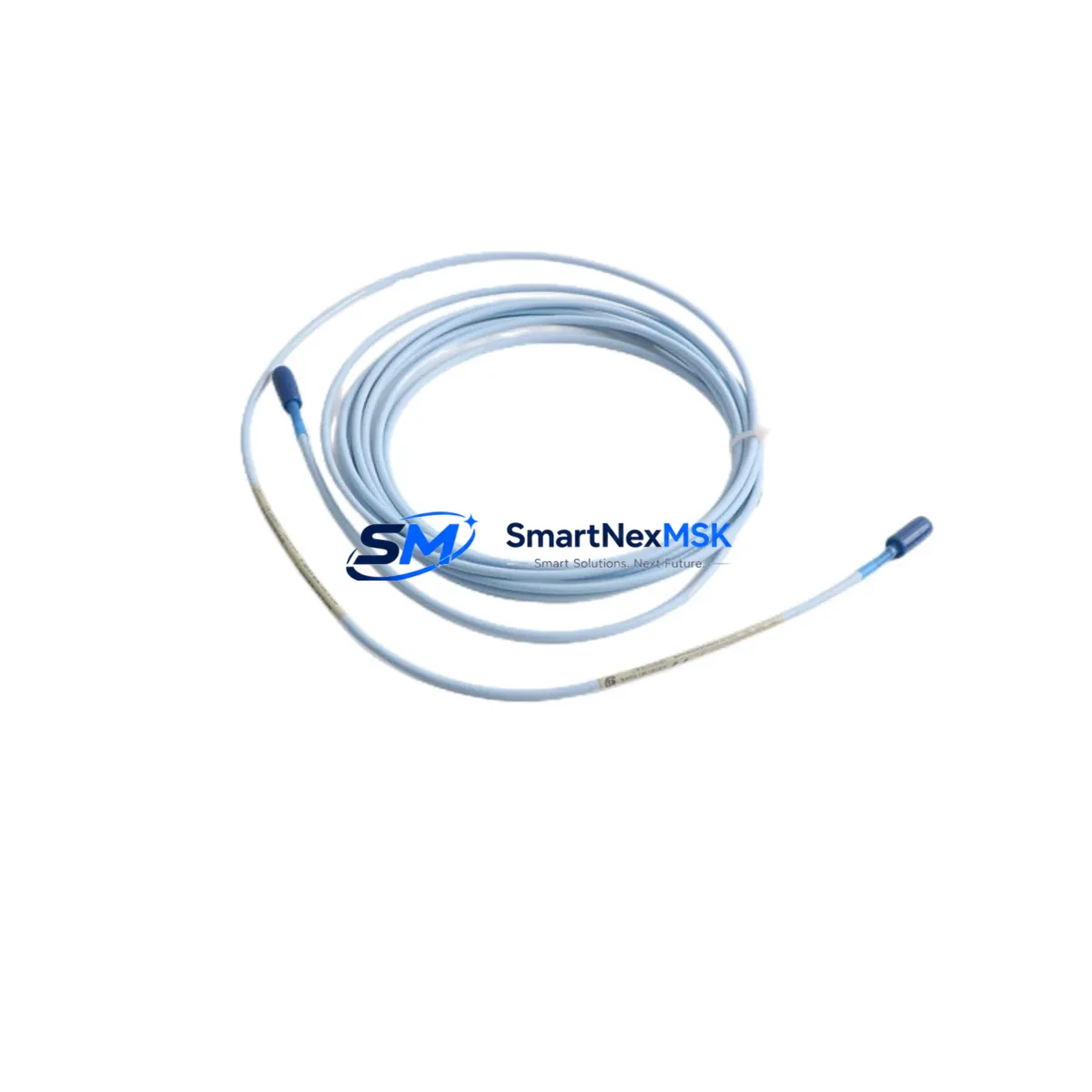

The Bently Nevada 330130-045-00-05 is a ruggedized 4.5-meter proximity transducer extension cable engineered for continuous, safety-critical operation in demanding industrial environments. Designed to work seamlessly within the Bently Nevada 3300 XL Proximity Transducer System, this cable forms the critical signal path between the proximity probe and the Proximitor sensor — a link that must remain stable, noise-immune, and mechanically robust under all operating conditions.
In rotating machinery protection systems — including turbines, compressors, pumps, and gearboxes — signal integrity across the transducer cable directly determines the reliability of vibration and position monitoring. Any degradation in this cable, whether from electromagnetic interference, mechanical stress, thermal cycling, or chemical exposure, can result in false trips, missed alarms, or undetected shaft displacement. The 330130-045-00-05 is built to eliminate these failure modes, providing a shielded, low-capacitance signal path that preserves measurement accuracy from probe tip to monitor input.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330130-045-00-05 |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Cable Length | 4.5 m (14.76 ft) |
| Cable Type | Ruggedized Coaxial Extension Cable |
| Connector Type | Standard 3300 XL Series coaxial connectors (both ends) |
| Signal Type | Eddy-current proximity transducer signal (low-level analog) |
| Shield Coverage | Full-length electromagnetic shielding for noise immunity |
| Operating Temperature | -40°C to +85°C |
| Chemical Resistance | Oil, grease, and industrial solvent resistant jacket |
| Mechanical Protection | Ruggedized outer jacket for abrasion and flex resistance |
| Compatibility | Bently Nevada 3300 XL Proximitor Sensors, 3500 Series Monitors |
| Safety Application | Rotating machinery vibration monitoring, shaft position, overspeed protection |
| Warranty | 12 Months — covers manufacturing defects and signal integrity failure |
| Condition | New / Surplus New — pre-shipment continuity and insulation tested |
| Origin | USA (Bently Nevada / Baker Hughes) |
Control Cabinet Protection Strategy
The 330130-045-00-05 extension cable does not operate in isolation — it is one component in a tightly integrated machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this cable connects the field-mounted Bently Nevada 330103-00-08-10-02-00 proximity probe to the Bently Nevada 3300 XL Proximitor Sensor, which in turn feeds conditioned signals to the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor for real-time vibration and position analysis.
Within the same protection loop, the Bently Nevada 3500/20 Rack Interface Module manages system power distribution and communication integrity, while the 3500/15 Power Supply Module ensures stable, regulated DC power to all monitoring cards — eliminating power-induced signal drift that could corrupt proximity readings. For installations requiring redundant protection, the 3500/22M Transient Data Interface captures high-resolution waveform data alongside steady-state monitoring, enabling both safety shutdown and diagnostic functions from the same sensor chain.
In high-interference environments such as motor control centers, variable frequency drive (VFD) panels, or switchgear rooms, the shielded construction of the 330130-045-00-05 cable works in concert with the Bently Nevada 330180-X0-05 Proximitor Sensor to reject common-mode noise and prevent false vibration readings. Surge protection at the panel entry point — typically provided by dedicated transient voltage suppression modules — further protects the signal chain from lightning-induced or switching transients that could damage the Proximitor input stage.
For plants running Bently Nevada System 1 condition monitoring software, the integrity of the extension cable is foundational: corrupted or attenuated signals at this stage propagate as erroneous trend data, potentially masking developing bearing faults or rotor imbalance conditions. Pairing the 330130-045-00-05 with genuine Bently Nevada 330104-00-06-10-02-00 probes and factory-matched Proximitor sensors ensures the entire measurement chain remains within calibrated tolerance, supporting both continuous monitoring and API 670 compliance.
Critical Industrial Safety Applications
The Bently Nevada 330130-045-00-05 extension cable is deployed across the most demanding sectors of heavy industry, where machinery protection is directly linked to personnel safety and production continuity.
In petrochemical and refinery plants, this cable is used in the vibration monitoring loops of critical rotating equipment — centrifugal compressors, boiler feed pumps, and reactor agitators — where an undetected shaft excursion can trigger catastrophic seal failure or process release. The ruggedized jacket withstands hydrocarbon vapors, steam, and aggressive cleaning agents without signal degradation.
In power generation facilities — including coal, gas, and nuclear plants — the cable supports turbine shaft monitoring systems that feed directly into emergency trip circuits. Signal continuity under thermal cycling (from cold standby to full-load operation) is non-negotiable, and the 330130-045-00-05‘s rated operating range of -40°C to +85°C covers the full thermal envelope of most turbine hall installations.
In mining and mineral processing operations, where conveyors, crushers, and large grinding mills run continuously, the cable’s abrasion-resistant outer jacket and full EMI shielding protect signal integrity in environments saturated with dust, vibration, and high-power motor interference. Unexpected machinery trips in these settings carry significant safety and financial consequences, making reliable proximity monitoring essential.
In water and wastewater treatment plants, the cable is used on large pump and blower monitoring systems, where corrosive atmospheres and high humidity demand robust cable construction. In metallurgical and steel plants, it supports rolling mill and continuous caster drive monitoring, where high ambient temperatures and intense electromagnetic fields from induction furnaces create some of the most challenging signal environments in industry.
Across all these applications, the 330130-045-00-05 serves as the silent but essential link in the safety chain — ensuring that every shaft movement, every vibration event, and every position deviation is accurately captured and transmitted to the protection system before it becomes a safety incident.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330130-045-00-05?
All units are supplied with a 12-month warranty covering manufacturing defects, connector integrity, and signal transmission performance. If the cable fails to meet Bently Nevada specifications within the warranty period under normal operating conditions, we provide replacement or full refund support. Warranty claims are processed directly through SMARTNEXMSK with no third-party intermediary.
Q2: What pre-shipment testing is performed on each cable?
Every 330130-045-00-05 unit undergoes continuity testing, insulation resistance verification, and connector integrity inspection prior to shipment. Cables sourced as surplus new are additionally inspected for jacket condition, shield continuity, and connector cleanliness. Test records are available upon request for quality-critical procurement processes.
Q3: Is this cable compatible with both 3300 XL and 3500 Series Bently Nevada systems?
Yes. The 330130-045-00-05 is designed for the Bently Nevada 3300 XL Proximity Transducer System and is fully compatible with 3300 XL Proximitor Sensors used in conjunction with the 3500 Series monitoring racks. It is not interchangeable with 7200 Series or 9000 Series transducer cables, which use different connector standards and impedance specifications. Always verify your Proximitor model before ordering.
Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 XL series cables and accessories to support planned maintenance, emergency replacement, and long-term spare parts programs. We supply to plant maintenance teams, EPC contractors, and MRO distributors globally. For blanket orders or scheduled delivery programs, contact our sales team to discuss stock reservation and lead time commitments.
