Bently Nevada 330130-045-01-05 Safety-Enhanced Proximitor Cable

Bently Nevada 330130-045-01-05 Safety-Enhanced Proximitor Extension Cable for Harsh Industrial Sites

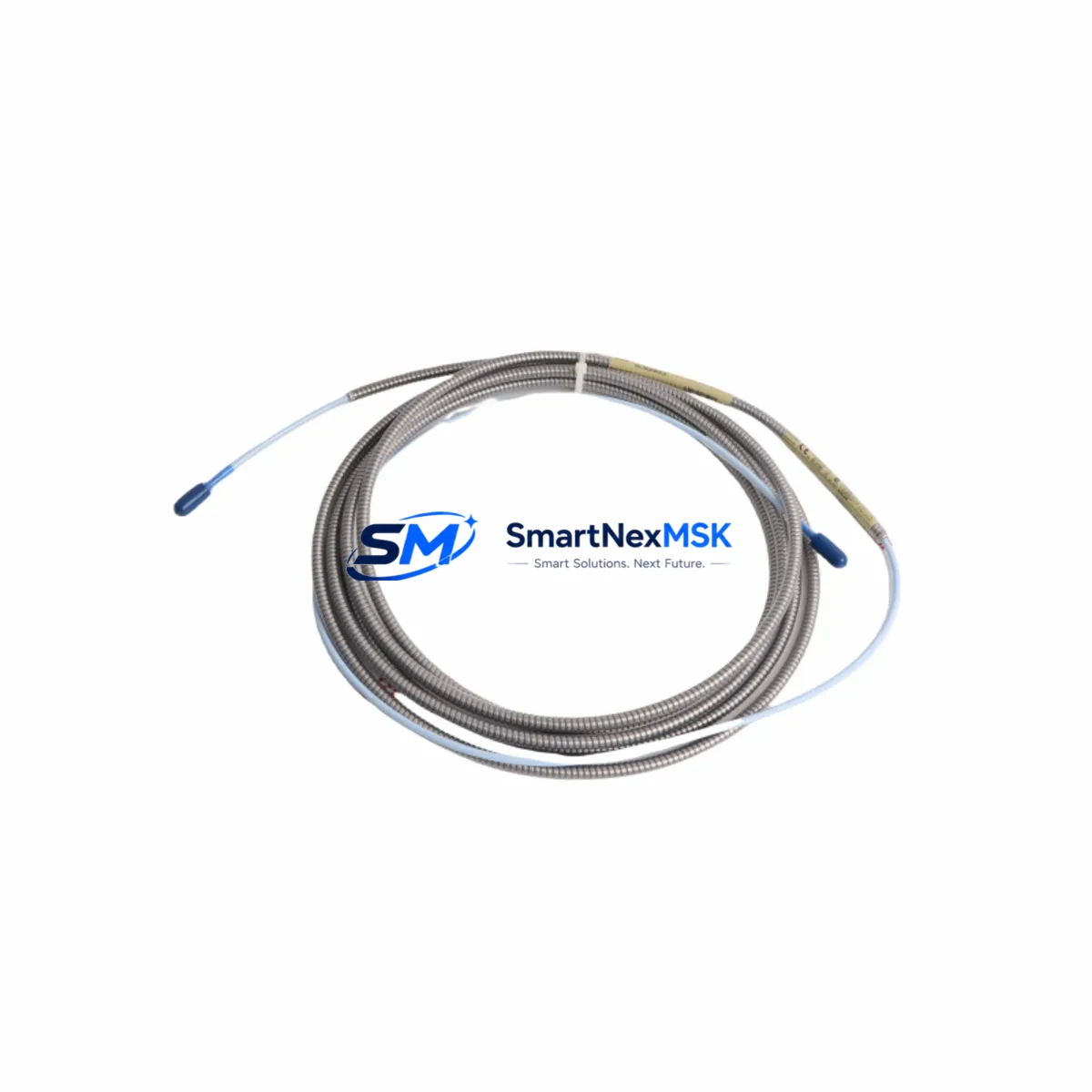

The Bently Nevada 330130-045-01-05 is a ruggedized Proximitor Extension Cable engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to interface seamlessly with the Bently Nevada 3300 XL 8mm Proximitor Sensor system, this 4.5-metre extension cable maintains signal integrity across long cable runs in high-noise, high-vibration, and high-temperature plant conditions — where control interruption is never an option.

In rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the quality and shielding integrity of the proximitor extension cable directly determines the reliability of the entire vibration monitoring loop. A degraded or unshielded cable introduces signal drift, false trip events, and dangerous blind spots in your machinery protection strategy. The 330130-045-01-05 eliminates these risks through its precision-matched impedance, robust coaxial shielding, and environmentally sealed connectors rated for continuous industrial duty.

Safety Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330130-045-01-05 extension cable operates as the critical signal link between the proximity probe tip and the Bently Nevada 3300 XL Proximitor Sensor module mounted in the control cabinet. Signal fidelity at this junction is non-negotiable: any impedance mismatch, connector corrosion, or shield discontinuity will propagate measurement error directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor card, potentially triggering nuisance trips or — more dangerously — masking a genuine rotor fault.

To build a complete, safety-hardened monitoring loop, this cable is typically deployed alongside the Bently Nevada 330103-00-08-10-02-00 8mm Proximity Probe and the Bently Nevada 330180-X0-05 Proximitor Sensor, forming a matched-system assembly that preserves the calibrated gap voltage and sensitivity factor across the full operating range. On the power supply side, the Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the Proximitor rack, while the Bently Nevada 3500/20 Rack Interface Module manages communication between the monitoring rack and the plant DCS or safety PLC.

For installations in electrically noisy environments — such as variable-frequency drive (VFD) motor control centres, high-current bus zones, or arc furnace control rooms — the cable’s full coaxial shielding works in conjunction with Bently Nevada I/O Module surge barriers to suppress transient voltages and prevent signal corruption. In hazardous area installations classified under IECEx or ATEX Zone 1/Zone 2, the cable is paired with appropriate Zener barrier or galvanic isolator modules to maintain intrinsic safety integrity of the vibration monitoring circuit. The Bently Nevada 3500/22M Transient Data Interface further enhances the protection strategy by capturing high-resolution waveform data during transient events, enabling post-event root-cause analysis without interrupting continuous protection.

Proper cable routing, conduit separation from power cables, and periodic connector inspection — combined with the use of genuine Bently Nevada 330130-series extension cables — are the foundation of a zero-nuisance-trip, zero-missed-fault vibration monitoring strategy in critical rotating machinery protection.

Critical Industrial Safety Applications

The Bently Nevada 330130-045-01-05 Proximitor Extension Cable is deployed across the full spectrum of heavy industrial and process-critical facilities where rotating machinery protection is a safety and production imperative:

Petrochemical & Refinery Plants: In crude distillation units, catalytic cracker compressor trains, and LNG liquefaction facilities, continuous shaft vibration monitoring via Bently Nevada 3300 XL systems is mandated by API 670 machinery protection standards. The 330130-045-01-05 cable maintains the signal chain integrity required for API 670-compliant installations, supporting safe shutdown logic in emergency depressurisation and compressor trip sequences.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power stations rely on eddy-current proximity probes and matched extension cables to monitor shaft eccentricity, differential expansion, and rotor position. A cable failure in this loop can disable the turbine supervisory system, creating a blind spot during load transients or startup sequences where shaft dynamics are most critical.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pump drives in copper, iron ore, and gold processing plants operate in extreme dust, moisture, and vibration conditions. The ruggedised construction of the 330130-045-01-05 ensures reliable signal transmission even when cable runs pass through high-vibration structural members or are exposed to abrasive particulate contamination.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in municipal water treatment facilities require continuous bearing condition monitoring to prevent unplanned outages that could disrupt public water supply. The sealed connector design of this cable resists moisture ingress in humid pump house environments.

Metallurgy & Steel Production: In electric arc furnace (EAF) facilities and rolling mill drive systems, extreme electromagnetic interference from high-current bus bars and thyristor drives demands superior cable shielding. The full coaxial braid of the 330130-045-01-05 provides the EMI rejection necessary to maintain clean vibration signals in these environments.

Port & Bulk Material Handling: Ship unloaders, stacker-reclaimers, and conveyor drive gearboxes in port terminals operate continuously under variable load and outdoor exposure. Reliable vibration monitoring via properly specified extension cables supports predictive maintenance programmes that minimise unplanned downtime in high-throughput logistics operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330130-045-01-05?
This cable carries a 12-month warranty covering manufacturing defects, connector integrity, and signal performance. Any unit that fails to meet Bently Nevada system specifications within the warranty period will be replaced or refunded. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each cable?
Every 330130-045-01-05 unit undergoes a 100% outgoing inspection protocol including DC continuity verification, insulation resistance measurement (≥1 GΩ at 500 VDC), coaxial shield coverage check, and connector seating torque verification. A test record is available upon request for quality-critical installations.

Q3: Is this cable compatible with all Bently Nevada 3300 XL 8mm Proximitor systems?
Yes. The 330130-045-01-05 is factory-matched to the Bently Nevada 3300 XL 8mm eddy-current system and is fully compatible with the 330103-series proximity probes and 330180-series Proximitor Sensors. It is not interchangeable with 5mm or 14mm system cables — always verify probe and Proximitor series before ordering.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programmes?
We maintain dedicated safety-stock inventory of the 330130-045-01-05 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Lead time for standard orders is 1–3 business days. For critical plant shutdowns requiring same-day dispatch, please contact our team directly.
