Bently Nevada 330130-045-03-05 Retrofit-Ready Proximity Extension Cable for 3300 XL

Bently Nevada 330130-045-03-05 Retrofit-Ready Proximity Extension Cable for 3300 XL Control Systems

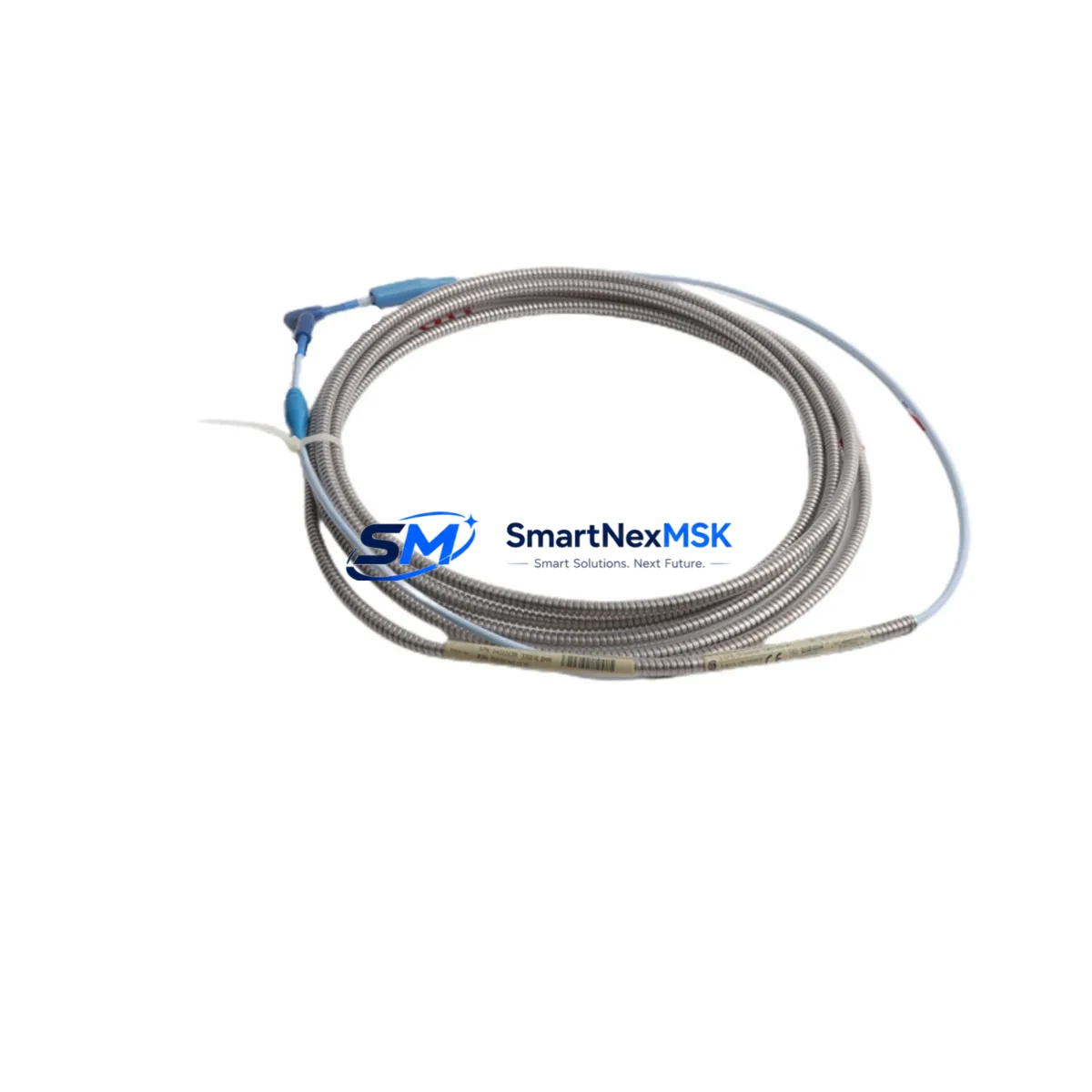

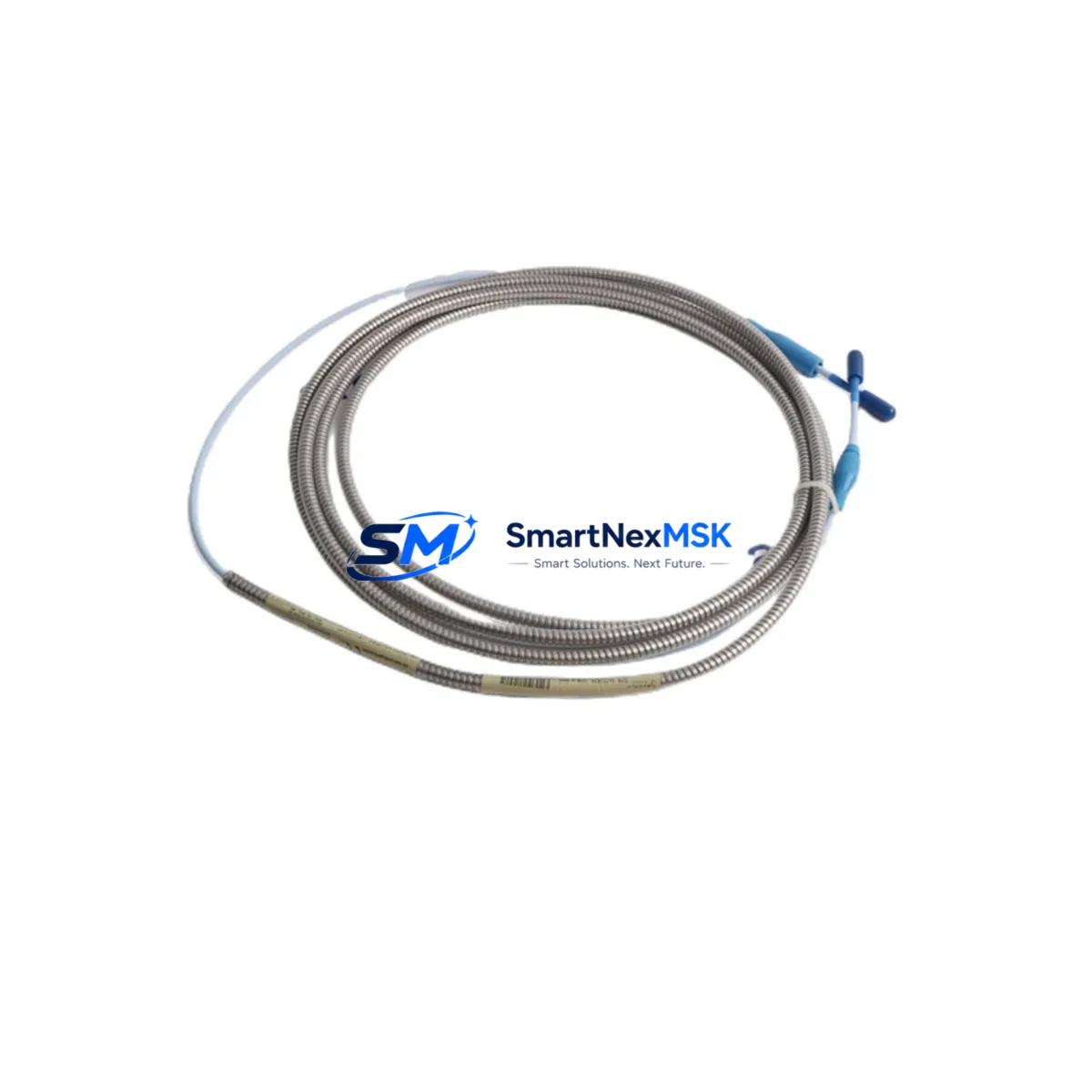

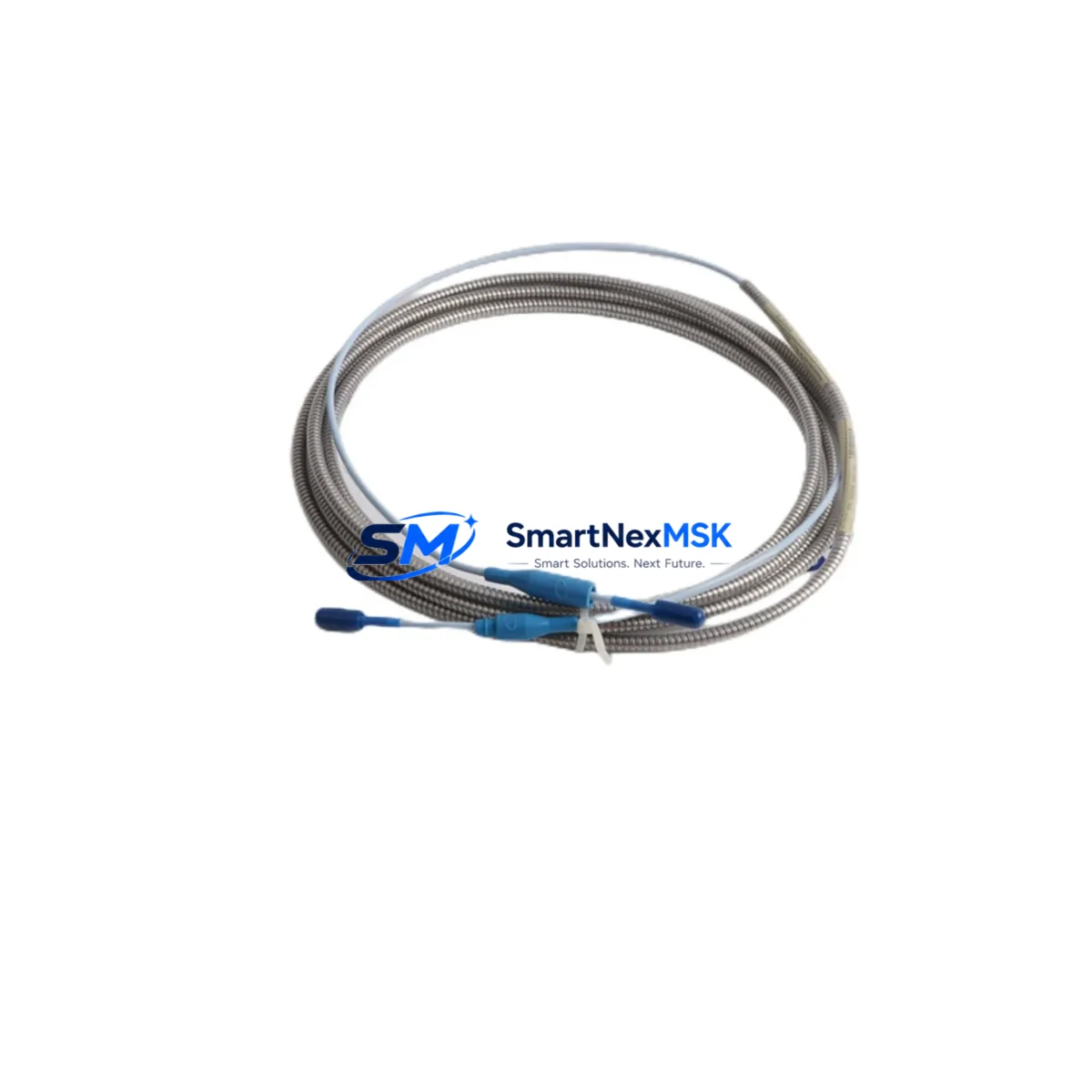

The Bently Nevada 330130-045-03-05 is a 5-meter (16.4 ft) proximity extension cable engineered for the 3300 XL Series vibration monitoring platform. Designed as a direct retrofit replacement for aging or discontinued cable assemblies in continuous machinery protection systems, this cable bridges the gap between the 3300 XL proximitor/oscillator and the eddy-current proximity probe — maintaining signal integrity across the full measurement chain without requiring hardware redesign or panel rewiring. Whether you are executing a planned upgrade, recovering from an unplanned failure, or modernizing a legacy turbomachinery protection loop, the 330130-045-03-05 delivers verified compatibility, dimensional accuracy, and the electrical characteristics required by the 3300 XL system architecture.

Industrial facilities running GE Bently Nevada 3300 XL racks — including the 3300/16 and 3300/20 series monitors — frequently encounter cable degradation caused by thermal cycling, chemical exposure, mechanical abrasion, or connector corrosion. Replacing the extension cable with a specification-matched unit such as the 330130-045-03-05 restores the system to OEM-equivalent performance without the lead times or costs associated with full sensor replacement. This cable is compatible with standard TK81 and TK82 series proximity probes and mates directly with the 3300 XL proximitor/oscillator modules, including the 330180 and 330185 series, ensuring that gap voltage, sensitivity, and frequency response remain within the system’s calibrated operating window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330130-045-03-05 into an existing machinery protection loop requires a structured pre-installation review. Before removing the legacy cable, engineers should document the current gap voltage reading at the proximitor terminal and record the OK relay status on the associated 3300 XL monitor card. This baseline ensures that post-installation commissioning can confirm the replacement cable has restored the system to its original calibrated state.

In most 3300 XL installations, the extension cable routes from the field-mounted 330180 or 330185 proximitor/oscillator back to the monitor rack, which may house multiple channel cards within a 3300/16 or 3300/20 frame. When planning the retrofit, verify that the replacement cable length — 5 meters for the 330130-045-03-05 — matches the original routing distance. If the original installation used a different length variant (such as the 330130-045-01-05 at 1 meter or the 330130-045-02-05 at 2 meters), confirm the total probe-plus-extension cable system length remains within the 3300 XL system’s specified range to preserve measurement linearity.

For facilities upgrading from older 3300 Series (non-XL) hardware to the 3300 XL platform, the cable replacement is often part of a broader migration that includes swapping out legacy monitor cards for 3300 XL-compatible modules, updating the rack backplane connections, and reconfiguring the System 1 condition monitoring software to recognize the new channel assignments. In these scenarios, the 330130-045-03-05 is typically installed alongside new 3300 XL 8mm proximity probes, updated proximitor/oscillator modules, and revised I/O terminal wiring within the control cabinet. Engineers should also verify that the Keyphasor module — commonly the 3300 XL Keyphasor — is correctly referenced in the monitor configuration, as phase-referenced measurements depend on a clean Keyphasor signal path that is independent of the extension cable being replaced.

Where the machinery protection system interfaces with a DCS or safety instrumented system (SIS), confirm that the 4–20 mA analog output from the 3300 XL monitor card is correctly mapped to the DCS I/O module after the cable swap. Any interruption to the vibration signal during cable replacement will trigger an OK relay dropout, which may generate alarms in the DCS historian or the plant’s alarm management system. Coordinating the cable replacement with the control room operator and pre-acknowledging the expected alarm state minimizes confusion and prevents spurious shutdown commands in interlock-protected machinery trains.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing proximity extension cables in a live machinery protection environment. The 330130-045-03-05 is designed for rapid field swap-out: the connector interfaces are standardized, no special tooling is required, and the cable can typically be replaced within a single planned maintenance window without disturbing the probe tip position or re-gapping the sensor.

To protect the original program logic and control continuity, the recommended procedure is to place the affected monitor channel into bypass mode within the 3300 XL monitor configuration before disconnecting the legacy cable. This prevents the OK relay from dropping out and triggering downstream interlocks or DCS alarms during the physical swap. Once the 330130-045-03-05 is connected and the gap voltage is verified at the proximitor terminal, the channel can be returned to normal monitoring mode. The entire process — bypass, swap, verify, restore — can typically be completed in under 30 minutes per channel, making it feasible to execute during a short operational hold rather than a full planned outage.

For multi-channel racks where several extension cables require replacement simultaneously, a phased approach is recommended: replace and verify one channel at a time, restoring each to normal monitoring status before proceeding to the next. This preserves partial system protection throughout the maintenance activity and ensures that any wiring or connector issue is isolated to a single channel before it can affect adjacent measurement loops. All replaced cables should be retained for post-maintenance inspection and documented in the facility’s maintenance management system as part of the asset history for the associated rotating equipment.

Retrofit Support FAQ

Q1: Is the 330130-045-03-05 a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330130-045-03-05 is manufactured to the same dimensional and electrical specification as the original Bently Nevada proximity extension cable for the 3300 XL platform. It uses the same connector interface, the same cable impedance, and the same shielding construction, ensuring that no modifications to the proximitor, probe, or monitor card are required. After installation, a gap voltage check at the proximitor terminal is the only commissioning step needed to confirm correct operation.

Q2: What commissioning steps are required after installing the replacement cable?
After connecting the 330130-045-03-05, measure the DC gap voltage at the proximitor output terminal. For a standard 3300 XL 8mm system, the target gap voltage is typically –10.0 VDC ±0.5 V at the calibrated probe gap. If the gap voltage is outside this range, adjust the probe tip-to-target distance until the correct voltage is achieved. Verify the OK relay status on the associated 3300 XL monitor card and confirm that the vibration reading is within the expected baseline range for the machine at its normal operating speed before returning the channel to active protection service.

Q3: Can this cable be used with non-Bently Nevada proximity probes or third-party monitors?
The 330130-045-03-05 is optimized for use within the Bently Nevada 3300 XL measurement chain. While the physical connectors may be compatible with some third-party eddy-current probe systems, electrical performance — including sensitivity, linearity, and frequency response — is only guaranteed when used with Bently Nevada 3300 XL probes and proximitor/oscillator modules. Use with non-OEM components may affect measurement accuracy and is not covered under the 12-month warranty.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
All units are covered by a 12-month warranty from the date of shipment against defects in materials and workmanship. Each cable undergoes pre-shipment functional testing to verify connector integrity and cable continuity before dispatch. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for urgent maintenance requirements. For warranty claims or technical support, contact our team directly.
