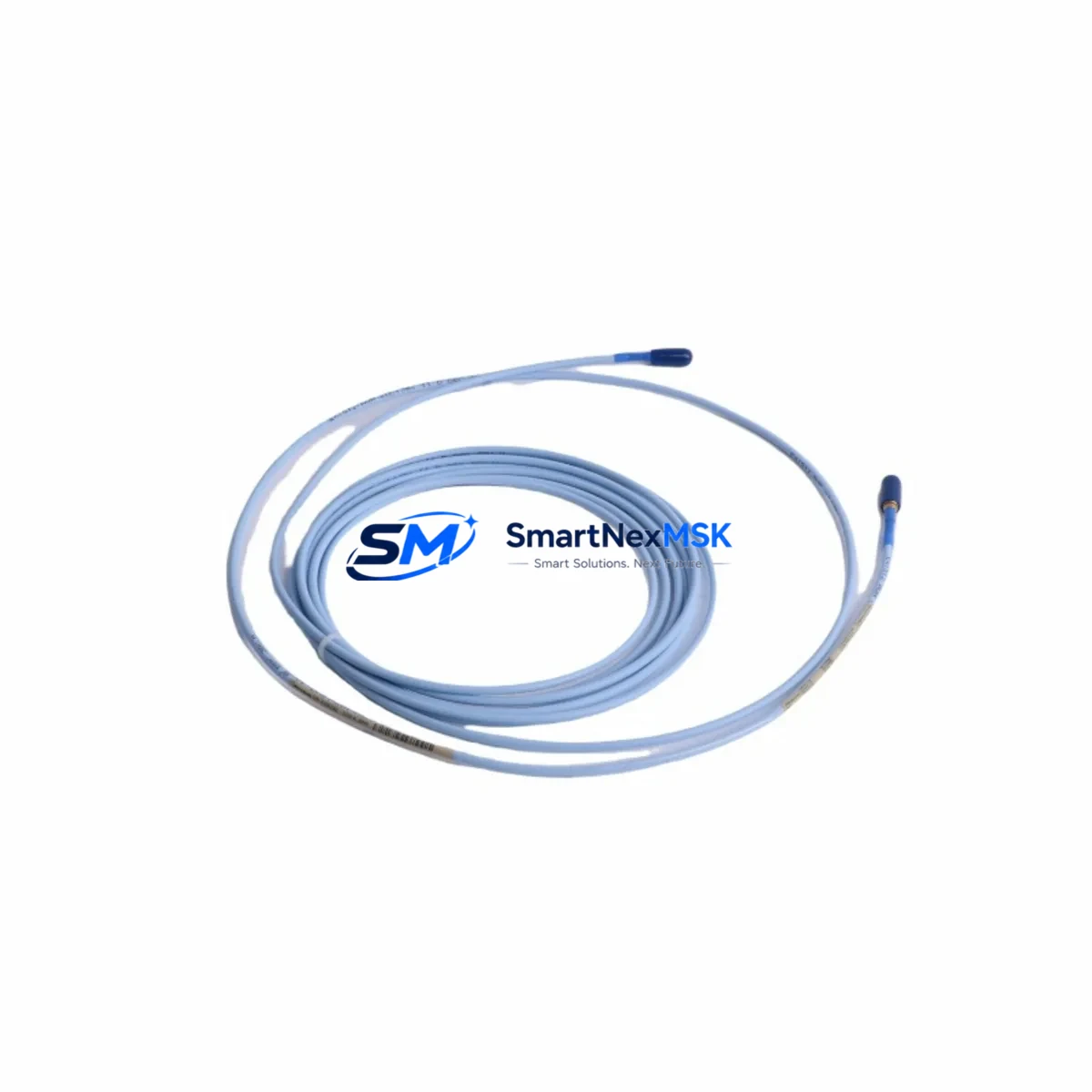

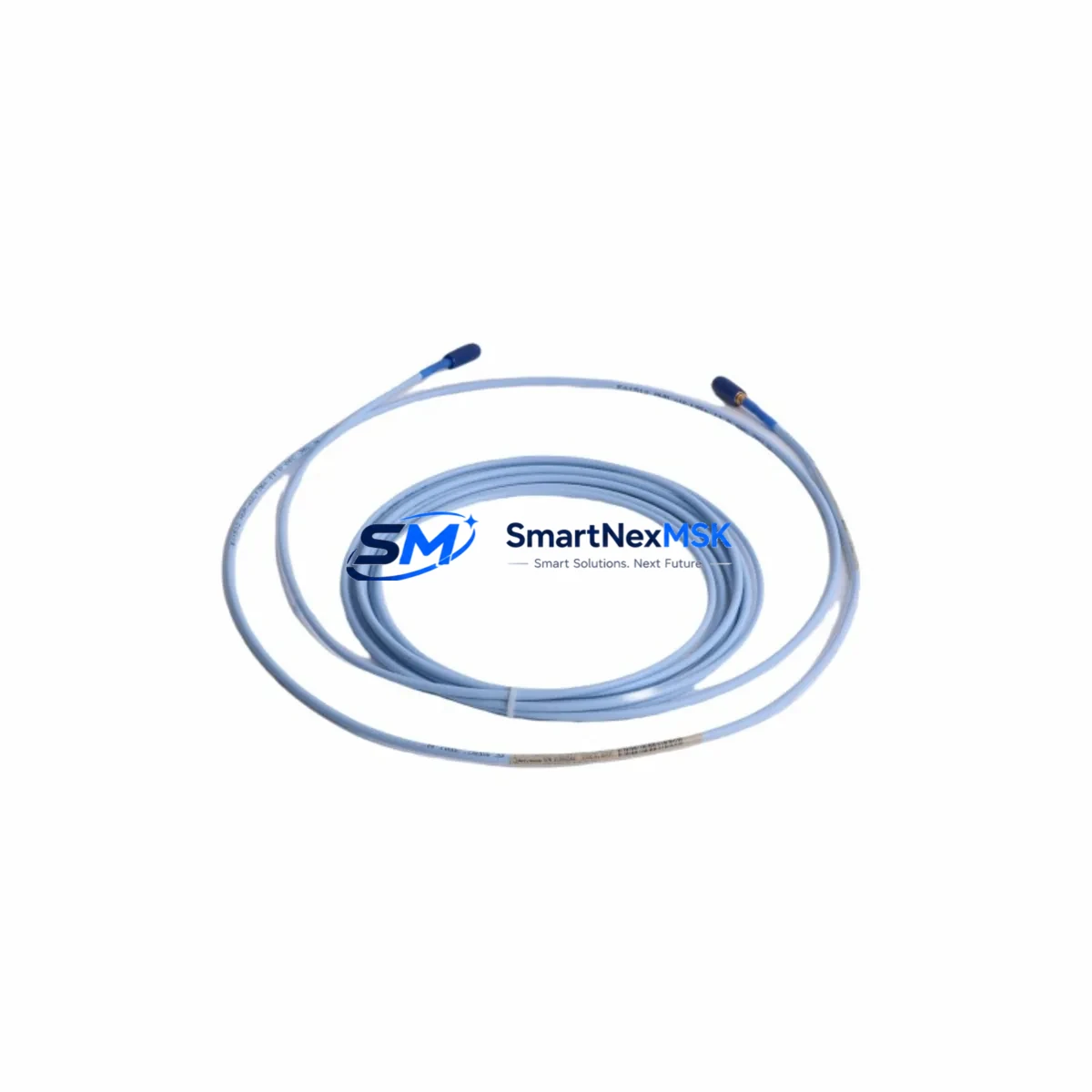

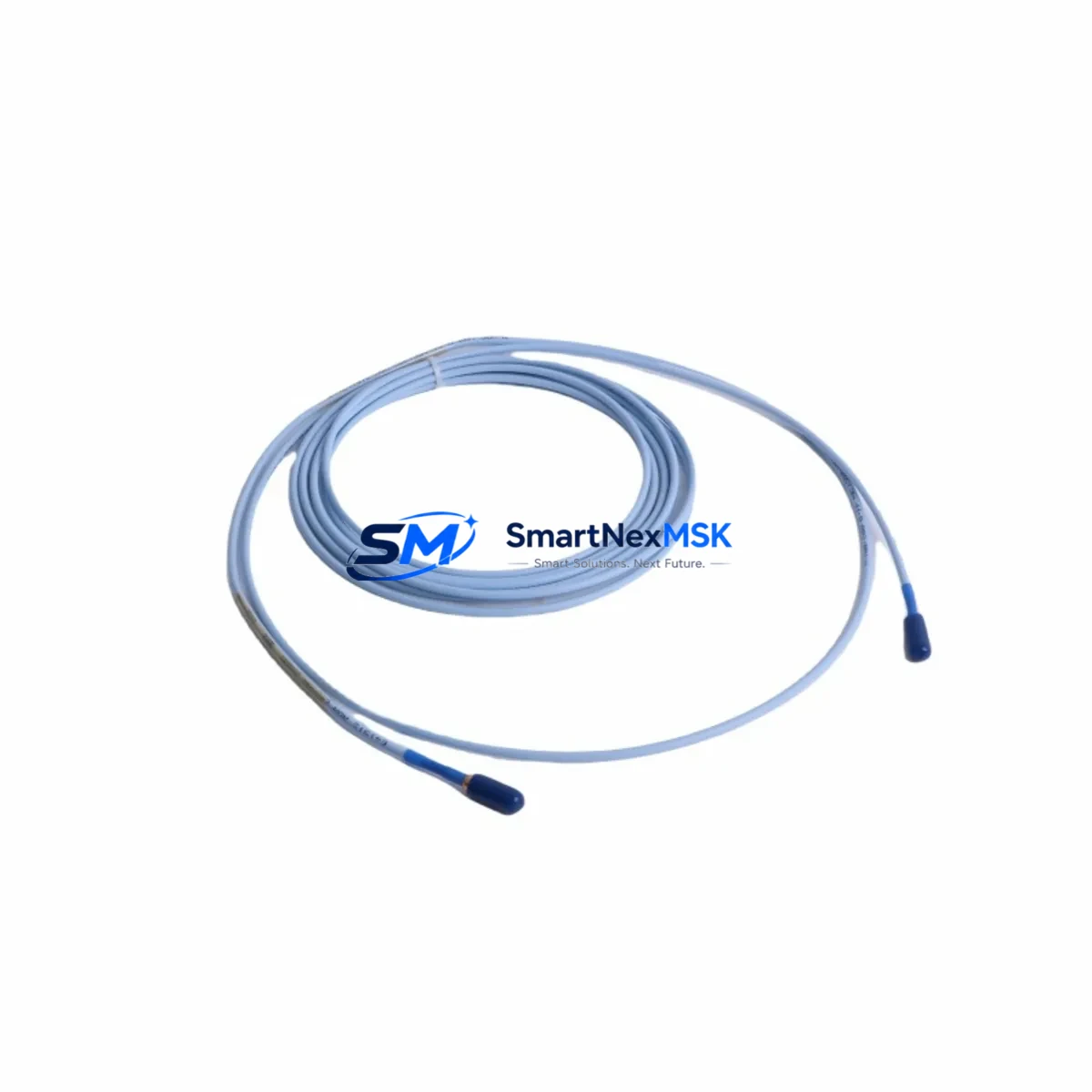

The Bently Nevada 330130-045-11-05 is an original 8mm eddy current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. In industrial facilities where rotating equipment — turbines, compressors, pumps, and gearboxes — operates around the clock, an unplanned transducer failure can trigger immediate machinery shutdown and cascade into costly unplanned downtime. Stocking a verified original spare of the 330130-045-11-05 is a fundamental element of any proactive maintenance strategy for plants running Bently Nevada 3300 XL monitoring infrastructure.

This transducer operates as part of a three-component proximity system alongside the 330130 series extension cable and the 3300 XL proximitor/seismic monitor. Its 5-metre system configuration delivers precise radial shaft vibration and position measurements, feeding critical data to the 3300 XL rack-mounted monitor cards. Maintenance engineers responsible for turbomachinery protection systems recognise that the transducer is the field-facing element most exposed to heat, contamination, and mechanical stress — making it the highest-priority spare in any 3300 XL spare parts kit.

From a procurement engineering perspective, sourcing an original Bently Nevada 330130-045-11-05 — rather than an uncertified substitute — ensures full system compatibility, preserves calibration traceability, and avoids the risk of false trips or missed alarms that can arise from non-OEM components. Each unit shipped by SMARTNEXMSK is individually tested and verified before dispatch, backed by a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-045-11-05 proximity transducer is flagged during routine control cabinet inspection or machinery health monitoring, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient for a complete corrective maintenance cycle. A thorough site assessment should include the following associated components within the same monitoring loop and control cabinet:

The 330130-045-11-05 extension cable (matched 5-metre cable assembly) should be inspected for jacket damage, connector corrosion, and continuity — cable degradation is a common root cause of intermittent transducer faults that are misdiagnosed as transducer failure. The 3300 XL proximitor/seismic monitor (such as the 3300/16 or 3300/20 series) should be bench-tested to confirm its bias voltage output and gain are within specification, as a drifting proximitor can cause false alarms even with a new transducer installed.

Within the 3300 XL rack, maintenance teams should verify the condition of the 3300 XL power supply module — an unstable rack power supply introduces noise into the proximity measurement chain and can cause erratic vibration readings. Adjacent I/O terminal blocks and field wiring terminations should be torqued and inspected for oxidation, particularly in high-humidity or high-vibration environments. If the monitoring system interfaces with a DCS or safety system, the 4–20 mA signal isolator or barrier in the output circuit should be verified for correct scaling and isolation integrity.

For plants running integrated machinery protection, the 3500 series rack system components — including 3500/42M position monitor cards and 3500/22M transient data interface modules — may share the same field wiring infrastructure and should be included in the inspection scope. Relay output modules within the 3300 XL rack that drive shutdown or alarm logic should be tested for contact resistance and correct trip setpoint configuration after any transducer replacement. Where HMI integration is present, confirm that the Bently Nevada System 1 software or equivalent condition monitoring platform correctly reflects the new transducer’s calibration data and gap voltage after installation.

Procurement engineers building a comprehensive 3300 XL spare parts inventory should also consider stocking replacement connector assemblies and coaxial adapters, as field connector damage is a frequent cause of signal loss that can be resolved without full transducer replacement if the correct adapters are available on-site.

Site Replacement Workflow

Replacing the 330130-045-11-05 in a live plant environment follows a structured sequence to minimise downtime and ensure system integrity. Before removing the existing transducer, record the current gap voltage (typically -10.0 to -11.0 VDC for a correctly gapped 8mm transducer) as a baseline reference. Isolate the monitoring channel at the 3300 XL rack — do not power down the entire rack unless plant safety procedures require it, as adjacent channels can remain in service during a single-channel transducer swap.

Remove the existing transducer and extension cable assembly together, inspecting the probe tip for wear, pitting, or contamination. Install the new 330130-045-11-05 and its matched extension cable, setting the gap to the manufacturer-specified linear range (typically 1.0–2.5 mm for an 8mm transducer). Re-energise the channel and verify the gap voltage at the proximitor output before reconnecting to the monitor card. Confirm that the 3300 XL monitor displays a valid vibration reading within expected baseline parameters before returning the machinery to service.

This workflow is compatible with direct replacement of legacy Bently Nevada 330130 series transducers, including earlier -01, -02, and -03 suffix variants, provided the extension cable system length is matched. The 330130-045-11-05 maintains full backward compatibility with existing 3300 XL rack infrastructure, eliminating the need for monitor card reconfiguration or software parameter changes in most installations.

Spare Parts Support FAQ

Q: Is the 330130-045-11-05 compatible with both 3300 XL and earlier 3300 series monitors?
A: The 330130-045-11-05 is designed and calibrated for the 3300 XL series. Compatibility with earlier 3300 (non-XL) monitors depends on the specific monitor card revision. We recommend confirming your monitor card part number before ordering. Our technical team can assist with compatibility verification.

Q: How is each unit tested before shipment?
A: Every 330130-045-11-05 unit is electrically tested prior to dispatch, including bias voltage output, sensitivity verification, and connector integrity checks. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed with priority turnaround to minimise plant downtime.

Q: Can you support long-term or blanket purchase orders for 3300 XL spare parts?
A: Yes. SMARTNEXMSK supports long-term supply agreements and blanket PO arrangements for 3300 XL system components, including transducers, extension cables, proximitor modules, and monitor cards. Contact our sales team to discuss inventory reservation, lead time commitments, and volume pricing.
