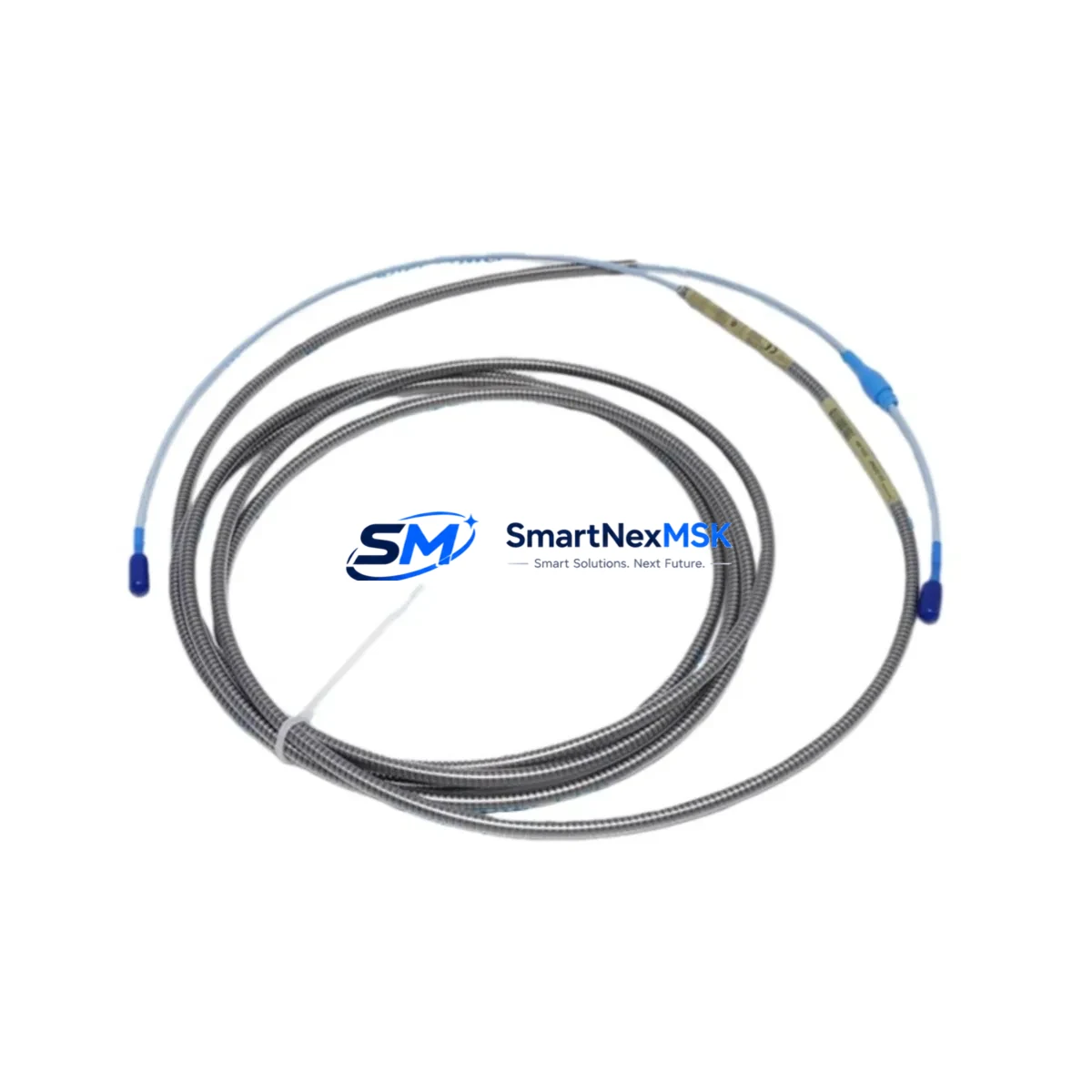

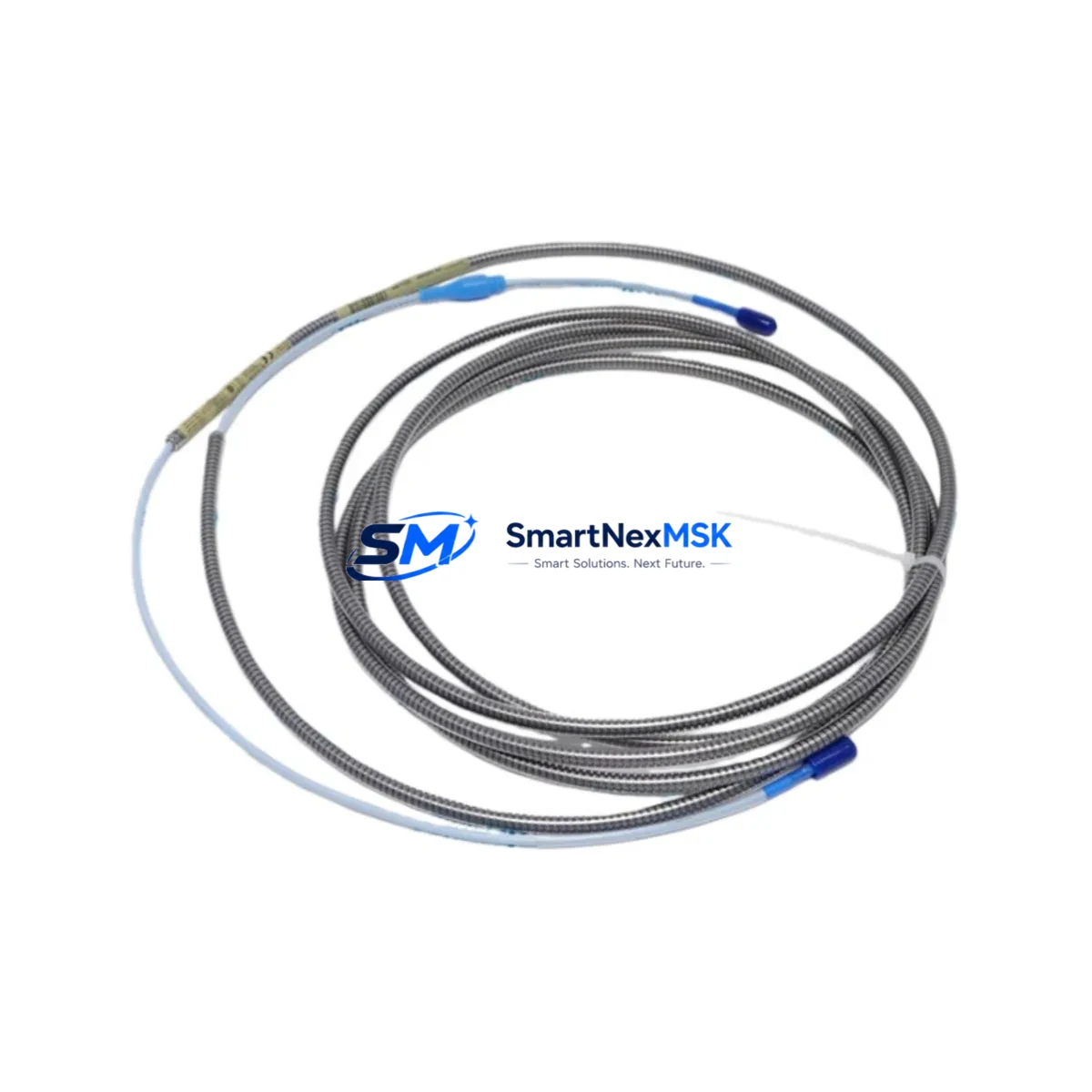

Bently Nevada 330130-045-13-CN Retrofit-Ready Extension Cable

Bently Nevada 330130-045-13-CN Retrofit-Ready Proximity Extension Cable for 3300 XL Control Systems

The Bently Nevada 330130-045-13-CN is a 4.5-meter (approximately 13-foot) proximity extension cable engineered for the 3300 XL Series machinery protection system. Designed as a direct retrofit replacement for aging or discontinued cable assemblies in continuous monitoring installations, this cable bridges the gap between the 3300 XL proximitor/sensor and the field-mounted transducer without requiring panel rewiring or signal conditioning changes. For maintenance engineers managing legacy vibration monitoring infrastructure, the 330130-045-13-CN delivers a wiring-compatible, drop-in upgrade path that minimizes downtime and preserves existing loop calibration.

In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — the extension cable is a critical link in the eddy-current proximity measurement chain. The 330130-045-13-CN connects the proximitor output to the 3300 XL monitor input, maintaining the precise impedance and shielding characteristics required for accurate gap voltage and vibration amplitude readings. When the original cable degrades due to insulation breakdown, connector corrosion, or mechanical fatigue, substituting a non-OEM cable risks measurement drift and nuisance trips. This replacement is manufactured to OEM-equivalent specifications, ensuring signal integrity is preserved across the full operating temperature range.

Procurement teams sourcing this cable as a spare or emergency replacement will find it compatible with the broader 3300 XL ecosystem, including the 3300 XL 8mm Proximitor Sensor, the 330180 Proximitor, and the 3300 XL 16-Channel Monitor. The cable mates directly with standard MIL-spec connectors used across the 3300 XL rack assembly, and no adapter or junction box modification is required. For sites running mixed fleets of Bently Nevada hardware, the 330130-045-13-CN is also cross-compatible with installations using the 3500 Series Monitoring System when the proximitor interface card is configured for 3300 XL sensor input ranges.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330130-045-13-CN in a live machinery protection panel requires a structured approach to avoid introducing measurement errors or triggering spurious shutdowns. Before disconnecting the existing cable, document the current gap voltage reading at the 3300 XL Proximitor output — typically between –10 VDC and –18 VDC for a properly gapped 8mm probe. This baseline reading is your post-installation verification target.

In most 3300 XL installations, the extension cable routes from the field-mounted 330180 Proximitor/Sensor through a conduit or cable tray to the monitor rack. The rack itself typically houses the 3300 XL 16-Channel Monitor alongside power supply modules such as the 3300 XL Power Supply (typically a –24 VDC regulated supply). Before pulling the old cable, confirm that the power supply output is within specification — a sagging supply rail will cause gap voltage errors that can be misattributed to a faulty cable or probe.

For sites upgrading from older 3300 Series (non-XL) hardware to the 3300 XL platform, the cable replacement is often part of a broader rack modernization that includes swapping the 3300/16 Monitor for the 3300 XL 16-Channel Monitor and updating the Keyphasor Module to the XL-compatible variant. In these cases, the 330130-045-13-CN serves as the final link in the signal chain, and its installation should follow the rack upgrade rather than precede it to avoid compatibility mismatches at the monitor input card.

Wiring adaptation is straightforward: the 330130-045-13-CN uses the same pin-out as the original OEM cable, so terminal block connections at the junction box or marshalling panel do not need to be re-labeled or re-terminated. However, if the installation includes a 3300 XL I/O Module for DCS integration — for example, feeding vibration data to a DeltaV S-Series Controller or a Honeywell C300 Controller via a 4–20 mA output card — verify that the analog output scaling in the monitor configuration matches the new cable’s signal range before re-enabling the DCS loop.

For sites where the 3300 XL system communicates with a plant historian or safety system via Modbus RTU or System 1 Evolution software, no protocol reconfiguration is needed after cable replacement — the monitor’s communication settings are independent of the physical cable assembly. However, it is good practice to force a data poll from the historian immediately after commissioning to confirm that vibration trend data resumes without gaps or frozen values.

All units are pre-tested for continuity, insulation resistance, and connector seating before shipment. Each cable ships with a test report confirming compliance with OEM-equivalent electrical specifications.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable replacement on a live machinery protection system requires pre-staging and a clear bypass protocol. Where the plant safety philosophy permits, place the affected channel in bypass mode on the 3300 XL Monitor before disconnecting the cable — this prevents a spurious trip signal from reaching the emergency shutdown system (ESD) or the DCS interlock logic during the swap.

The physical replacement itself takes under 15 minutes for a trained technician: disconnect the old cable at both the proximitor and the monitor rack, route the new 330130-045-13-CN through the existing conduit, seat the connectors fully, and torque to the specified value. Do not re-enable the monitor channel until the gap voltage has been verified at the proximitor output. If the reading is within ±0.2 VDC of the pre-removal baseline, the installation is complete. If it falls outside this range, check probe gap distance before assuming a cable fault.

For critical machines where even a brief bypass is not acceptable, a hot-standby approach is recommended: install the new cable in parallel with the existing one, verify the signal on a portable vibration analyzer such as the ADRE 408 DSPi, and only then disconnect the old cable. This approach preserves continuous monitoring throughout the replacement and is particularly valuable on high-speed compressors or steam turbines where the protection system must remain active at all times.

Original program logic in the 3300 XL Monitor — including alert and danger setpoints, time delays, and voting logic — is stored in non-volatile memory and is unaffected by cable replacement. No re-programming or configuration download is required after the swap, which further reduces the risk window and keeps the maintenance window to a minimum.

Retrofit Support FAQ

Q1: Is the 330130-045-13-CN a direct drop-in replacement for the original Bently Nevada cable?
Yes. The 330130-045-13-CN is manufactured to OEM-equivalent specifications, including connector pin-out, cable impedance, and shielding construction. No adapter, junction box modification, or re-termination is required. It installs directly in place of the original cable without any changes to the monitor configuration or field wiring.

Q2: Will this cable work with both the 3300 XL and the older 3300 Series monitors?
The 330130-045-13-CN is optimized for the 3300 XL Series. Compatibility with older 3300 Series (non-XL) monitors depends on the specific monitor card and proximitor variant in use. We recommend confirming the monitor model and proximitor part number before ordering. Our technical team can assist with compatibility verification at no charge.

Q3: What commissioning checks are required after installation?
After seating the cable at both ends, measure the gap voltage at the proximitor output with a calibrated digital multimeter. The reading should be within ±0.2 VDC of the pre-removal baseline (typically –10 VDC to –18 VDC for an 8mm probe at nominal gap). If the reading is out of range, check probe gap distance and connector seating before concluding the cable is at fault. No software reconfiguration is needed.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector failures, insulation breakdown, and signal integrity failures under normal operating conditions. Each unit ships with a pre-shipment test report. Warranty claims are processed within 5 business days, and replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your downtime exposure.
