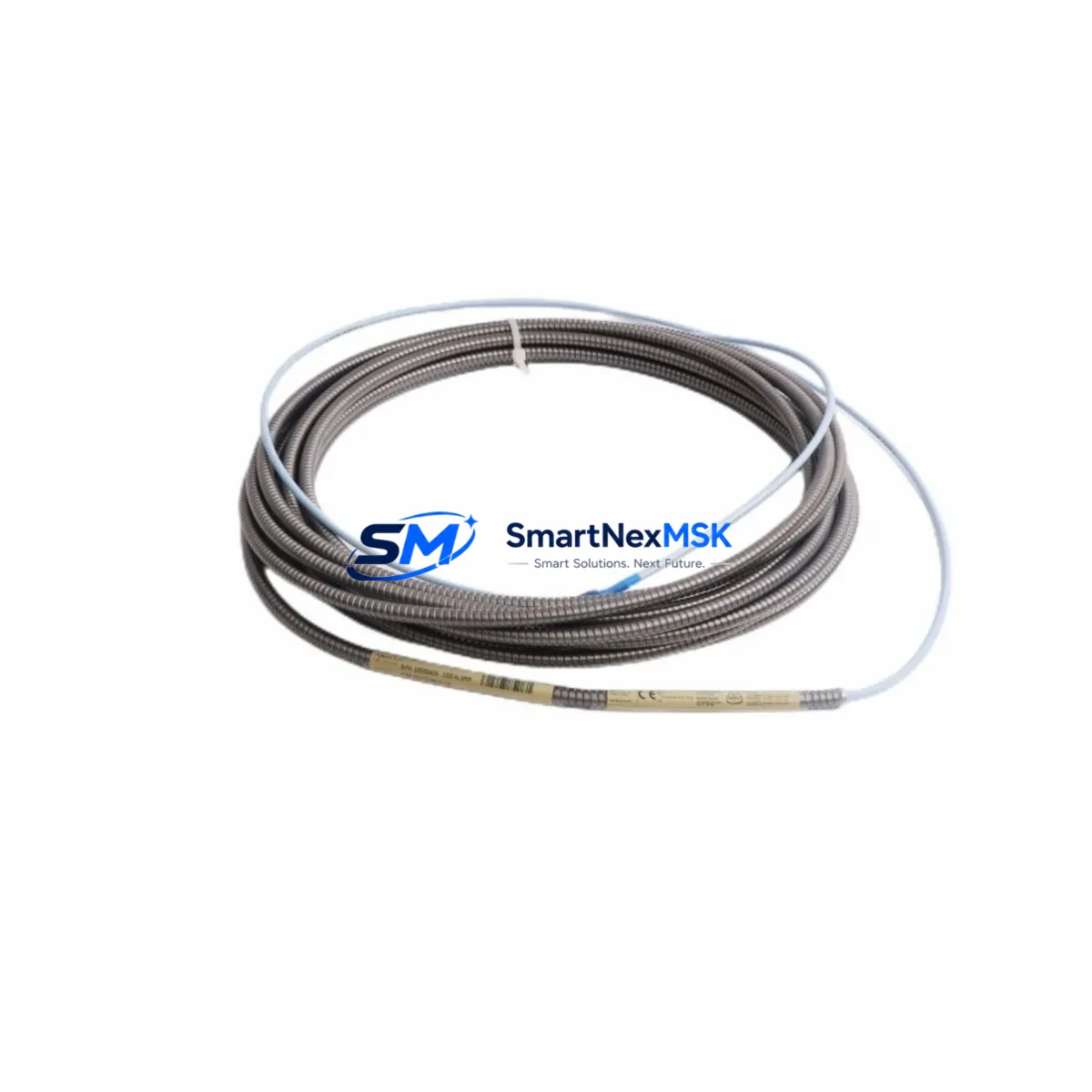

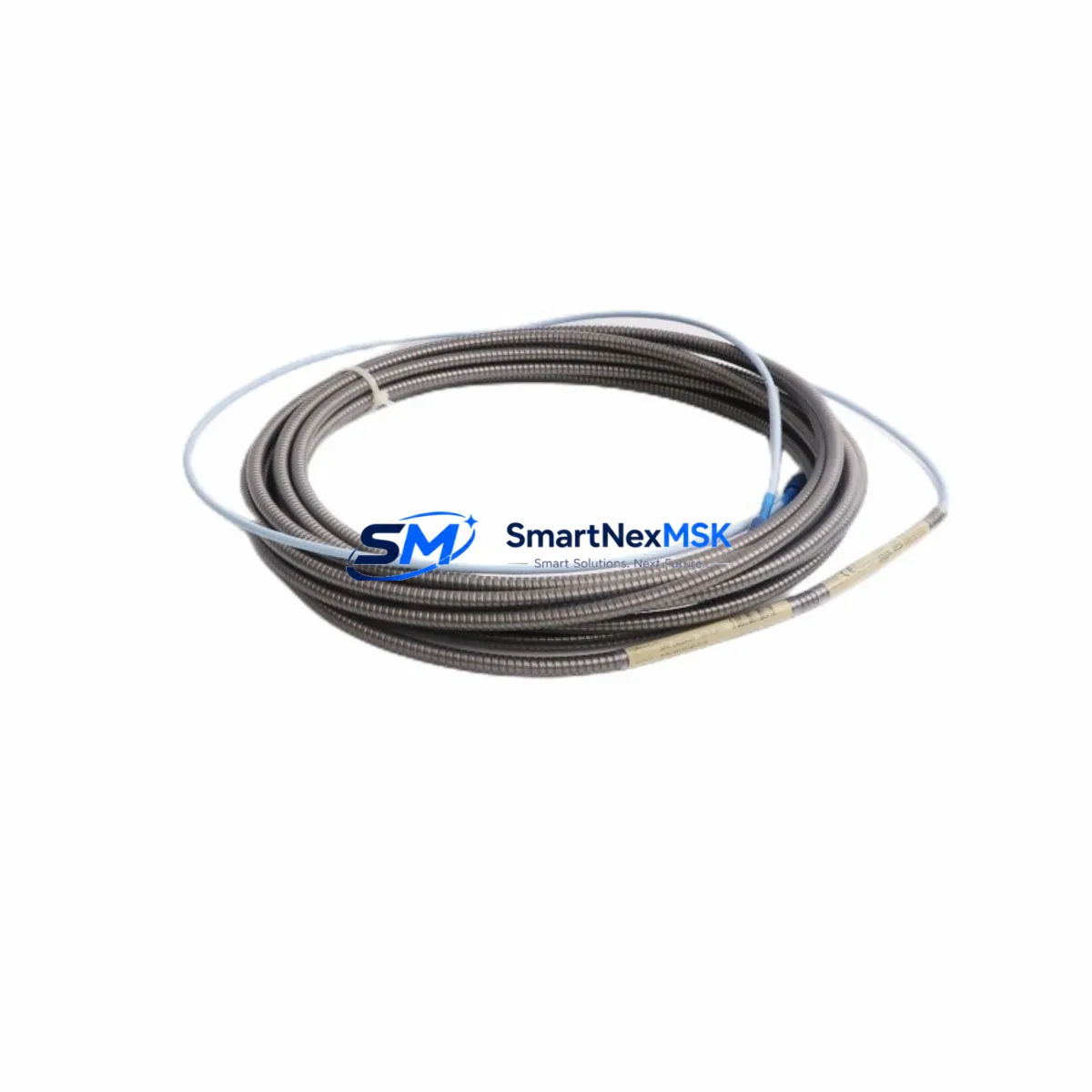

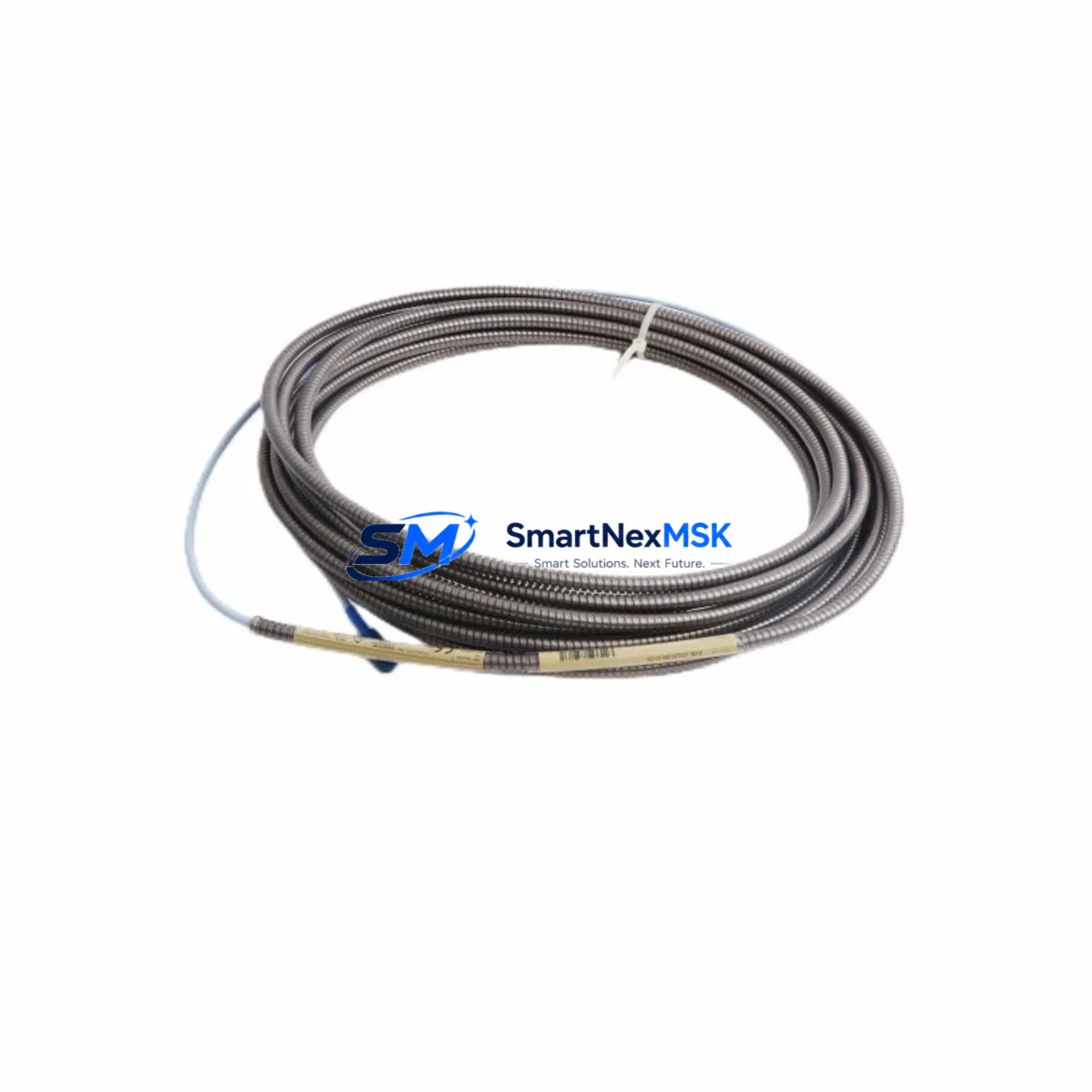

The Bently Nevada 330130-080-01-CN is an original armored extension cable engineered for the 3300 XL proximity transducer system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications. Designed to bridge the gap between the 3300 XL proximitor/driver and the eddy-current probe, this cable is a precision-matched component that directly affects signal integrity, measurement accuracy, and system uptime. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process environments, having a verified spare of the 330130-080-01-CN on the shelf is a fundamental risk-reduction strategy.

This cable is rated for industrial field environments and is constructed with armored shielding to resist mechanical damage, EMI interference, and chemical exposure common in oil & gas, power generation, petrochemical, and heavy manufacturing facilities. The 330130-080-01-CN is a direct OEM-equivalent replacement that maintains the calibrated system gap voltage and sensitivity required by the 3300 XL monitoring system, ensuring no recalibration is needed upon installation when the correct probe and proximitor combination is preserved.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-080-01-CN extension cable fails or degrades, the downstream effect is immediate: the 3300 XL monitoring system loses its ability to accurately track shaft vibration, axial position, or differential expansion — all critical parameters for rotating machinery protection. A planned maintenance approach requires that this cable be treated as a consumable spare, not a reactive purchase.

During scheduled outages or control cabinet inspections, maintenance engineers should evaluate the 330130-080-01-CN alongside the full proximity measurement chain. This includes the eddy-current probe (such as the 330103-00-06-10-02-00 or 330104 series), the 3300 XL Proximitor Sensor module, and the associated 3500/40M or 3500/42M vibration monitor cards housed in the 3500 rack. A degraded cable can introduce noise, offset errors, or complete signal loss that mimics probe or proximitor failure — making cable condition verification a first step in any fault isolation workflow.

Beyond the measurement chain itself, a thorough cabinet inspection should also address the 3500 rack power supply module, which provides the regulated -24 VDC required by the proximity system. Fluctuations in supply voltage directly affect gap voltage stability and can accelerate cable insulation degradation. Inspecting the terminal blocks and field wiring junction boxes where the extension cable terminates is equally important — corroded or loose terminations are a common source of intermittent faults that are difficult to distinguish from cable failure.

For facilities running legacy 3300 XL systems alongside newer 3500 series monitors, maintaining a cross-compatible spare inventory is advisable. The 330130-080-01-CN is also relevant in systems where the 3300 RAM (Rack-based Acquisition Module) or 3300/16 monitor cards are still in service. In these environments, the extension cable interfaces with the same probe family, and a single spare SKU can serve multiple monitoring loops across the plant.

Procurement engineers should also consider stocking the 330180 series proximitor sensors and 330905 cable assemblies as complementary spares. When budgeting for a planned turnaround, grouping the 330130-080-01-CN with associated I/O barrier modules, signal isolators, and Zener barriers used in hazardous-area installations ensures that a single maintenance event does not expose the facility to a secondary parts shortage. Fuse holders and surge protection devices at the field junction box level are low-cost items that are frequently overlooked until they cause a monitoring gap.

Site Replacement Workflow

Replacing the 330130-080-01-CN in the field is a straightforward procedure when the correct spare is on hand, but the process must be executed carefully to preserve system calibration and avoid introducing new faults.

Step 1 — Verify Compatibility: Confirm that the replacement cable matches the original part number exactly, including the suffix (-01-CN). The suffix designates the connector configuration and regional specification. Substituting a cable with a different suffix may result in connector incompatibility or impedance mismatch that affects system sensitivity.

Step 2 — De-energize and Isolate: Follow site lockout/tagout (LOTO) procedures. The 3300 XL system operates at -24 VDC; while low-voltage, the monitoring system should be placed in bypass mode at the 3500 rack or 3300 monitor to prevent spurious trip signals during cable disconnection.

Step 3 — Document Gap Voltage: Before disconnecting the old cable, record the current gap voltage at the proximitor output. This baseline value (typically between -10 VDC and -18 VDC depending on probe-to-target gap) will be used to verify correct installation of the replacement cable.

Step 4 — Replace and Reconnect: Route the new 330130-080-01-CN cable following the original cable path, maintaining separation from high-voltage power cables and avoiding sharp bends near connectors. Secure with original cable clamps or equivalent stainless-steel ties rated for the installation environment.

Step 5 — Verify Gap Voltage and Signal: After reconnection, restore power and verify that the gap voltage returns to the documented baseline (±0.5 VDC tolerance is acceptable). Confirm that the 3500 rack or 3300 monitor displays a valid, noise-free vibration signal before removing the bypass and returning the channel to active protection.

Step 6 — Update Maintenance Records: Log the replacement date, cable serial number (if applicable), and post-installation gap voltage in the plant CMMS. Schedule the next inspection interval based on the operating environment — cables in high-vibration or high-temperature zones should be inspected annually.

Spare Parts Support FAQ

Q1: Is the 330130-080-01-CN compatible with both 3300 XL and legacy 3300 series monitors?
The 330130-080-01-CN is designed and calibrated for the 3300 XL proximity system. While the physical connectors may be compatible with some legacy 3300 series installations, the system sensitivity and impedance characteristics are optimized for the 3300 XL Proximitor Sensor. Always verify the full measurement chain (probe + extension cable + proximitor) is matched to the same series before installation to ensure accurate readings and avoid false trips.

Q2: How should I store spare 330130-080-01-CN cables to maximize shelf life?
Store in original packaging or equivalent anti-static, moisture-resistant packaging in a climate-controlled environment (10°C–30°C, relative humidity below 70%). Avoid coiling the cable tightly or placing heavy objects on top of it. Inspect connectors for oxidation annually and apply contact-grade protective spray if stored for more than 18 months. Properly stored cables maintain full electrical performance for 5+ years.

Q3: What testing is performed before shipment?
Every 330130-080-01-CN unit is electrically tested prior to shipment, including continuity verification, insulation resistance check, and shield integrity confirmation. Units are inspected for connector condition, jacket integrity, and armoring continuity. A 12-month warranty covers any defects in materials or workmanship from the date of shipment. Test records are available upon request for quality-critical installations.

Q4: Can this cable be used as a long-term replacement for discontinued or end-of-life Bently Nevada part numbers?
Yes. The 330130-080-01-CN is maintained as an active spare part to support installed base systems that may no longer be covered under OEM service agreements. For facilities managing aging 3300 XL infrastructure, stocking this cable as part of a documented end-of-life extension strategy is a proven approach to deferring costly system upgrades while maintaining measurement reliability. Our long-term supply commitment ensures availability for multi-year maintenance contracts and turnaround planning.
