Bently Nevada 330130-080-02-CN Retrofit Cable 3300 Series

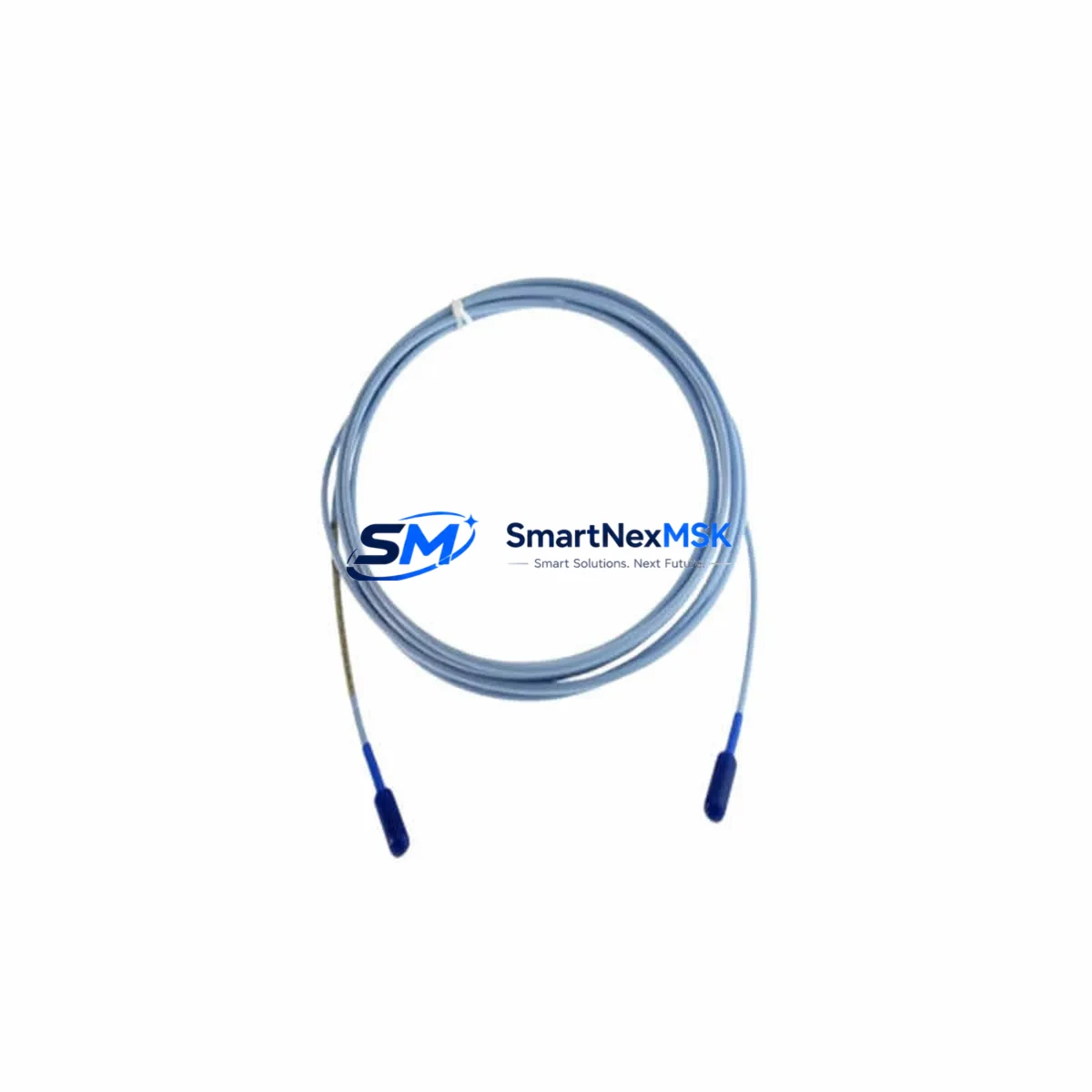

The Bently Nevada 330130-080-02-CN is an 8-metre proximity transducer extension cable engineered for the 3300 Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As legacy installations age and original cables reach end-of-service life, sourcing a verified, drop-in replacement becomes a critical priority for maintenance and reliability engineers managing turbines, compressors, pumps, and gearboxes. This retrofit-ready cable delivers the electrical and mechanical characteristics required to restore full system functionality without reprogramming, rewiring, or hardware modification to the monitoring rack.
The 330130-080-02-CN connects the proximity probe to the Bently Nevada 3300 XL proximitor sensor, maintaining the precise signal path that the monitoring system depends on for accurate gap voltage, vibration amplitude, and shaft position readings. When this cable degrades — through insulation cracking, connector wear, or moisture ingress — the entire measurement channel becomes unreliable, triggering nuisance alarms or, worse, masking genuine machinery faults. Replacing it promptly with a specification-matched cable is the fastest path to restoring measurement integrity and system confidence.
Upgrade Compatibility Table
| Parameter | Specification |
|---|---|
| Part Number | 330130-080-02-CN |
| Cable Length | 8 metres (80 dm) |
| Compatible System | Bently Nevada 3300 Series Vibration Monitoring |
| Compatible Proximitor | 3300 XL 8mm Proximitor Sensor |
| Compatible Probe | 330100 / 330101 / 330103 Series Proximity Probes |
| Connector Type | MIL-spec coaxial, gold-plated contacts |
| Signal Type | Eddy-current proximity, DC-coupled |
| Operating Temperature | -40°C to +85°C |
| Installation | Drop-in replacement, no rack modification required |
| Retrofit Compatibility | Direct replacement for worn or damaged OEM cables |
| Pre-shipment Test | Continuity, insulation resistance, connector integrity |
| Warranty | 12-Month Warranty |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330130-080-02-CN requires a systematic review of the entire measurement loop — not just the cable itself. Maintenance engineers should begin by confirming the proximitor sensor model installed in the field. The 3300 XL Proximitor Sensor is the standard pairing for this cable length; if the proximitor has been previously replaced with a 3300 NSv or a third-party equivalent, connector and impedance compatibility must be verified before installation.
The proximity probe at the machine end — typically a 330100 or 330103 series probe — should be inspected for tip damage, thread condition, and gap setting. A cable replacement is an ideal opportunity to re-verify the probe gap voltage, which should fall within the linear range specified in the 3300 Series system documentation (typically -10 VDC ±20%). If the gap voltage is outside this range after cable replacement, the probe itself or the proximitor may require attention.
At the monitoring rack, engineers should inspect the 3300 Series monitor module — such as the 3300/16 or 3300/20 — for channel configuration, alarm setpoints, and OK relay status. A new cable that restores signal integrity may cause the OK relay to re-energize, which should be anticipated in the control logic to avoid spurious process trips. The rack’s power supply module should also be checked to confirm it is delivering stable -24 VDC to the proximitor loop; a marginal power supply can cause intermittent OK dropouts even with a new cable installed.
For installations integrated with a System 1 condition monitoring platform or a DCS historian, the channel tag mapping and engineering unit scaling should be confirmed after cable replacement to ensure the data stream is correctly interpreted upstream. If the plant uses a Bently Nevada 3500 Series rack in parallel for overspeed or thrust position monitoring, the wiring segregation between the 3300 and 3500 channels should be maintained to prevent ground loop interference.
Conduit routing and cable support should be reviewed during the retrofit. The 330130-080-02-CN’s 8-metre length is designed to reach from the machine bearing housing to the proximitor mounted on the machinery skid or in a nearby junction box. Excess cable should be coiled and secured — not tightly bundled — to avoid capacitance changes that could affect the eddy-current measurement. Cable ties, conduit clamps, and terminal block labels should be updated to reflect the new cable installation date and part number for future maintenance traceability.
Downtime Control During System Migration
Replacing the 330130-080-02-CN in a live plant environment requires careful coordination to minimize unplanned downtime. The recommended approach is to pre-stage the replacement cable, verify its continuity and connector integrity on the bench, and schedule the swap during a planned maintenance window or opportunistic outage. If the machine must remain in service until the swap, the monitoring system should be placed in bypass mode for the affected channel — following the plant’s management of change procedure — to prevent a nuisance trip during the cable disconnection.
During the physical swap, the proximitor sensor should remain powered if possible, allowing the technician to monitor the gap voltage in real time as the new cable is connected. This confirms correct installation immediately without requiring a separate commissioning step. Once the new cable is seated and the gap voltage is within specification, the channel bypass can be removed and the alarm setpoints re-enabled. The entire swap, when pre-staged, typically takes under 30 minutes per channel, making it feasible to complete during a short process hold or equipment coast-down.
For plants migrating from older 3300 Series installations to newer 3500 Series racks, the 330130-080-02-CN can serve as an interim solution to maintain measurement continuity on the legacy channels while the rack upgrade is planned and budgeted. This phased approach avoids the risk of a simultaneous cable and rack replacement, which increases the probability of commissioning errors and extended downtime.
Retrofit Support FAQ
Q: Is the 330130-080-02-CN a direct drop-in replacement for the original Bently Nevada cable?
A: Yes. The 330130-080-02-CN is manufactured to match the original OEM electrical and mechanical specifications, including connector type, cable impedance, and length. No rack modification, re-parameterization, or software change is required. The replacement is a direct swap that restores the measurement channel to its original performance.
Q: How is the cable tested before shipment?
A: Every 330130-080-02-CN unit undergoes pre-shipment testing covering DC continuity, insulation resistance, and connector contact integrity. Test records are retained and can be provided upon request. The 12-month warranty covers manufacturing defects and electrical performance from the date of shipment.
Q: What should I check if the OK relay does not re-energize after installing the new cable?
A: First verify the probe gap voltage is within the linear range (-10 VDC ±20%) using a calibrated voltmeter at the proximitor output terminals. If the gap voltage is correct, check the proximitor power supply voltage (-24 VDC) and inspect the monitor module’s OK threshold setting. If the issue persists, the proximitor sensor or the probe itself may require replacement.
Q: Can you supply multiple cables for a fleet-wide retrofit or planned maintenance stock?
A: Yes. We maintain inventory of the 330130-080-02-CN and can fulfill both single-unit emergency orders and bulk procurement for planned maintenance programs. Lead times and pricing for volume orders are available upon request. All units carry the same 12-month warranty regardless of order quantity.
