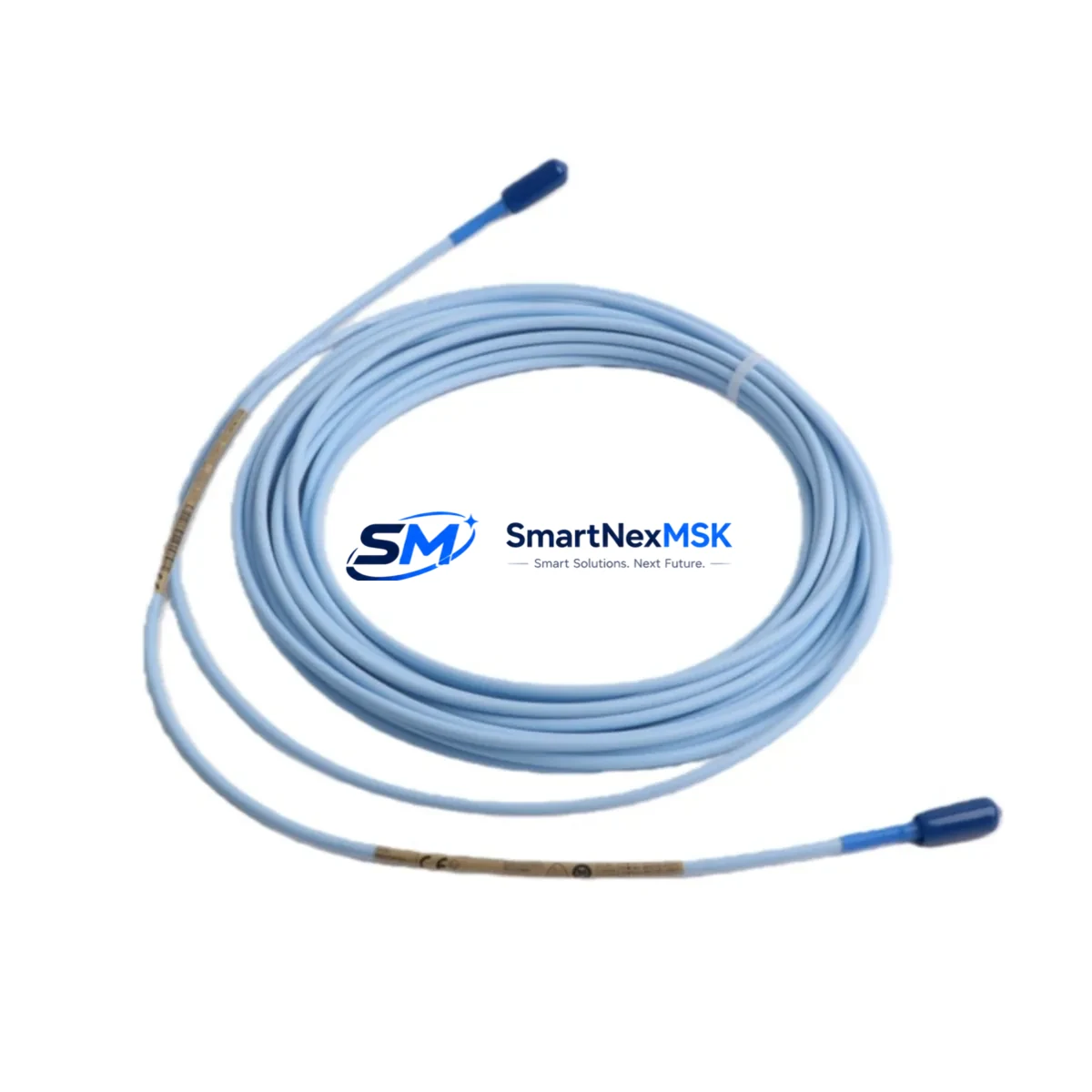

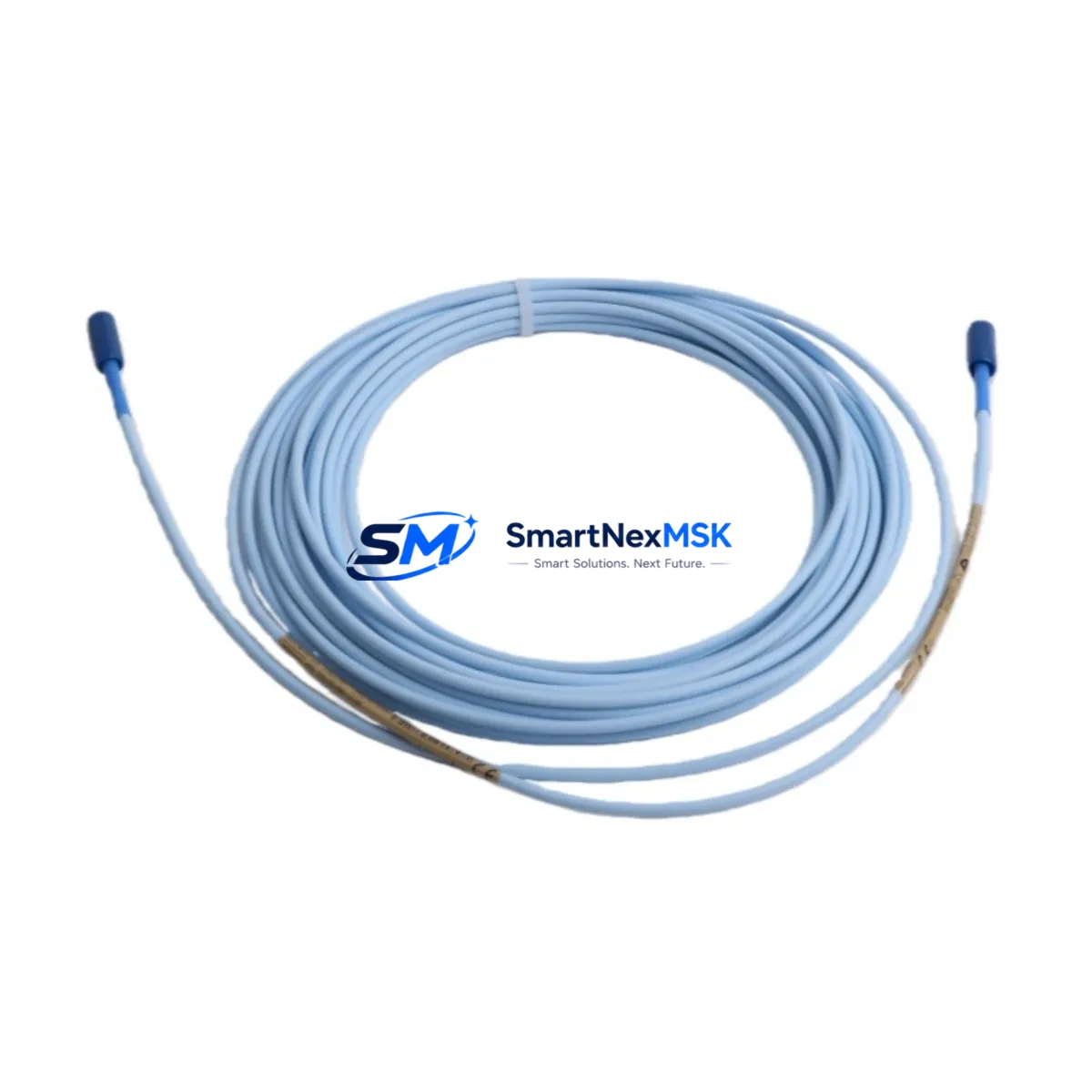

The Bently Nevada 330130-080-10-CN is an original proximity extension cable engineered for the 3300 XL Series transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. In continuous-process industries such as petrochemical, power generation, oil & gas, and heavy manufacturing, the integrity of the proximity probe circuit is mission-critical. A degraded or failed extension cable can cause false trip signals, loss of vibration data, or complete channel dropout, leading to unplanned shutdowns that cost thousands of dollars per hour.

This listing provides a maintenance-ready, original-specification 330130-080-10-CN extension cable, stocked and tested for immediate dispatch. Whether you are executing a planned turnaround, responding to a channel alarm, or building a strategic spare parts inventory for your 3300 XL monitoring system, this component delivers the electrical and mechanical performance required for reliable long-term operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330130-080-10-CN extension cable is flagged for replacement during a routine control cabinet inspection or vibration channel audit, maintenance engineers should treat the event as an opportunity to assess the entire proximity probe circuit and associated monitoring infrastructure. The extension cable is the mechanical and electrical bridge between the probe tip and the proximitor sensor; any compromise in its shielding, connector seating, or coaxial impedance will corrupt the gap voltage signal and degrade the accuracy of the 3300 XL monitor’s radial vibration, axial position, or differential expansion measurement.

During the same maintenance window, technicians should verify the condition of the 3300 XL 8mm proximity probe (typically 330103 or 330104 series) at the bearing housing end, checking for tip damage, thread corrosion, and proper gap setting. The 3300 XL proximitor sensor (330180 or 330181 series) mounted in the junction box should be inspected for moisture ingress, terminal corrosion, and correct output voltage at the nominal gap. If the proximitor is more than 10 years old or shows output drift, proactive replacement alongside the extension cable eliminates a second outage window.

At the monitor rack level, the corresponding 3300/16 or 3500/42 vibration monitor card input channel should be verified for correct OK relay status and alarm setpoint integrity after cable replacement. Technicians should also inspect the 3300 XL field wiring barrier or intrinsic safety barrier if the installation is in a classified hazardous area, as barrier degradation can mimic cable faults. The terminal block assemblies within the marshalling cabinet — particularly the coaxial-to-screw-terminal adapters — should be checked for oxidation and proper torque.

For systems integrated with a Bently Nevada 3500 Series rack, confirm that the System 1 software channel configuration reflects the correct probe type, gap range, and scale factor after any hardware change. Where the 3300 XL system feeds a DCS analog input card (such as an Emerson DeltaV or Honeywell Experion AI module), verify the 4–20 mA or voltage signal at the DCS termination panel to confirm end-to-end signal integrity. In plants using Modbus or FOUNDATION Fieldbus communication modules for vibration data aggregation, a channel status poll after cable replacement confirms correct data transmission before the machine is returned to service.

Procurement engineers building a strategic spare parts list for a 3300 XL-equipped train should consider stocking at minimum one extension cable per monitored bearing position, one spare proximitor sensor per machine, and a set of coaxial connector repair kits to address field connector damage without full cable replacement. For critical machines with long lead times on OEM parts, a buffer of two to three 330130-series cables per train is a defensible inventory position.

Site Replacement Workflow

1. Pre-replacement verification: Confirm the channel alarm condition in the 3300 XL or 3500 monitor. Document the existing gap voltage (typically –10.0 VDC ± 0.5 V at nominal gap) and OK relay status before de-energizing the circuit.

2. Safe isolation: Follow site LOTO procedures. The 3300 XL proximitor operates on –24 VDC supply; isolate at the monitor rack power distribution terminal before disconnecting the extension cable at either end.

3. Cable removal: Disconnect the armored connector at the proximitor junction box and at the probe body. Inspect the probe tip gap and thread condition. If the probe is within specification, retain it for reuse.

4. New cable installation: Route the 330130-080-10-CN replacement cable through the existing conduit or cable tray, observing minimum bend radius. Torque connectors to the manufacturer’s specification to ensure coaxial impedance continuity. Avoid routing adjacent to high-voltage power cables to prevent EMI coupling.

5. Functional verification: Re-energize the proximitor supply. Measure gap voltage at the monitor input terminal. Confirm OK relay energizes and the channel returns to normal status in the monitor display and DCS. Log the as-found and as-left gap voltage values in the maintenance management system.

6. System compatibility confirmation: The 330130-080-10-CN is a direct OEM replacement for all 3300 XL 8-metre extension cable positions. No reconfiguration of the proximitor or monitor card is required when replacing a like-for-like cable. For installations previously using a third-party or non-standard cable, verify the coaxial impedance and connector pinout match the 3300 XL system specification before energizing.

This replacement workflow minimizes machine downtime to the duration of the physical cable swap and functional check — typically 30 to 90 minutes for a single channel — compared to multi-hour outages caused by delayed spare parts procurement.

Spare Parts Support FAQ

Q1: Is the 330130-080-10-CN compatible with both the 3300 XL 8mm and 11mm probe systems?
The 330130-080-10-CN extension cable is designed for the 3300 XL transducer system and is electrically compatible with both 8mm and 11mm probe configurations. The proximitor sensor model determines the probe diameter compatibility; the extension cable itself is common across both probe sizes within the 3300 XL platform. Always confirm the complete probe-cable-proximitor system part numbers against the Bently Nevada system specification sheet for your installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330130-080-10-CN unit is tested for coaxial continuity, insulation resistance between the center conductor and shield, and mechanical connector integrity before dispatch. Units that do not meet OEM electrical specifications are not shipped. A test record is available upon request for quality-critical installations.

Q3: How should this cable be stored as a long-term spare?
Store in a dry, temperature-controlled environment (10°C to 40°C) away from direct sunlight and chemical exposure. Keep connectors capped with the original protective covers to prevent contamination of the coaxial mating surfaces. Inspect connector condition annually if stored for more than 12 months. The cable assembly has an indefinite shelf life when stored correctly; the 12-month warranty period begins from the date of shipment, not the date of installation.

Q4: What is the lead time and warranty coverage?
Units are in stock and ship within 1–3 business days from order confirmation. A 12-month warranty covers manufacturing defects and electrical performance from the date of shipment. Warranty claims are supported with replacement dispatch and technical documentation. For projects requiring multiple units or long-term supply agreements, contact our sales team for volume pricing and reserved stock arrangements.
