Bently Nevada 330130-080-11-00 Retrofit-Ready Extension Cable

Bently Nevada 330130-080-11-00 Retrofit-Ready Extension Cable for 3300 XL Control Systems

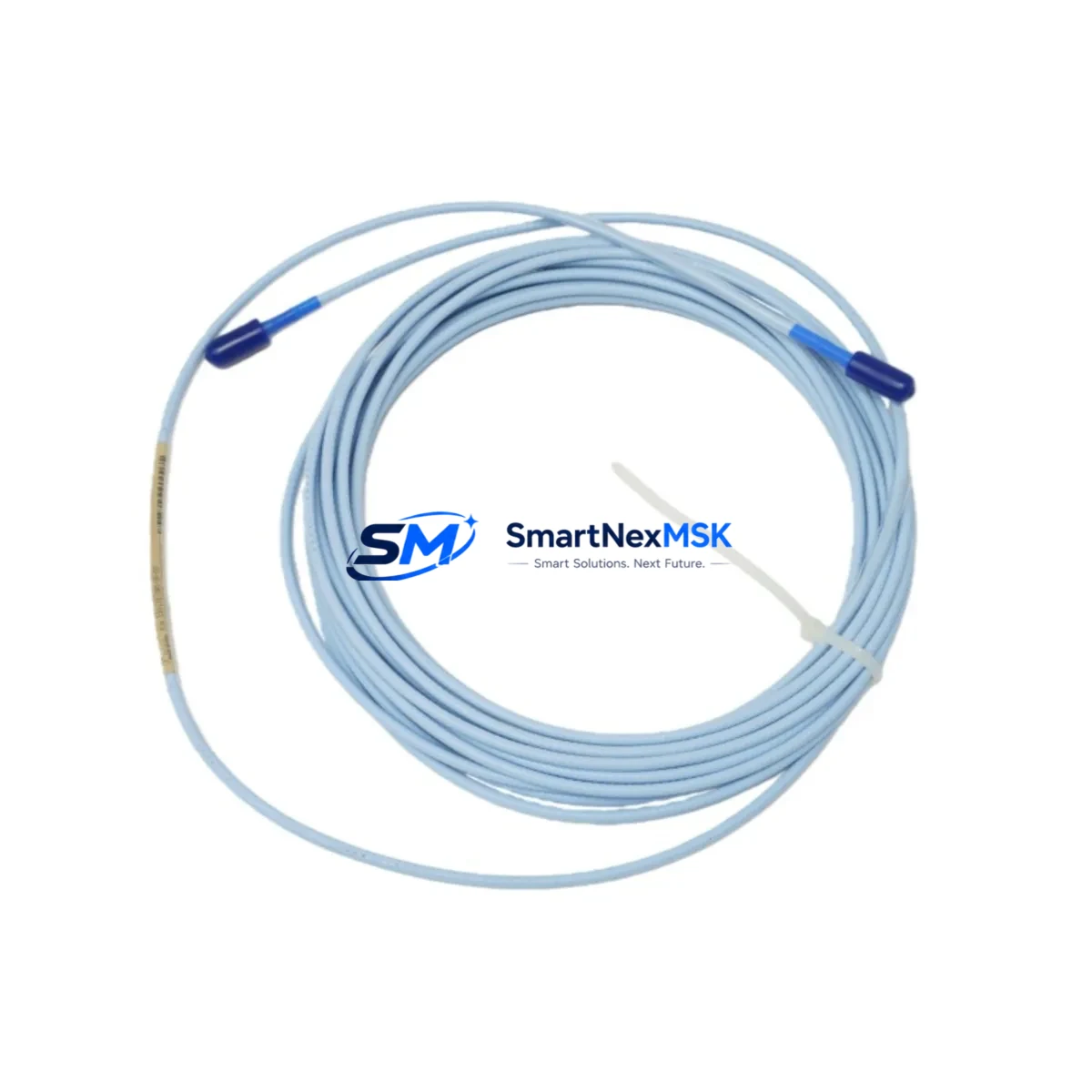

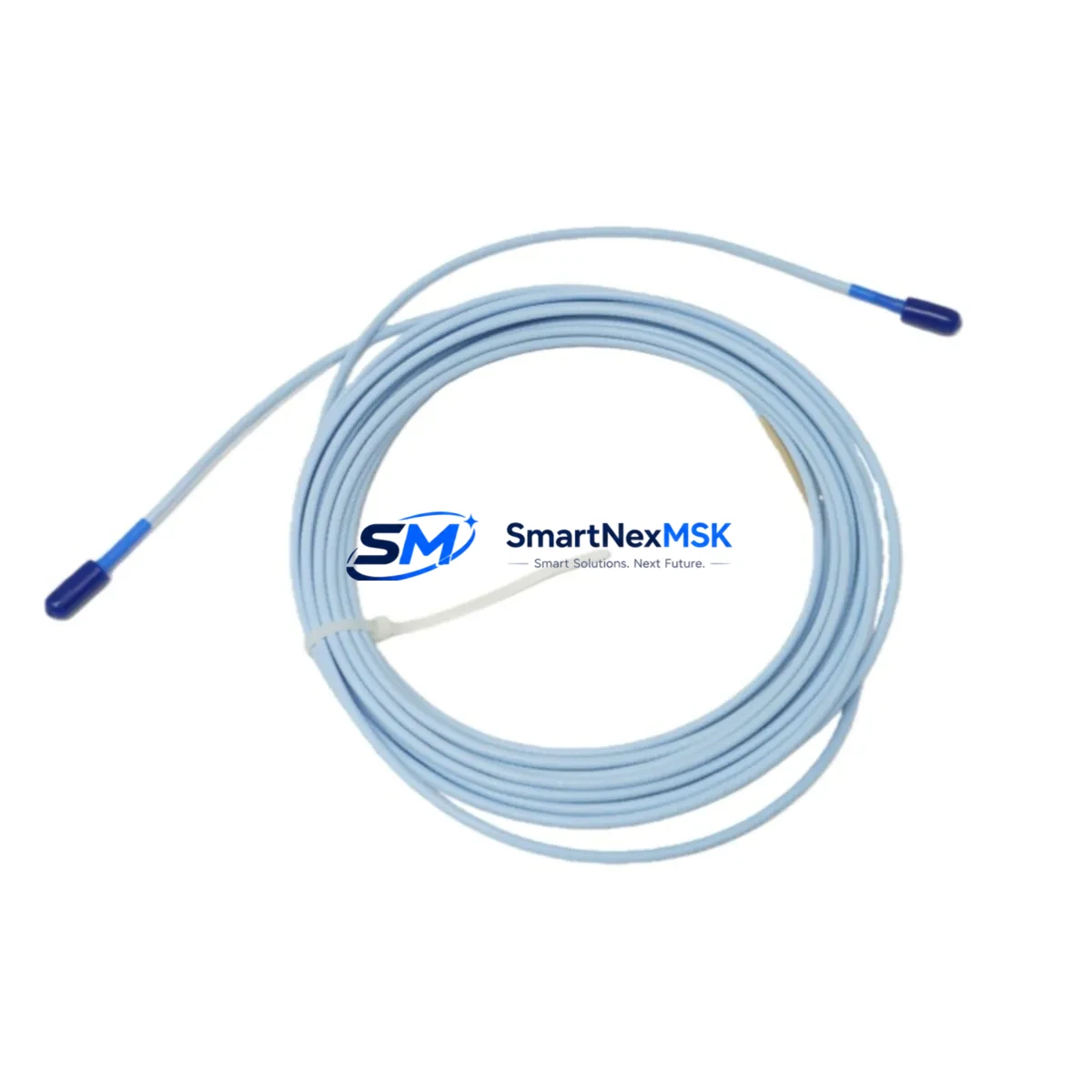

The Bently Nevada 330130-080-11-00 is an 8-meter proximity extension cable engineered specifically for the 3300 XL Proximitor Seismic Monitor System. As legacy rotating machinery protection systems approach end-of-life or require spare-part replenishment, this cable remains a critical link between the 3300 XL proximitor sensor and the field-mounted eddy-current probe. Whether you are executing a planned outage replacement, restoring a tripped vibration monitoring loop, or upgrading an aging control cabinet, the 330130-080-11-00 provides a verified drop-in fit without requiring re-calibration of the proximitor gap voltage or modification of existing conduit runs.

In retrofit projects where the original Bently Nevada 3300 XL rack is being retained alongside a newer DCS or safety system, the extension cable is frequently the first component to show wear — insulation cracking, connector corrosion, or signal attenuation caused by years of exposure to heat, vibration, and process fluids. Replacing the 330130-080-11-00 restores the full ±24 VDC proximitor supply loop integrity and ensures that the 3300 XL 16-channel monitor module receives a clean, noise-free signal from the probe tip to the front-end electronics. With in-stock inventory, fast dispatch, and a 12-month warranty, SMARTNEXMSK supports your system continuity from order to commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330130-080-11-00 begins well before the maintenance window opens. Engineers should first audit the full proximitor loop: confirm that the 3300 XL 8mm Proximitor Sensor (330180 series) is within calibration, that the 330104 or 330105 series proximity probe tip shows no mechanical damage, and that the 3300 XL 16-channel monitor module is logging clean gap-voltage readings. If the monitor module itself is flagging intermittent faults, inspect the 3300 XL I/O module termination board for loose terminal screws before attributing the fault solely to the cable.

In control cabinets where the 3300 XL rack shares a backplane with a Bently Nevada 3500 series rack — a common configuration in phased migration projects — the extension cable routing must be kept physically separated from high-voltage AC wiring and from the 3500/42M Proximitor I/O Module signal cables to prevent cross-talk. If the site is migrating from a 3300 XL architecture to a full 3500 platform, the 330130-080-11-00 can continue to serve the legacy loops during the transition period while the new 3500/42M modules are commissioned in parallel, minimising the scope of simultaneous changes and protecting original program logic.

For plants running a hybrid Modbus RTU or FOUNDATION Fieldbus communication backbone, the 3300 XL monitor’s analog outputs are typically wired into a remote I/O marshalling panel before being digitised by a DCS I/O card. Replacing the extension cable does not affect this signal chain, but technicians should confirm that the 4–20 mA loop resistance budget is within specification after the new cable is installed. Where the control system integrates a Bently Nevada System 1 condition monitoring software node, the gap-voltage trend data should be reviewed before and after the swap to validate that the new cable has restored baseline signal quality.

Sites that have already upgraded their vibration monitoring front-end to the Bently Nevada 3701/40 or 3701/44 series should note that those platforms use a different cable and proximitor ecosystem; the 330130-080-11-00 is specific to the 3300 XL Proximitor architecture. However, during a phased upgrade where both platforms coexist in the same control room, maintaining a stock of 330130-080-11-00 cables ensures that the legacy 3300 XL loops remain protected until full cutover is complete. For power supply continuity across the rack, verify that the 3300 XL Power Supply module is delivering stable ±24 VDC before and after the cable swap, as a marginal power supply can mask cable-related faults or produce misleading gap-voltage readings.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity cable replacement requires a structured pre-outage checklist. Before isolating the vibration monitoring loop, capture a screenshot or historian export of the current gap-voltage trend from the 3300 XL monitor or System 1 software — this baseline is essential for post-installation verification. If the plant safety system is configured to trip on loss of proximitor signal, coordinate with the control room to place the relevant 3300 XL channel in bypass mode for the duration of the swap, following your site’s Management of Change procedure.

The physical replacement of the 330130-080-11-00 typically takes under 30 minutes for a trained technician: disconnect the coaxial connectors at both the probe and proximitor ends, route the new cable through the existing conduit or cable tray, reconnect, and verify gap voltage at the monitor front panel. If the gap voltage reading deviates by more than ±0.5 V from the pre-swap baseline, re-inspect the probe-to-target air gap before concluding that the cable is at fault. Once gap voltage is confirmed stable, remove the bypass, observe the monitor for one full scan cycle, and document the as-left readings in the maintenance management system.

For sites where the 3300 XL rack is located in a remote machinery house with limited technician access, pre-testing the replacement 330130-080-11-00 on a bench rig using a 3300 XL Proximitor Sensor and a calibrated target disk before the outage window eliminates the risk of discovering a cable defect mid-maintenance. If your site also uses a Bently Nevada 3300 XL Keyphasor module for phase-reference measurements, confirm that the Keyphasor loop is unaffected by the cable routing changes before closing out the work order. All units shipped by SMARTNEXMSK undergo a functional continuity and insulation resistance test prior to dispatch, and a test report is available upon request to support your commissioning records.

Retrofit Support FAQ

Q1: Is the 330130-080-11-00 a direct drop-in replacement for my existing 3300 XL extension cable?
Yes. The 330130-080-11-00 is a direct replacement for any 330130-080-xx-00 variant used in the 3300 XL Proximitor loop. No re-gapping of the probe or re-calibration of the proximitor is required, provided the probe-to-target gap is within the original specification (typically 1.0–2.5 mm for 8mm probes). Verify gap voltage at the monitor after installation to confirm the loop is operating within setpoints.

Q2: How do I confirm wiring and terminal compatibility before installation?
The 330130-080-11-00 uses the standard Bently Nevada coaxial push-pull connector scheme. Match the cable-end markings (PROBE end / PROXIMITOR end) to the corresponding field device. Do not reverse the connections — the proximitor supply voltage is polarity-sensitive. Refer to Bently Nevada installation drawing 141536-01 or your site-specific loop drawing for terminal assignments. If your cabinet uses a marshalling terminal strip between the 3300 XL rack and the field junction box, verify that the terminal block wiring sequence matches the original loop drawing before energising.

Q3: What commissioning checks are required after replacing the cable?
After installation: (1) Confirm gap voltage is within –10 VDC ±0.5 V at the 3300 XL monitor front panel. (2) Check that the OK relay is energised and no fault LED is active. (3) Verify that vibration and position readings in the System 1 or DCS historian are consistent with pre-swap baseline values. (4) Remove any bypass placed on the safety system channel and confirm the trip setpoints are active. Document all as-left readings in your CMMS for traceability.

Q4: What warranty and quality assurance does SMARTNEXMSK provide?
All 330130-080-11-00 units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including continuity, insulation resistance, and connector integrity checks. A test report is available on request. For warranty claims or technical support, contact sales@smartnexmsk.com or call +86 18259474341.
