Bently Nevada 330130-080-13-00 Retrofit Cable 3300 XL

Bently Nevada 330130-080-13-00 Retrofit-Ready Extension Cable for 3300 XL Control Systems

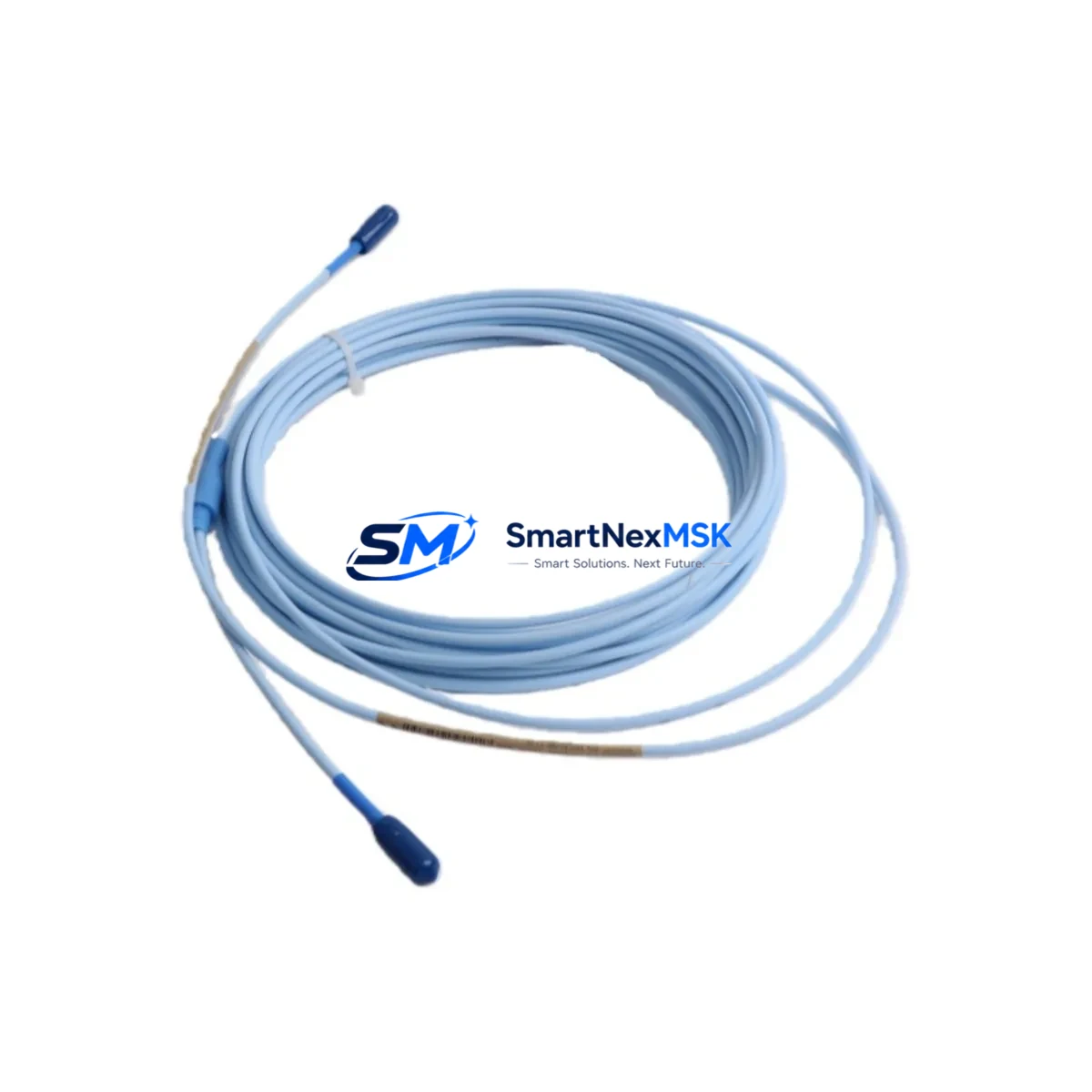

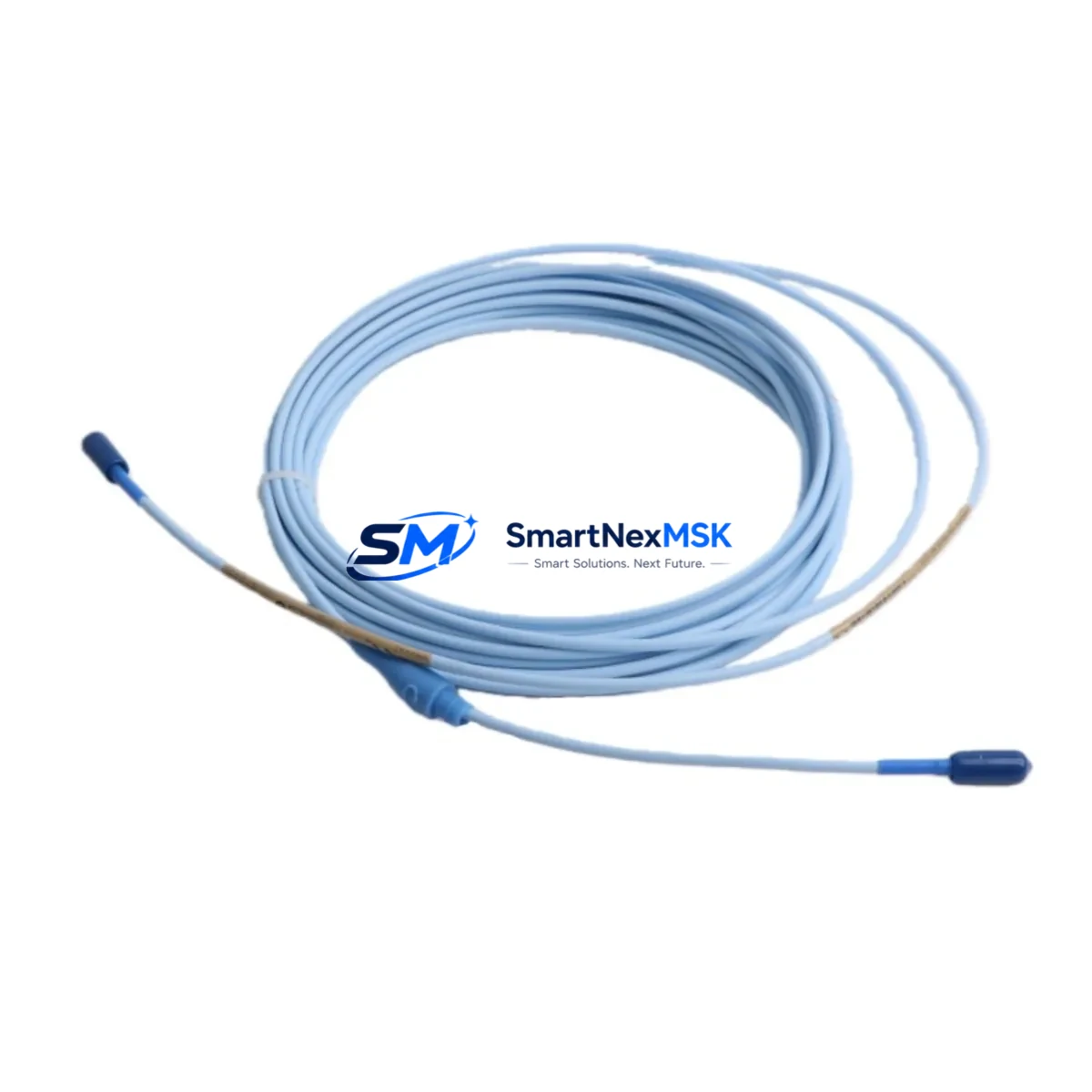

The Bently Nevada 330130-080-13-00 is an 8-metre proximity extension cable engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery assets age and original cable assemblies reach end-of-life, this retrofit-ready replacement enables maintenance and reliability engineers to restore full signal integrity without redesigning the measurement loop or replacing the entire transducer chain. Whether you are upgrading a turbine protection panel, refurbishing a compressor train monitoring cabinet, or recovering a tripped machine after an unplanned outage, the 330130-080-13-00 delivers a direct, plug-compatible solution that minimises engineering risk and downtime exposure.

Designed to interface with the 3300 XL 8mm Proximity Probe (such as the 330101-00-63-20-12-05) and the corresponding 3300 XL Proximitor Sensor, this extension cable maintains the precise coaxial impedance and shielding characteristics required for accurate eddy-current gap measurement. Correct cable length selection is critical: the 330130-080-13-00 specifies an 8-metre run, which must be matched to the probe driver calibration curve stored in the Proximitor. Substituting an incorrect length — for example, a 5-metre 330130-050-13-00 or a 9-metre variant — will shift the output voltage baseline and introduce measurement error that can trigger false alarms or mask genuine shaft displacement events.

When planning a retrofit or cable replacement on an operating machine train, engineers should simultaneously audit the full signal path. The Proximitor Sensor (e.g. 330180-X1-05 or 330180-X1-CN) should be inspected for housing cracks, connector corrosion, and correct gap voltage at the OK relay output. The 3300 XL Monitoring System rack modules — including the 3300/16 Dual Voting Logic module and the 3300/46 Keyphasor module — should be verified for firmware revision compatibility and channel configuration before the new cable is commissioned. If the machine protection system feeds a 3500 Series rack via a relay interface, confirm that the 3500/32 Relay Output module trip setpoints remain valid after the cable swap.

Inside the control cabinet, inspect the terminal blocks and cable gland entries for moisture ingress, particularly in outdoor or wash-down environments. Shielded cable drain wires must be grounded at a single point — typically at the Proximitor barrier or the rack entry terminal — to prevent ground loops that degrade signal-to-noise ratio. If the installation uses a Galvanic Isolation Barrier or a Zener safety barrier for hazardous-area compliance, verify that the barrier’s capacitance specification is compatible with the 3300 XL driver circuit. Barrier replacement with an updated MTL or P+F model may be required when migrating from older 3300 Series hardware to the current 3300 XL platform.

For sites running System 1 Evolution or System 1 Optimizer software, a cable replacement event should be logged as a configuration change and the channel calibration record updated. The Keyphasor signal — typically sourced from a 330980-50-05 Keyphasor probe and its dedicated extension cable — should be re-verified for correct once-per-revolution pulse timing after any mechanical work in the proximity probe area. Spectrum and waveform baseline data should be captured immediately after commissioning to establish a new reference for trending and alarm management.

SMARTNEXMSK maintains ready stock of the 330130-080-13-00 and related 3300 XL cable assemblies to support both planned turnaround schedules and emergency call-outs. Each unit is function-tested and shipped with a 12-month warranty covering manufacturing defects and electrical performance. Our technical team can assist with cable length selection, Proximitor gap voltage verification procedures, and compatibility confirmation for mixed-generation 3300 and 3300 XL installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL cable retrofit requires a structured review of every component in the measurement loop and the associated protection logic. Begin at the probe tip: confirm the 330101-00-63-20-12-05 8mm Proximity Probe is undamaged and that the probe body threads and lock nut are secure. Trace the probe cable to the junction box or conduit entry and inspect for chafing, pinch points, or heat damage before installing the new 330130-080-13-00 extension.

At the Proximitor Sensor, check the input and output connector pins for fretting corrosion — a common failure mode on machines with high vibration levels. If the Proximitor housing shows signs of moisture ingress or the OK relay is intermittently dropping, plan to replace the Proximitor simultaneously with the extension cable to avoid a repeat outage. The 330180-X1-05 and 330180-X1-CN variants are the most common Proximitor models in service on 3300 XL installations and are stocked alongside the extension cable.

Within the 3300 XL monitoring rack, verify that the channel card — such as the 3300/55 Dual Voting or 3300/46 Keyphasor module — is correctly addressed and that the rack backplane connectors are seated. Loose backplane connections are a frequent cause of spurious OK relay trips during cable replacement work. If the rack is being migrated from a 3300 Series to a 3300 XL Series chassis, confirm that the power supply module (e.g. 3300/05 Power Supply) meets the increased current demand of the XL-generation cards.

For hazardous-area installations, the Zener barrier or galvanic isolator in the safe-area cabinet must be rated for the 3300 XL driver impedance. MTL 787S+ and P+F KFD2-series isolators are commonly used in these applications. Verify barrier certification documents and update the site safety case if the barrier model changes during the retrofit. Terminal block labelling should be updated to reflect the new cable routing, and the updated as-built drawing should be filed before the machine is returned to service.

If the machine protection system outputs to a DCS or safety PLC via a 4–20 mA or relay interface, confirm that the signal levels are within the expected range after commissioning. A gap voltage shift caused by an incorrect cable length or a damaged probe will propagate through the entire signal chain and may require recalibration of the DCS input card or adjustment of the safety PLC trip logic.

Downtime Control During System Migration

Minimising machine downtime during a proximity cable replacement requires pre-staging all replacement components before the machine is taken offline. Confirm that the 330130-080-13-00 extension cable, the Proximitor Sensor, and any required barrier or terminal hardware are on-site and have passed incoming inspection before the outage window begins.

During the outage, follow a defined sequence: isolate the channel at the rack, remove the old cable, install and dress the new cable, reconnect the Proximitor, and verify gap voltage before re-enabling the channel. This sequence prevents accidental OK relay trips from propagating to the machine protection logic and triggering unnecessary shutdowns of adjacent equipment. If the rack supports online channel inhibit — available on 3500 Series racks interfaced to the 3300 XL system — use the inhibit function to suppress alarms during the cable swap without removing the channel from service entirely.

After commissioning, capture a full set of static and dynamic measurements — gap voltage, 1X and 2X vibration amplitude, and phase — and compare against the pre-outage baseline. Any deviation greater than 5% should be investigated before the machine is returned to full load. Document the replacement in the site CMMS and update the predictive maintenance interval for the proximity transducer assembly based on the observed condition of the removed cable.

Retrofit Support FAQ

Q1: Is the 330130-080-13-00 a direct replacement for the older 3300 Series 8m extension cable?
Yes. The 330130-080-13-00 is designed for the 3300 XL platform and is electrically compatible with the 3300 Series Proximitor when the probe and cable length combination matches the original calibration. Confirm the Proximitor model and calibration curve before installation to ensure the gap voltage output remains within specification.

Q2: Can I use this cable with a 3500 Series monitoring rack?
The 330130-080-13-00 is a passive cable and does not connect directly to the 3500 Series rack. It connects the proximity probe to the Proximitor Sensor, whose 4–20 mA or voltage output then feeds the 3500 rack input card. Compatibility is determined by the Proximitor model, not the cable itself.

Q3: What pre-shipment testing is performed on the 330130-080-13-00?
Each unit undergoes continuity, insulation resistance, and shield integrity testing before dispatch. A test certificate is available on request. Units are shipped in anti-static packaging with connector caps fitted to protect the coaxial interfaces during transit.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, connector integrity, cable insulation, and electrical performance under normal industrial operating conditions. It does not cover damage caused by incorrect installation, mechanical abuse, or use outside the specified environmental ratings. Our technical team provides post-sale support for installation and commissioning queries throughout the warranty period.
