Bently Nevada 330171-00-12-10-02-00 Safety Proximity Probe

Bently Nevada 330171-00-12-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

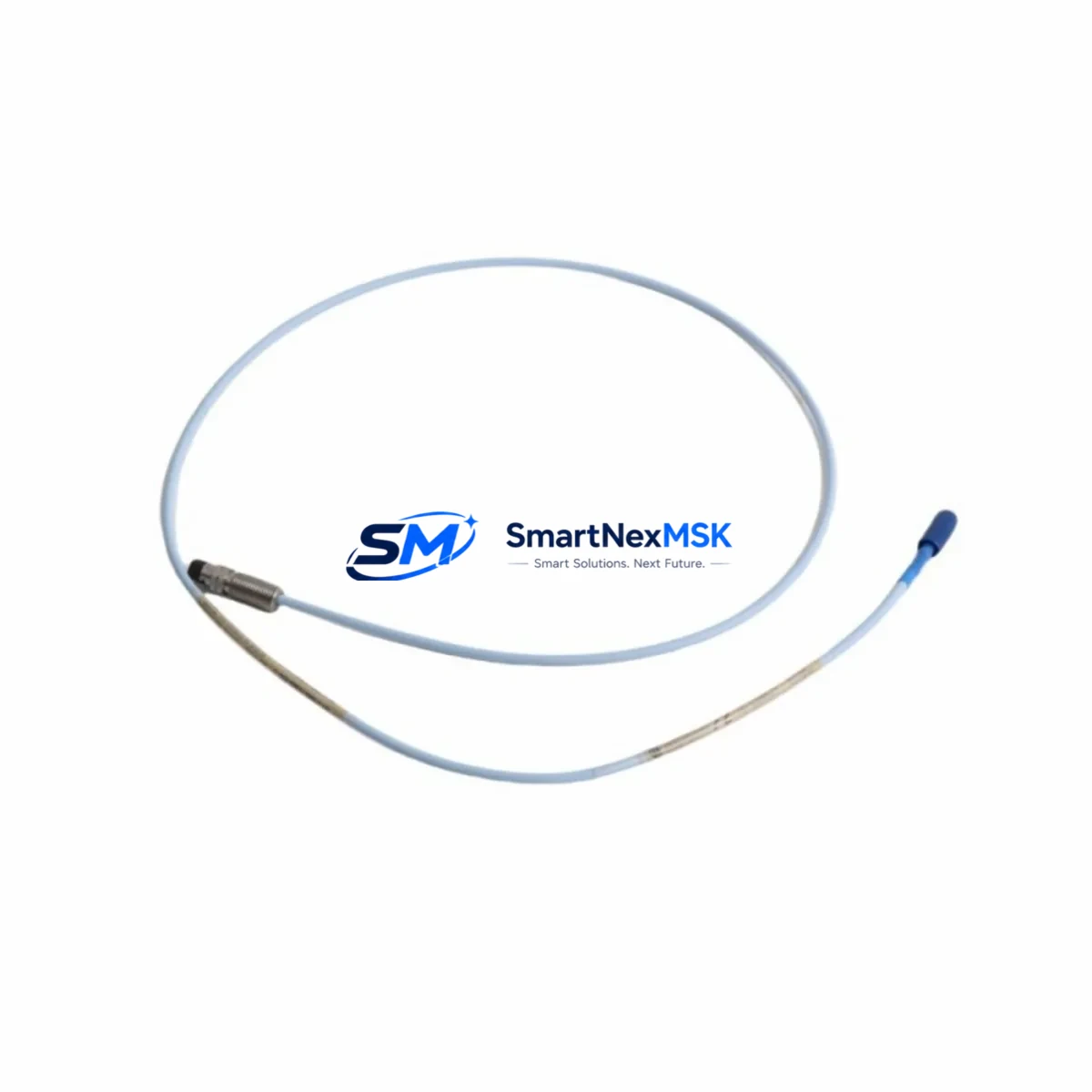

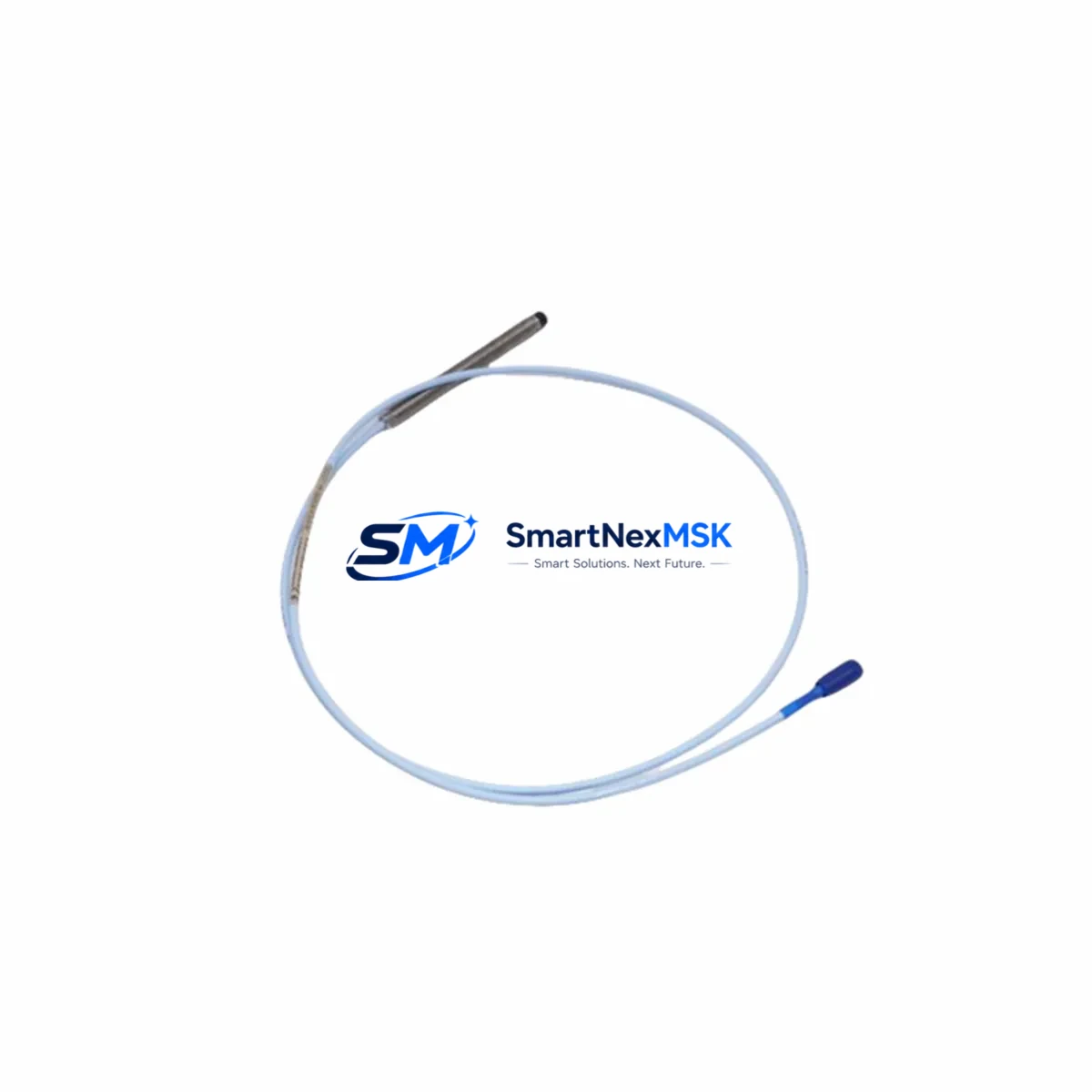

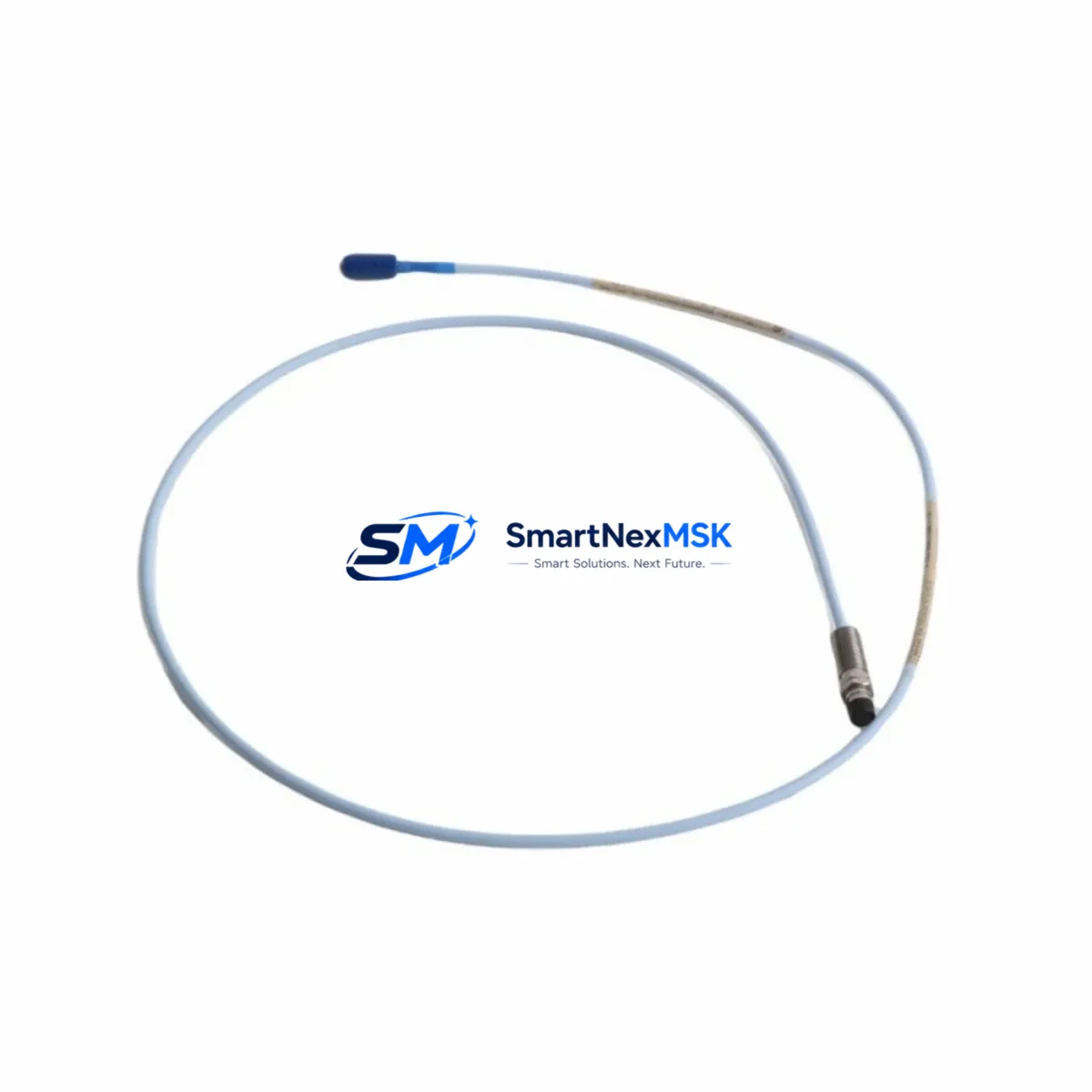

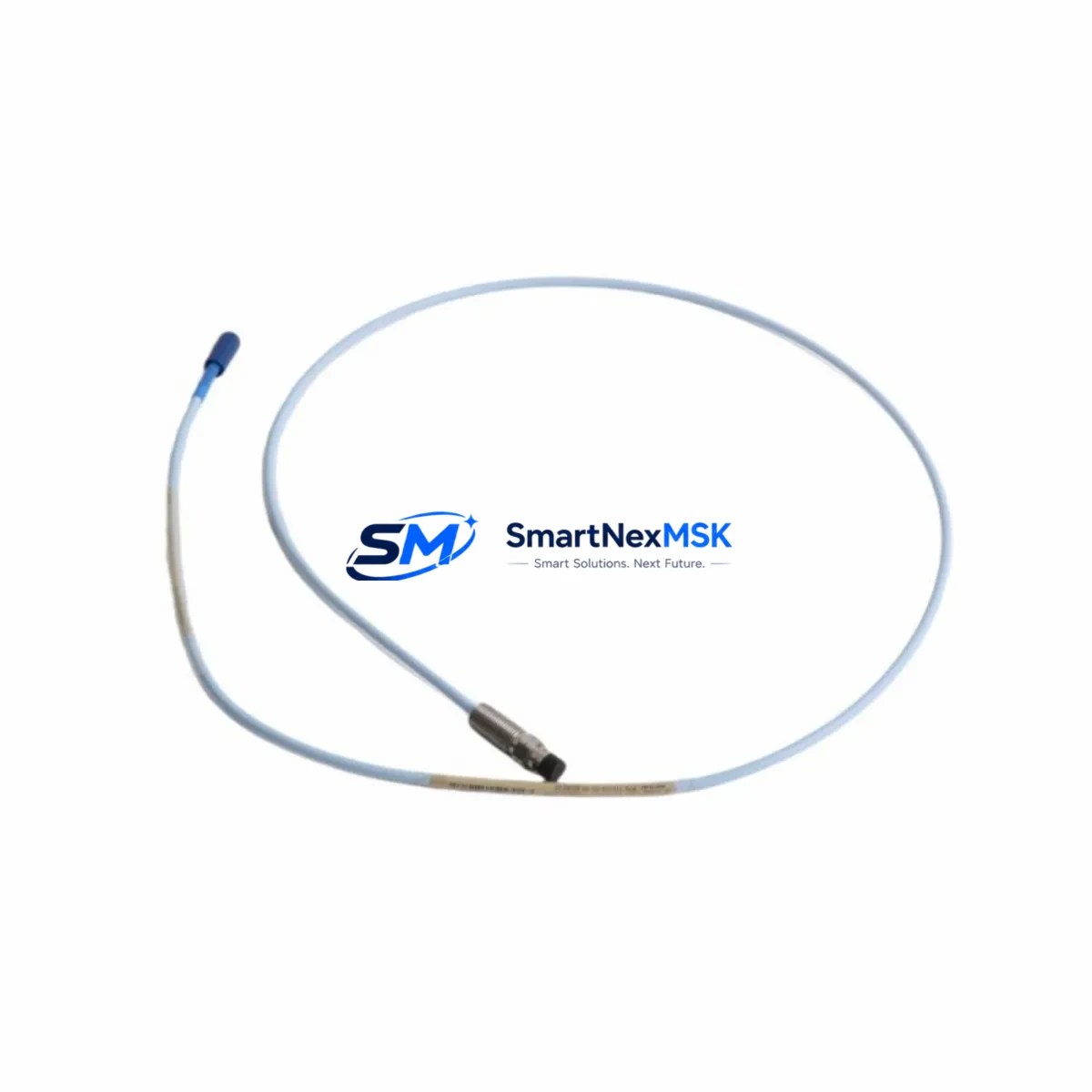

The Bently Nevada 330171-00-12-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous, non-contact vibration and radial position measurement in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe is purpose-built to deliver uninterrupted signal integrity in high-load rotating machinery, critical safety interlock loops, and hazardous-area control cabinets where measurement failure is not an option. With a 12-month warranty, full pre-shipment functional testing, and guaranteed in-stock availability, the 330171-00-12-10-02-00 is the trusted choice for plant engineers, reliability teams, and MRO procurement specialists worldwide.

Safety Reliability Table

Control Cabinet Protection Strategy

In a high-integrity rotating machinery protection system, the 330171-00-12-10-02-00 proximity probe does not operate in isolation — it is the sensing front-end of a tightly coordinated measurement chain. The probe connects to a Bently Nevada 330130-080-00-00 extension cable, which routes the signal to a 3300 XL 8mm Proximitor® sensor (such as the 330180-X1-05), converting the eddy-current impedance change into a calibrated DC voltage that the 3500/42M Proximitor®/Seismic Monitor can process for alarm and trip decisions.

Within the control cabinet, the 3500 rack system — including the 3500/20 Rack Interface Module and 3500/15 Power Supply — provides the regulated –24 VDC bias supply that the probe system requires. Any instability in this supply directly affects measurement accuracy, which is why pairing the 330171-00-12-10-02-00 with a properly specified power supply and a 3500/22M Transient Data Interface is standard practice in critical machinery protection architectures. For plants operating under IEC 61511 functional safety requirements, the probe is often integrated with a Safety Manager SC or a third-party SIS controller via hardwired 4–20 mA or discrete trip outputs from the 3500 monitor.

In environments with heavy variable-frequency drive (VFD) interference, strong electromagnetic fields from large motors, or ground loop noise from long cable runs, the coaxial shielded construction of the 330171-00-12-10-02-00 and its matched extension cable significantly attenuates signal corruption. Complementary EMI mitigation measures — such as proper grounding of the 3500 rack chassis, use of Bently Nevada 02120028 termination resistors, and physical separation of signal cables from power conductors — are recommended to maintain measurement integrity below the 1% full-scale error threshold required for API 670 compliance.

For redundant protection architectures in turbine, compressor, or pump trains, dual-probe configurations using two 330171-00-12-10-02-00 probes mounted 90° apart (X–Y configuration) are standard. Each probe feeds an independent channel in the 3500/42M monitor, enabling the system to detect shaft orbit, centerline shift, and asymmetric wear patterns that a single-plane measurement would miss — a critical capability for preventing catastrophic bearing failure in continuous production facilities.

Critical Industrial Safety Applications

The Bently Nevada 330171-00-12-10-02-00 is deployed across the full spectrum of heavy industrial and process-critical environments where rotating machinery protection is a safety and regulatory requirement:

Petrochemical & Refining: In crude distillation units, catalytic crackers, and compressor trains, this probe monitors shaft radial vibration on centrifugal compressors and steam turbines. Continuous measurement enables early detection of rotor imbalance, misalignment, and bearing degradation — allowing planned maintenance shutdowns rather than unplanned trips that can cost hundreds of thousands of dollars per hour in lost production.

Power Generation: Gas turbine and steam turbine generator sets in utility and cogeneration plants rely on API 670-compliant proximity probe systems for overspeed protection and shaft position monitoring. The 330171-00-12-10-02-00 provides the measurement accuracy and temperature stability required for reliable operation across the full load range, from cold start to full-rated output.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and wide temperature swings. The IP67 rating and –35°C to +177°C operating range of the 330171-00-12-10-02-00 make it suitable for both underground and open-pit surface installations where standard instrumentation would fail prematurely.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could compromise public health infrastructure. The non-contact measurement principle eliminates wear-related drift, ensuring long-term calibration stability without scheduled recalibration shutdowns.

Metallurgy & Steel Production: Rolling mill drives, ID fans, and induced draft fans in blast furnace operations operate in environments with intense heat radiation, heavy vibration, and aggressive airborne particulates. The high-temperature rating and robust coaxial cable construction of the 330171-00-12-10-02-00 support reliable operation in these conditions, protecting critical drive trains from undetected mechanical degradation.

Port & Marine Terminals: Crane drives, ship unloaders, and conveyor drive systems in port logistics operations benefit from continuous shaft monitoring to prevent mechanical failures that would halt cargo operations. The ATEX/IECEx certification of the 330171-00-12-10-02-00 also qualifies it for use in potentially explosive atmospheres present in fuel handling and LNG terminal environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330171-00-12-10-02-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies identified under normal operating conditions consistent with the product’s rated specifications. If the probe fails to meet its published sensitivity, linearity, or frequency response specifications within the warranty period, we will provide a replacement unit or full refund. Warranty claims are processed with priority turnaround to minimize your plant downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330171-00-12-10-02-00 unit undergoes a full functional verification prior to shipment, including sensitivity calibration check (7.87 V/mm ±0.5%), cable continuity and insulation resistance test, connector integrity inspection, and visual examination for physical damage. A test record is available upon request for quality documentation purposes.

Q3: Is the 330171-00-12-10-02-00 compatible with existing 3300 XL and 3500 series systems?
Yes. The 330171-00-12-10-02-00 is fully compatible with the complete Bently Nevada 3300 XL Proximitor® sensor family and the 3500 series rack-based monitoring system. It is a direct replacement for equivalent 8mm probes in the 330100, 330171, and 330180 product families. No reconfiguration of the monitor or driver is required when replacing a like-for-like probe in an existing installation.

Q4: Can long-term supply continuity be guaranteed for MRO and spare parts programs?
We maintain dedicated inventory of the 330171-00-12-10-02-00 to support MRO procurement programs, planned maintenance shutdowns, and emergency spare requirements. Bulk order pricing and reserved stock agreements are available for customers with multi-unit or multi-site requirements. Our supply chain is structured to support both immediate single-unit needs and long-term blanket purchase orders, ensuring you are never without a critical spare when a planned or unplanned replacement is required.
