Bently Nevada 330171-00-30-10-02-00 3300 Series Spare

Bently Nevada 330171-00-30-10-02-00 Maintenance-Ready Spare for 3300 Series Automation

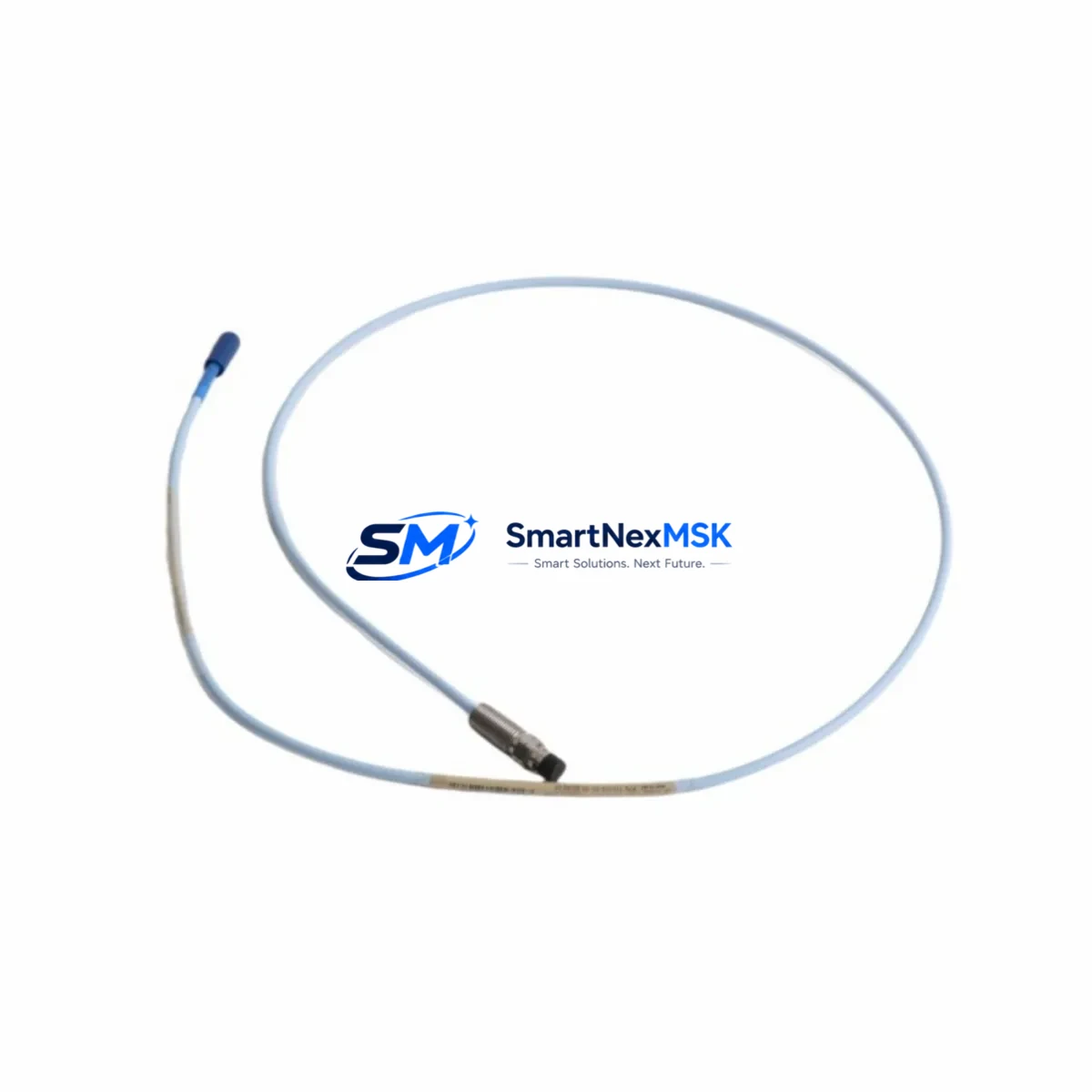

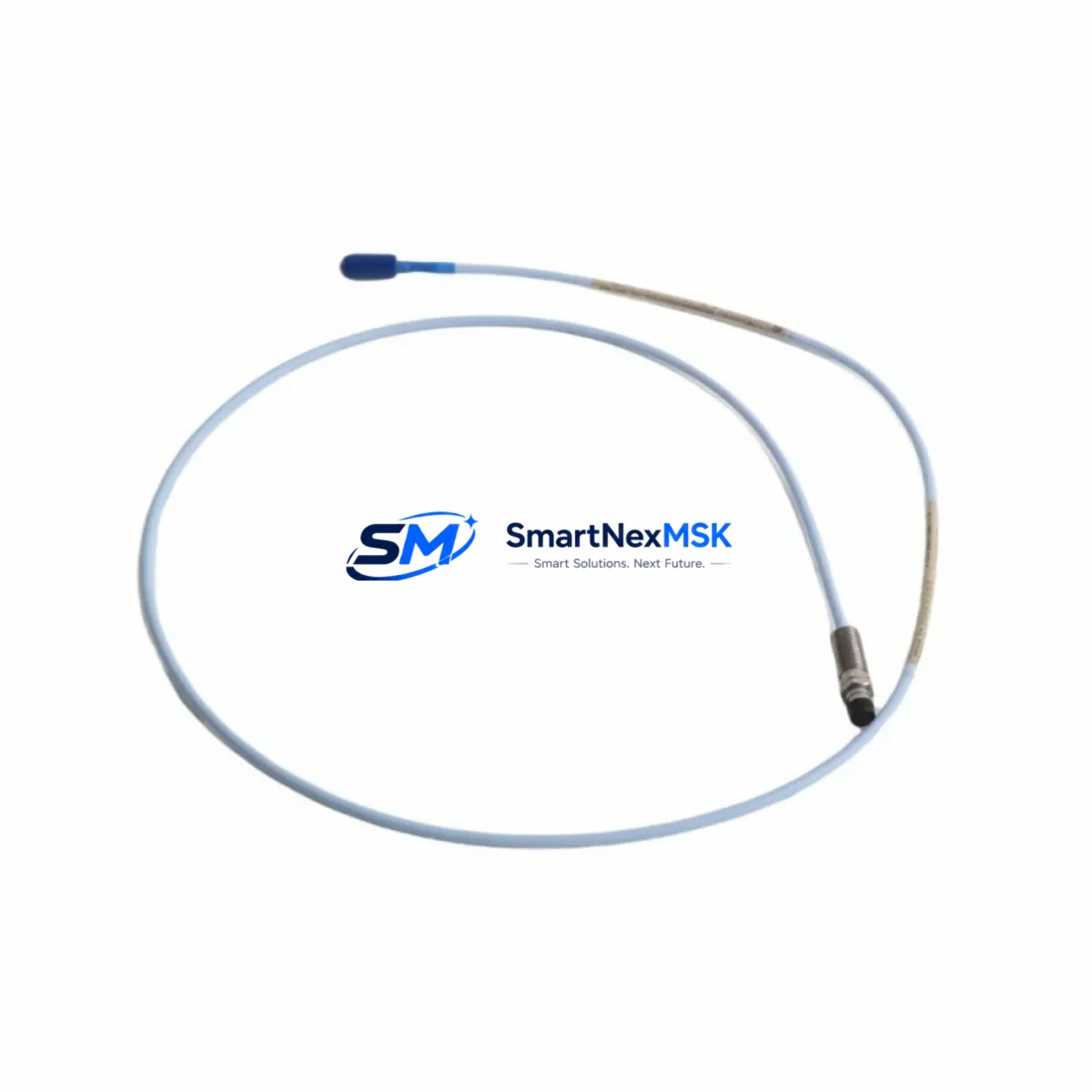

The Bently Nevada 330171-00-30-10-02-00 is an original proximity transducer system designed for continuous vibration and position monitoring in rotating machinery applications. As a core component of the Bently Nevada 3300 Series proximity transducer system, this unit delivers reliable eddy-current sensing performance in turbines, compressors, pumps, and other critical rotating assets found across oil & gas, power generation, petrochemical, and heavy industrial facilities.

For maintenance engineers managing aging DCS or machinery protection systems, sourcing a verified original spare for the 330171-00-30-10-02-00 is essential to avoiding extended unplanned downtime. This transducer is engineered to interface directly with the 3300 XL 8mm extension cable and driver system, maintaining signal chain integrity without recalibration of the entire monitoring loop. Procurement engineers will find this unit fully tested prior to shipment, backed by a 12-month warranty, and available from long-term stock — eliminating the lead-time risk associated with OEM ordering channels.

Whether you are executing a planned turnaround, responding to a vibration alarm, or building a critical spare inventory for a machinery protection panel, the 330171-00-30-10-02-00 is a direct, drop-in replacement that restores system integrity with minimal intervention.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330171-00-30-10-02-00 in the field, a disciplined maintenance engineer will treat the transducer swap as an opportunity to inspect the entire signal chain and surrounding panel components. The 3300 XL system is a matched set: the transducer, extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series), and the proximitor/driver (typically a 3300 XL 8mm proximitor, e.g., 330180-X1-05) must all be verified for continuity, gap voltage, and output linearity before returning the loop to service.

Inside the machinery protection cabinet, maintenance teams should simultaneously inspect the 3500/42M Proximitor I/O module or equivalent rack-mounted monitor card that receives the transducer signal. A degraded I/O module or loose terminal block connection can produce the same alarm signature as a failed transducer, leading to unnecessary part replacement. Terminal blocks and field wiring connectors in the junction box should be checked for corrosion, especially in humid or offshore environments.

Power supply integrity is equally critical. The 3300 Series driver requires a stable –24 VDC supply; fluctuations from a failing DC power supply module or shared bus can introduce noise into the vibration signal and trigger nuisance trips. Verify the power supply output with a calibrated meter before commissioning the new transducer.

For facilities running Bently Nevada 3500 Series machinery protection racks, the replacement of a 330171-00-30-10-02-00 transducer is also a good trigger to audit the 3500/20 rack power supply module, the 3500/22M transient data interface, and any 3500/15 or 3500/25 keyphasor modules sharing the same rack. A keyphasor signal fault can corrupt phase-referenced vibration data across multiple channels simultaneously.

Where the control system integrates with a DCS or safety instrumented system (SIS), confirm that the 4–20 mA output from the monitor card is reaching the DCS I/O card correctly. Signal isolators or barriers (such as those used in Zone 1 hazardous area installations) should be tested for drift. Fuse integrity on the field loop should also be confirmed — a blown fuse on the transducer supply line is a common and easily overlooked fault.

For sites running legacy systems where the 330171-00-30-10-02-00 has been in service for more than five years, it is advisable to stock at least two spare transducers per critical machine train, along with a matched extension cable set and a spare proximitor driver. This three-component spare kit approach eliminates the most common sources of signal chain failure and supports rapid restoration during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the machinery protection channel in the monitor rack. Do not remove the transducer while the machine is running unless the site procedure explicitly permits hot-swap on non-trip channels.

Step 2 — Gap Measurement: Before removing the old transducer, record the installed gap voltage (typically –10 VDC ±0.5 V for a 1.0 mm gap on AISI 4140 steel). This baseline confirms the target shaft material and gap setting for the replacement unit.

Step 3 — Transducer Removal: Disconnect the coaxial connector at the junction box. Unthread the transducer from the bracket using the correct spanner. Inspect the bracket threads and locknut for wear.

Step 4 — New Unit Installation: Install the 330171-00-30-10-02-00 replacement. Set the gap to the recorded baseline using a feeler gauge or by monitoring the gap voltage output from the proximitor. Torque the locknut to the manufacturer’s specification.

Step 5 — Signal Verification: Reconnect the extension cable. Power up the proximitor and verify gap voltage, static output, and noise floor on the monitor card. Confirm the channel clears any latched alarms before returning to service.

Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS), including the new unit serial number, gap setting, and post-installation gap voltage. Update the spare parts inventory accordingly.

This workflow applies equally when upgrading from an older 330171 variant to the current 330171-00-30-10-02-00 configuration, ensuring backward compatibility is maintained within the 3300 XL system architecture.

Spare Parts Support FAQ

Q1: Is the 330171-00-30-10-02-00 compatible with all 3300 Series drivers and extension cables?
The 330171-00-30-10-02-00 is designed for the Bently Nevada 3300 XL 8mm proximity transducer system. It is compatible with 3300 XL extension cables and 3300 XL proximitor drivers. Compatibility with non-XL 3300 Series components should be verified against the system calibration record, as gap voltage and sensitivity specifications may differ between sub-variants.

Q2: How is the unit tested before shipment?
Each 330171-00-30-10-02-00 unit is bench-tested for coil continuity, insulation resistance, and output linearity prior to dispatch. A test report is available upon request. Units are shipped in anti-static packaging with protective caps on the sensing tip and connector.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the specified environmental range. Warranty claims are supported by our technical team at [email protected].

Q4: Can you support long-term or blanket orders for critical spare inventory programs?
Yes. For facilities managing multiple machine trains or executing multi-year maintenance contracts, we support scheduled release orders and reserved stock arrangements for the 330171-00-30-10-02-00 and related 3300 XL system components. Contact our team to discuss inventory reservation, lead-time commitments, and volume pricing.
