Bently Nevada 330173-00-03-10-02-00 Spare for 3300 XL Automation

Bently Nevada 330173-00-03-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

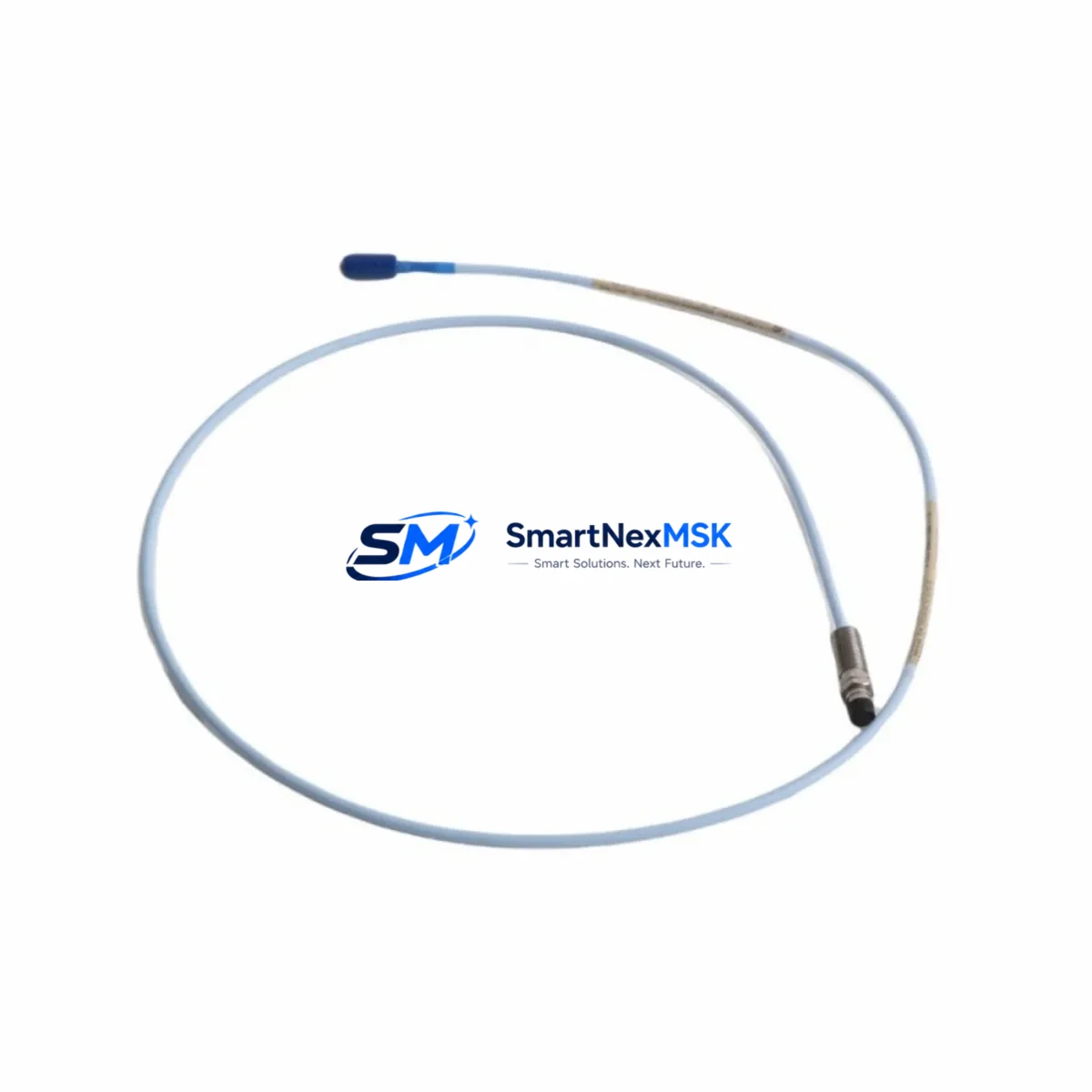

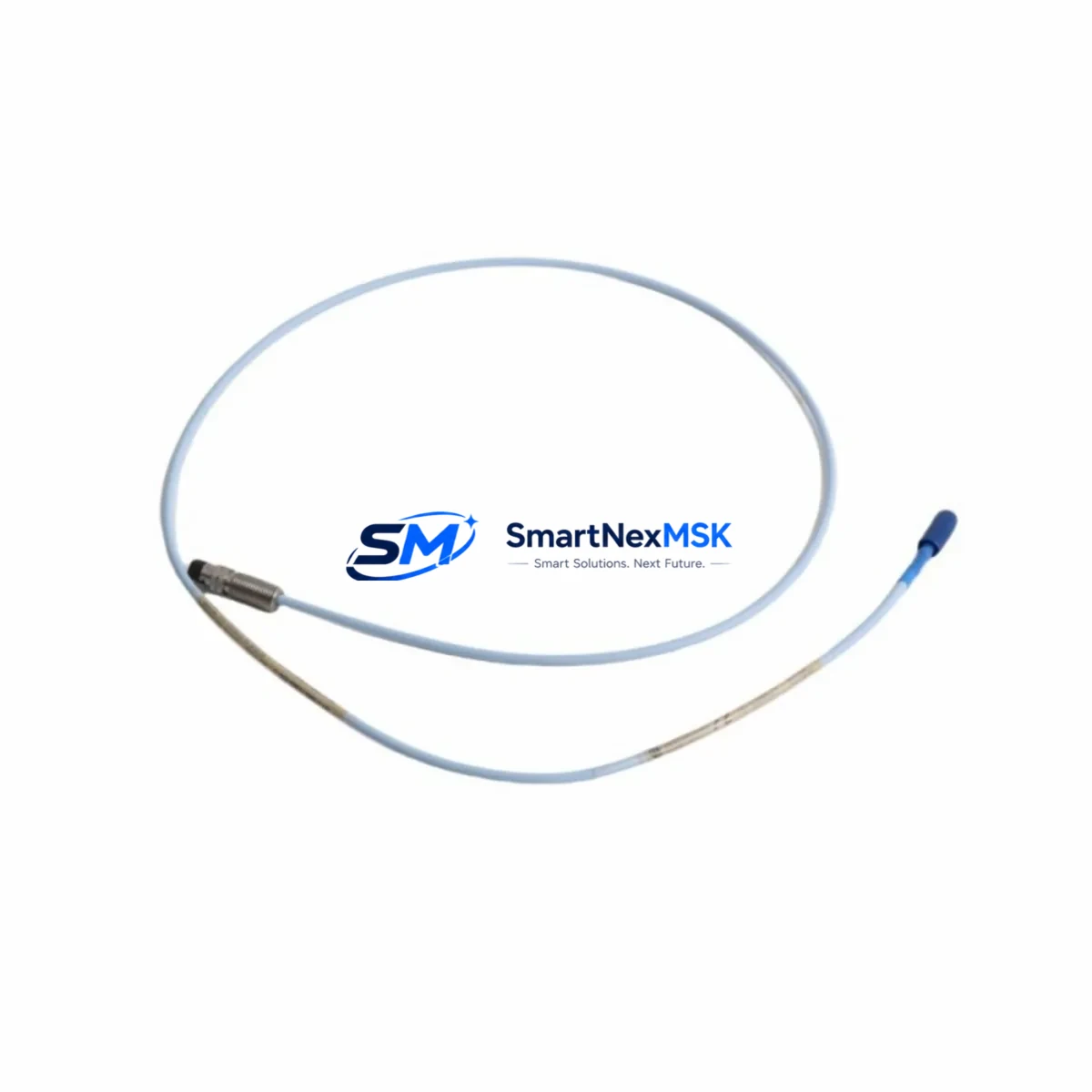

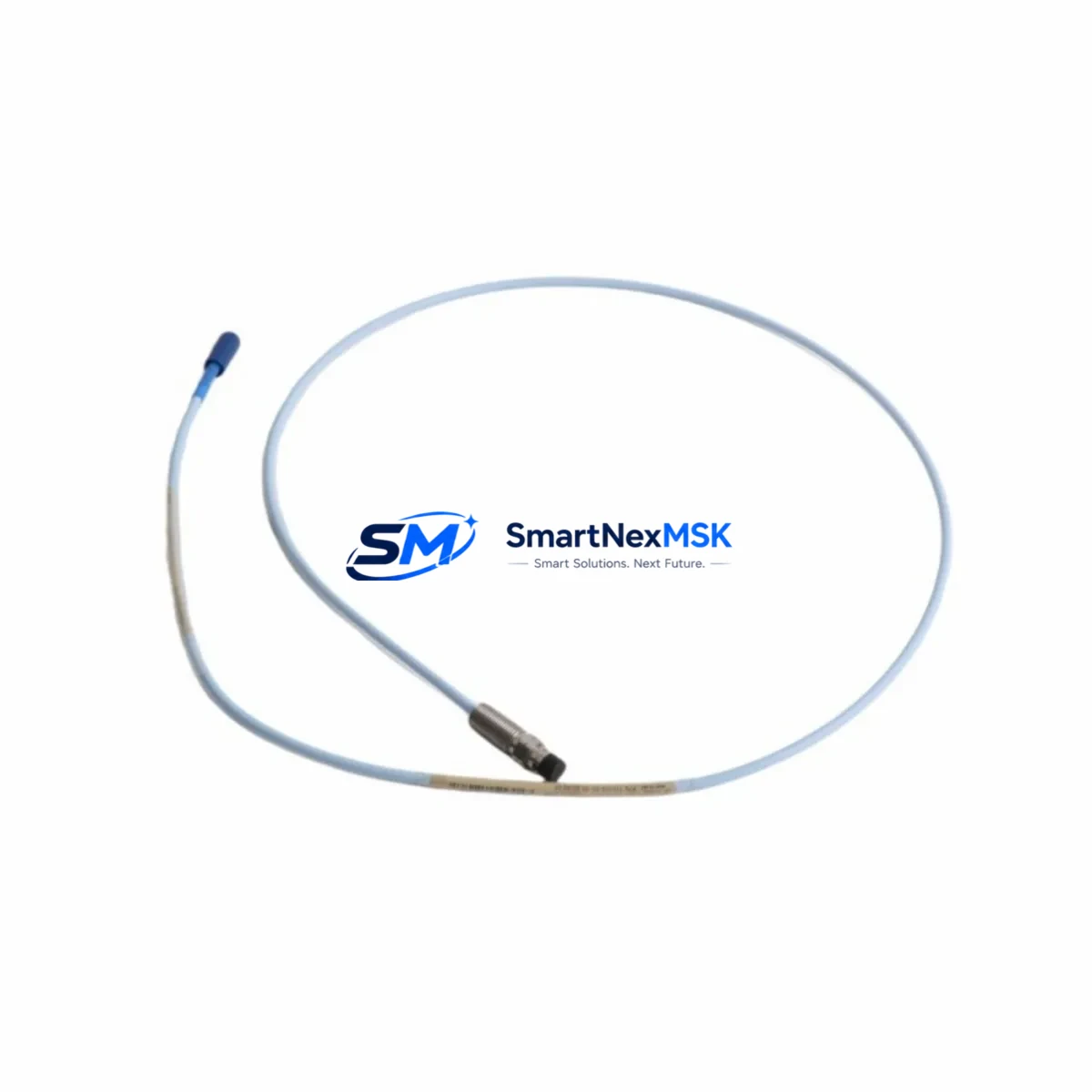

The Bently Nevada 330173-00-03-10-02-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. As a direct original spare, this probe delivers the same factory-calibrated sensitivity and gap voltage characteristics as the unit it replaces — critical for rotating machinery protection in turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, and heavy process industries.

For maintenance engineers managing aging condition monitoring infrastructure, sourcing a verified original replacement for the 330173-00-03-10-02-00 eliminates the risk of miscalibrated gap voltage, incorrect sensitivity factors, and false trip events that can cascade into unplanned shutdowns. Every unit shipped by SMARTNEXMSK is tested against Bently Nevada factory specifications and backed by a 12-month warranty, ensuring your monitoring loop is restored to full operational integrity with minimal downtime.

Procurement engineers will find this part stocked and ready for immediate dispatch, with full traceability documentation available on request — supporting both planned maintenance windows and emergency breakdown recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330173-00-03-10-02-00 proximity probe during a planned outage or emergency breakdown, a disciplined maintenance engineer will treat the probe replacement as the starting point of a broader loop inspection — not the end point. The 3300 XL monitoring chain is only as reliable as its weakest component, and a degraded extension cable, a drifting Proximitor® sensor, or a loose terminal block can introduce measurement errors that a new probe alone cannot correct.

Begin by inspecting the matched 3300 XL extension cable (typically the 330130 series) for jacket cracking, connector corrosion, or continuity loss — extension cables age faster than probes in high-vibration environments and should be replaced as a set. Next, verify the 3300 XL Proximitor® sensor (such as the 330180 or 330181 series) output voltage and sensitivity calibration; a Proximitor® that has drifted outside its ±0.5% tolerance will produce false readings even with a new probe installed.

At the terminal cabinet level, inspect the 3300/16 I/O module or equivalent rack-mounted signal conditioning card for loose wiring, oxidized terminals, and correct channel assignment. Check the 3500/42M or 3500/40M proximity monitor module if the machine is integrated into a 3500 Series rack — these modules share the same probe interface standard and are common upgrade paths from legacy 3300 XL installations.

For power supply integrity, confirm the 3300 XL power supply module is delivering stable −24 VDC to the Proximitor® sensor; voltage sag under load is a frequent root cause of intermittent gap voltage alarms. If the control cabinet houses a 3500/15 power supply, verify its output under full rack load before signing off the maintenance record.

Communication and display integrity should also be confirmed: check the 3500/92 communication gateway or Bently Nevada System 1 software connection to ensure the replaced channel is correctly mapped and alarm setpoints are restored after the probe swap. For sites using a local 3300 XL display module or a third-party HMI panel, verify that the channel tag, engineering units, and full-scale range reflect the new probe’s calibration data.

Finally, review the barrier or isolator in the signal path if the installation is in a hazardous area (Zone 1/Zone 2 or Class I Div 1/2) — a Zener barrier or galvanic isolator that has absorbed a surge event may pass continuity checks but introduce non-linear signal distortion that only appears under dynamic shaft movement conditions.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a hot-work or cold-work permit as applicable. Isolate the monitoring channel at the rack to prevent false trip signals during probe removal. Do not de-energize the entire monitoring rack if other channels are protecting running machinery.

Step 2 — Record Baseline Data: Before removing the old 330173-00-03-10-02-00, record the existing gap voltage, OK relay status, and any active alarms. This baseline is essential for post-installation comparison and maintenance log compliance.

Step 3 — Remove Old Probe: Loosen the jam nut and back the probe out carefully. Inspect the target area on the shaft for scoring, pitting, or contamination that could affect the new probe’s gap voltage reading.

Step 4 — Install Replacement Probe: Thread the new 330173-00-03-10-02-00 into the bracket. Set the nominal gap (typically 1.0 mm / 40 mil) using a non-ferrous feeler gauge. Tighten the jam nut to the specified torque. Connect the extension cable — ensure the connector is fully seated and the locking ring is engaged.

Step 5 — Verify Gap Voltage: With the Proximitor® sensor energized, measure the output voltage at the monitor rack terminal. Confirm it falls within the system’s OK voltage window (typically −10 VDC ±10%). Fine-adjust the probe gap if necessary.

Step 6 — Restore & Validate: Re-enable the monitoring channel. Confirm OK relay energizes, no alarms are active, and the System 1 or DCS trend display shows a clean, stable signal. Document the completed replacement in the maintenance management system (CMMS) with the new probe serial number and gap voltage reading.

This workflow minimizes total downtime to under 60 minutes for a single-probe replacement on accessible machinery, and ensures the 3300 XL monitoring loop is returned to full protective function before the machine is restarted.

Spare Parts Support FAQ

Q1: Is the 330173-00-03-10-02-00 a direct drop-in replacement for older 3300 XL proximity probes?
Yes. The 330173-00-03-10-02-00 is designed as a direct replacement within the 3300 XL 8mm probe family. It maintains the same thread pitch, body diameter, connector type, and sensitivity specification as earlier revisions, ensuring mechanical and electrical compatibility without bracket modification or recalibration of the Proximitor® sensor — provided the extension cable is also from the matched 3300 XL series.

Q2: How should I manage inventory of this probe for a multi-machine site?
For sites with 4 or more machines monitored by 3300 XL systems, we recommend maintaining a minimum of 2 spare probes per probe diameter in use. Given the 330173-00-03-10-02-00’s role in radial vibration and position monitoring on critical rotating equipment, a stockout during an unplanned outage can extend downtime by days if the part must be sourced reactively. SMARTNEXMSK supports blanket order arrangements and consignment stocking for high-volume maintenance programs.

Q3: What pre-shipment testing is performed on each unit?
Every 330173-00-03-10-02-00 shipped by SMARTNEXMSK undergoes functional verification including gap voltage output measurement, sensitivity confirmation, and cable continuity check against Bently Nevada factory acceptance criteria. A test report is available upon request. Units that do not meet specification are quarantined and not shipped.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions as defined by Bently Nevada’s installation and maintenance guidelines. Warranty claims are processed with priority turnaround — replacement units are dispatched within 5 business days of confirmed fault diagnosis. Physical damage caused by incorrect installation, over-torquing, or shaft contact is excluded from warranty coverage.
