Bently Nevada 330173-00-05-10-02-00 Spare 3300 XL

Bently Nevada 330173-00-05-10-02-00 Maintenance-Ready Spare for 3300 XL Automation

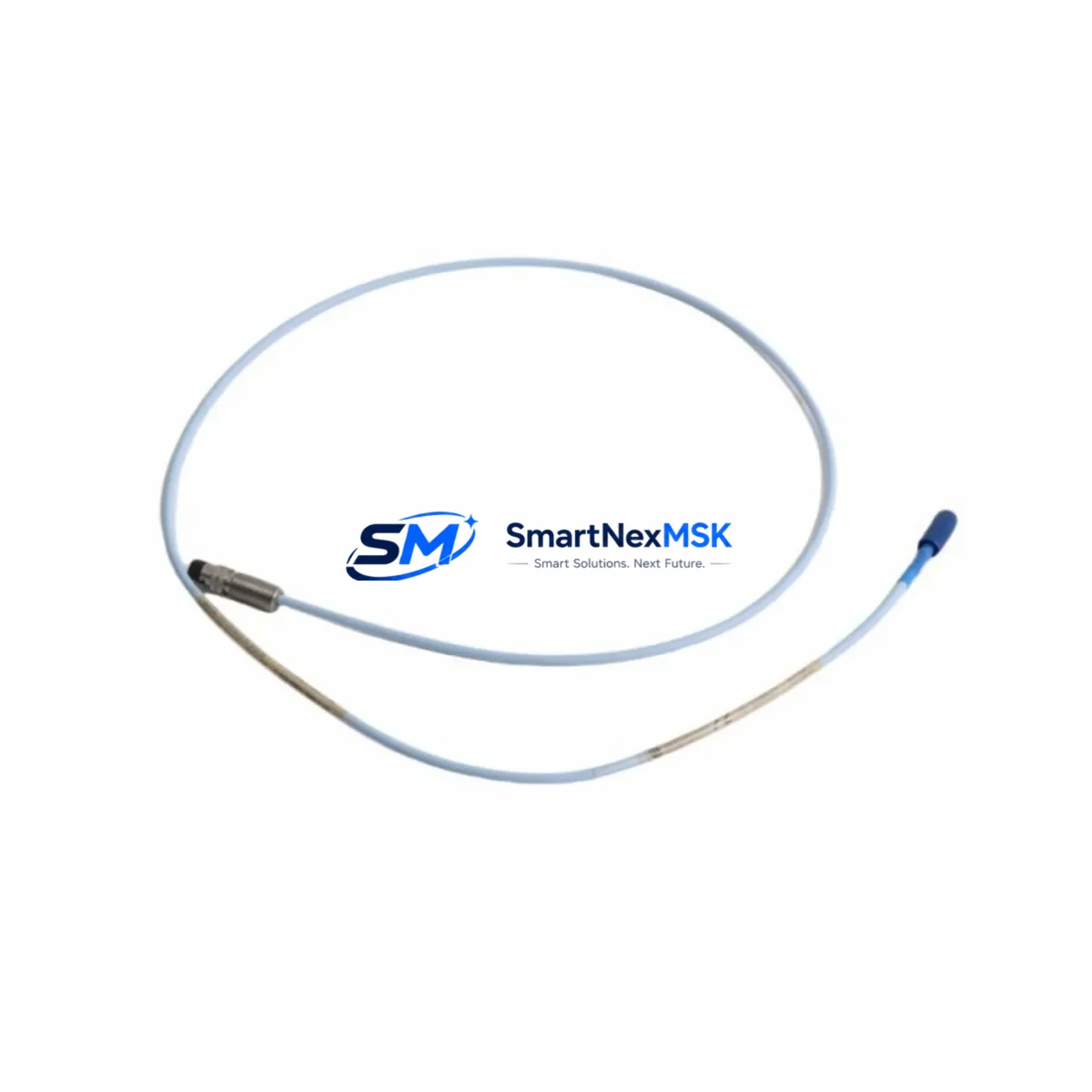

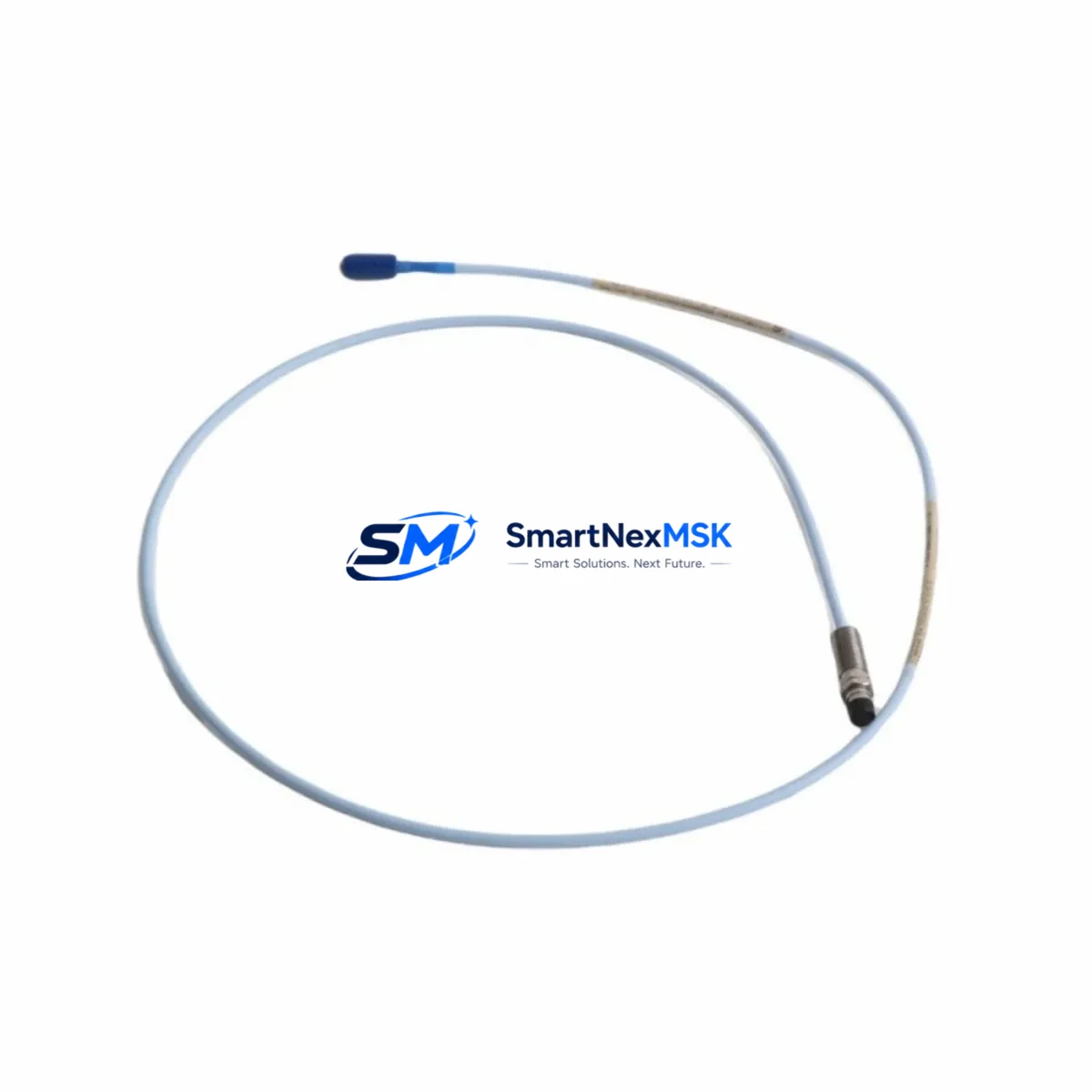

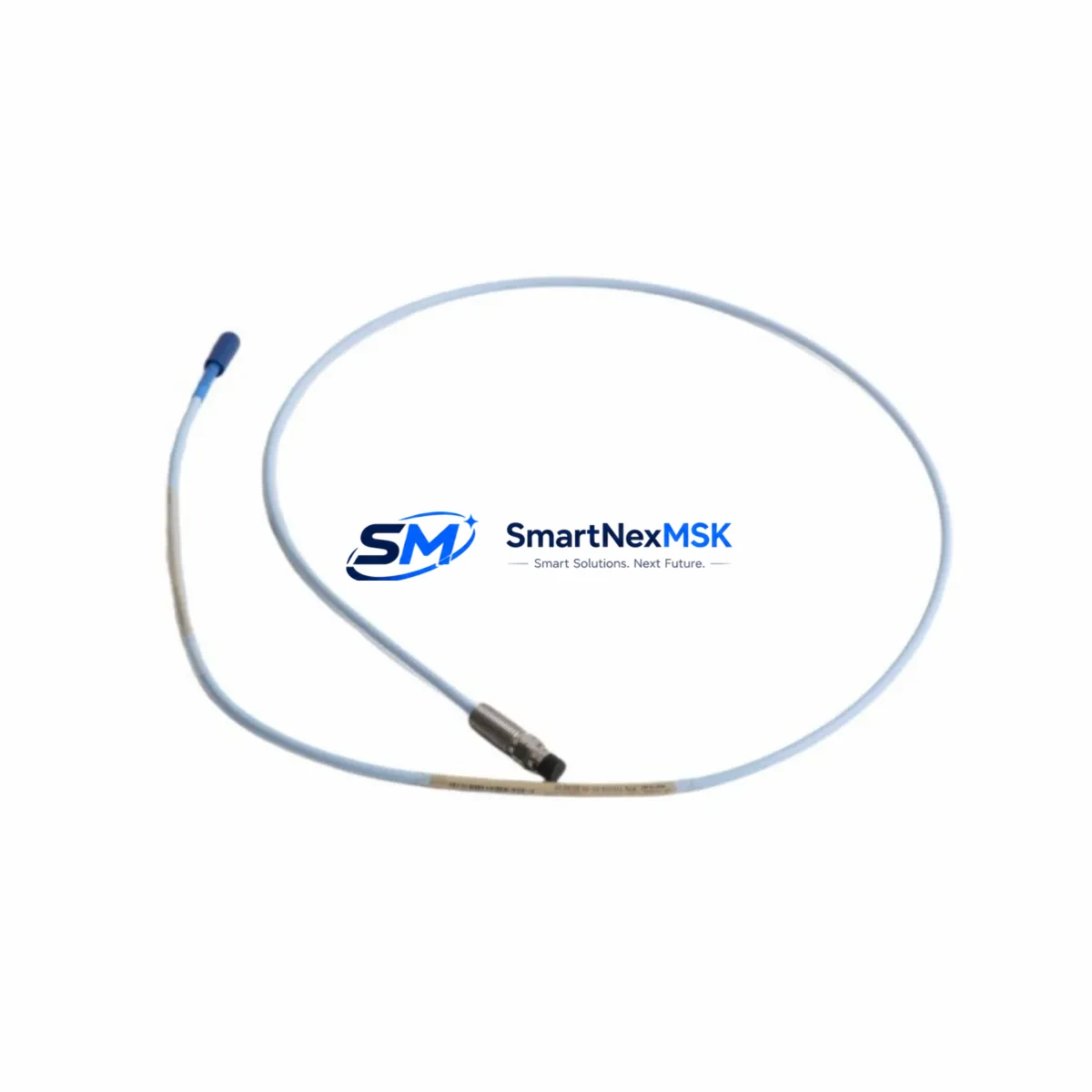

The Bently Nevada 330173-00-05-10-02-00 is an original proximity transducer system component designed for continuous vibration monitoring in rotating machinery applications. As a maintenance-ready spare, this unit supports rapid field replacement within Bently Nevada 3300 XL series monitoring systems — minimizing unplanned downtime and protecting critical rotating assets including turbines, compressors, pumps, and motors.

For maintenance engineers managing predictive maintenance programs or responding to vibration alarm events, having a verified original spare of the 330173-00-05-10-02-00 on hand is a fundamental risk-reduction strategy. This transducer interfaces directly with the 3300 XL proximitor/seismic monitor and is engineered to deliver consistent eddy-current sensing performance within the system’s calibrated measurement chain. Substituting with unverified aftermarket components risks miscalibration, false alarms, or missed fault detection — outcomes that are unacceptable in safety-critical plant environments.

Procurement engineers sourcing this part for MRO inventory should confirm the full part number suffix (330173-00-05-10-02-00) to ensure correct probe length, cable length, and connector configuration. Bently Nevada proximity transducer systems are suffix-sensitive; each segment encodes a specific mechanical and electrical parameter. This listing covers the exact SKU 330173-00-05-10-02-00 as originally manufactured and supplied by Bently Nevada (a Baker Hughes company).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330173-00-05-10-02-00 proximity transducer in the field, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire vibration measurement chain and associated control cabinet components. The 3300 XL system operates as a matched set: the probe, the extension cable (such as the 330130-045-00-00 or equivalent 3300 XL extension cable), and the proximitor module (e.g., 330180-X1-05 3300 XL 8mm Proximitor) must all be verified for compatibility and condition.

During a planned outage or corrective maintenance event, technicians should simultaneously inspect the 3300/16-XX-XX-XX-XX-XX power supply module feeding the monitoring rack, as power fluctuations are a common root cause of transducer signal drift. The 3300 XL I/O module terminal connections should be checked for corrosion, loose wiring, and correct shielding continuity — particularly in high-vibration or high-humidity environments.

For systems integrated with a DCS or safety instrumented system (SIS), verify that the 4-20mA output signal from the proximitor is correctly received at the marshalling cabinet and that any associated signal isolator or barrier (such as a Pepperl+Fuchs or MTL galvanic isolator) is within its service life. Relay output modules within the 3300 XL rack — including the 3300/55 Relay Module — should be tested for correct trip setpoint response after transducer replacement.

Communication integrity between the 3300 XL rack and the plant DCS (via Modbus RTU, FOUNDATION Fieldbus, or Profibus DP depending on site configuration) should be confirmed post-replacement. If the site uses a Bently Nevada System 1 Evolution software platform, re-commission the channel and verify that the gap voltage, direct vibration, and 1X/2X vector readings are within expected baseline ranges before returning the machine to service.

For aging installations where the 3300 XL rack itself is approaching end-of-life, consider stocking the 3300/20-XX-XX-XX-XX-XX dual-channel monitor card and the 3300/93 Termination Board as companion spares. Maintaining a minimum of one complete transducer set (probe + cable + proximitor) per critical machine train is a recognized best practice in ISO 13373-compliant vibration monitoring programs.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a valid work permit. Isolate the 3300 XL channel at the monitor rack. Do not remove the probe while the machine is running unless the system is configured for hot-swap and the site procedure explicitly permits it.

Step 2 — Gap Measurement: Before removing the old 330173-00-05-10-02-00, record the existing gap voltage (typically –10 VDC ±0.2 VDC for a correctly installed 8mm probe at nominal gap). This baseline is essential for verifying correct installation of the replacement unit.

Step 3 — Probe Removal: Carefully unthread the probe from the bracket. Inspect the probe tip for physical damage, contamination, or corrosion. Inspect the extension cable connector and proximitor input connector for pin damage or moisture ingress.

Step 4 — Replacement Installation: Install the new 330173-00-05-10-02-00 to the correct gap distance per the Bently Nevada installation drawing for the specific machine. Reconnect the extension cable. Verify cable routing avoids mechanical contact with rotating components.

Step 5 — Commissioning Verification: Power the proximitor and confirm gap voltage is within the linear range. Check direct vibration reading at slow-roll speed. Confirm alarm and danger setpoints are active in the monitor. Document the as-left gap voltage in the maintenance record.

Step 6 — System 1 / DCS Confirmation: Verify the channel is communicating correctly with the plant monitoring system. Clear any latched alarms. Return the machine to service only after all readings are confirmed stable and within normal operating range.

This workflow applies equally when upgrading from an older 330173 series probe to the current 330173-00-05-10-02-00 configuration, ensuring backward compatibility within the 3300 XL measurement chain without requiring monitor reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330173-00-05-10-02-00 a direct drop-in replacement for other 330173 suffix variants?
Each suffix segment in the Bently Nevada 330173 part number encodes probe length, cable length, and connector type. The 330173-00-05-10-02-00 is not universally interchangeable with other suffix variants. Always verify the full part number against the original installation drawing or the existing probe label before ordering. If you are unsure, contact our technical team with your machine tag and existing gap voltage data.

Q2: What is included in the 12-month warranty?
All units shipped carry a 12-month warranty from the date of shipment covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims require the original invoice and a description of the failure mode. Physical damage caused by incorrect installation or mechanical impact is excluded.

Q3: Can this part be used in a safety instrumented system (SIS) application?
The 330173-00-05-10-02-00 is a Bently Nevada original component and is suitable for use in SIS-adjacent vibration monitoring applications where the 3300 XL system is the designated sensor. For SIL-rated applications, confirm the system-level SIL assessment with your functional safety engineer. We supply the original part; SIL certification documentation should be sourced from Bently Nevada / Baker Hughes directly.

Q4: What is your lead time and do you maintain stock?
We maintain ready stock of the 330173-00-05-10-02-00 for immediate dispatch. Standard lead time for in-stock units is 3–7 business days internationally. For urgent shutdown situations, expedited shipping options are available. Contact sales@smartnexmsk.com or +86 18259474341 to confirm current stock status and arrange priority dispatch.
