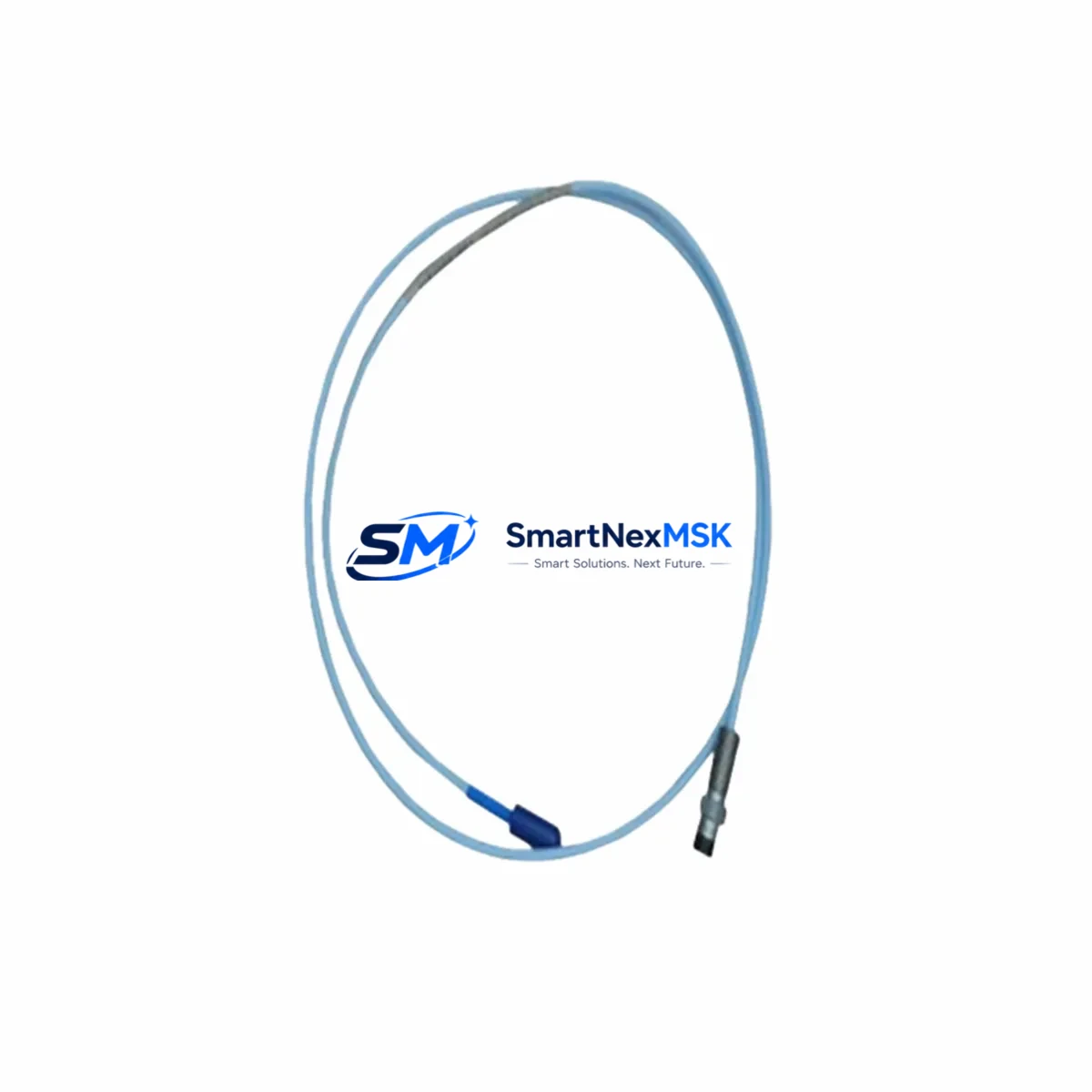

Bently Nevada 330173-00-09-10-02-CN 3300 XL Proximitor

Bently Nevada 330173-00-09-10-02-CN: Retrofit-Ready 3300 XL Proximitor Sensor for Legacy Vibration Monitoring Systems

The Bently Nevada 330173-00-09-10-02-CN is a high-precision eddy-current Proximitor Sensor engineered for the 3300 XL Series vibration monitoring platform. Designed as a retrofit-ready, drop-in replacement for discontinued or end-of-life units, this module enables industrial facilities to extend the operational life of their existing 3300 XL monitoring infrastructure without requiring a full system overhaul. Whether you are managing a turbine protection loop, a compressor train, or a rotating machinery health monitoring cabinet, the 330173-00-09-10-02-CN delivers the signal conditioning accuracy and mechanical compatibility your legacy system demands.

This Proximitor Sensor operates within the standard Bently Nevada 3300 XL signal chain, accepting input from a paired 3300 XL proximity probe and extension cable assembly. The output is a DC voltage proportional to the gap between the probe tip and the observed shaft surface, making it directly compatible with existing 3300 XL monitor cards such as the 3300/16 Dual Voting, 3300/20 Radial Vibration Monitor, and 3300/46 Thrust Position Monitor. No firmware changes or recalibration of the monitor rack are required when replacing a like-for-like 330173-series Proximitor.

Each unit is pre-tested against Bently Nevada factory output specifications before shipment. Our quality control process includes gap voltage linearity verification, frequency response validation, and thermal stability checks. All units ship with a 12-month warranty covering manufacturing defects and signal performance deviations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Proximitor Sensor within an active 3300 XL monitoring loop requires careful coordination across several system layers. Before removing the existing 330173-series unit, maintenance engineers should document the current gap voltage readings at each measurement point — typically radial vibration X/Y and axial thrust — using the front-panel indicators on the associated 3300/20 Radial Vibration Monitor or 3300/46 Thrust Position Monitor. These baseline readings serve as the acceptance criteria for post-installation verification.

The power supply feeding the Proximitor must be confirmed at -24 VDC before installation. In older control cabinets, the 3300 XL Power Supply module (such as the 3300/15 or 3300/05 rack power unit) may be operating near its rated output capacity if additional I/O modules or communication cards have been added over time. Confirm available headroom before adding or swapping Proximitor units in a shared rack.

Wiring continuity between the 330173-00-09-10-02-CN and the extension cable assembly is critical. The extension cable — typically a 3300 XL-compatible coaxial assembly rated for the probe-to-Proximitor distance — must be inspected for connector wear, shield integrity, and correct impedance matching. A damaged or mismatched extension cable is a common source of erratic gap voltage readings after a Proximitor swap.

For facilities running Bently Nevada System 1 condition monitoring software, the channel configuration associated with the replaced Proximitor should be reviewed in the System 1 database. Transducer scale factors, full-scale ranges, and alarm setpoints are stored at the software level and are not affected by a hardware swap — but confirming these values before returning the machine to service is considered best practice. If the monitoring system is integrated with a DCS via a 3500/92 Communication Gateway or a Modbus TCP interface card, verify that the data mapping for the affected channel remains intact after the replacement.

In multi-rack installations where the 3300 XL system shares a control cabinet with other Bently Nevada hardware — such as the 3500 Series rack, a 3300/95 Display Interface Module, or a 3300/50 Keyphasor Module — ensure that the replacement activity does not inadvertently interrupt power or ground references shared across racks. Labeling terminal blocks and photographing existing wiring before disconnection is strongly recommended.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement is achievable with structured pre-work. The most effective approach is to pre-configure and bench-test the replacement 330173-00-09-10-02-CN unit before the maintenance window opens. Using a calibrated gap simulator or a reference target block, verify the output voltage linearity across the full measurement range. This confirms the unit is within specification before it enters the field, eliminating the risk of discovering a faulty replacement during a live outage.

During the swap, the associated monitor channel will typically enter a fault or bypass state. If the 3300 XL system is configured for voting logic — for example, a 2-out-of-3 radial vibration trip — confirm with the control room that the voting configuration can tolerate a single-channel bypass without triggering a spurious machine trip. Coordinate with the DCS operator to place the affected channel in maintenance bypass before disconnecting the Proximitor.

After installation, restore the channel from bypass and observe the gap voltage stabilization. Allow 5–10 minutes for thermal equilibration before recording final gap readings. Compare against the pre-removal baseline. If the readings are within ±0.5 VDC of the original values, the replacement is considered successful. Document the as-found and as-left gap voltages in the maintenance record, and update the System 1 or historian database with the replacement date and unit serial number.

For facilities with strict change management requirements, the entire replacement procedure — from bypass initiation to final gap verification — can typically be completed within a 2–4 hour maintenance window, provided the replacement unit has been pre-tested and all tools and documentation are staged in advance.

Retrofit Support FAQ

Q: Is the 330173-00-09-10-02-CN a direct replacement for earlier 330173-series suffixes?
A: The -CN suffix designates the connector type on the Proximitor housing. In most 3300 XL installations, the -CN variant is interchangeable with earlier suffix variants provided the mating extension cable connector matches. Always verify the connector style on the existing extension cable before ordering. If in doubt, contact our technical team with your existing part number and we will confirm compatibility.

Q: Does replacing the Proximitor require recalibration of the 3300 XL monitor card?
A: A like-for-like 330173-series replacement does not require recalibration of the monitor card. The transducer scale factor and measurement range are determined by the probe system (probe + extension cable + Proximitor combination) and are stored in the monitor configuration. However, gap voltage verification at the installation point is always required after replacement to confirm the new unit is operating within the expected range.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and signal performance deviations from published Bently Nevada 3300 XL Proximitor specifications. It does not cover damage resulting from incorrect installation, mismatched probe systems, overvoltage conditions, or physical damage. Warranty claims are processed with return shipment to our facility for inspection and testing.

Q: Do you provide pre-shipment testing documentation?
A: Yes. Each 330173-00-09-10-02-CN unit undergoes gap voltage linearity testing and frequency response verification before shipment. A test report is available upon request. Units are shipped in anti-static packaging with connector protection caps installed.
